Description

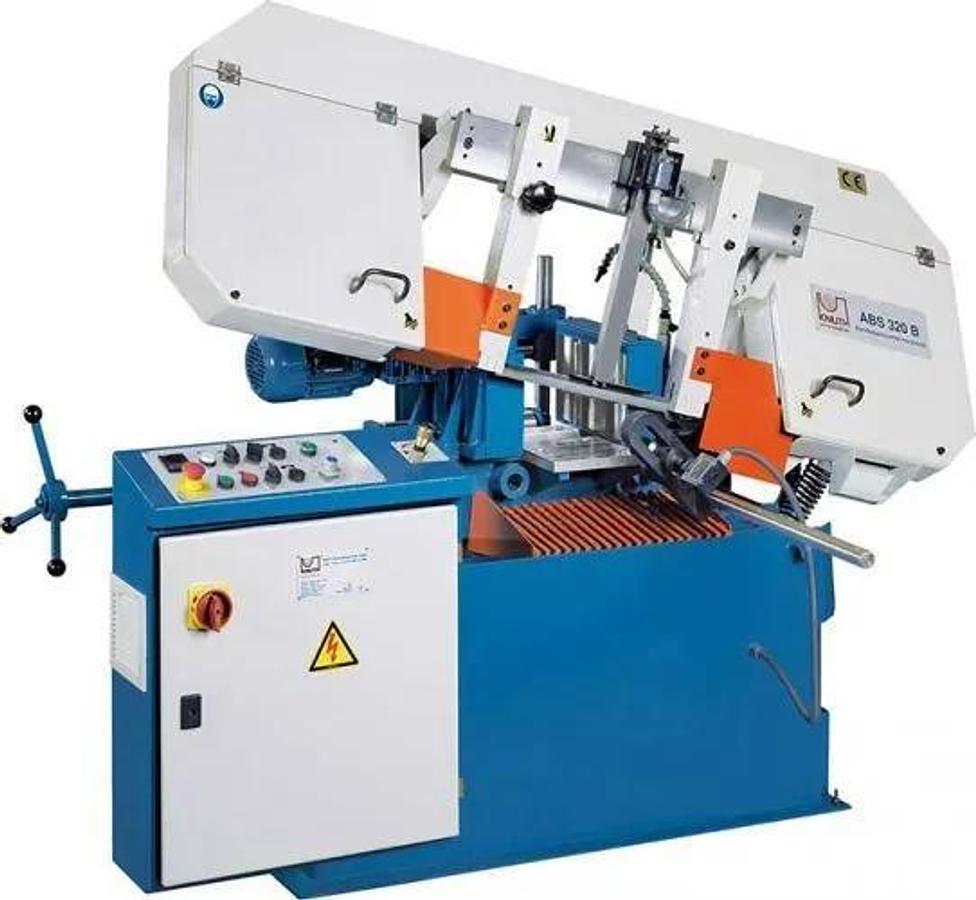

KNUTH Twin Column, Fully Automatic Bandsaw Model ABS 320 PLC
• Saw frame and machine bed are made of premium cast-iron for torsion-free performance even under maximum loads
• New helical gears ensure above-average service life and low maintenance
• Saw frame feed and cutting speed are infinitely variable

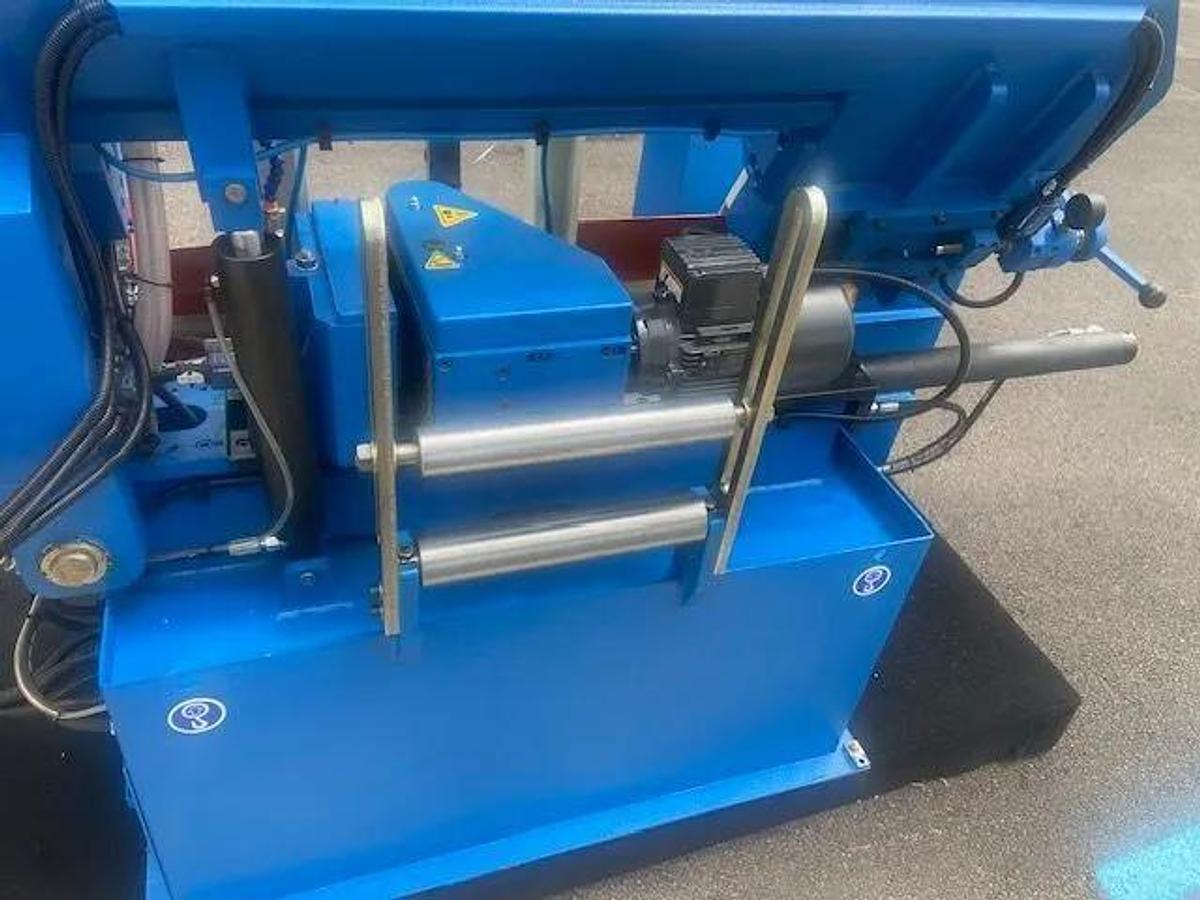

- Reliable roller feed system with hydraulic workpiece clamping
automatic band break control
bundle vise
coolant system
operating tools
saw- band blade
chip wiper
feed roller table 47"
operator instructions
Specifications ABS 320 B
Cutting capacity - circular in 13
Cutting capacity - square in 12
Cutting capacity - rectangular in 13x8
Cutting speed fpm 65.4 - 327
Motor rating main drive HP 3
Blade dimensions in 144.09x1.06x0.035
Weight lbs 1,452
Part No. 152755
Specifications
| Manufacturer | KNUTH |
| Model | ABS 320 PLC |
| Year | 2025 |
| Condition | New |
| Stock Number | 22170 |
| Status | For Sale |
| Rect-Cap (H) | 13"; 330.2 mm |
| Rect-Cap (W) | 12"; 304.8 mm |
| Rounds-Cap | 13"; 330.2 mm |
| Square-Cap | 12"; 304.8 mm |
| Power | 2 hp; 1.5 kW |
| Blade Width | 1"; 25.4 mm |
| Blade Thickness | 0.042"; 1.0668 mm |
| Blade Length | 144"; 3,657.6 mm |
| Weight | 1,452 lbs; 1,452 lbs |
