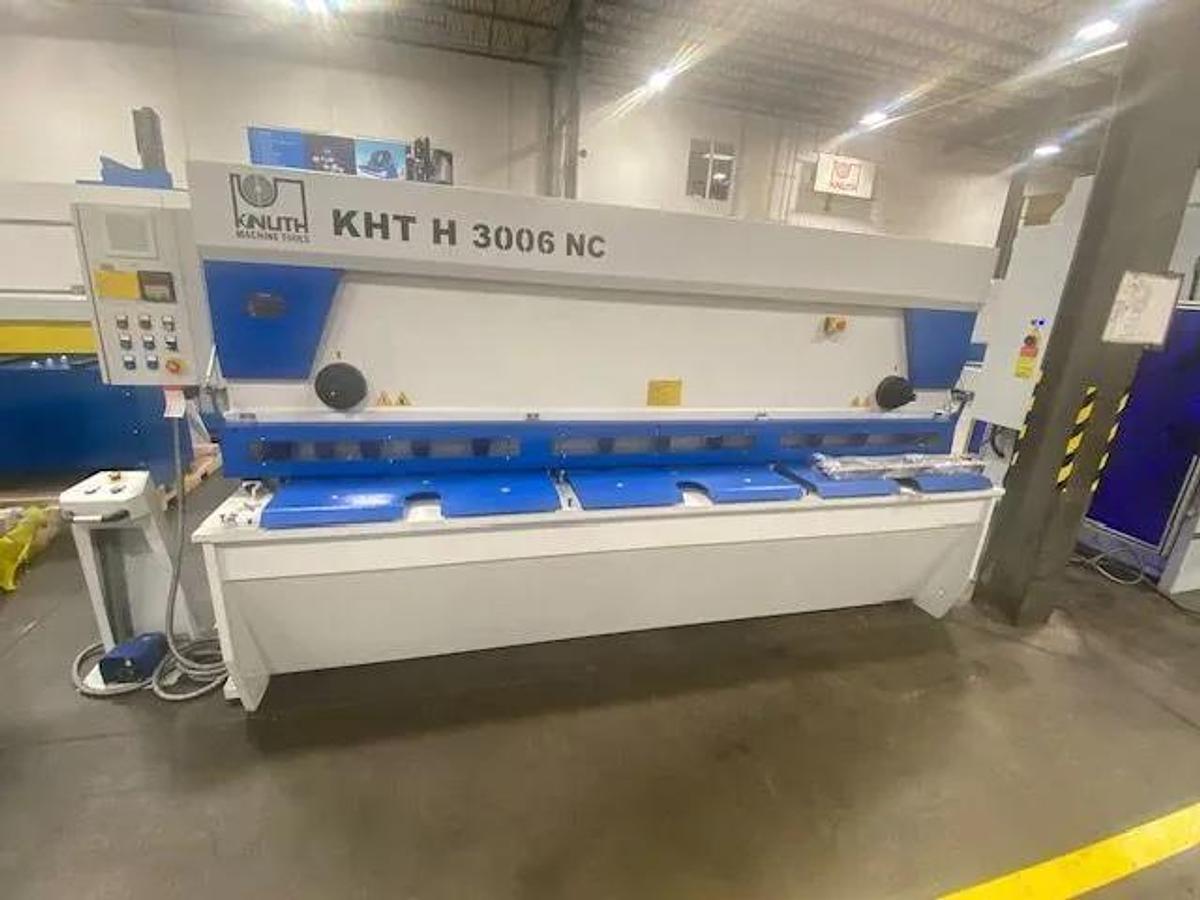

2025 KNUTH Model KHT H 3006 NC Power Squaring Shear, 1/4" x 10 feet

2025 KNUTH Model KHT H 3006 NC Power Squaring Shear,1/4" x 10 feet The new KHT H NC series features high machining quality and reliability, is easy to handle and provides superior cutting performance Machine Frame: The machine frame is made of a high-precision, stress-relieved steel weldment and features rigid sliding block guides Motorized adjustments of kerf and knife angle allow for ideal settings optimized for the sheet metal plate to be processed All components were treated in a modern paint and drying system and feature two coats of paint, each coat with a minimum thickness of 60 micron Material Support: The large work table features roller balls and a rigid lateral angular stop for easy handling and safe plate alignment Long, sturdy support arms safely hold large plates Hydraulics: Polished pistons on both hydraulic cylinders feature superior 2 micron surface grades, ensuring a long seal life Cylinder bodies are forged from high-strength SAE 1040 material During the cut, hydraulically regulated hold-downs ensure steady fixation of the sheet metal plate close to the cut-line Back Gauge and Control: Linear guides and preloaded ball screws are mounted in a protective enclosure The user-friendly NC positions the back gauge precisely for single cuts or for program runs Equipment: Upper and lower knives suitable for stainless steel The machine is operated via a foot pedal with emergency stop switch, and the pedal can be located wherever it is most convenient The upper knife features 2 cutting edges, the lower knife has 4 cutting edges Safety: Safety concept based on the latest CE standards Guillotine shears allow you to produce uniform and relatively burr-free sections of sheet metal or metal, which are then shaped on a press brake or bending machine. In the case of hydraulic guillotine shears, our CNC model includes an adjustable cutting angle. Motorized guillotine shears feature an impressive compact design and robust construction. Both series cut large material widths and thicknesses and are available with NC or CNC control. A manual guillotine shear rounds off our offer. BRL 401.2 NC control unit Motorized kerf adjustment Controlled backgauge Finger guard Shadow light cutting line Support arms Foot pedal Standard upper and lower knife Operator instructions Motorized cut angle adjustment Working Area Plate thickness (max.) 0.24 in Working length 121 in Cutting angle 0.3 deg - 2 deg Hold-down 13 positions Hold-down capacity 17.6 t Back Gauge Rear stop 39 in Feed speed X-axis 3.9 in/min Front Support Arms Number of support arms 3 positions Length of support arms 35 in Drive Capacity Motor rating main drive 14.8 Hp Hydraulic tank volume 42 gal Measures and Weights Overall dimensions (length x width x height) 151 in x 111 in x 78 in Weight 15400 lbs
