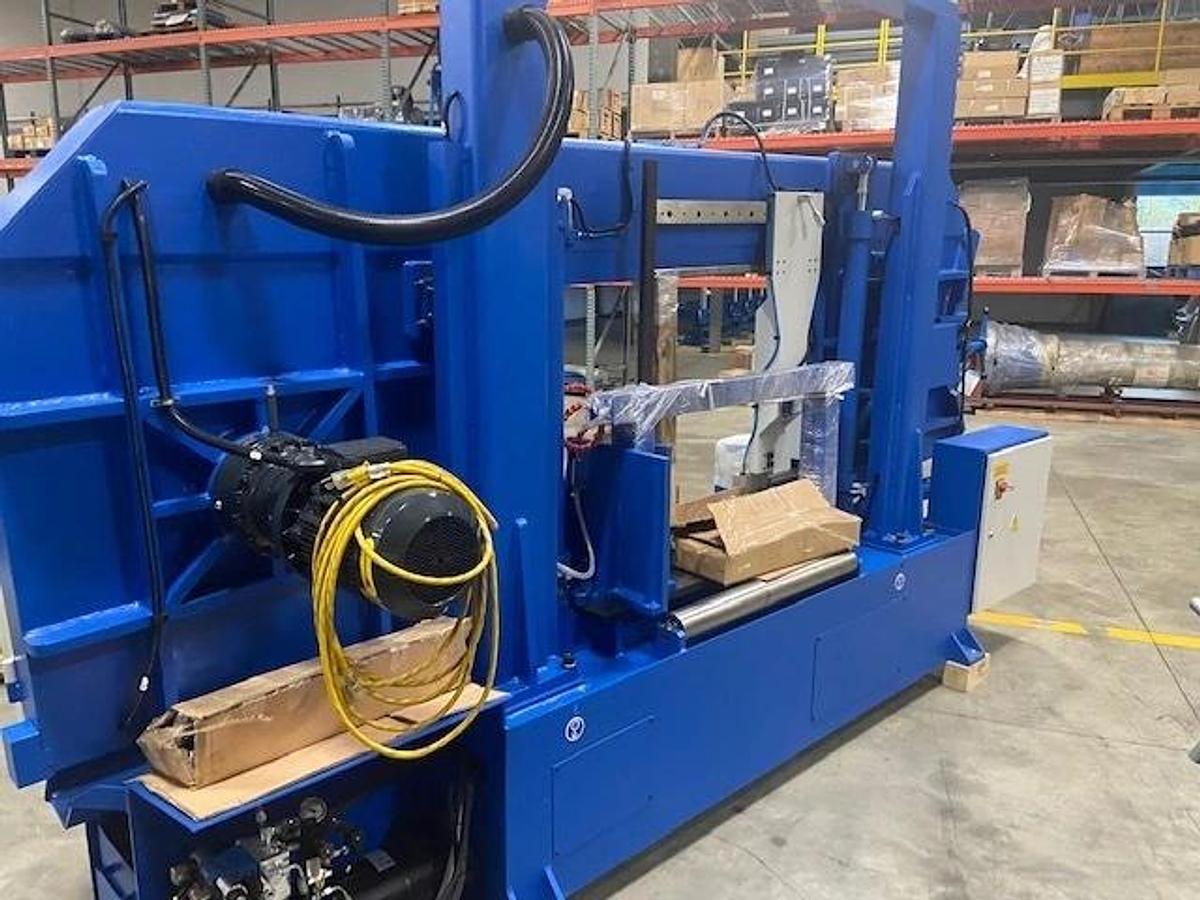

KNUTH MODEL HB 810 L Horizontal Bandsaw 32" x 33.5" Turkish builder, 45 degree miter

KNUTH MODEL HB 810 L Horizontal Bandsaw 32" x 33.5" Turkish builder, 45 degree miter Double column design with linear guide Semi-automatic operation Automatic stroke height adjustment with optical sensor 45° swiveling vise for miter cutting Short setup time for machine and workpiece NEW with linear guide technology! Saw with the highest precision, where others meet their limits! High performance band saw for very large workpieces. For precise sawing of sections and solid material like steel, aluminum and other material. Every model of this series provides infinitely variable cutting speeds from 66 to 328 ft/min. Powerful, low-maintenance motors for high reliability. Hydraulic workpiece clamping is now standard equipment on all models. Pressure gauge ensures correct saw blade tension for increased blade life and lower cost. Removable coolant reservoir for simplified maintenance. Torsion-proof steel construction with dual-column guide – rigid and vibration absorbing. The saw frame features a mono-frame design for travel across large linear guides. Advanced hydraulic saw frame feed with new pressure regulating system (PAS) allows optimum adjustment for every sawing task: infinitely variable feed speed and cutting power control provide a wide spectrum of machining possibilities with just one saw blade type. The control valve features identifications and labeling for sheets, solid materials and various other material types to provide maximum user-friendly handling. The automatic saw blade guiding system synchronizes the band saw guide according to material cross-section. Optical registration of the workpiece height allows fully automated empty runs in rapid feed mode for a timely optimum change-over to work feed as well as limiting the vertical saw frame travel and keeping down-times to a minimum. With linear guide technology! Torsion-proof steel construction with dual-column guide – rigid and vibration absorbing The saw frame features a mono-frame design for travel across large linear guides Advanced hydraulic saw frame feed with new pressure regulating system (PAS) allows optimum adjustment for every sawing task: infinitely variable feed speed and cutting power control provide a wide spectrum of machining possibilities with just one saw blade type The control valve features identifications and labeling for sheets, solid materials, and various other material types to provide maximum user-friendly handling Optical registration of the workpiece height allows fully automated empty runs in rapid feed mode for a timely optimum change-over to work feed as well as limiting the vertical saw frame travel and keeping down-times to a minimum Standard Equipment Feed roller table 1 m Bimetallic band saw blade Hydraulic workpiece clamping Hydraulic part clamping Automatic stroke height adjustment PAS system Coolant system Operator instructions operator manual Options 251837 – 3 meter roller table for HB 810 L 119895 – Bi-Metallic Bandsaw Blade (3/4 T/") 119896 – Bi-Metallic Bandsaw Blade (4/6 T/") 119897 – Bi-Metallic Bandsaw Blade (5/8 T/") 103184 – Coolant Concentrate 5 Ltr. 251838 – Motorized 3 meter roller table for HB 810 L 251835 – Hydraulic top clamping for HB 810 L 251840 – Turn Table for HB 810 L 257421 – 3 m Feed Roller Table with linear stop and digital display for HB 810 L 257422 – 6m Feed Roller Table with linear stop and digital display for HB 810 L 253893 – Chip conveyor for HB 810 L 253896 – Hydraulic saw blade tensioning for HB 810 L 253719 – Minimum quantity cooling 253753 – Laser pointer 253899 – Clamping force controlled at operator panel Warranty: Standard (12) months new machine warranty, one shift operation (2,000 hrs). Warranty commences upon delivery of machine. Consumables and operator misuse are excluded. Any damage to machine as a result from incorrect setup, misuse, negligence, poor maintenance, or other circumstances beyond our control is not covered under warranty. Cutting capacities cutting capacity 90° (flat) 32 x 33.5 in. cutting capacity 90° (round) 32 in. cutting capacity 90° (square) 32 in. cutting capacity 45° (flat) 19 x 33.5 in. cutting capacity 45° (round) 32 in. cutting capacity 45° (square) 32 in. cutting speed 65-328 ft/min – infinitely variable Drive capacity motor rating main drive 5.4 HP motor rating hydraulic pump 2 HP motor rating coolant pump 0.2 HP voltage 440v,3ph,60Hz Measures and weights blade dimensions 323x1.61x0.05 in. overall dimensions 154 x 47x 93 in. weight 5,060 lbs
