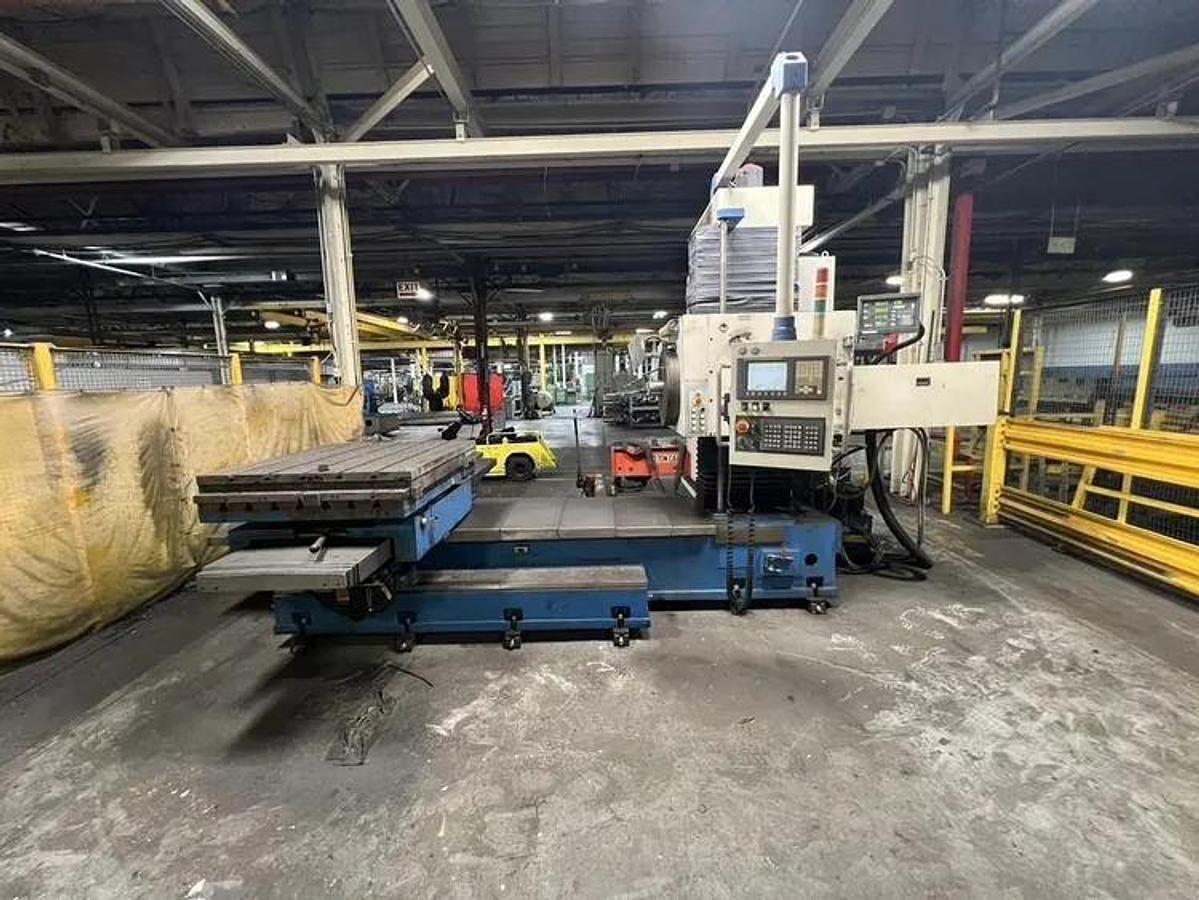

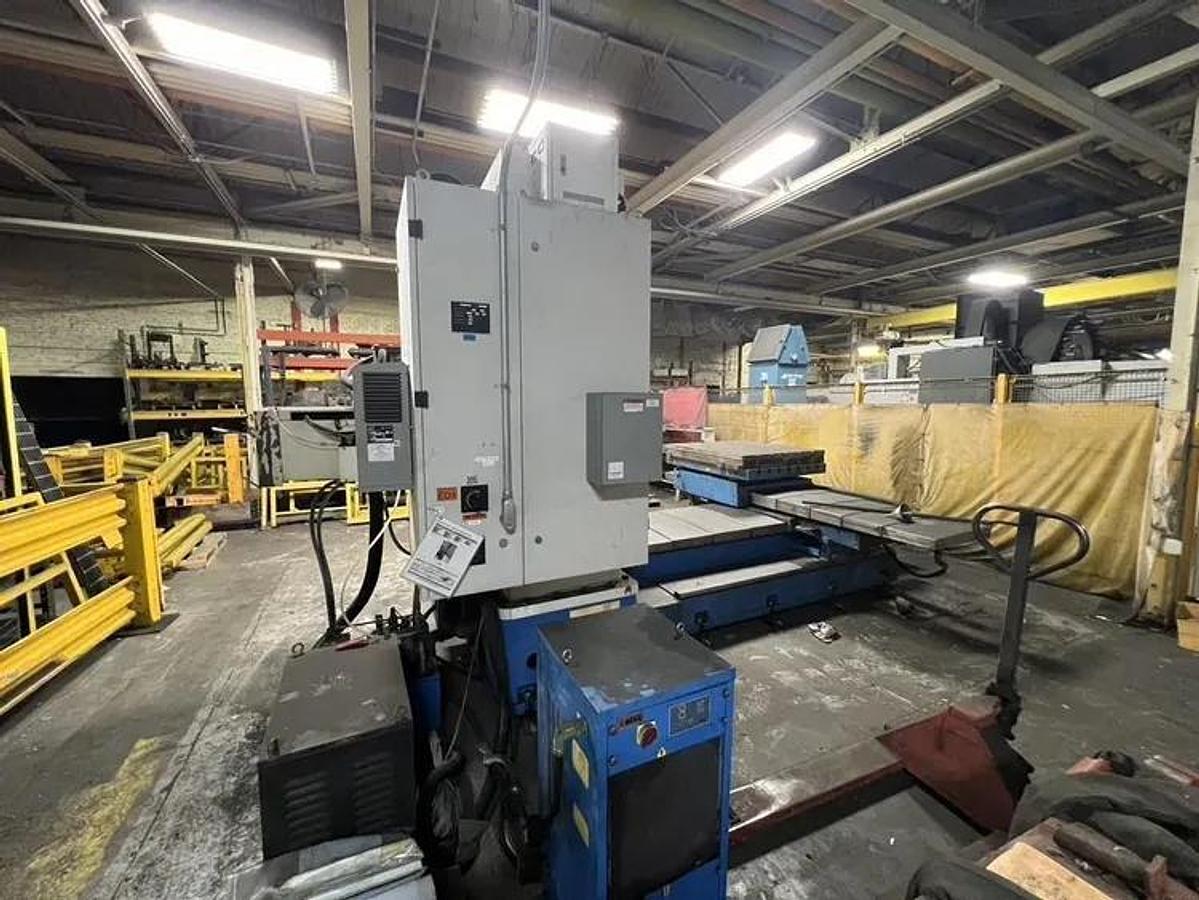

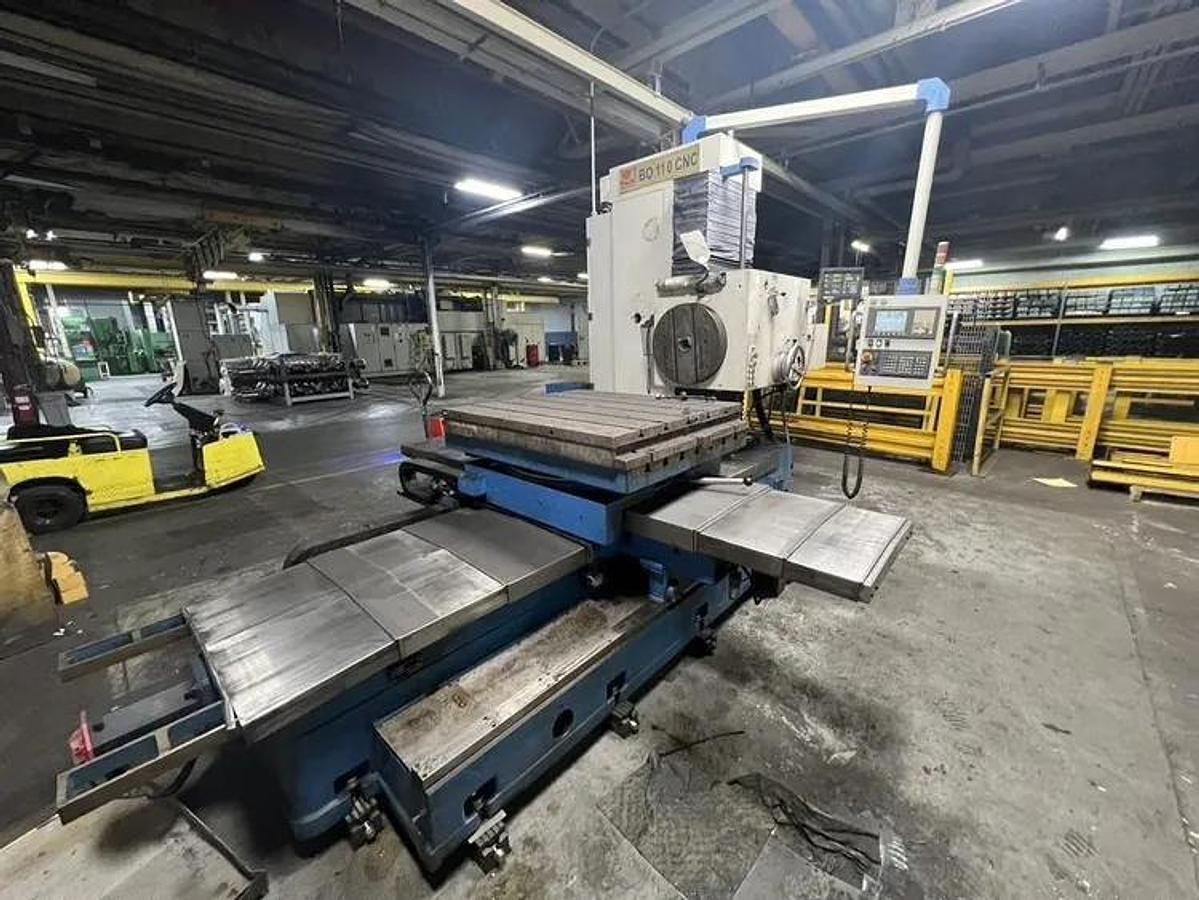

2009 KNUTH Model BO 110 CNC Horizontal Boring Mill 4.33" Spindle Dia., Table 43" x 38"

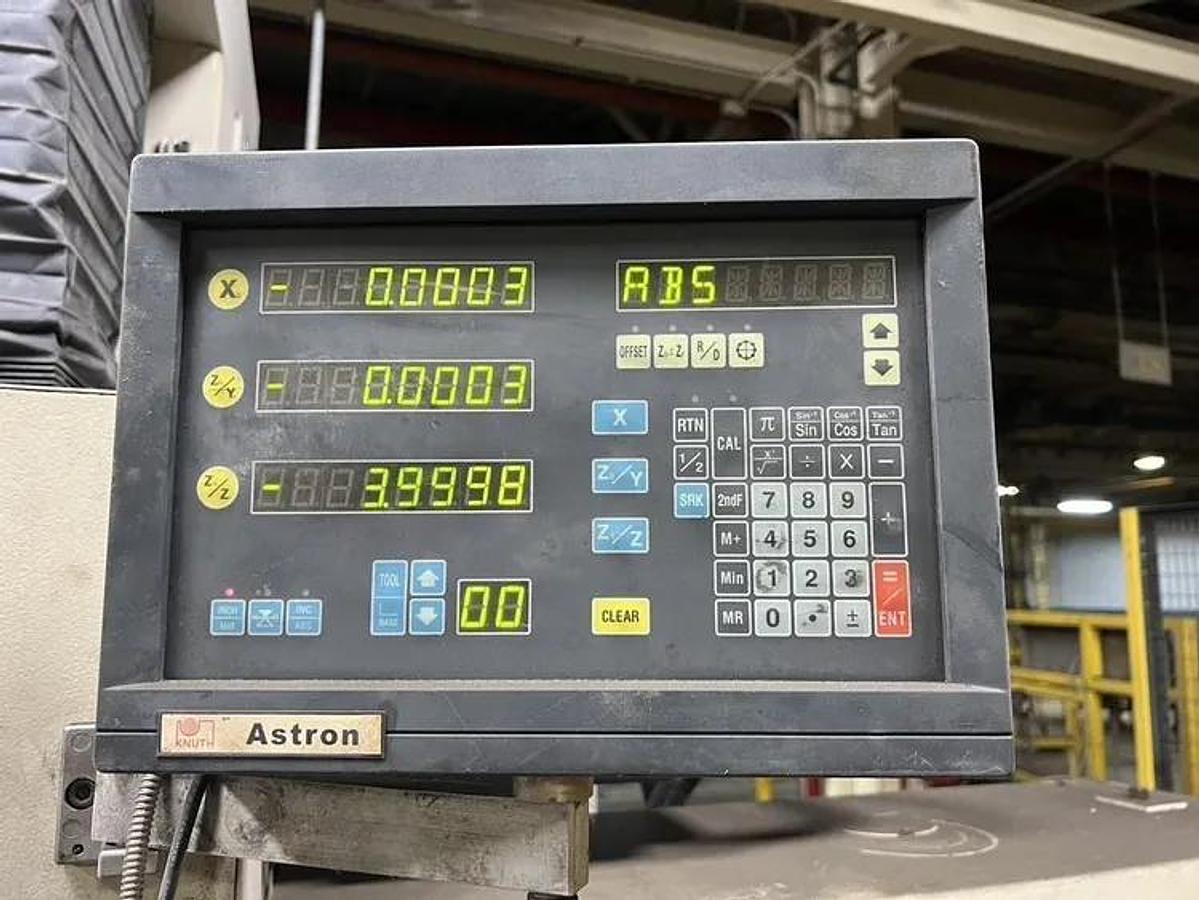

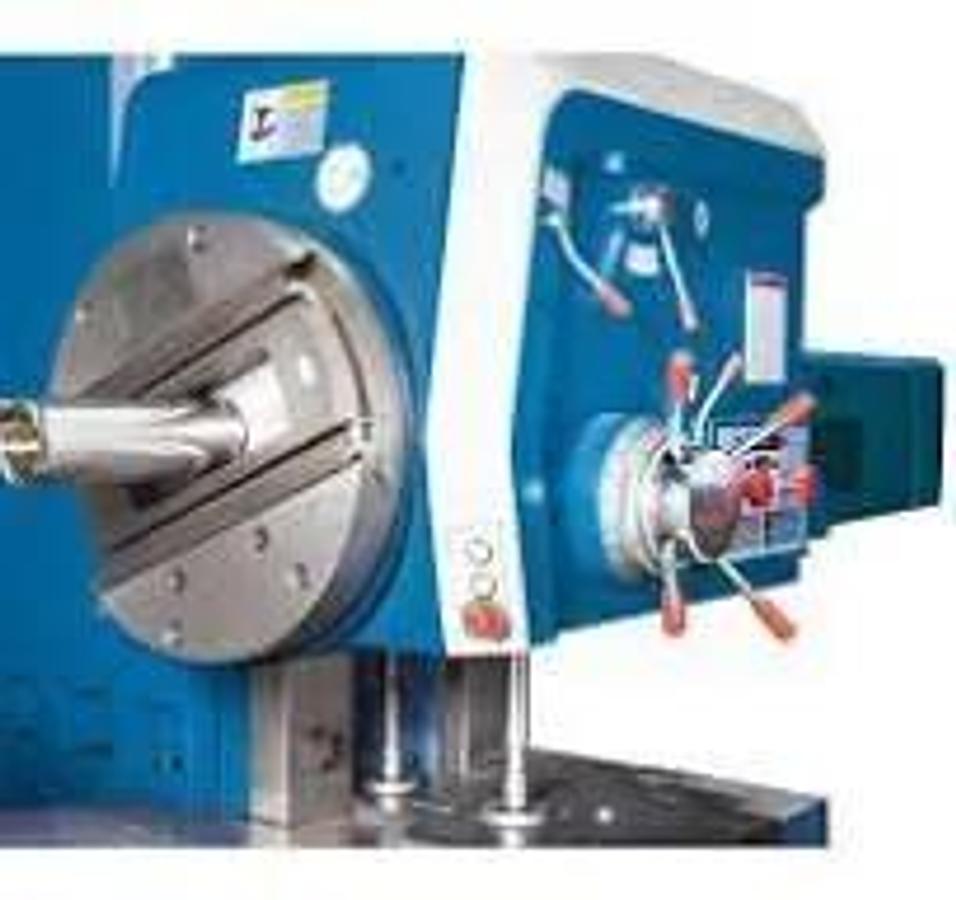

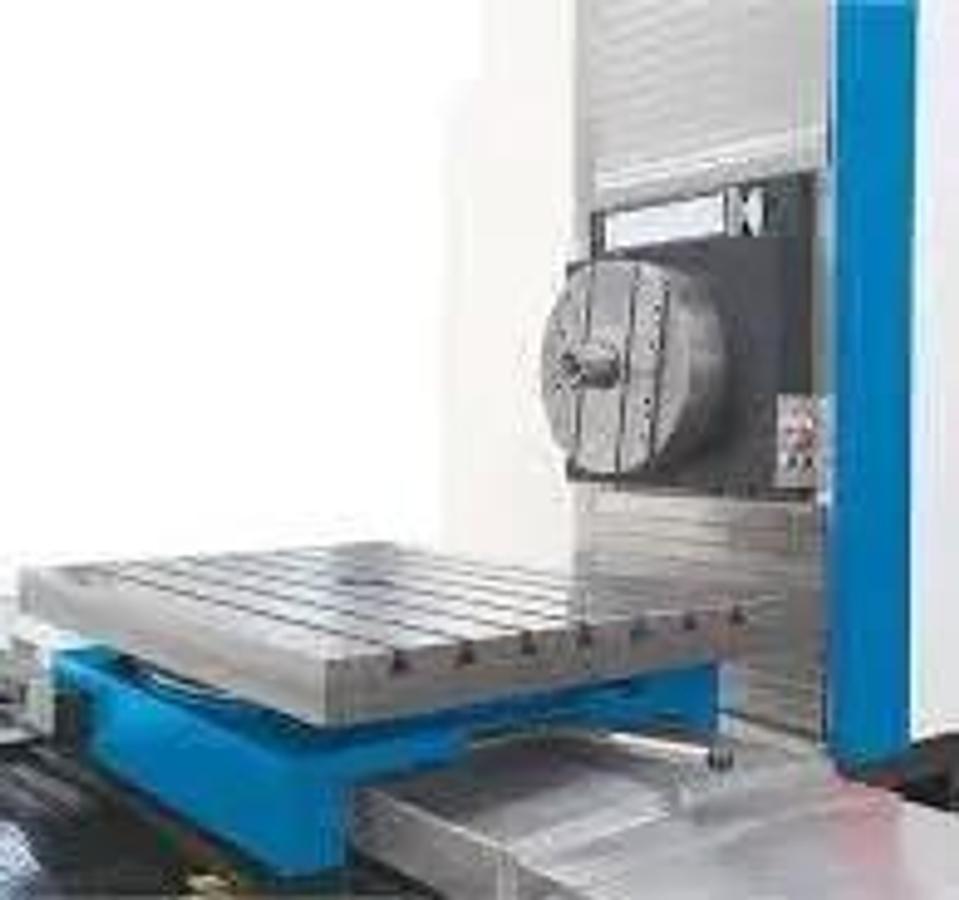

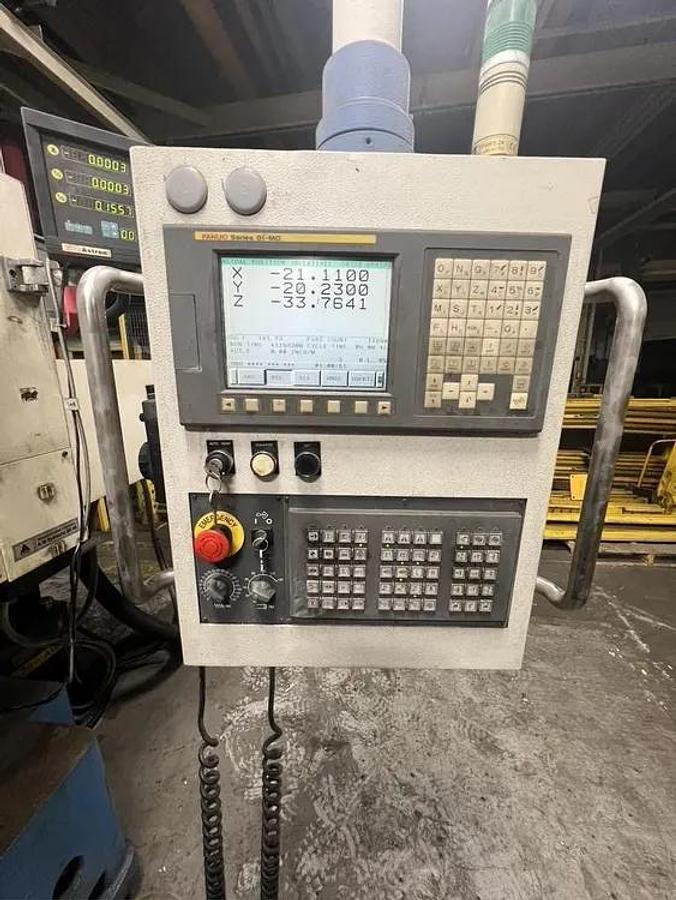

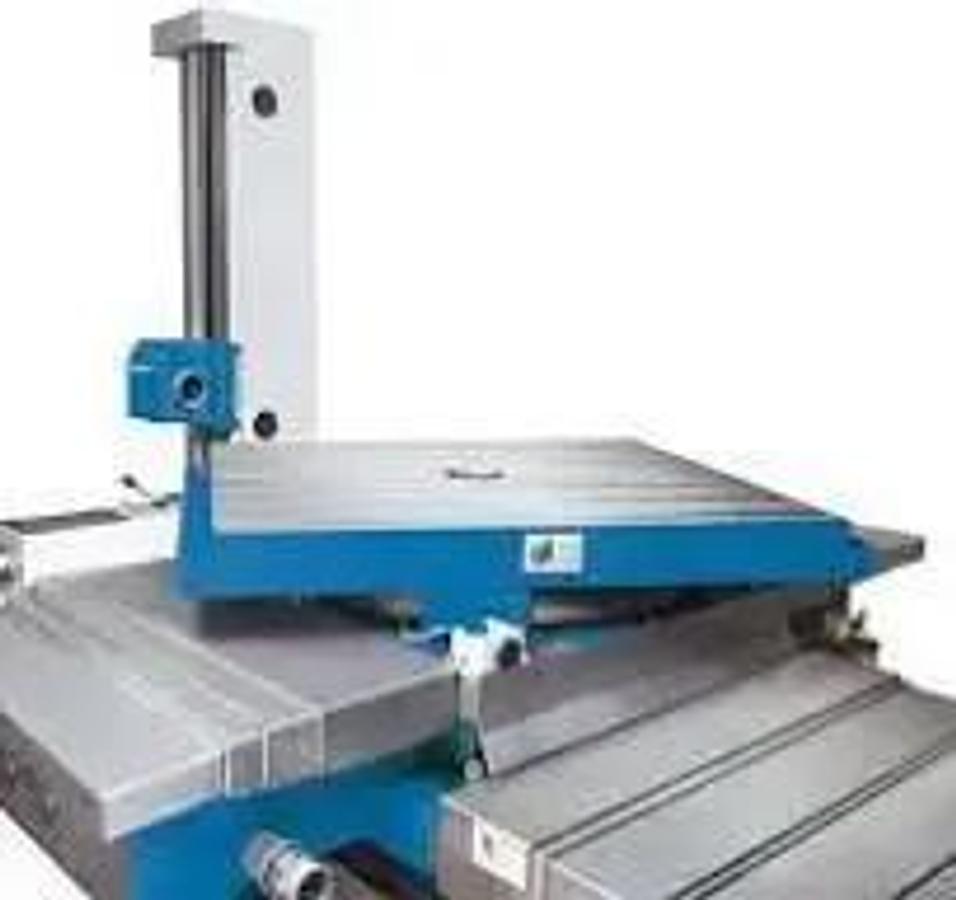

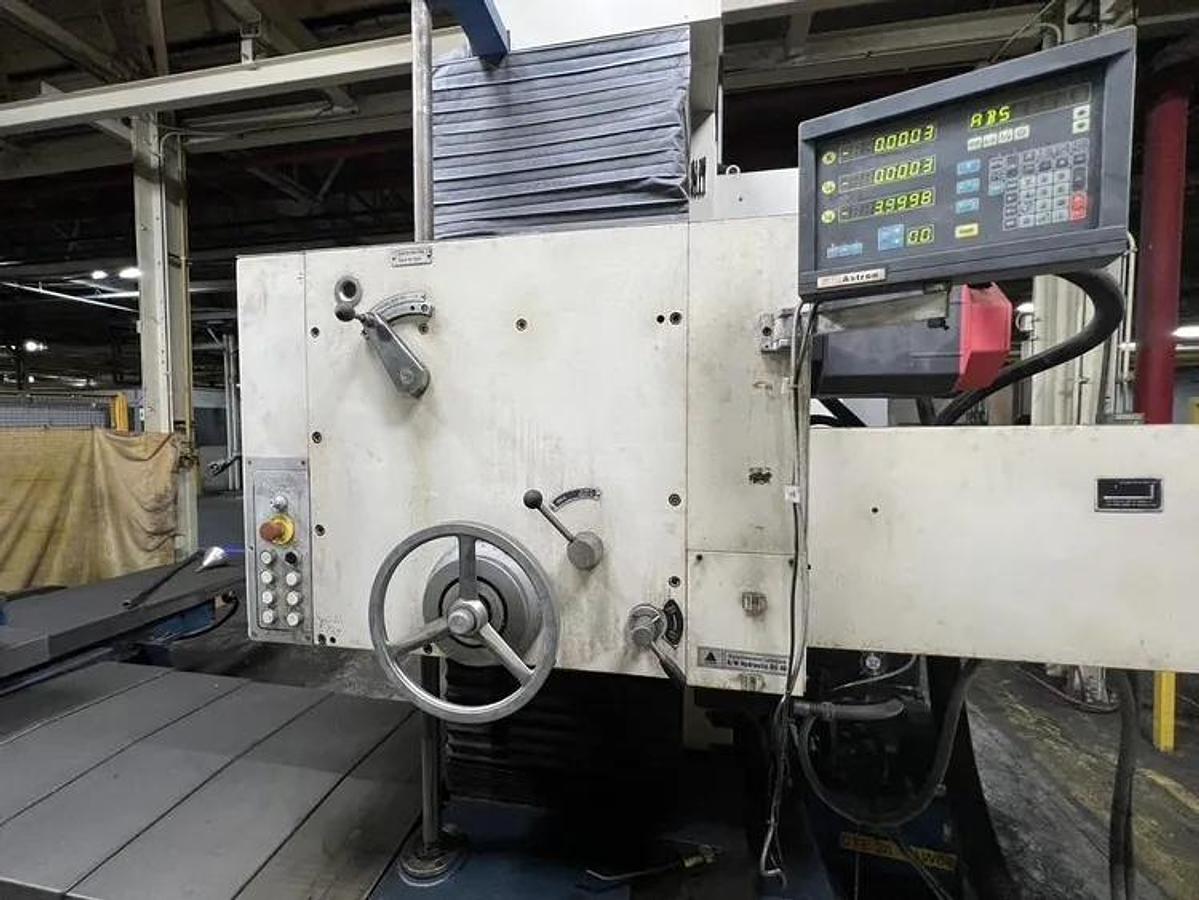

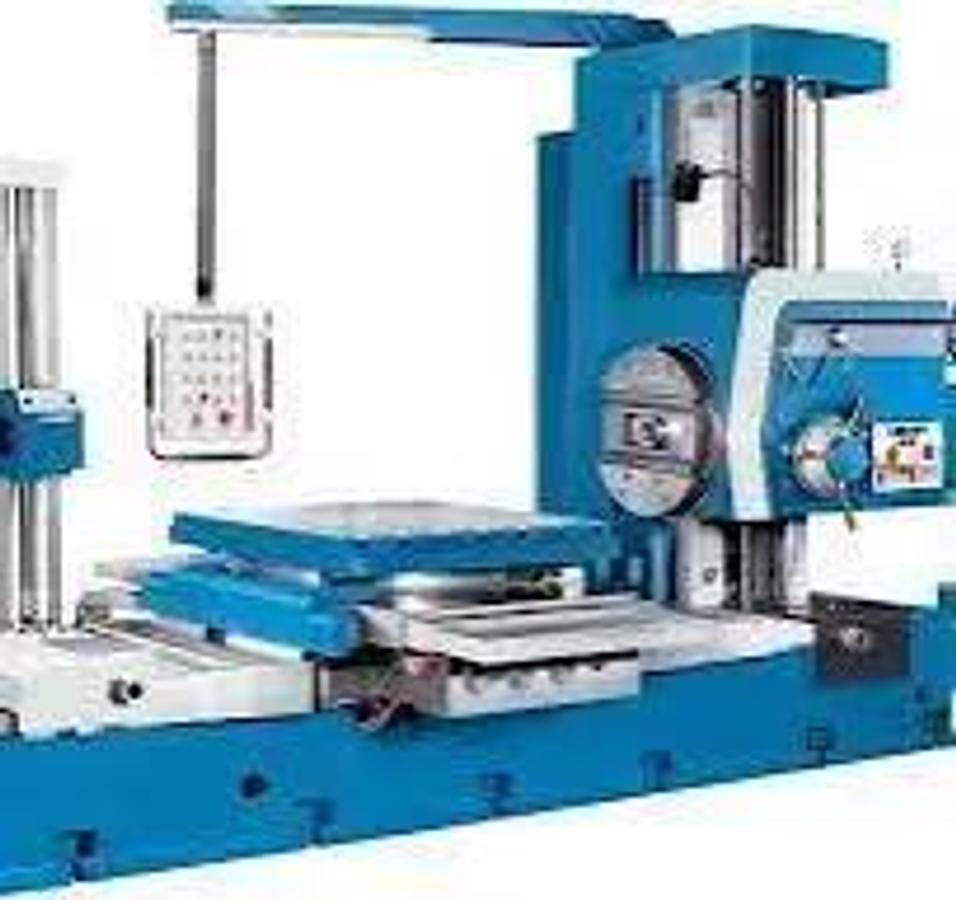

2009 KNUTH Model BO 110 CNC Horizontal Boring Mill 4.33" Spindle Dia., Table 43" x 38" 4.33" KNUTH CNC BORING BAR W/ FANUC Oi-MC CONTROL, NEW IN 2009, 42" X 48" TABLE, 47" X 35" X 51" TRAVELS, 1100 RPM, FACING HEAD, 50 TAPER, Table load Cap. 22,000 lbs The BO series of conventional boring-milling machines is designed for horizontal, multi-sided drilling and milling of workpiece weights of up to 2.5 tons. The stand is fixed, while the table can move and rotate 360​​°. The drill head moves on the column and the spindle has a long stroke on the W-axis. Conventional boring mills also have a facing slide with a long stroke, which extends the application to include boring. High drive power and automatic feeds on all axes with rapid traverse enable efficient machining and short non-productive times. Large work area with W-axis and facing slide head Thread cutting unit Rotatable clamping table with sighting device for 4 positions z(manual) Telescoping stainless steel covers on all guides 3 Position indicator Alignment Wedges Central Lube Work Lamp Operator's Working Area Drilling capacity 1.97 in Table set up area 43 in x 38 in Table load capacity 5500 lbs Table rotation range 4 x 90° Spindle axis-to-table surface distance 0 in - 35.43 in Rotation speed of rotary table 1 rpm Travels Travel X 35.4 in Travel Y 35 in Travel Z 35 in Travel W 24 in Facing slide travel 7 in Headstock Speed range 8 rpm - 1000 rpm Spindle diameter 4 in Spindle torque (max.) 904 ft.lb. Spindle mount Taper 50 Facing slide speed 4 rpm - 200 rpm Feed force, axial (max.) 12.25 kN Facing slide torque (max.) 1445.62 ft.lb Rapid Feed Rapid feed X-axis 98.43 in/min Rapid feed Y-axis 98.43 in/min Rapid feed W-axis 98 in/min Feed Feed X-axis 0.00039 in/R - 0.23622 in/R Feed Y-axis 0.00039 in/R - 0.23622 in/R Feed Z-axis 0.00039 in/R - 0.23622 in/R Feed W-axis 0.00039 in/R - 0.23622 in/R Facing slide feed 0.003 in/min - 0.472 in/min Accuracies Read-out accuracy (optic) 0.0004 in Counter-bore accuracy H7 Ra-1.6 µm Drive Capacity Motor rating main drive 10.1 HP Motor rating hydraulic pump 0.5 HP Measures and Weights Overall dimensions (L x W x H) 193 in x 97 in x 109 in Weight 25300 lbs
