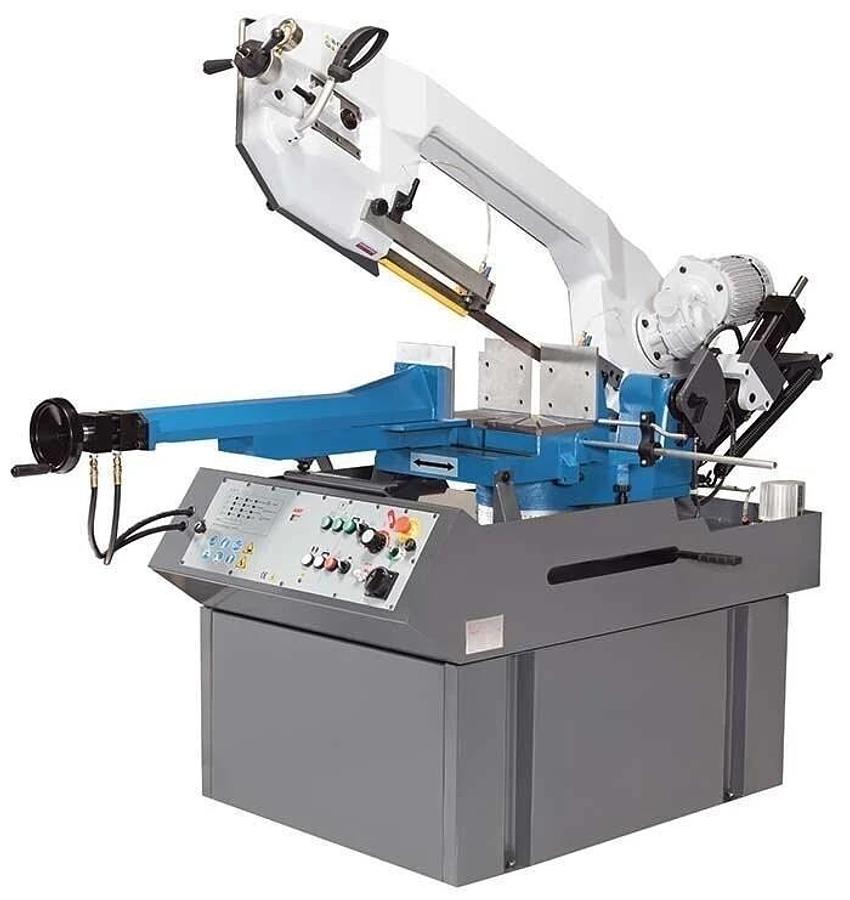

KNUTH Double Mitering Horizontal Bandsaw Model SBS 355 14" Round Capacity

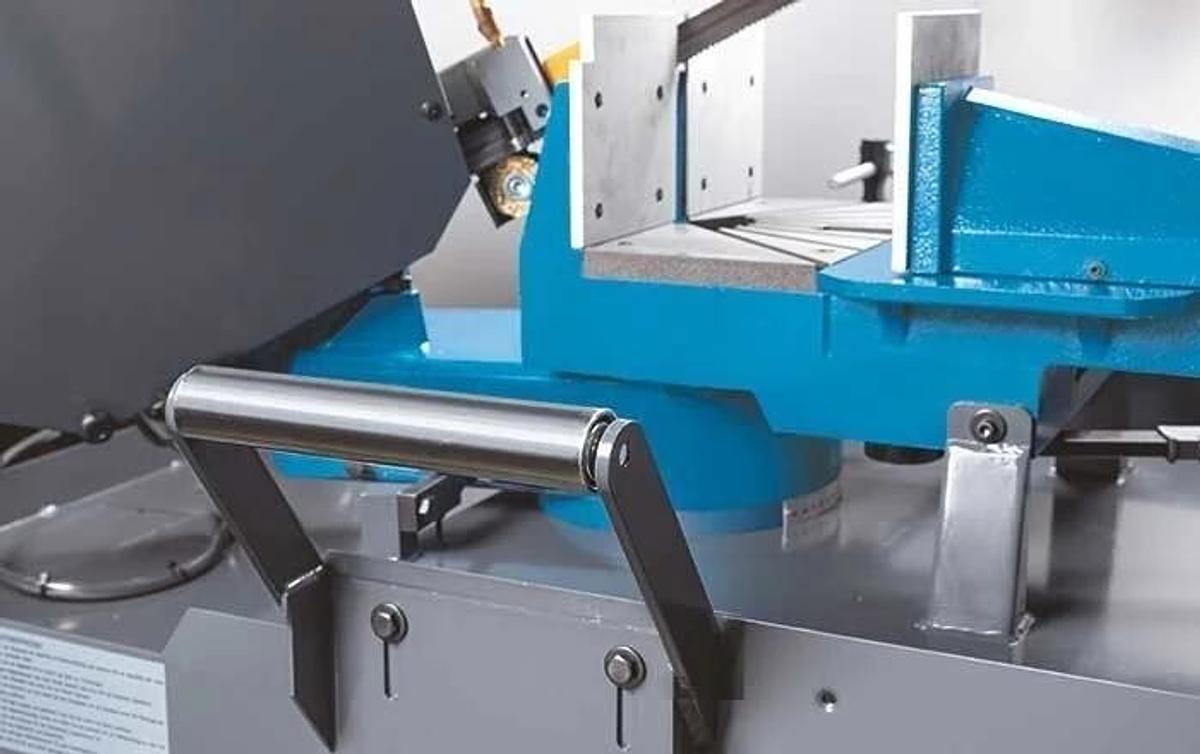

KNUTH Double Mitering Horizontal Bandsaw Model SBS 355 14" Round Capacity This universal workshop band saw is the top model of the SBS series. The saw frame of the compact machine can be swiveled to the right and left, up to a maximum of 60 degrees. The user can guide the saw frame by hand or move it by means of a feed rate controlled by a hydraulic valve. The belt speed of the SBS 355 can be controlled by an inverter. The model also has hydraulic workpiece clamping and an automatic saw frame lift after the end of the cut. This means that the machine is also suitable for efficient processing of small series. Features Rigid vise with lateral slide, long stroke and long guideways in the movable jaw segments The one-piece cast-iron saw frame is torsion-proof and swivels 60° to the right, and 45° to the left Rigid saw blade guides offer a wide adjustment range for workpieces with small and large cross-sections The combination of carbide jaws and adjustable ball bearing guides ensure precision cuts A wide bi-metallic saw blade ensures additional stability during heavy machining operations Saw frame features manual feed for sensitive workpiece characteristics Hardened, polished helical gear with large bronze drive wheel for long service life Quiet operation, short machining times and easy handling ensure increased productivity Powerful motor for continuous operation High-capacity coolant system is included Includes base Hydraulic quick-action clamping fixture with proven performance in series production ensures constant tension to the last cut Infinitely variable saw blade speed for optimum machining of a wide range of materials and profiles Easy handling - at the end of the cut, the integrated hydraulics lift the saw frame to the home position One-piece cast-iron saw frame Rigid vise with long stroke High cutting capacity Compact design Quick-action angle adjustment left and right Standard Equipment 1 saw blade Coolant system Base Pressure gauge for saw blade tension Hydraulic cylinder for saw frame Inverter for infinitely variable saw blade speed Hydraulic workpiece clamping Operator instructions Features Rigid vise with lateral slide, long stroke and long guideways in the movable jaw segments The one-piece cast-iron saw frame is torsion-proof and swivels 60° to the right, and 45° to the left Rigid saw blade guides offer a wide adjustment range for workpieces with small and large cross-sections The combination of carbide jaws and adjustable ball bearing guides ensure precision cuts A wide bi-metallic saw blade ensures additional stability during heavy machining operations Saw frame features manual feed for sensitive workpiece characteristics Hardened, polished helical gear with large bronze drive wheel for long service life Quiet operation, short machining times and easy handling ensure increased productivity Powerful motor for continuous operation High-capacity coolant system is included Includes base Hydraulic quick-action clamping fixture with proven performance in series production ensures constant tension to the last cut Infinitely variable saw blade speed for optimum machining of a wide range of materials and profiles Easy handling - at the end of the cut, the integrated hydraulics lift the saw frame to the home position One-piece cast-iron saw frame Rigid vise with long stroke High cutting capacity Compact design Quick-action angle adjustment left and right Optional equipment available for this machine subject to seperate quotation. Cutting capacity 0° (round) 14" Cutting capacity 0° (square) 12" Cutting capacity 0° (flat) (length x width) 12" x 21" Cutting capacity 45° (flat) L (length x width) 11" x 11" Cutting capacity 45° (flat) R (length x width) 11" x 14" Cutting capacity 60° R (flat) (length x width) 7" x 9" Cutting speed 66 - 262 FPM Variable Speed Motor rating main drive 3HP 148" x1" x 0.m Saw blade dimensions 148" x1" x 0.9mm Overall dimensions (length x width x height) 86" x 39" x 45" Weight 1771 lbs
