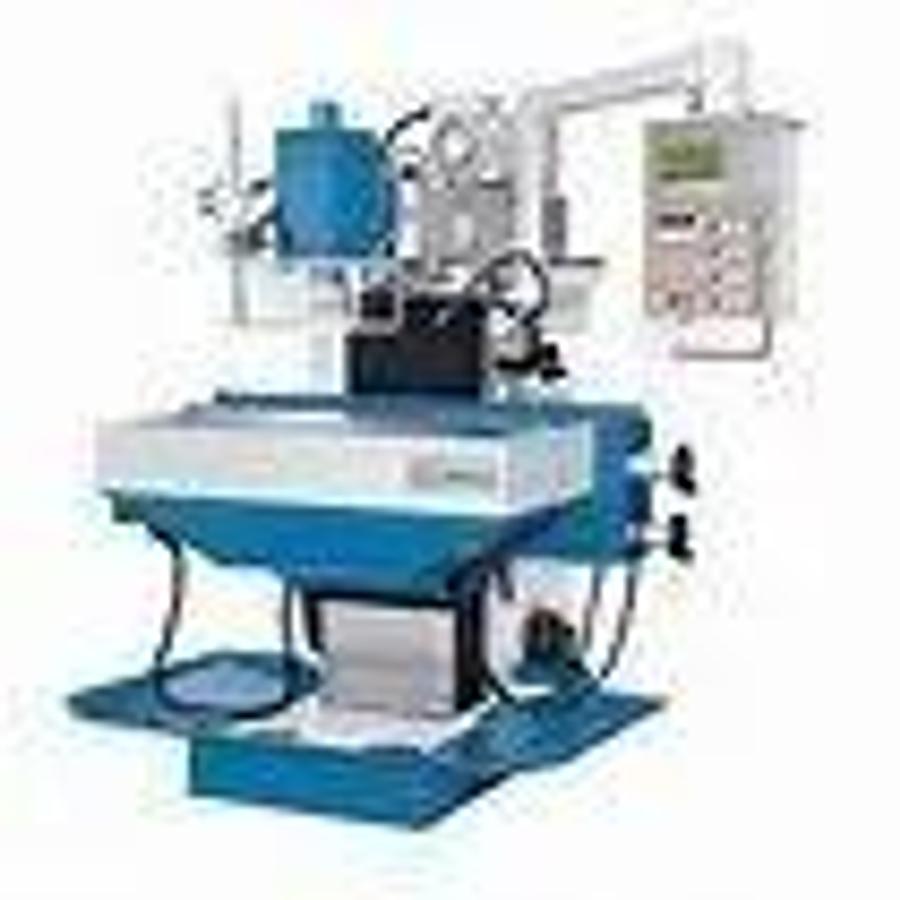

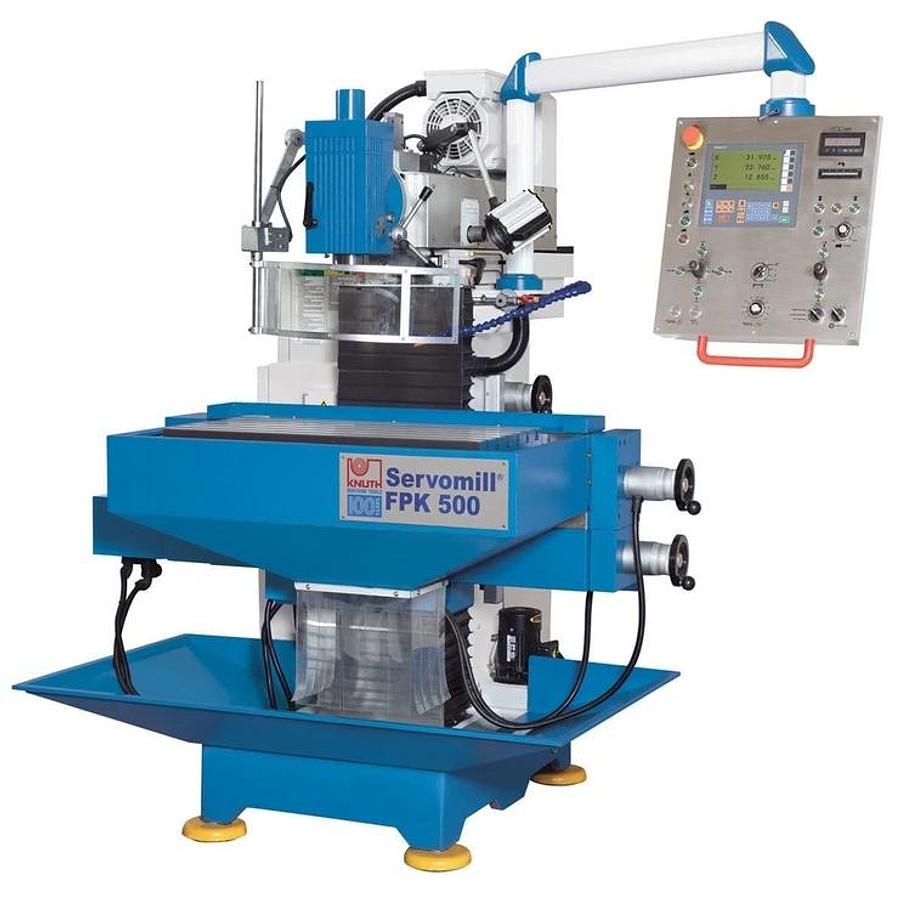

KNUTH Model Servomill FPK 500 This versatile tool and milling machine has become indispensable in the mechanical manufacturing of tools and molds. Its compact design offers a great deal of flexibility while being very easy to operate. This has proven highly effective and is given a modern interpretation here. Equipped with electronic stops, electronic handwheels and additional milling functions, the Servomill makes the advantages of CNC large-scale technology accessible even without programming. The machines are mainly used in toolmaking, production and training. Servo feed technology with electronic handwheels Ball screws in all axes 3-fold electronic stop Large vertical console and work table Vertical and horizontal spindle Infinitely variable spindle speed control panel with X.Pos 3.2 and extended functions preloaded ball screws and direct servo drives on all axes automatic feed with electric limit switch on all axes electronic hand-wheels milling accessories automatic central lubrication heat exchanger for electric control cabinet height-adjustable protective cover coolant System LED worklight Operator instructions Optional Equipment Universal Swivel Table Working Area Table dimensions 31 in x 16 in Vertical table 40 in x 9 in Table load capacity (max.) 440 lbs Number of T-slots 6 positions T-slot (width x spacing) 0.55 in x 2.48 in T-slots, vertical table (number) 3 positions T-slots, vertical table (width x spacing) 0.55 in x 2.48 in Travels Travel X-axis 19.7 in Travel Y-axis 16 in Travel Z-axis 16 in Milling Head Speed range, low 40 rpm - 260 rpm Speed range, high 260 rpm - 2000 rpm Spindle speed 40 rpm - 2000 rpm Spindle mount SK 40 DIN 2080 Swivel angle 90 deg Travel pinole 2 in Spindle nose-to-table distance 2 in - 18 in Spindle nose-to-column distance 7 in - 22 in Rapid Feed Rapid feed X-axis 47.24 in/min Rapid feed Y-axis 47.24 in/min Rapid feed Z-axis 47.24 in/min Horizontal Milling Spindle Spindle mount SK 40 DIN 2080 Spindle center-to-table distance 6 in - 21 in Feed Work feed X-axis 0.394 in/min - 39.37 in/min Work feed Y-axis 0.394 in/min - 39.37 in/min Work feed Z-axis 0.394 in/min - 39.37 in/min Drive Capacity Motor rating main drive 5 Hp Motor rating coolant pump 0.2 Hp Feed X-axis 6 ft.lb. Feed Y-axis 6 ft.lb. Feed Z-axis 7 ft.lb. Measures and Weights Overall dimensions (length x width x height) 60 in x 67 in x 71 in Weight 3410 lbs Models Servomill® FPK 600 Servomill® FPK 500 Table dimensions 33 in x 18 in 31 in x 16 in Travel X-axis 23.6 in 19.7 in Travel Y-axis 18 in 16 in Travel Z-axis 18 in 16 in Spindle speed 40 rpm - 2000 rpm 40 rpm - 2000 rpm Spindle mount SK 40 DIN 2080 SK 40 DIN 2080 Motor rating main drive 7.4 Hp 5 Hp Overall dimensions (length x width x height) 63 in x 71 in x 79 in 60 in x 67 in x 71 in Weight 3850 lbs 3410 lbs
