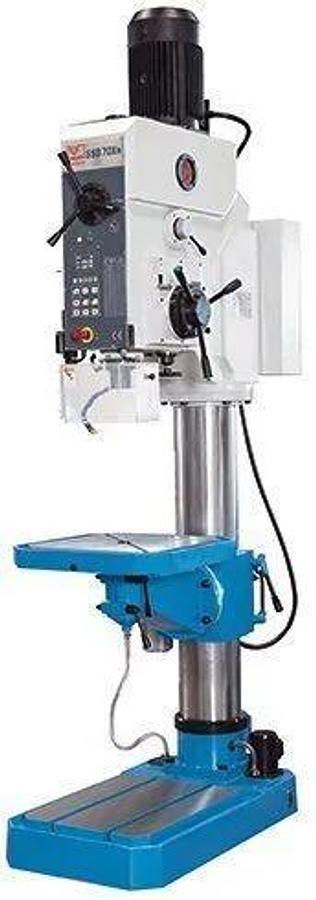

2025 KNUTH Heavy Duty Drill Press Model SSB 70 Xn

2025 KNUTH Heavy Duty Drill Press Model SSB 70 Xn The heavy-duty design of SSB 70 Xn allows makes this model the optimal solution for both repair and production requirements. This universal drilling machine have a thick-walled column, powerful drives and robust gearboxes for spindle and feed. The large work area and the large universal clamping tables allow easy handling and processing of small workpieces, but also large and heavy parts and assemblies. The top model of this series features an extra heavy construction with a thick-walled column Base, column, table and gear head are made of premium high-quality cast iron A large drill press table features a circumferential coolant groove and up to± 45° swivel range Table height adjustment via a powerful motorized drive Main spindle and gears are integrated in the lube oil circuit via a powerful pump 6 automatic drill feeds can be selected via gears and engaged via an electromagnetic clutch Easy handling of the machine ensures effortless operation in a production environment Modern Operating Concept The depth stop is set electronically at the display The automatic feed is controlled via buttons and can be engaged and disengaged directly at the twist grip handle Measuring units for input and display can be selected by the operator (mm or inch) If the thread cutting function is enabled, the spindle rotation will automatically reverse upon reaching the set depth Includes a powerful coolant system and safety features Tapping unit, protective shield, coolant system, LED work lamp, operating tools, operator instructions, drill chuck with , wrench, reducing sleeves, control panel with digital display, motorized table height adjustment, automatic spindle feeds Specifications Drilling capacity 2.76 in. Table set up area 24 in x 24 in. Tapping capacity, steel M 50 Throat 17 in. Spindle nose-to-table surface distance 31 in. Table swivel range (max.) ± 45° Quill stroke 11 in. Column diameter 9 in. Spindle nose-to-foot distance 54 in. Table stroke 31 in. Headstock Spindle mount MT 5 Spindle speed 38 rpm - 1.230 rpm Spindle speed-stages 12 Feed Quill feeds 0,1- 0,4 in/R Quill feeds-stages 4 Drive Capacity Motor rating main drive 7.4 HP Motor rating coolant pump 0.2 HP Motor rating for vertical table travel 0.5 HP Dimensions Overall dimensions (length x width x height) 49 in x 26 in x 112 in. Weight 2.156 lbs
