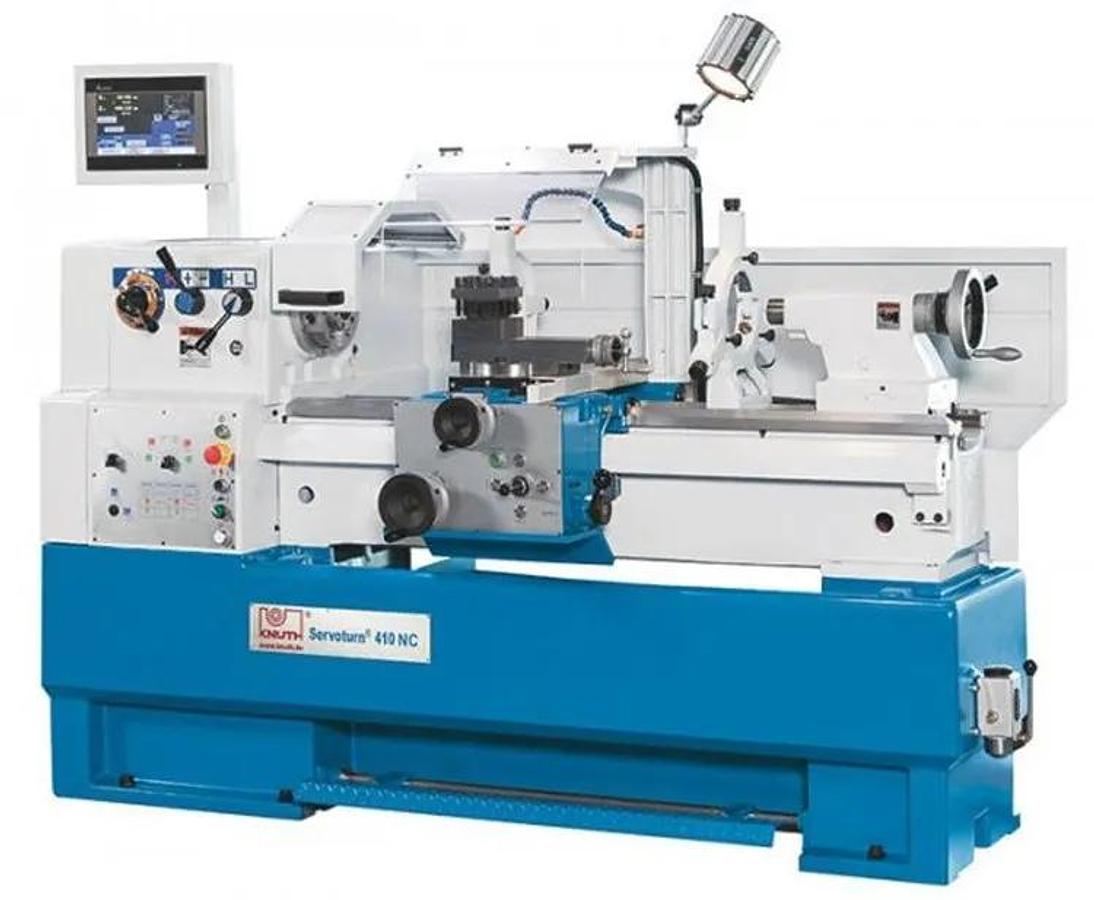

KNUTH model Servoturn 410 NC Conversational engine lathe with Delta servocontrol

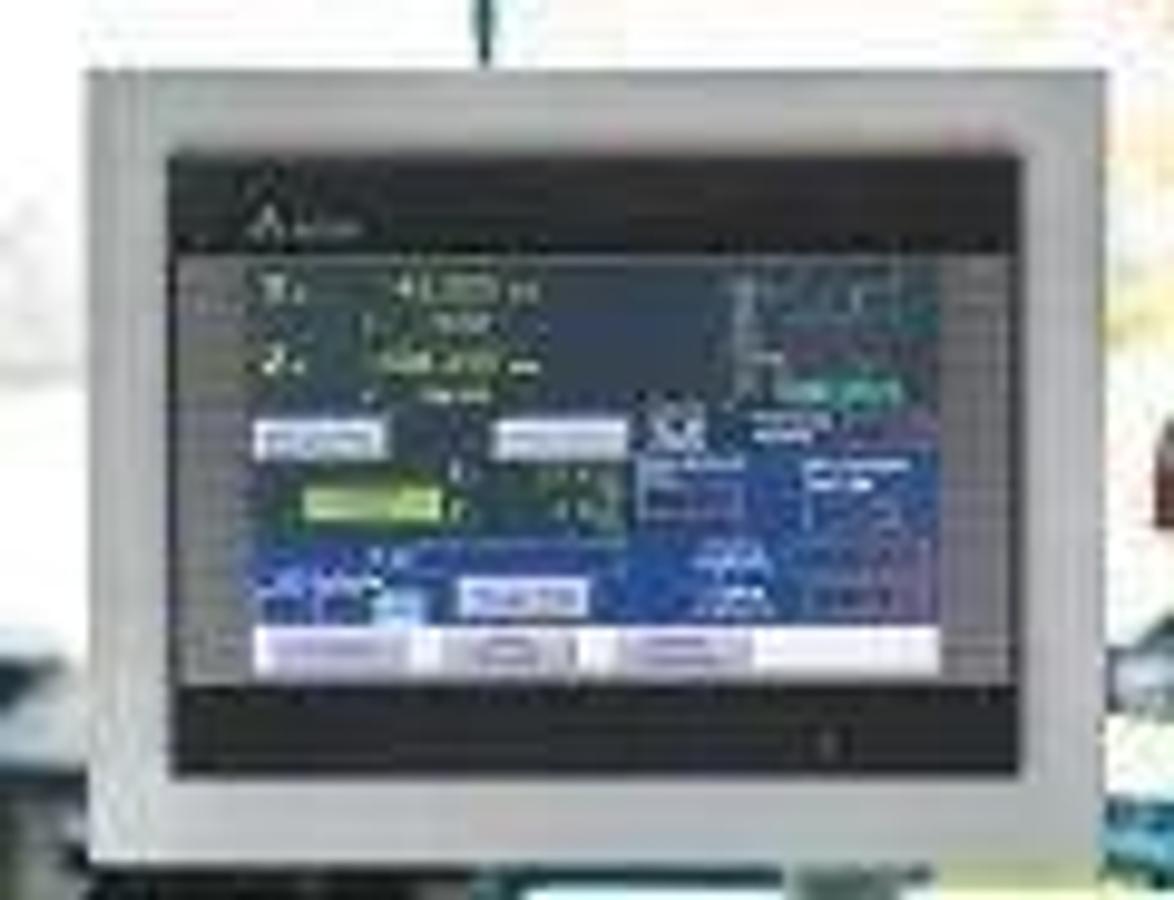

KNUTH model Servoturn 410 NC Conversational engine lathe with Delta servocontrol The Servoturn series of universal lathes combines the most modern feed technology with classic mechanical engineering. In contrast to standard conventional lathes, this series has ball screw drives and electronic hand wheels on all axes. High-torque servo motors implement every feed movement with the dynamics of modern CNC machines. Without gear change wheels and gears, feed and thread pitches can be selected electronically. Rapid traverses on all axes reduce non-productive time and electronic stops offer high repeat accuracy. Intuitive operation Servo drive for feed and tapping Turning of tapers and radii Clear touch screen Electronic handwheels STANDARD EQUIPMENT tandard Equipment Delta servoconventional CNC control Fixed splash guard (wall) Chuck guard Protective shield for support Steady rest Follow rest Coolant system Leadscrew cover Work lamp Manual central lubrication 4-station tool holder Fastening bolts Operator instructions Delta servoconventional CNC control, includes fixed splash guard (wall), chuck guard, protective shield for support, steady rest, follow rest, coolant system, leadscrew cover, work lamp, manual central lubrication, 4-station tool holder, fastening bolts, operator manual A heavy ribbed machine bed and a massive one-piece cast-iron frame provide the solid basis for this machine Wide, hardened and ground guideways ensure superior turning results and long life Removable bridge allows machining of workpieces with larger diameters The massive headstock is equipped with a large main spindle that runs on two high-capacity tapered roller bearings and one grooved ball bearing The main drive features a wide speed range with 12 gear steps that easily can be selected via shifting Feeds, thread types, and contours are designed simply and intuitively with electronic selection via a headstock-mounted rotary switch In addition to standard machining tasks with extensive thread options, this machine can be used for turning tapers and radii Values for travel distances, feed speeds, and thread leads are input via touchscreen at the control Micro-control via electronic hand-wheels offering the same handling and postioning as with a conventional machine, just smoother and more precise Ball screws in Z and X axes ensure considerably less errors due to loseness (backlash), resulting in significantly higher precision A manual central lubrication system simplifies maintenance and supplies all guideways with lubricant delta servoconventional CNC control fixed splash guard (wall) chuck guard protective shield for support steady rest Warranty: Standard (12) months new machine warranty, one shift operation (2,000 hrs). Machines below $30,000, covers parts only. Machines above $30,000, covers parts and labor. Machines above $60,000, covers parts, labor, and domestic travel, except for special offers. The customer is responsible for any freight and all other associated costs not covered by warranty. Warranty commences upon delivery of machine. Consumables and operator misuse are excluded. Any damage to machine as a result from incorrect setup, misuse, negligence, poor maintenance, or other circumstances beyond our control is not covered under warranty. TECHNICAL DATA Work Area Travels Headstock Feed Feed X-axis: 0.00039 - 0.07874 in/R Feed Z-axis: 0.00039 - 0.07874 in/R Tapping Tapping, module: 0 - 0.2 in Tapping, withworth: 2 - 100 TPI Leadscrew: 1.26x0.24 in Tailstock Drive Capacity Dimensions
