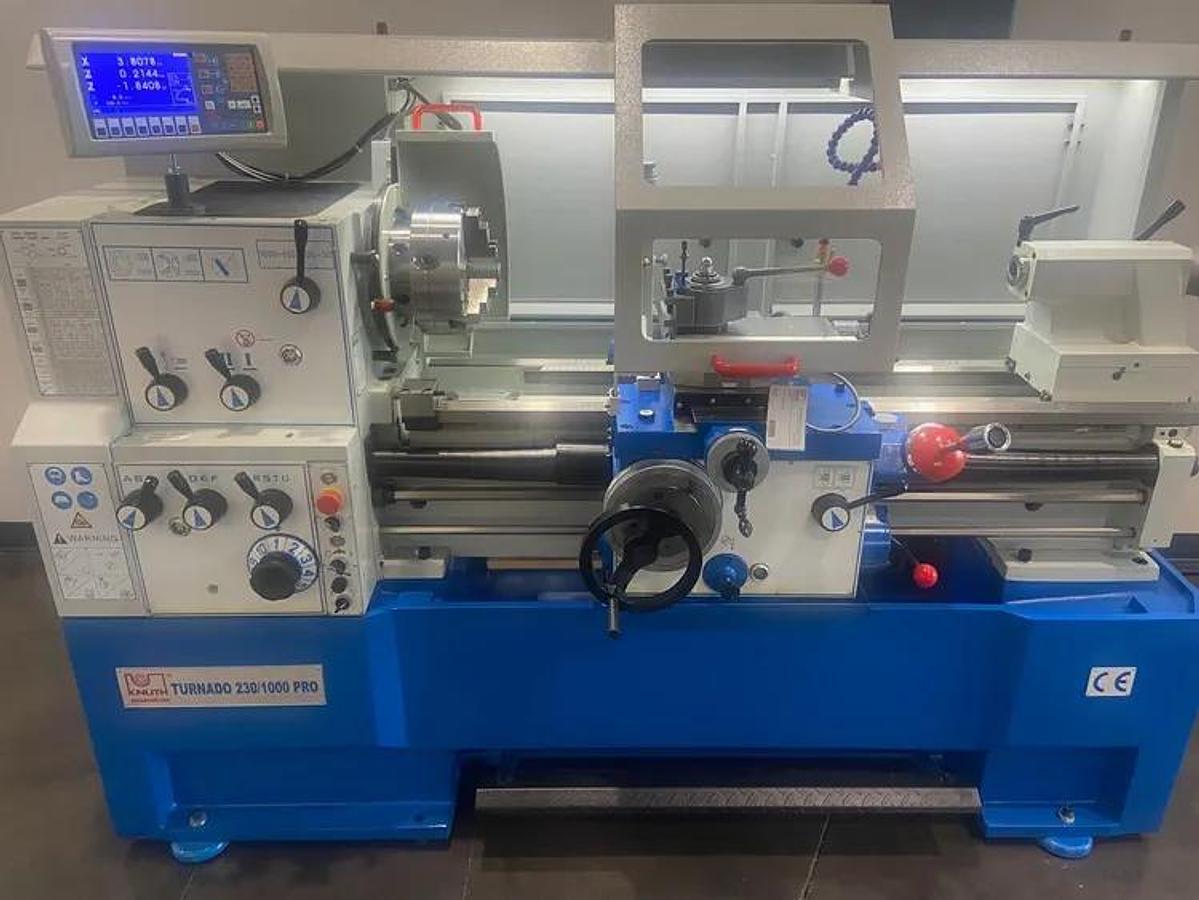

KNUTH TURNADO 230/1000 PRO Engine Lathe, 18" Swing, 39.4" Between Centers, 2.3" Spindle Bore, 10 HP

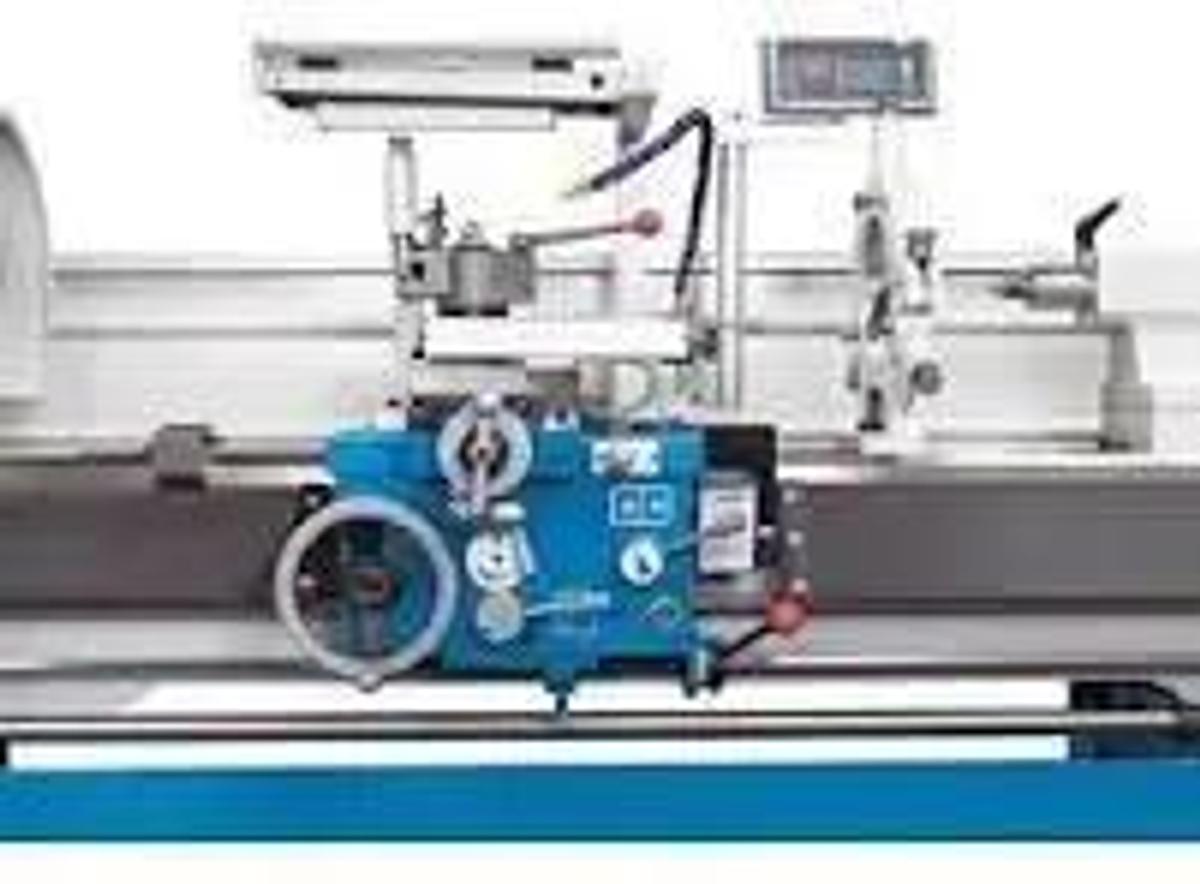

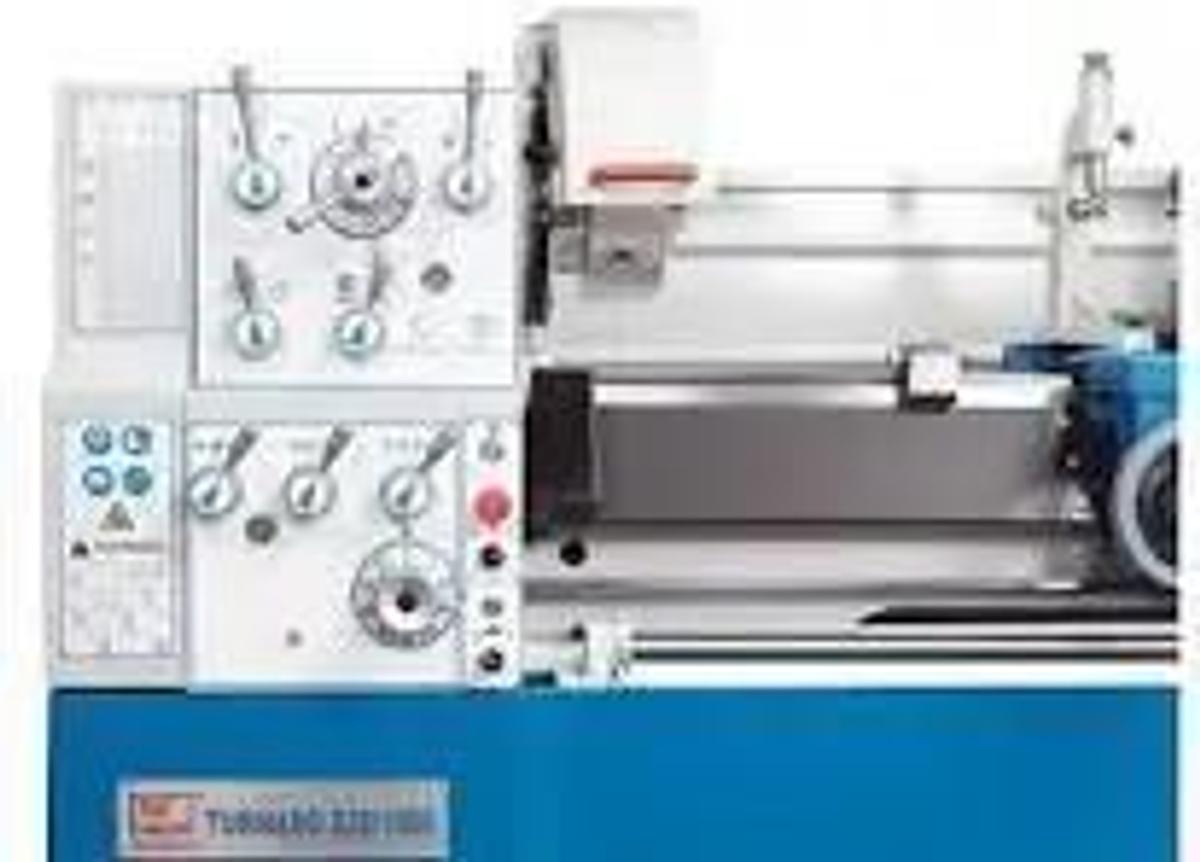

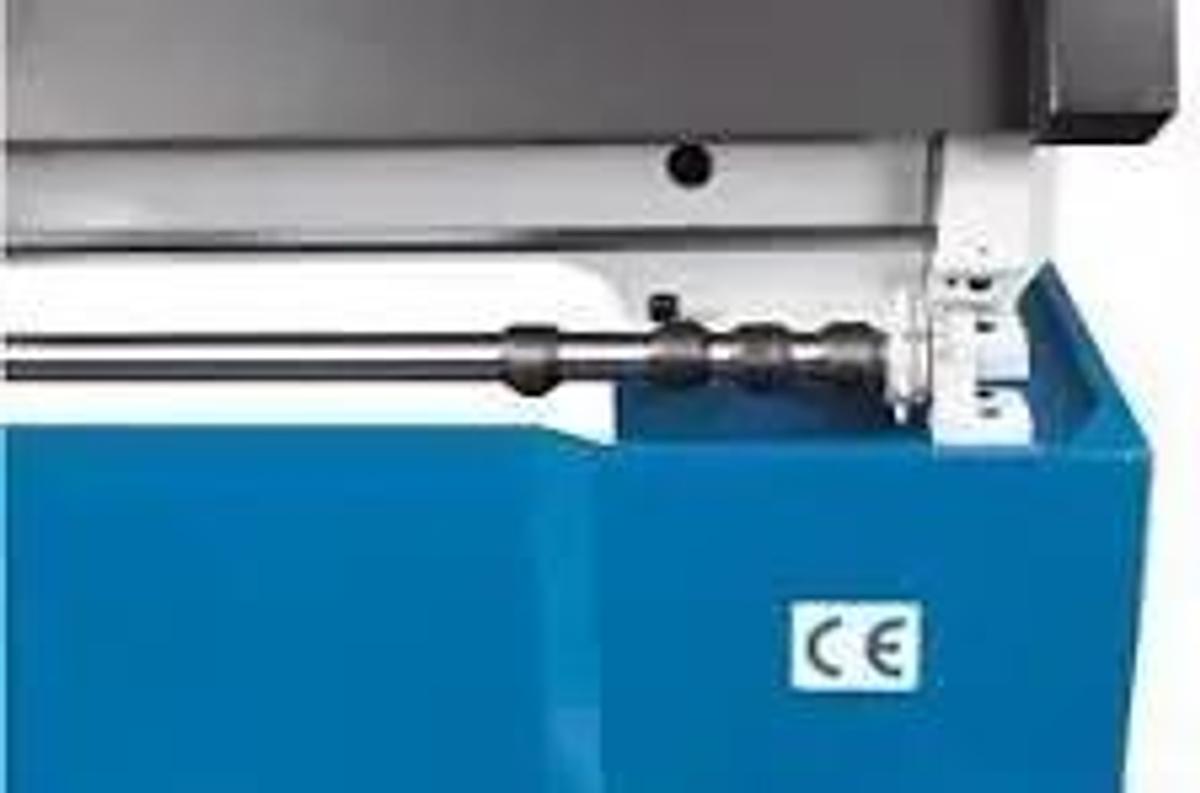

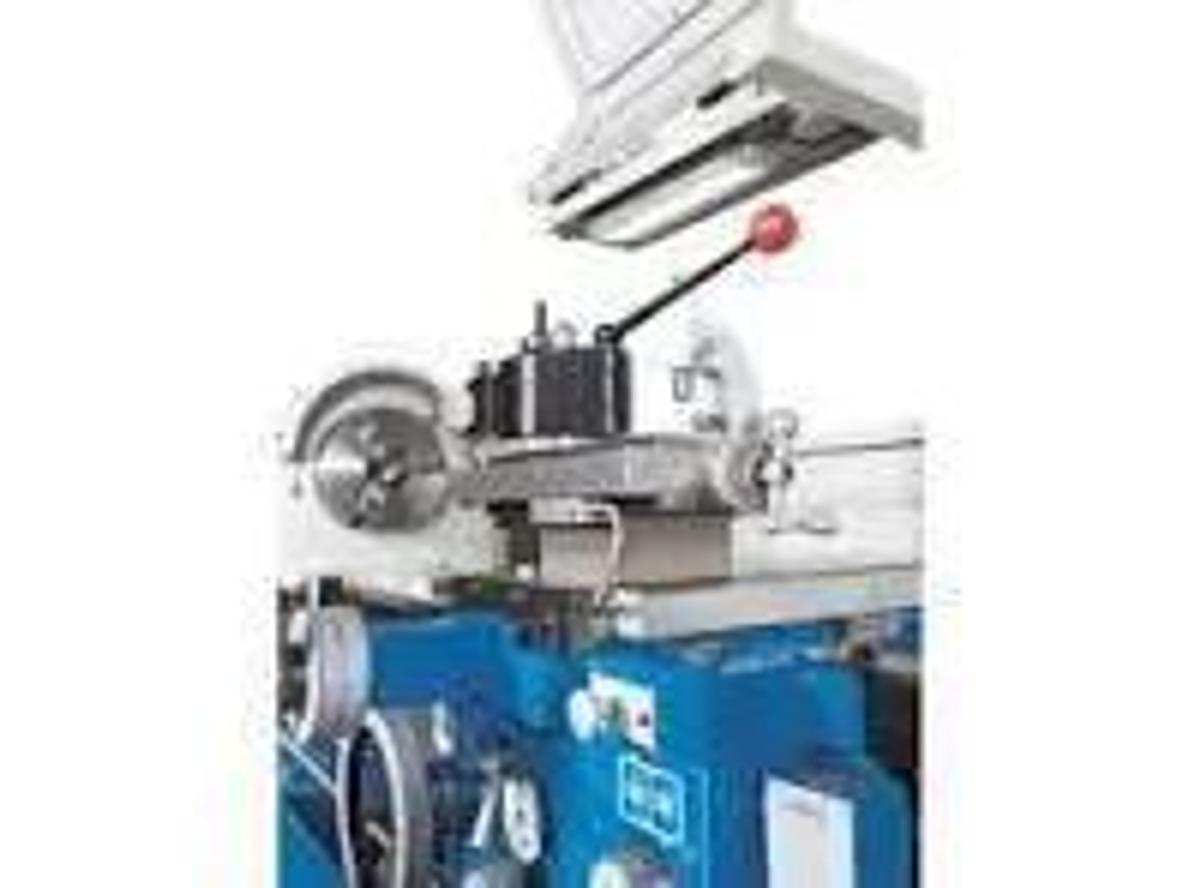

KNUTH TURNADO 230/1000 PRO Engine Lathe, 18" Swing, 39.4" Between Centers, 2.3" Spindle Bore, 10 HP The turning machines of the Turnado series are characterized by their robust construction, powerful motor and versatility. For more than 20 years they have been among the tried and tested bestsellers of our conventional lathes. The V models are also equipped with an extended, infinitely variable speed range. In combination with the position indicator and integrated function of the constant cutting speed, you achieve a superior surface quality when facing. A high-quality quick-change toolholder system also lessens non-productive time and costs. - Infinitely variable adjustable rotation range - Classic design with rigid construction = built to last - One-piece heavy-duty cast-iron bed for increased rigidity - 3-axis position indicator with multiple turning functions - Adjustable longitudinal stops with automated feed shut-off - Extensive standard equipment When Gerhard Knuth founded the business in 1923, he already knew then that long-lasting partnerships must be based on a combination of experience, innovation, quality, and local presence. It is this philosophy that made Knuth GmbH an internationally renowned supplier of machine tools. Our formula for success: • Experience - over 80 years of success and advancement • Innovation – guaranteed by capability and motivation • Partnership – exchange of knowledge is an invaluable asset • Worldwide Presence – cooperation at a local level as a key to success Other Features: Oil Bath: Enclosed gears and shafts run in an oil bath for lubrication and heat dissipation. Variable Speed Adjustment: Infinitely variable speed adjustment for optimal machining. Included Chucks and Face Plate: Typically includes a 3-jaw chuck, 4-jaw chuck, and a face plate. Working Area Workpiece length (max.) 39 in Turning-Ø over bed 18 in Turning-Ø over support 9 in Turning diameter over gap bridge 27 in Gap bridge length 6 in Bed width 12 in Center height 9 in Travels Travel X-axis 11.2 in Travel Z1-axis 5 in Swing range of top slide ± 52° Headstock Spindle speeds (12) 25 - 2.000 rpm Spindle bore 2.3 in Spindle mount Camlock D1-6 Spindle taper 6 MT Feed Feed X-axis 0.00055 in/R - 0.03087 in/R Feed Z-axis 0.00122 in/R - 0.06693 in/R Threading Threading, metric 0.1 mm - 14 mm Threading, diametric (50) 4-112 DP Threading, module 0.1 mm - 7 mm Threading, Whitworth (60) 2-112 TPI Tailstock Tailstock quill diameter 2 in Tailstock taper 4 MT Tailstock quill stroke 5 in Tailstock traverse adjustment ± 0.51 in Dimensions 87" x 43" x 53 " Weight 3,784 (LBS)
