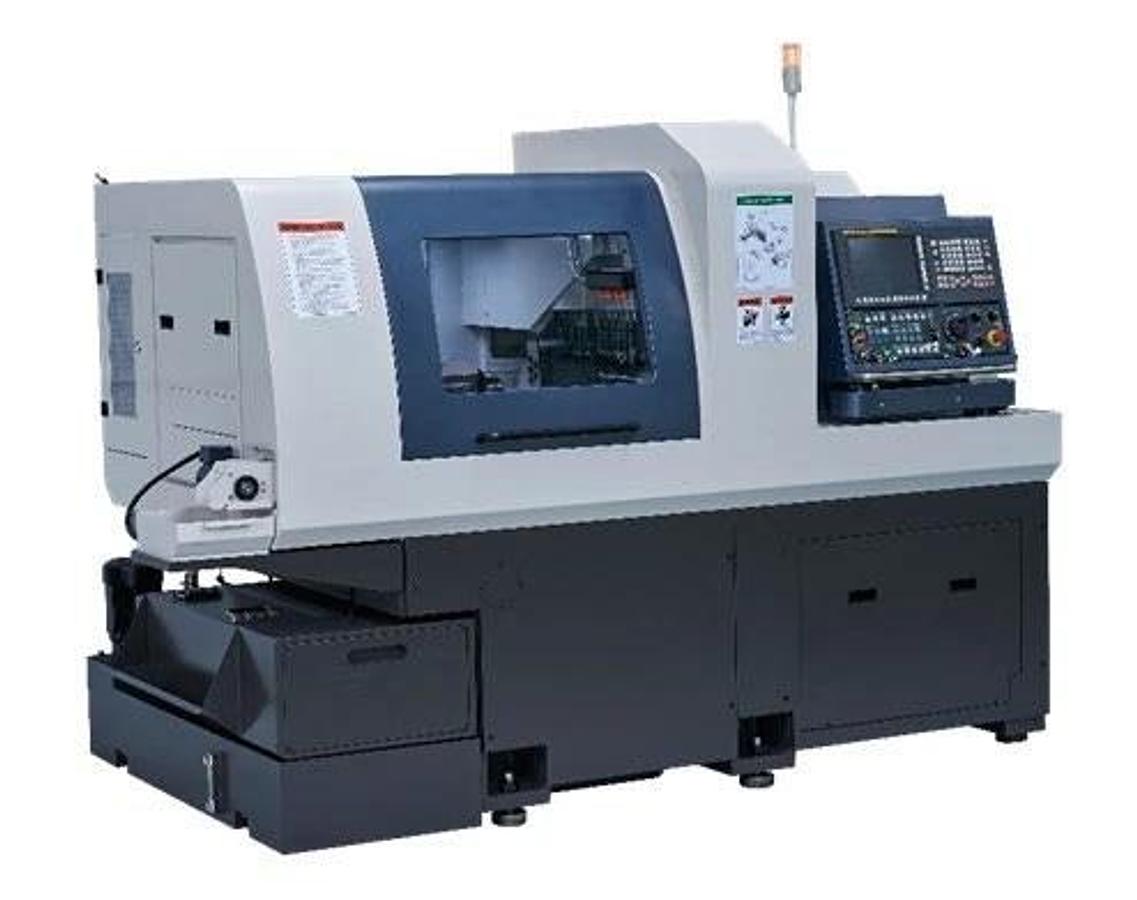

KSI Swiss 7-Axis Type Automatic CNC Lathe KSI Model TCM 32SII

KSI Swiss 7-Axis Type Automatic CNC Lathe KSI Model TCM 32SII Our CNC Swiss machines are well known for giving you more without paying more. We understand the importance of these machines and want to provide our customers with the tools they need to create their parts or products. The KSI Swiss CNC machine is designed to work hard so you don’t have to. You can turn out more products and parts in less time than you can with other similar types of machines. This is why Swiss machines are the only types of machines we offer at KSI Swiss. Equipped With: LED Red/Yellow/Green Signal Light Parts Chute Parts Conveyor Sub Spindle Work Ejector Cutting Oil Tank and Chip Pan are removeable and independent 200L Cutting Oil Tank Main coolant pump flow sensor Sub-coolant (optional) Automatic Power-Off Work-dual zone LED Lighting Cut off tool breakage detector S/W M86 Tool life management system Collision System prevention Sub spindle Air Blow (thru sub- spindle long shaft ejection ready) Pre-Wired for Main Coolant, Pre-Wired for Sub Coolant Pre-Wired for Chip Conveyor, Pre-Wired Flow Sensor (4) M codes for High Pressure Coolant system (2) M codes for application usage M108 and M109 for additional secondary coolant pump Optional Upgrades: KSI Barload VITO 537 Bar Feeder (32MM) Installation goal, two days including travel time, remaining for training, travel expenses included……………$5,000.00 Machine Specifications: Max Spindle Speed……………………………… 8,000 RPM Main Spindle Positioning C Axis……………… .001 Degrees Sub Max Sub Speed………………………………… 8,000 RPM Sub Spindle Positioning C Axis………………… .001 Degrees Z1-Axis Stroke………………………………………… 300mm Z2-Axis Stroke………………………………………… 300mm X1-Axis Stroke………………………………………… 62mm (OD: 6 ea., Cross Live: 4 ea., ID: Fixed 5 ea., Ecc: Fix 1 ea. - live 2ea.) Ballscrew Diameter………………………………… 25 mm Capacity Specs: Main Spindle……………………………………………Drill/Tap 10mm/M8 (ER16) Cross Spindle……………………………………………Drill/Tap 8mm/M6 (ER16) Back working……………………………………………Drill/Tap 10mm/M8 (ER16) Main Spindle Turning Tools………………………5 Standard (Fixed) Y Axis Tool Block………………………………5 Standard (Fixed) Headstock Collet Size……………………………TF44 Face Tools (Sub Spindle T23) 1 Standard (Fixed) Face Tools (Sub Spindle T21,22)……………… 2 Standard (Live) Live Face Tools (Back End) 2 Standard (Live) T32,31 optional Fixed Face Tools (Back End) 2 Standard (Fixed) T33,34 optional Total No. of Fixed Tools……………………………13 Standard Total No. of Live Tools………………………………9 Standard Total No. of Tools…………………………………… 26 Standard Driven Rotary Guide Bushing……………………Standard Motor Specs: Main Spindle Motor…………………………………7.5 Kw (10HP) Sub Spindle Motor……………………………………2.2 Kw (3HP) Cross Drill/Mill Motor………………………………1.1 Kw Cross/Back End Working Spindle Speed… 5,000 RPM (All axis machine motors are High Torque) Rigid Tap (All Mill/Drill) CNC Control Fanuc Oi-TF: 10.4” Color CRT Monitor Dual Path Control Simultaneously Controlled 6-axis Manual Pulse Generator MPG Handle incremental feed Manual handle trace Thread cutting/synchronous cutting G92 Multi-lead threading G76 Continuous threading G32 Spindle orientation, and Spindle synchronous control (Main & Sub) Smart rigid tapping Spindle speed fluctuation detection G25 Maintenance information screen Trouble diagnosis Embedded ethernet, USB Interface, RS-232, Type CF memory Card G70 - G76 canned cycles G7.1 Cylindrical Interpolation Helical Interpolation for thread milling, 3 Axes simultaneous machining including 2 linear axes and 1 rotary axis G12.1 Polar Coordinate Interpolation Variable thread cutting Rigid tap all spindles Polygon Turning G51 Custom macro common variables between each path Canned Cycles G80 - 88
