Description

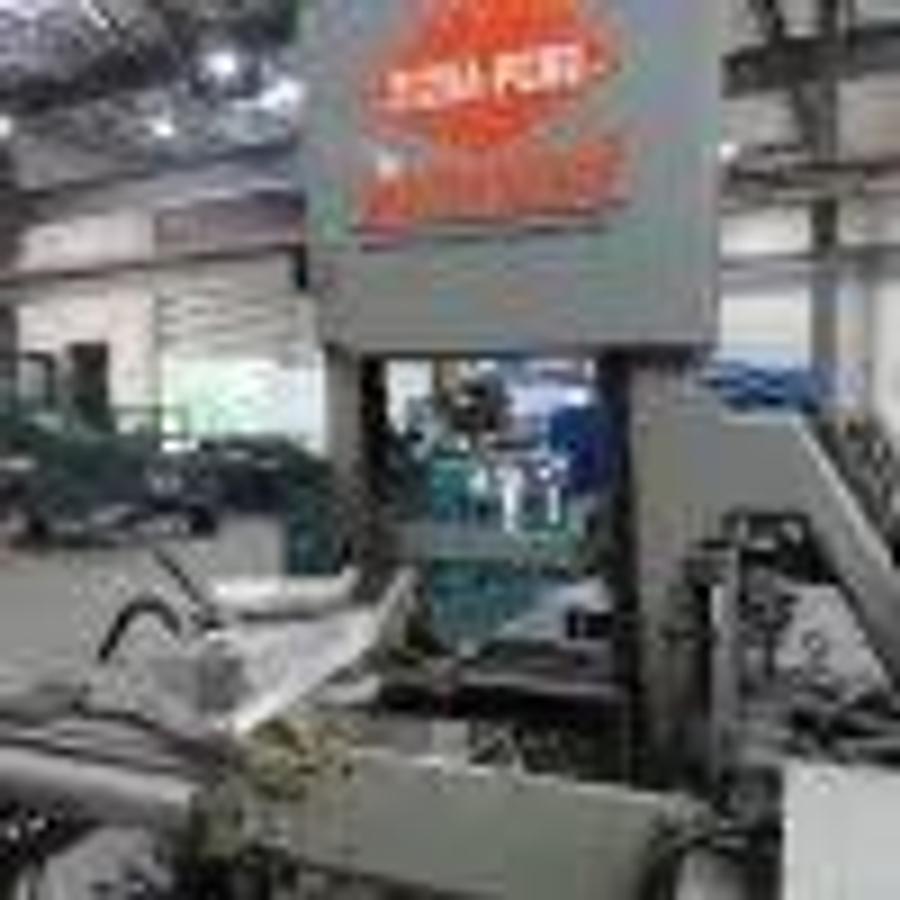

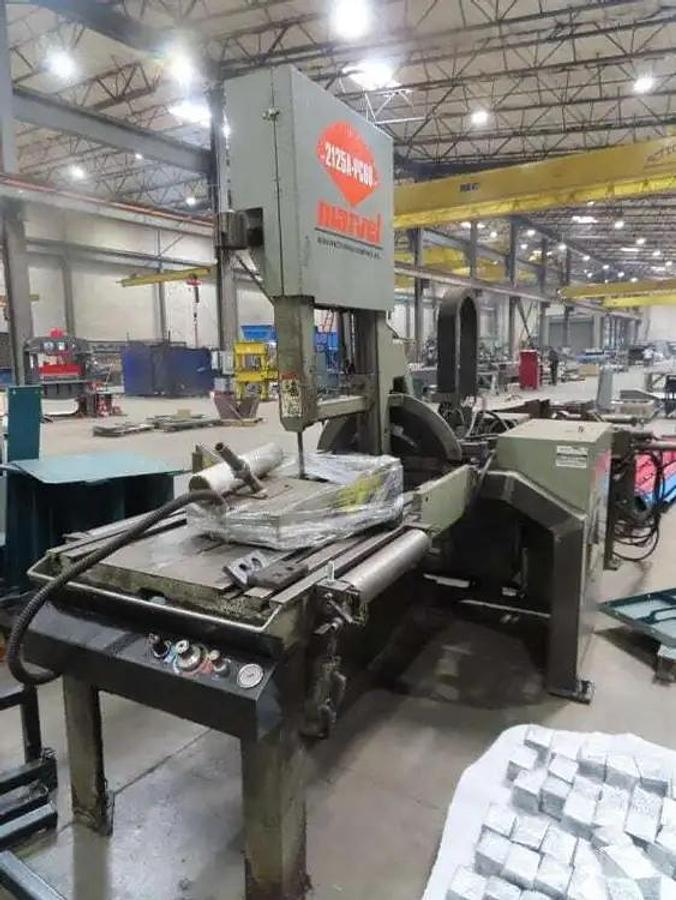

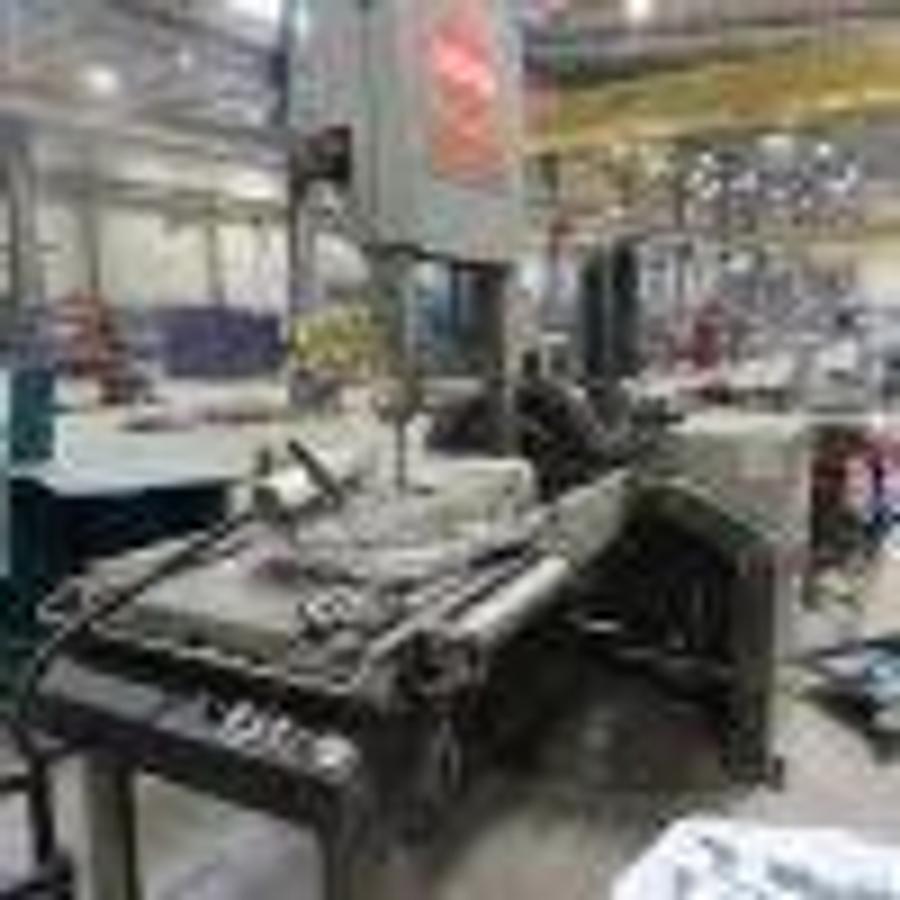

2006 MARVEL AUTOMATIC VERTICAL TILT-FRAME BANDSAW Model 2125A-PC3S-60
The MARVEL AUTOMATIC VERTICAL TILT-FRAME BANDSAW Model 2125A-PC3S-60 is a high-capacity, automatic band saw with a tilting column for miter cutting. It features a PC3 Programmable Control., a 20" x 25" cutting capacity, and a 210" blade. The saw is equipped with a hydraulically controlled blade tension system, an automatic bar feed with a 48" stroke, and a tilting column that can miter cut up to 60 degrees left and right.
– Extra Blades
– Spare Bearing Parts

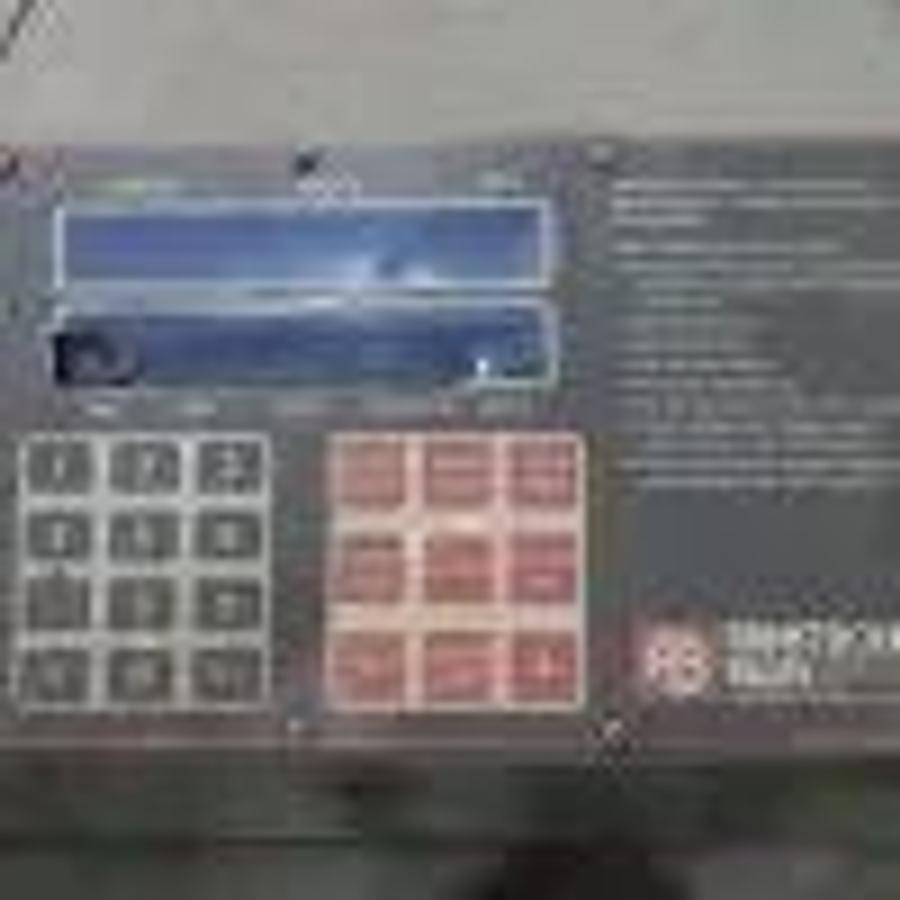

– PCII Micro-Process Control
– Operator Push Button Panel
– Rectangular Cutting Capacities: – @ 90°: 20″ x 25″
– Round Cutting Capacities: – @ 90°: 20″
– Coolant System:
– Hydraulic System:

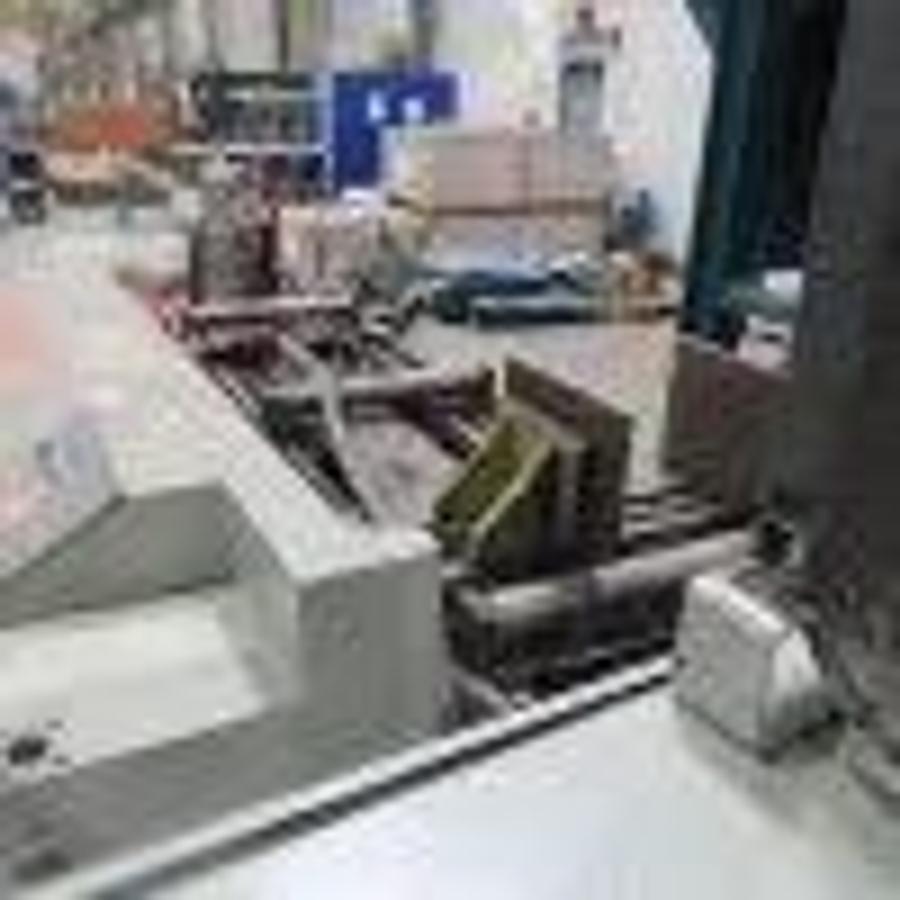

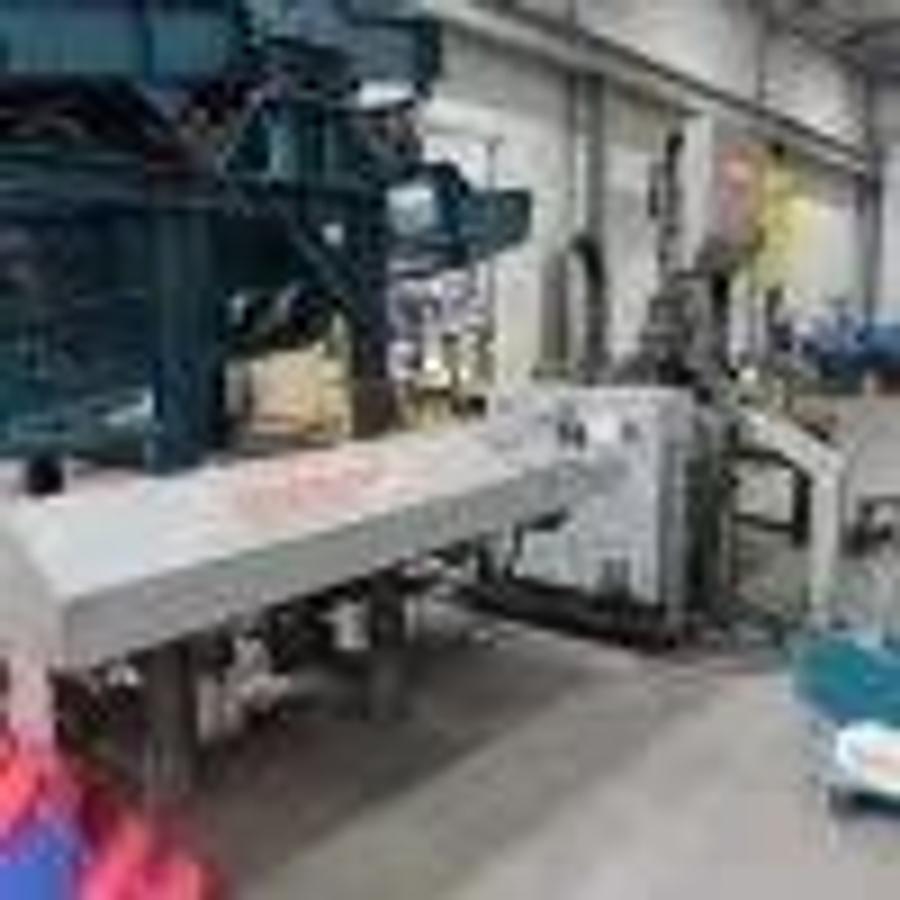

– Feed Table:
– Column Tilt
– Single or Automatic Cycle
– Column Forward & Retract
– Extra Blades
– Spare Bearing Parts
Specifications
| Manufacturer | MARVEL |
| Model | 2125A-PC3S-60 |
| Year | 2006 |
| Condition | New |
| Stock Number | 22204 |
| Status | For Sale |
| Throat Cap | 25"; 635 mm |
| Work Height | 20"; 508 mm |
| Power | 5 hp; 3.7 kW |
| Blade Width | 1.25"; 31.75 mm |
| Blade Length | 210"; 5,334 mm |
| Control | CNC (PCII Micro-Process Control); CNC (PCII Micro-Process Control) |
| Dimensions | 108” x 72” x 102”; 108” x 72” x 102” |
| – @ 45° | 20″ x 17″ |
| – @ 60° | 20″ x 11.25″ |
| – @ 45 Degree | 17″ |
| – @ 60 Degree | 11.25″ |
| – Blade Size | 1.25” x 0.042” x 17’-6” |
| – Blade Speed | 30 – 650 FPM |
| – Feed Force | 0 – 350 lbs. |
| – Band Wheel | 23.00” Ø |
| – Table Load Capacity | 8,000 lbs. |
| – Max. Vise Opening | 20.25” |
| – Capacity | 10 Gallons |
| – Motor | 0.25 HP |
| – Drive Motor | 3 HP |
| – Pump Capacity | 7.8 GPM |
| – Work Height | 38.00” |
| – Load Capacity | 14,000 lbs. |
| – Shuttle Stroke | 24.00” |
| Electrics | 460 Volt, 3 Phase, 60 Cycle, 19.2 FLA |
