Description

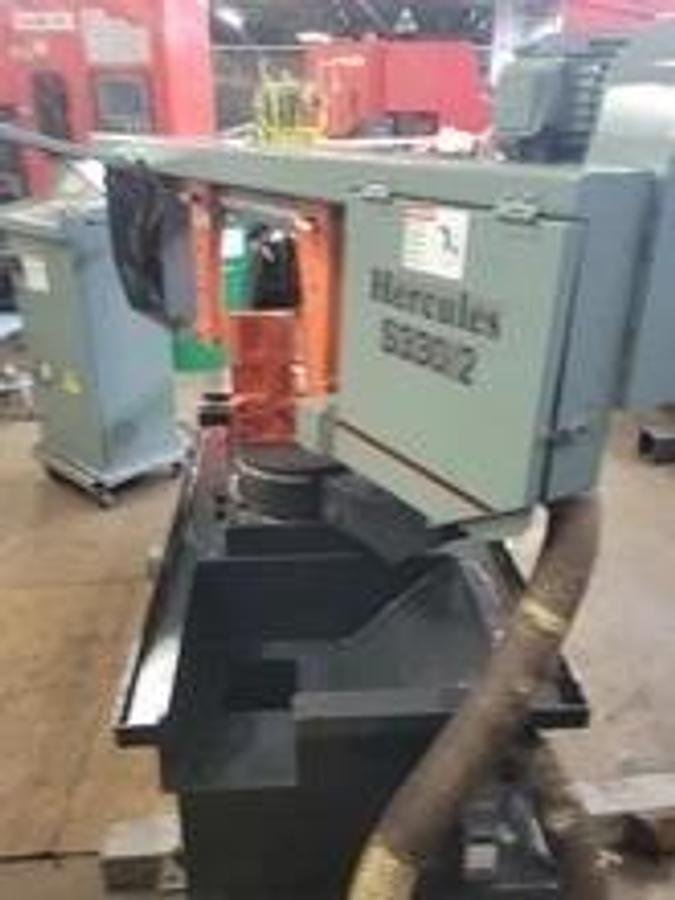

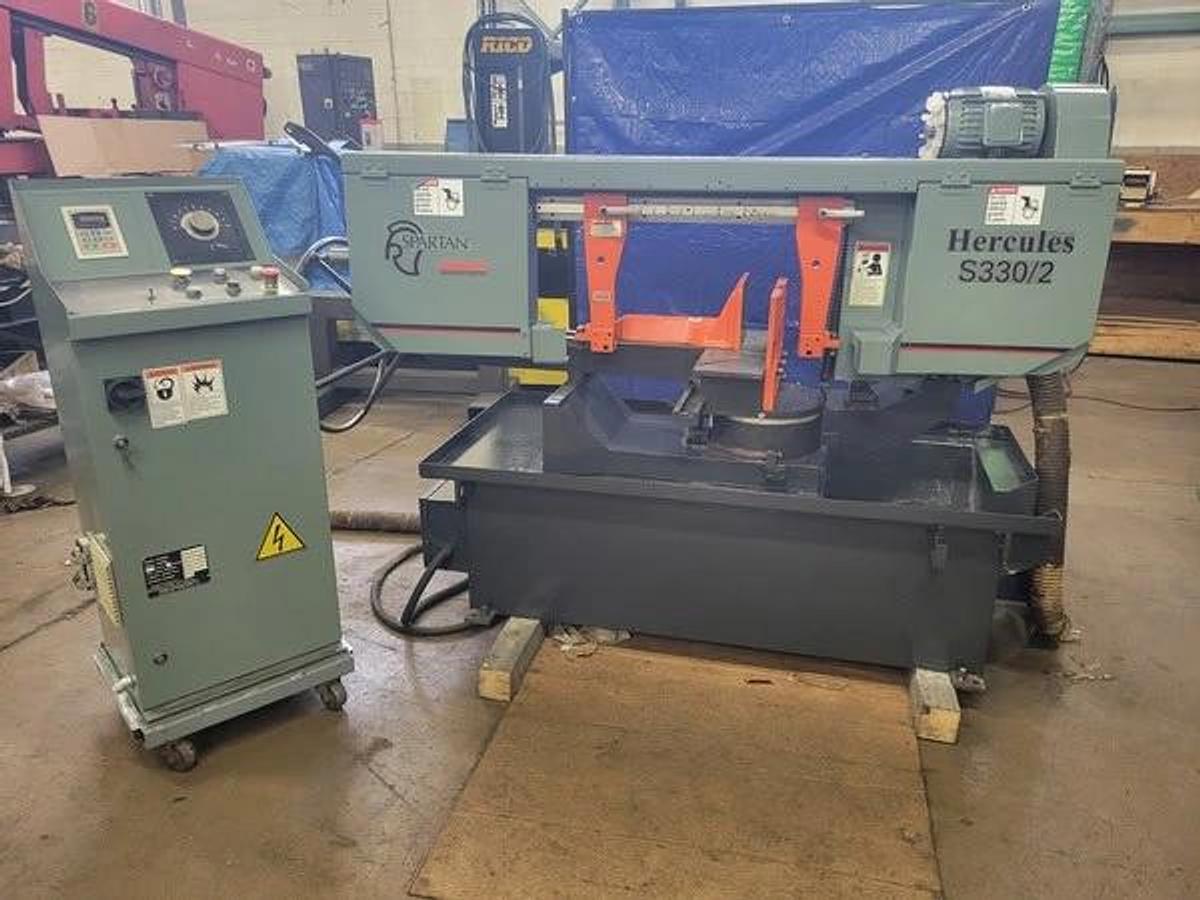

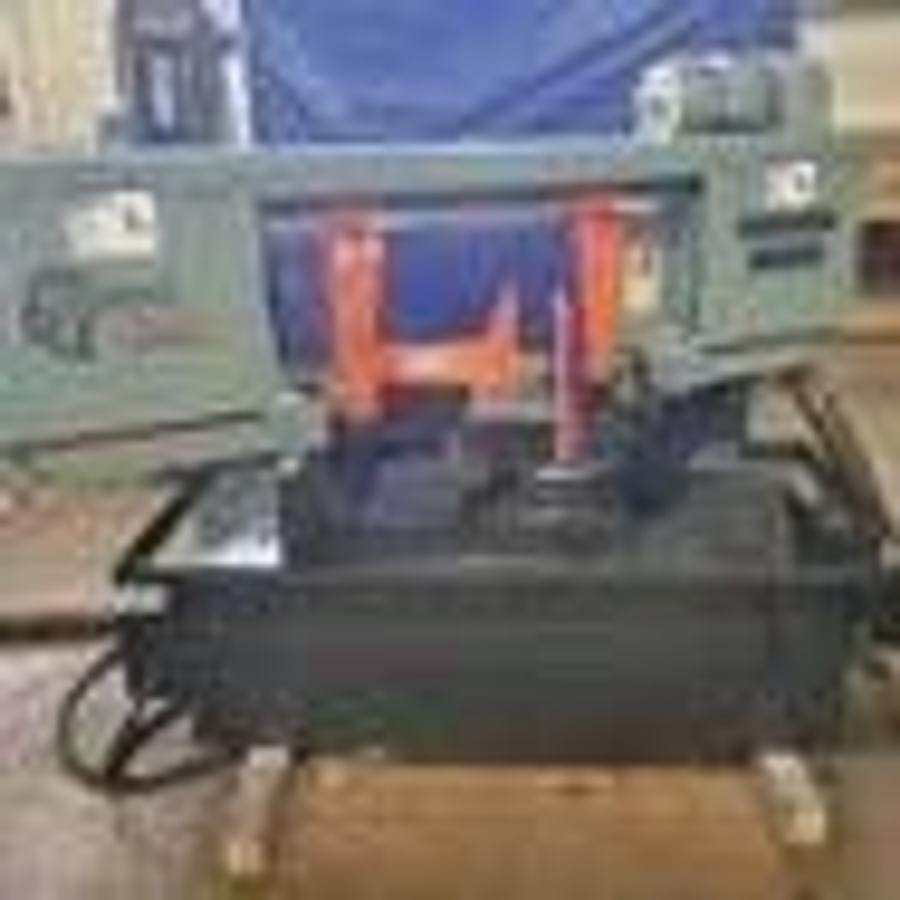

Featuring the MARVEL/SPARTAN Hercules Model S-330/2 mitering, horizontal bandsaw with nominal capacity of 12" x 18". A 2008 model that's brand-new with impressive specs such as 12" rectangle capacity in height and width, Rounds and Square capacity of 12", and Semi auto type. It operates on 3HP, has a blade width of 1", blade thickness of 0.035", and blade length of 162". Additionally equipped with 5' roller extension table and a 3HP, 1800 RPM TEFC motor, this bandsaw is proficient and durable.
Maximum 13" Round
Blade at 45 degrees (Nominal) 11"H x 12"W
Blade at 60 Degrees(Maximum) 11"H x 8" W
Length 13, 6"
Width/ Gauge 1" x .035
Working height 30.5"

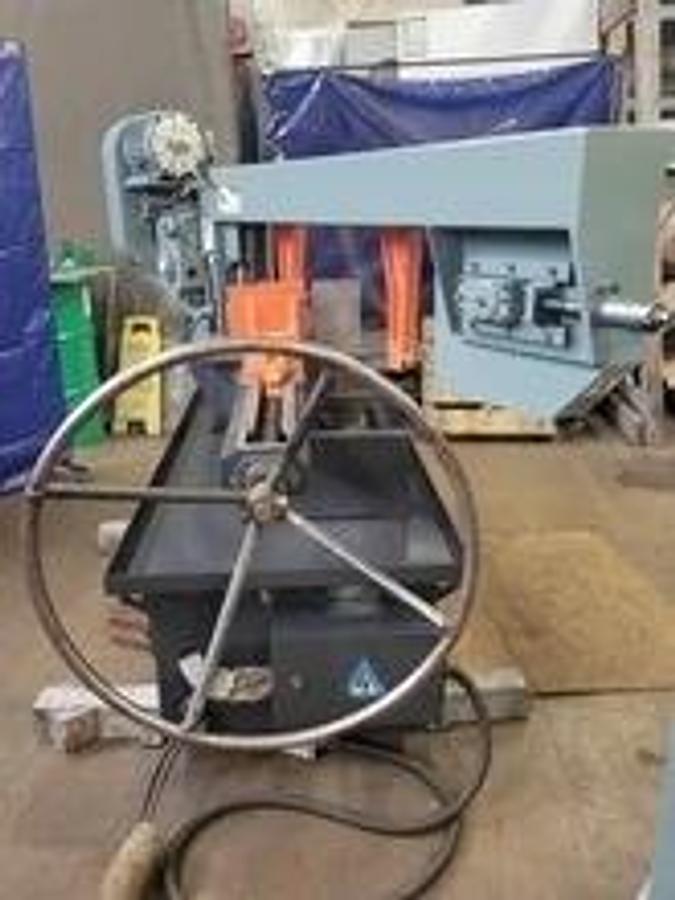

Roller Extension Table 5'
Blade tension 30,000 psi

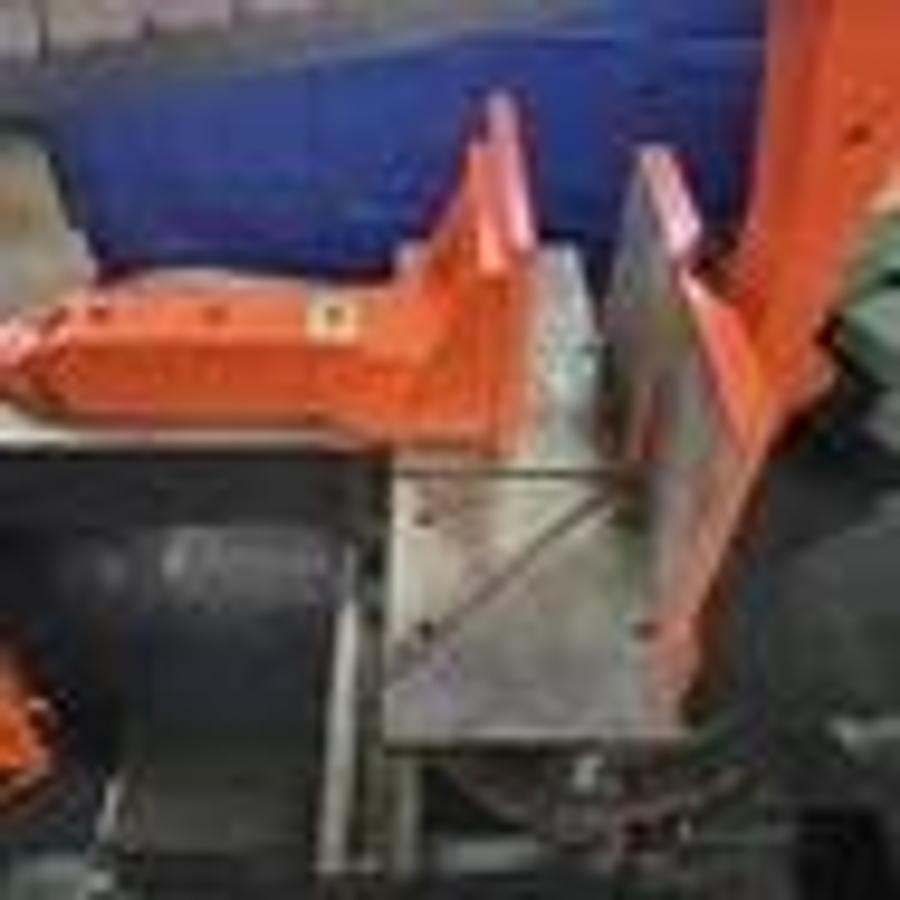

Height of Jaw 6.5"
Blade Speeds 0-330 FPM
Machine Dimensions 87" x 83" x 54" High
Shipping Weight 2,200 lbs.
Eagle beak VTR blade 3/6 tooth pitch $51.00

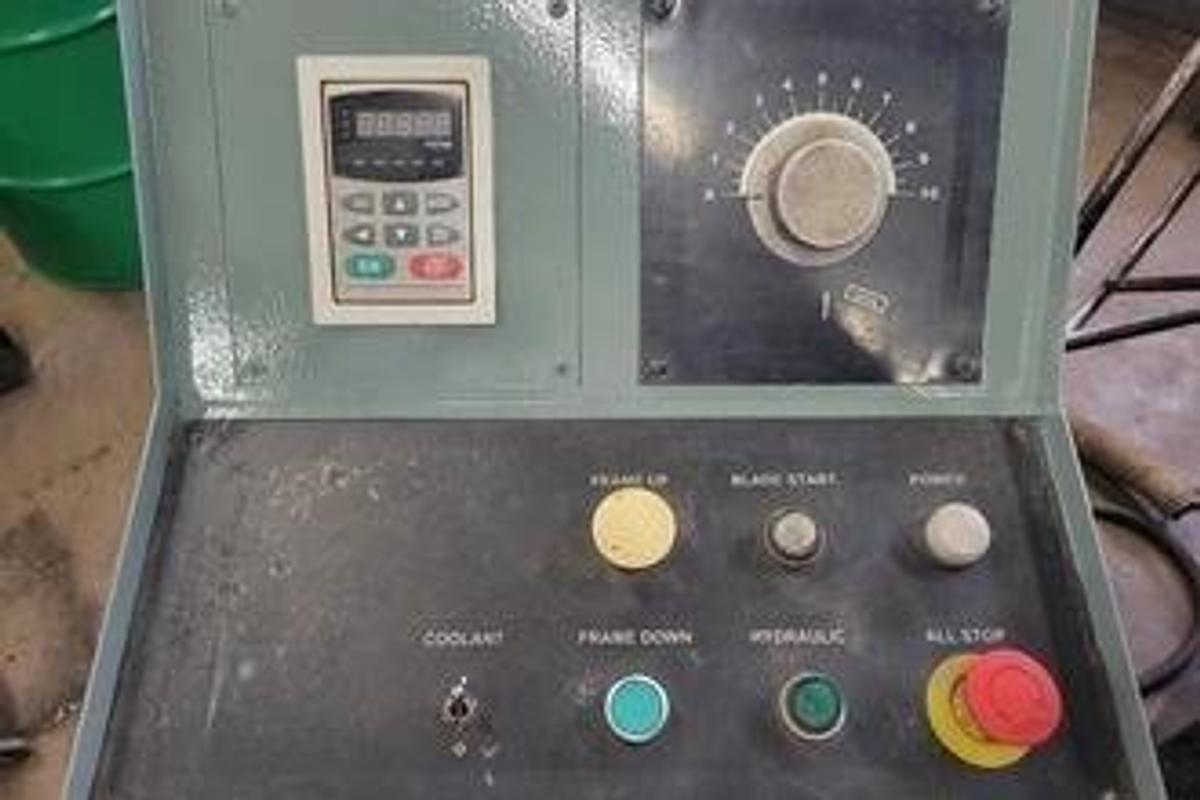

5' free standing control console (Special order) $2,050.00
RECT-CAP (H) 12"
RECT-CAP (W) 18"
ROUNDS-CAP 12"
SQUARE-CAP 12"
POWER 3 HP
TYPE (AUTO, MANUAL, SEMI) Semi
BLADE WIDTH 1"
BLADE THICKNESS 0.035"
BLADE LENGTH 162"
DIMENSIONS 87" x 83" x 54", Shipping 87" x 48" x 54" high
WEIGHT 2.200 lbs.
Specifications
| Manufacturer | MARVEL/SPARTAN |
| Model | S330/2 |
| Year | 2008 |
| Condition | Used |
| Stock Number | 21751 |
| Status | For Sale |
| Rect-Cap (H) | 12"; 304.8 mm |
| Rect-Cap (W) | 18"; 457.2 mm |
| Rounds-Cap | 12"; 304.8 mm |
| Square-Cap | 12"; 304.8 mm |
| Power | 3 hp; 2.2 kW |
| Type (Auto, Manual, Semi) | Semi; Semi |
| Blade Width | 1"; 25.4 mm |
| Blade Thickness | 0.035"; 0.889 mm |
| Blade Length | 162"; 4,114.8 mm |
| Dimensions | 87" x 83" x 54"; 87" x 83" x 54" |
| Weight | 2,200 lbs; 2,200 lbs |
| Capacity | Nominal 12" x 18" |
| Vise | Open (Max.) 18" |
| Drive | 3 HP, 1800 RPM TEFC Motor |
