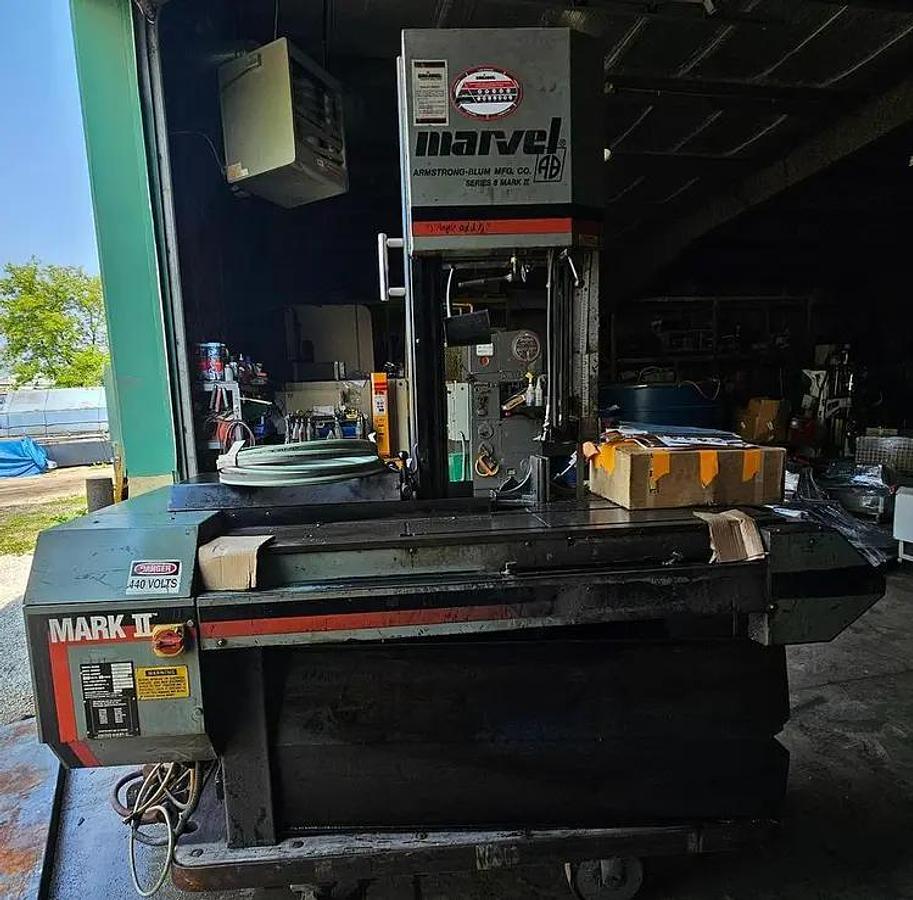

MARVEL Series 8 Mark II Vertical Tilt Frame Bandsaw 18" x 22" Capacity
Marvel Saw Company, now Amada Marvel, Inc., has a history dating back to 1904, when it was founded in Chicago, Illinois, as Armstrong-Blum Mfg. Co… The company, started by the Armstrong and Blum families, initially focused on manufacturing tools and tool holders. They later diversified into saw production, with their first power-driven hack saw introduced in 1906. The company later moved to Oshkosh, Wisconsin, and was acquired by Amada Holdings Co., Ltd. in 2018, becoming Amada Marvel, Inc.
+5
Marvel Saw Company, now Amada Marvel, Inc., has a history dating back to 1904, when it was founded in Chicago, Illinois, as Armstrong-Blum Mfg. Co… The company, started by the Armstrong and Blum families, initially focused on manufacturing tools and tool holders. They later diversified into saw production, with their first power-driven hack saw introduced in 1906. The company later moved to Oshkosh, Wisconsin, and was acquired by Amada Holdings Co., Ltd. in 2018, becoming Amada Marvel, Inc.

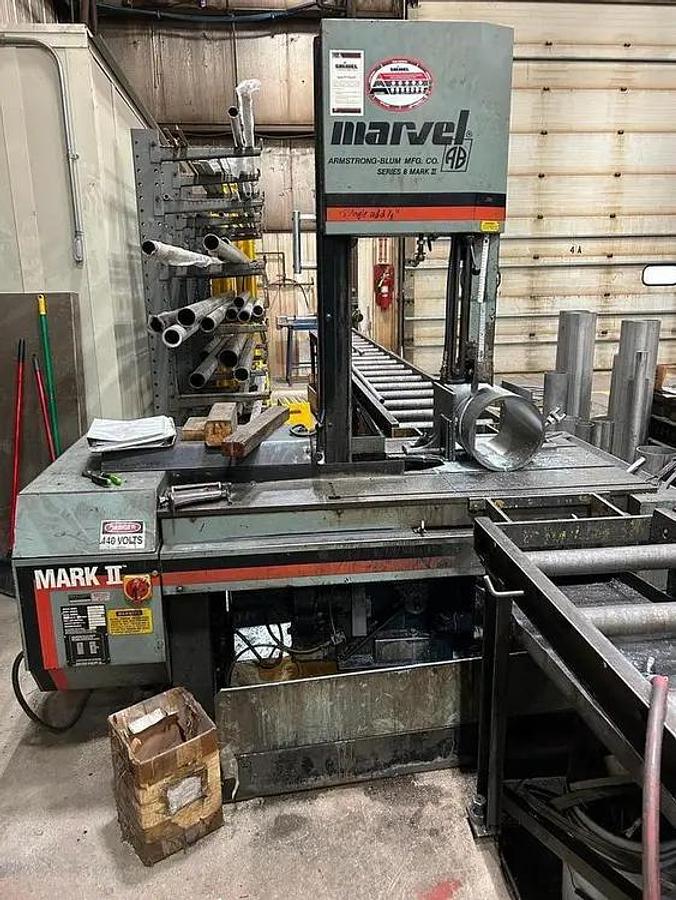

Marvel Band Saw Series 8 Mark II
New – 1995

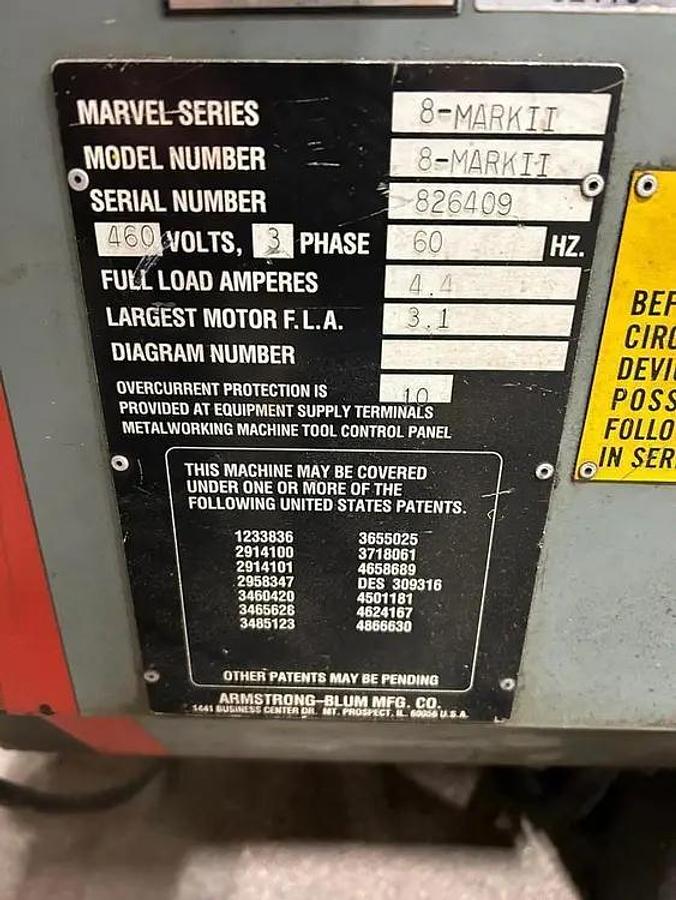

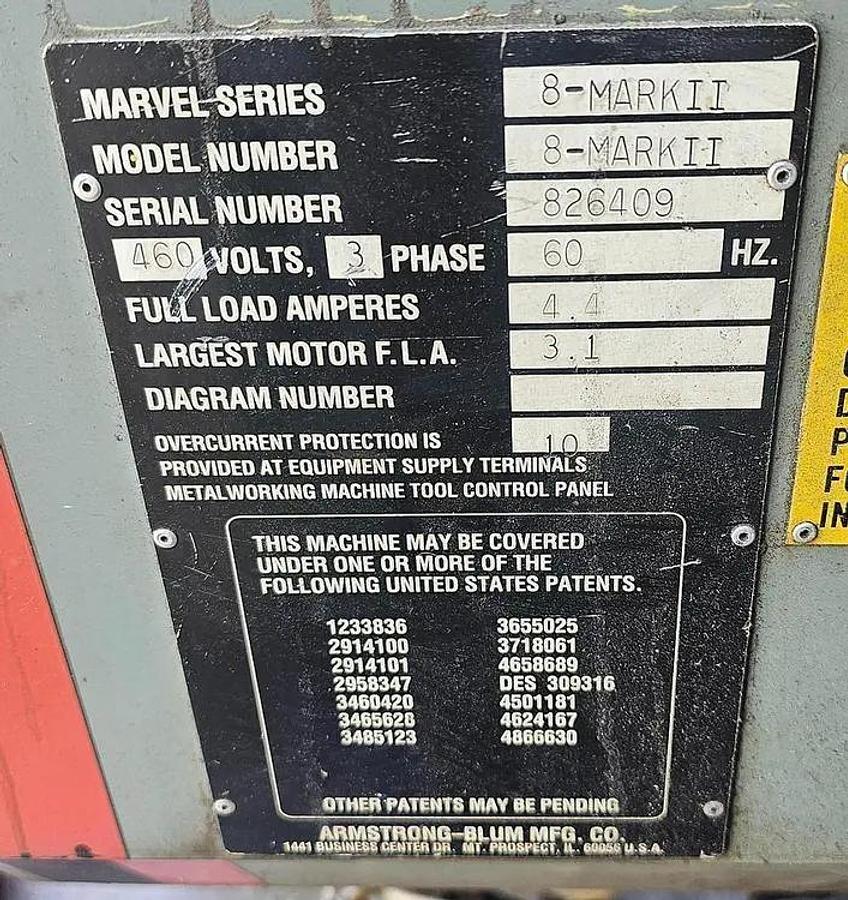

Serial No. 826409

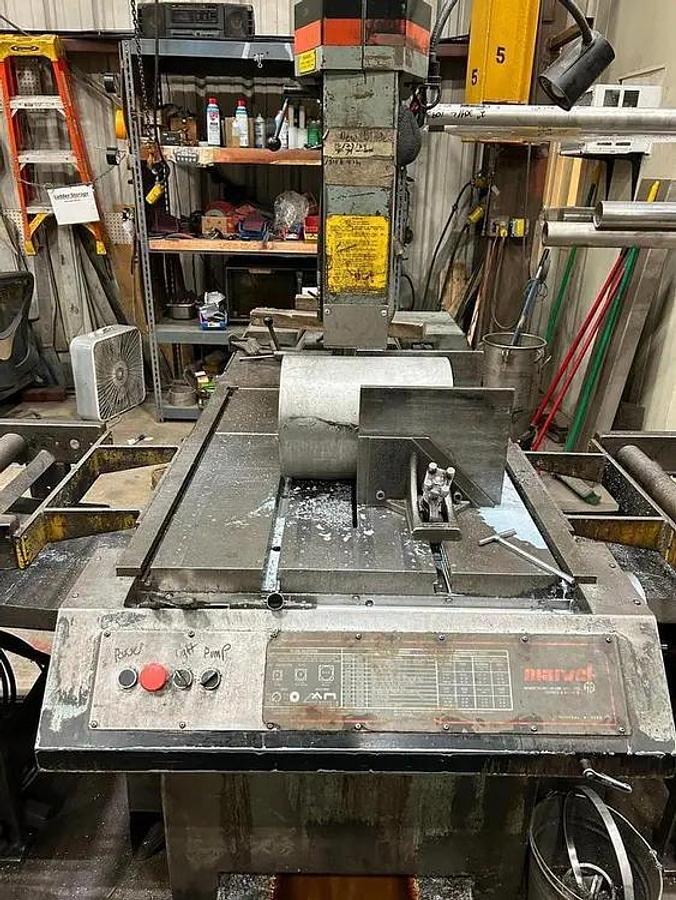

Marvel Band Saw Series 8 Mark II
Marvel Band Saw Series 8 Mark 2 EQUIPPED WITH:

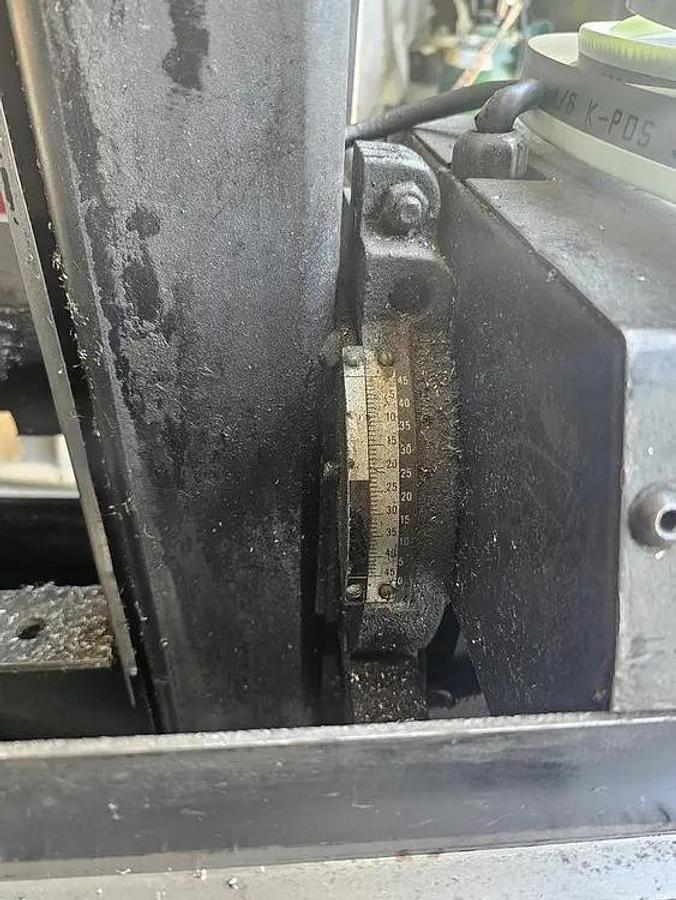

Tilt up to 45 Deg. Left and Right of Vertical

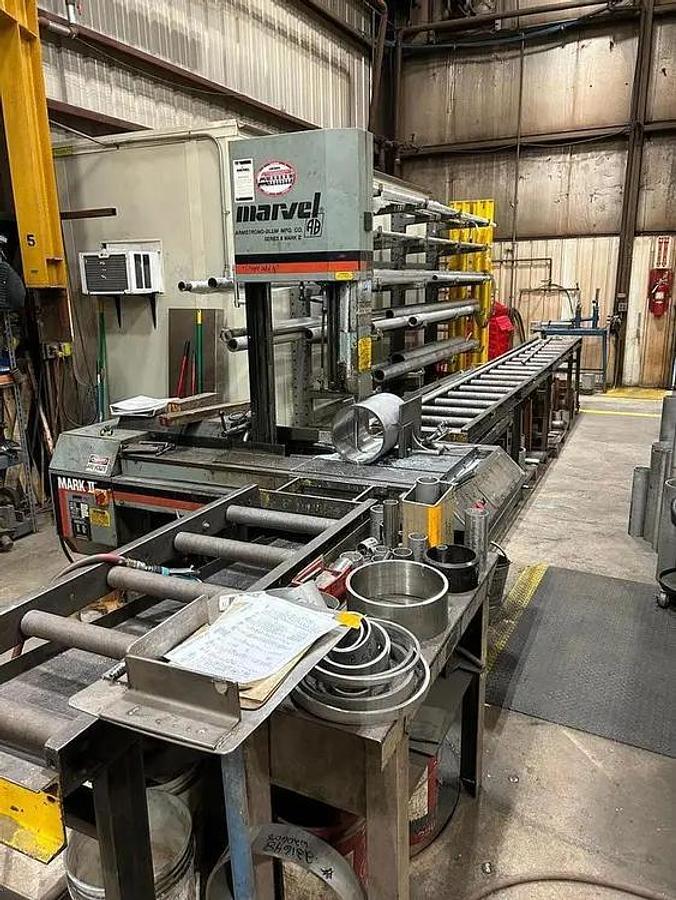

CONVEYOR SYSTEM NOT INCLUDED
Specifications
| Manufacturer | MARVEL |
| Model | SERIES 8 MARK II |
| Year | 1995 |
| Condition | New |
| Stock Number | 22189 |
| Status | For Sale |
| Throat Cap | 18"; 457.2 mm |
| Work Height | 22"; 558.8 mm |
| Power | 2 hp; 1.5 kW |
| Blade Width | 1"; 25.4 mm |
| Blade Length | 174"; 4,419.6 mm |
| FPM | 450; 450 |
| Nominal Capacity | 18″ x 18″ |
| Maximum Capacity | 18″ x 22″ |
| Vertical Capacity at 45 Degrees | 12-3/4″ |
| Table Working Surface | 33″ x 24-1/4″ |
| Height of Table | 34-1/2″ |
| Tee Slots (4) | 3/4″ |
| Maximum Open of Vise | 20″ |
| Vise Height | 6″ |
| Main Drive | 2 HP, 1,800 RPM |
| Blade Speed Range | 50-450 RPM |
| Blade Size | 0.035″ Thick/1″ Wide /14′-6″ Long |
| Feed Force | 0-140 Lbs. |
| Coolant System Motor | 1/4 HP |
| Reservoir Capacity | 20 Gal. |
| Electrics | 3/60/460 |
| Approximate Dimensions | 79″ x 90″ x 85″(H) |
| Approximate Weight | 2,870 Lbs. |
| Workholding Vise | Maximum Open – 21″/ Jaw Height – 6″ |
