Description

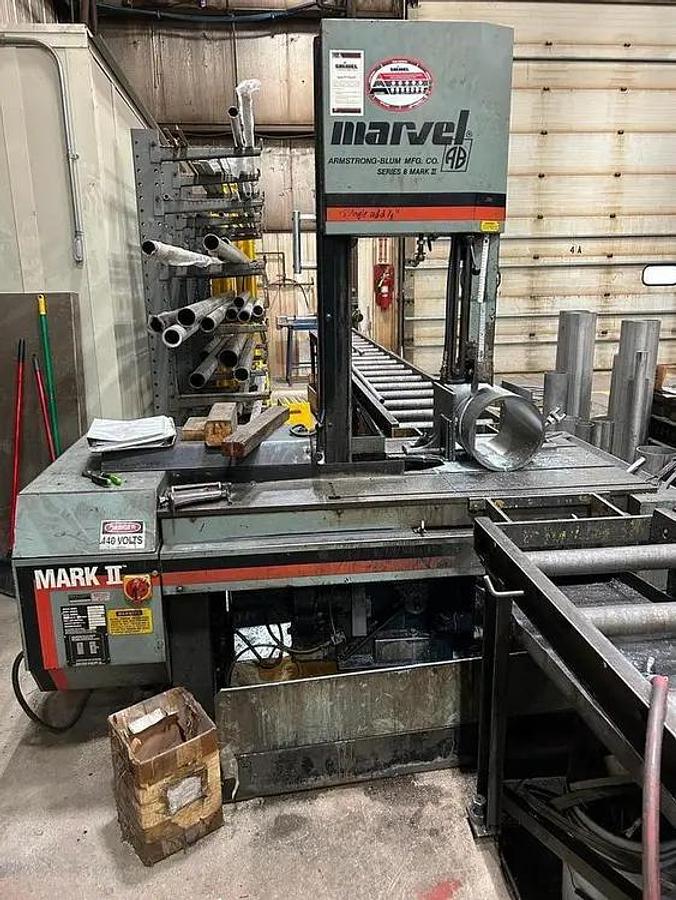

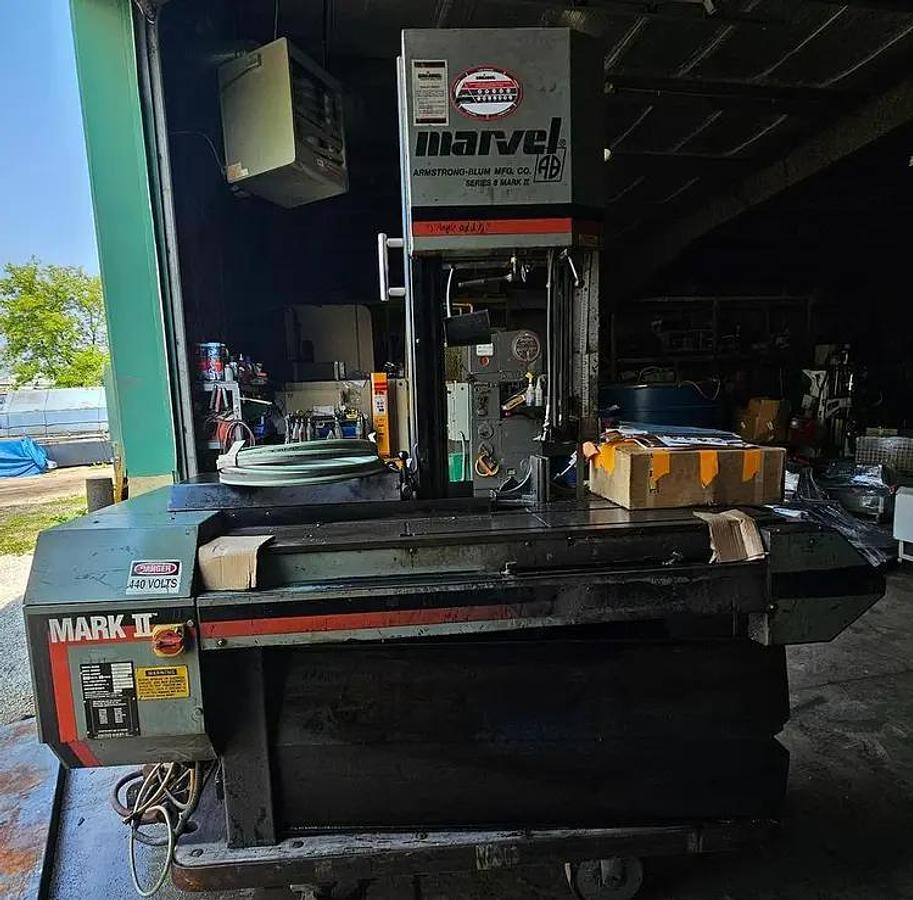

1995 MARVEL Series 8 Mark II Vertical Tilt Frame Bandsaw 18" x 22"
Marvel Band Saw Series 8 Mark 2 EQUIPPED WITH:

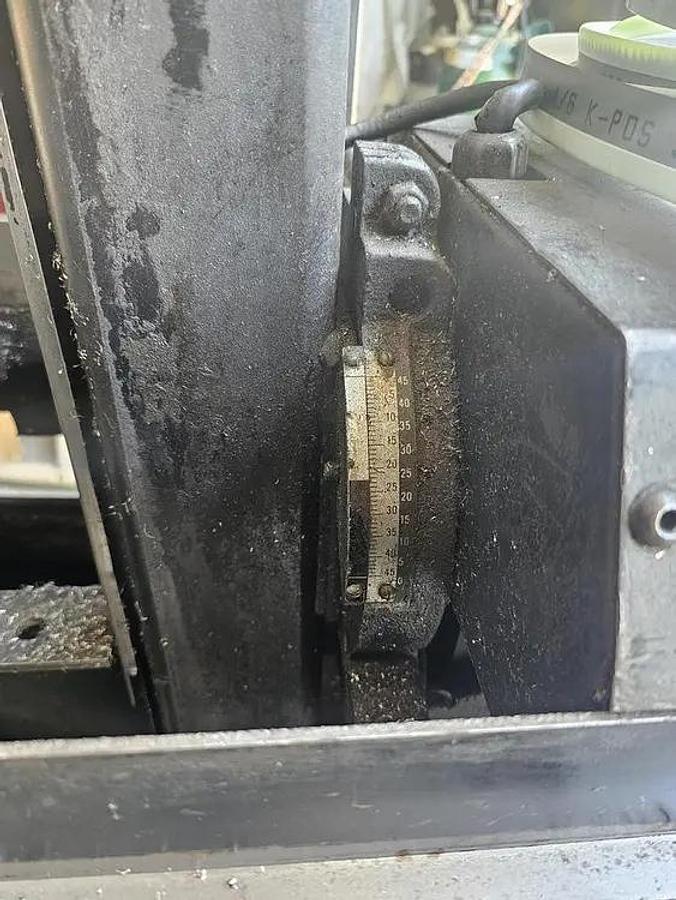

Tilt up to 45 Deg. Left and Right of Vertical
Marvel Band Saw Series 8 Mark II
New – 1995

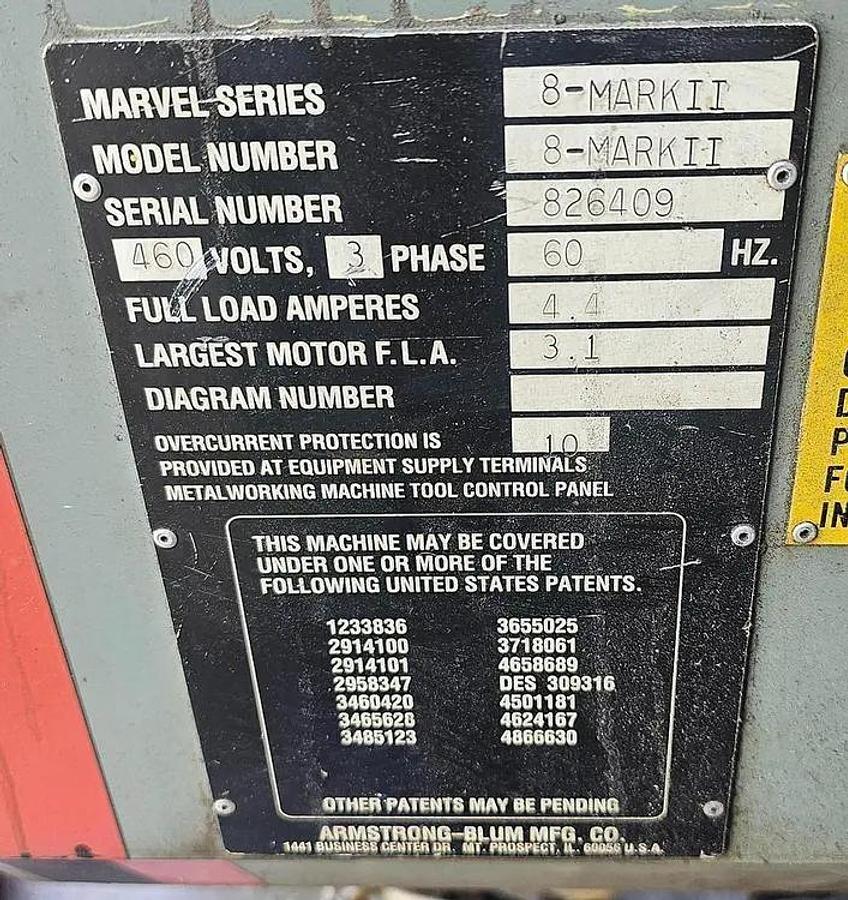

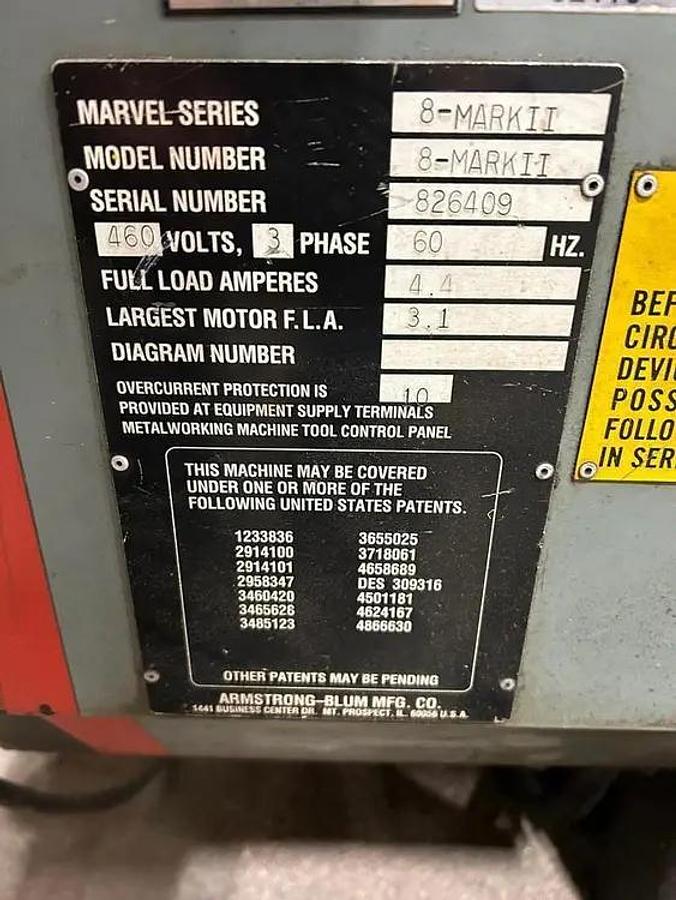

Serial No. 826409
Marvel Band Saw Series 8 Mark II
Specifications
| Manufacturer | MARVEL |
| Model | SERIES 8 MARK II |
| Year | 1995 |
| Condition | New |
| Stock Number | 22228 |
| Status | For Sale |
| Throat Cap | 18"; 457.2 mm |
| Work Height | 22"; 558.8 mm |
| Power | 2 hp; 1.5 kW |
| Blade Width | 1"; 25.4 mm |
| Blade Length | 174"; 4,419.6 mm |
| FPM | 450; 450 |
| Dimensions | 79″ x 90″ x 85″(H); 79″ x 90″ x 85″(H) |
| Weight | 2,870 lbs; 2,870 lbs |

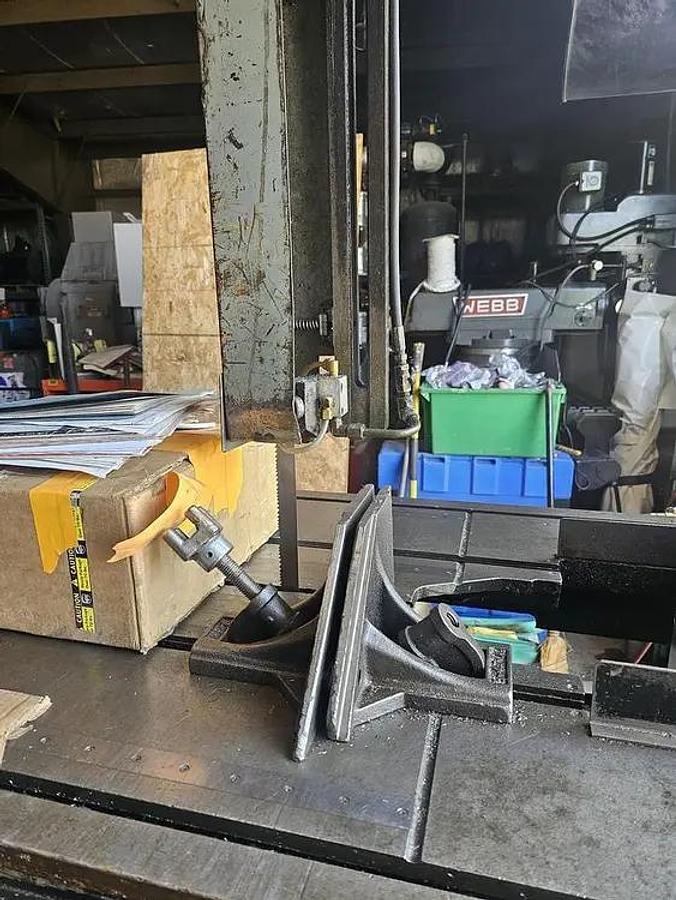

| Workholding Vise | Maximum Open – 21″/ Jaw Height – 6″ |
| Nominal Capacity | 18″ x 18″ |
| Maximum Capacity | 18″ x 22″ |
| Vertical Capacity at 45 Degrees | 12-3/4″ |
| Table Working Surface | 33″ x 24-1/4″ |
| Height of Table | 34-1/2″ |
| Tee Slots (4) | 3/4″ |
| Maximum Open of Vise | 20″ |
| Vise Height | 6″ |
| Main Drive | 2 HP, 1,800 RPM |
| Blade Speed Range | 50-450 RPM |

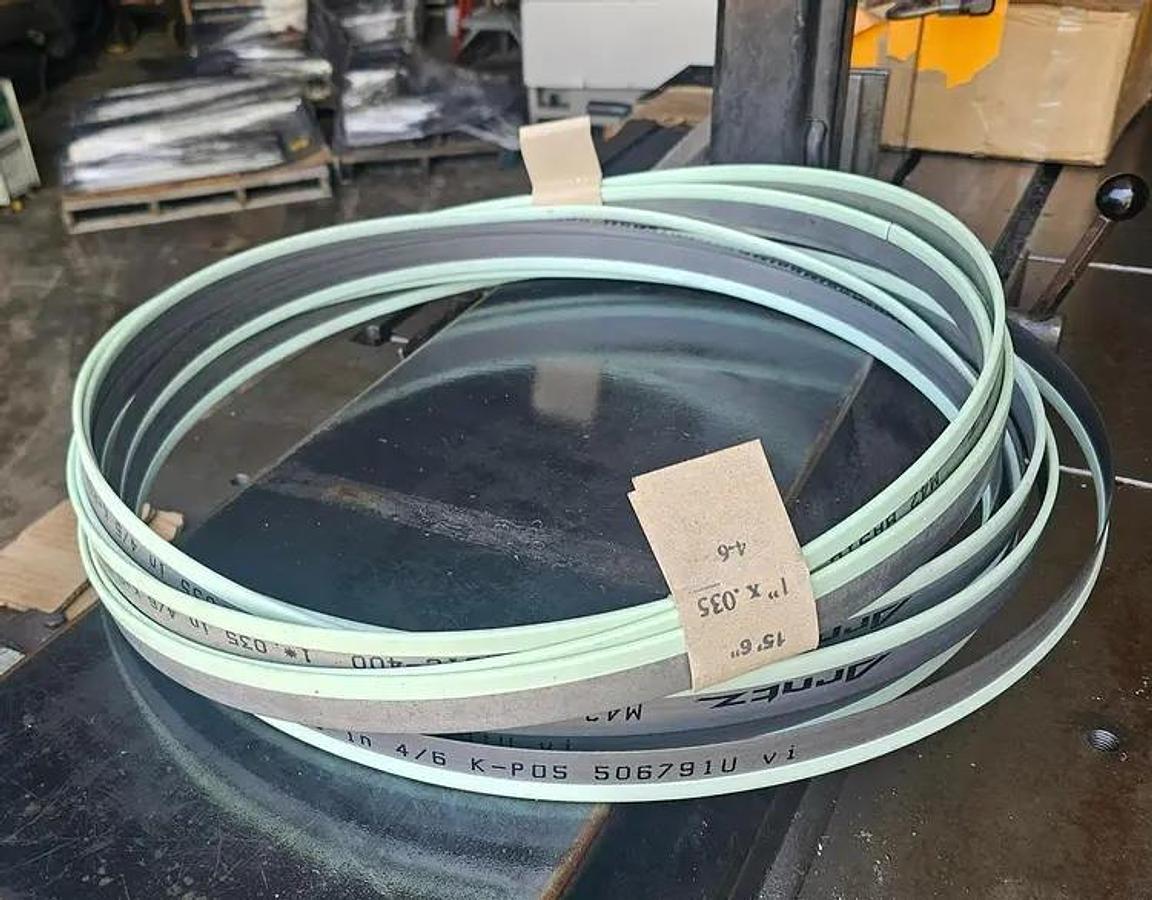

| Blade Size | 0.035″ Thick/1″ Wide /14′-6″ Long |
| Feed Force | 0-140 Lbs. |
| Coolant System Motor | 1/4 HP |
| Reservoir Capacity | 20 Gal. |

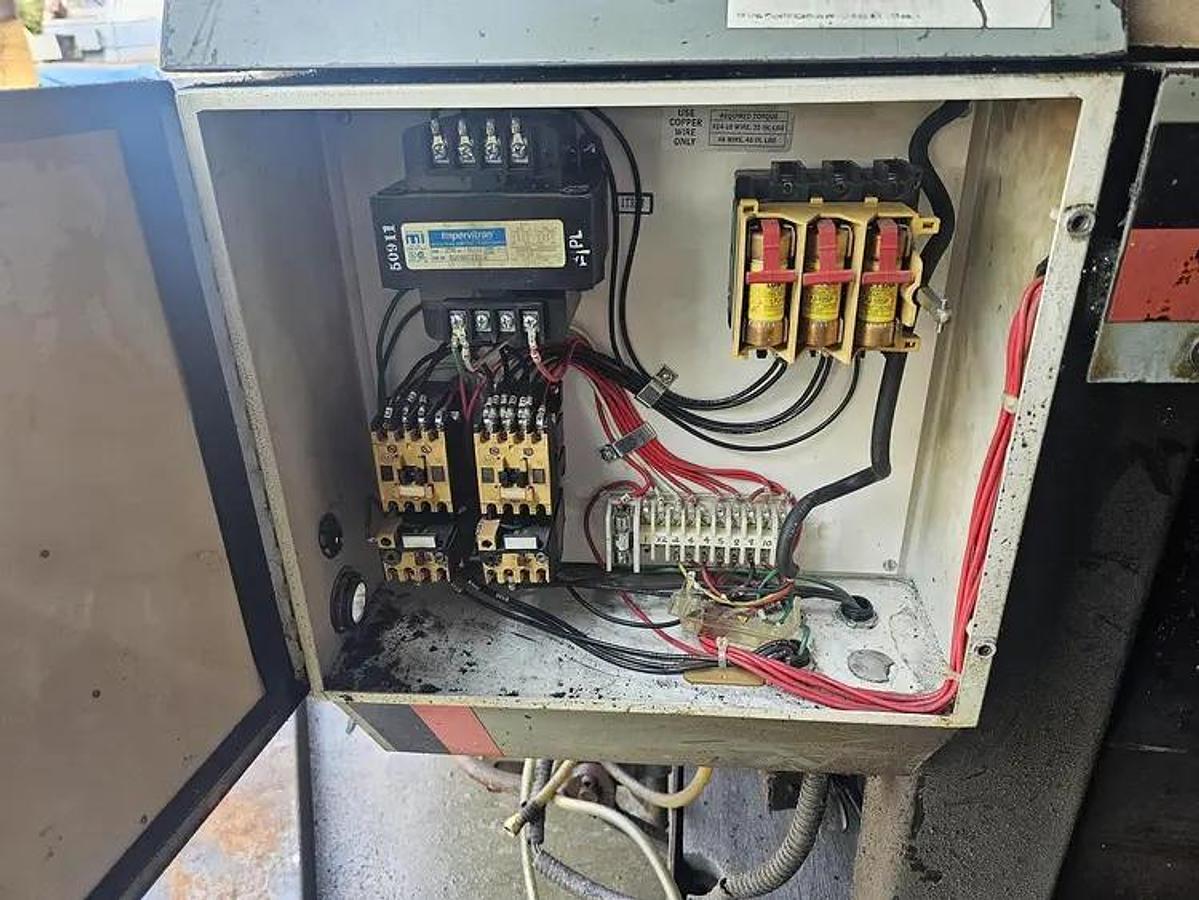

| Electrics | 3/60/460 |
| Approximate Dimensions | 79″ x 90″ x 85″(H) |
| Approximate Weight | 2,870 Lbs. |
