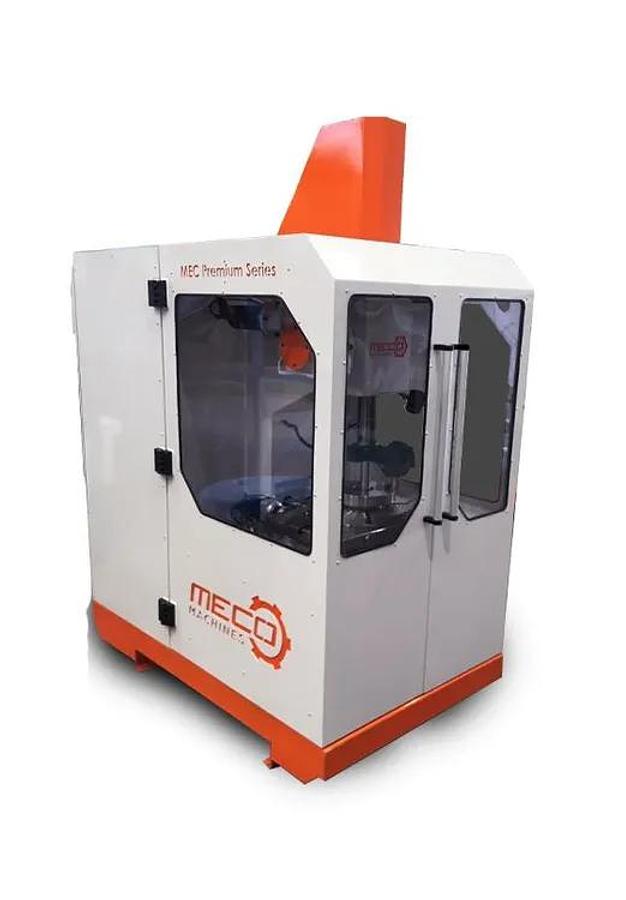

MECO Keyseter MODEL MEC-70 / 340 x 600 CNC Premium 13.3" vertical stroke 3.94" keyway width

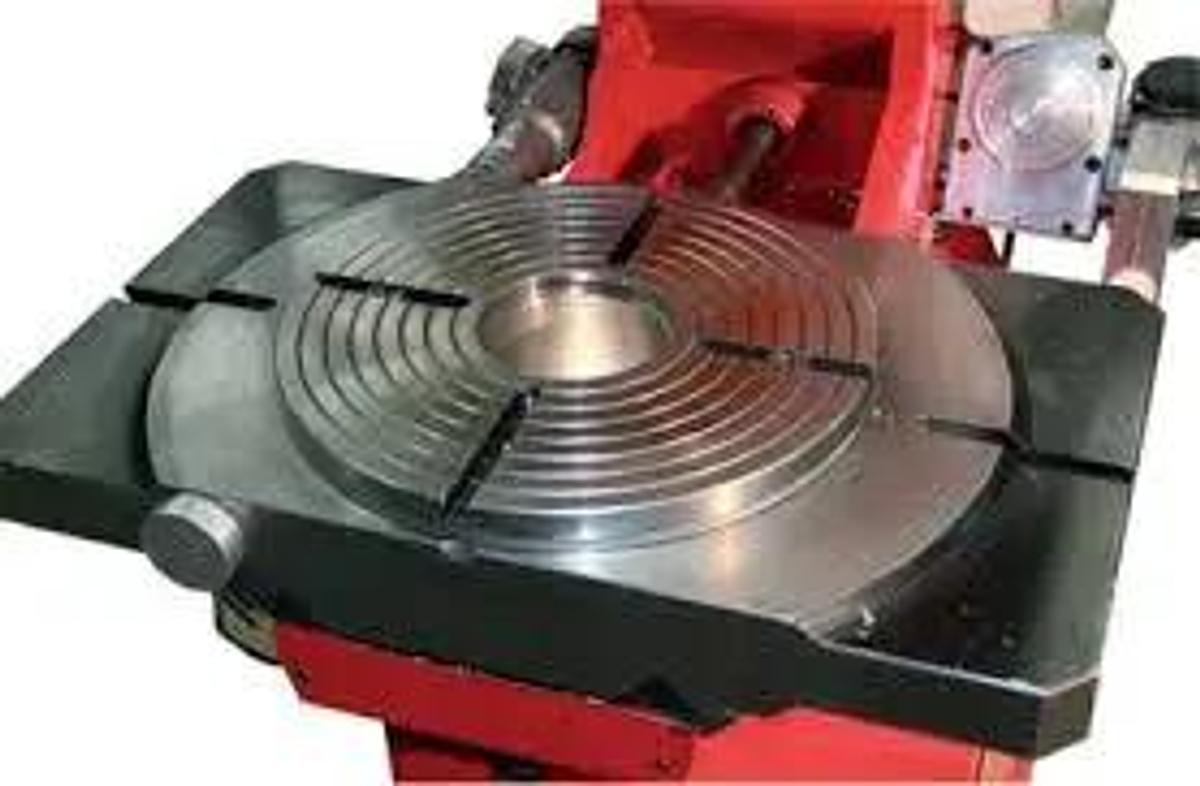

MECO Keyseter MODEL MEC-70 / 340 x 600 CNC Premium 13.3" vertical stroke 3.94" keyway width 3 AUTOMATIC AXES. Thanks to the electronic control systems of last generation that have been incorporated in this model for its three axes is achieved greater precision and a higher degree of automation. The machine can work in automatic mode, so that the operator can simply handle replace the part once the machine has finished the process of pre-programmed machining. Undoubtedly, the MECO broaching machines are designed to increase the production capacity of our customers. Standard Equipment Complete Electrical Panel UL Approved Siemens and Omron Electrical Components 14-1/8” Built-In Rotary Table 360 Degree Rotary Scale Upper and Lower Adjustable Stroke Limits Cutter Retract During Upstroke Electrically Interlocked Safety Guards Omron Mitsubishi PLC Model MEC70-340x600 CNC Version Brake motor is replaced with servo motor NC control of cutter stroke and servo motor NC control of table infeed increment and depth, program storage of 10 jobs, programmable safety clearances for stroke and table, programmable cutter retract during non-cutting up stroke, UL approved electrical panel, Omron PLC, wired for 220V or 440V/60Hz/3Ph operation RECOMMENDED OPTION: UL MEC-80 Adaptation…$6,600.00 Highly Recommended Option Lower guide/support for long keyways (note: requires special holder for use with lower guide)… $1,743.00 Excluding transportation cost EX factory The centering fixture is highly recommended for centering on a I.D. bore during set-up. The lower guide for very long slotting. The cutters are paired with individual toolholders by size. Special for longer centers or special widths are the same price as normal cutters. Special toolholders are 35% higher.
