MECO Keyseater MODEL MEC-70 / 340 x 600 Automatic 13.3" vertical stroke 3.94" keyway width

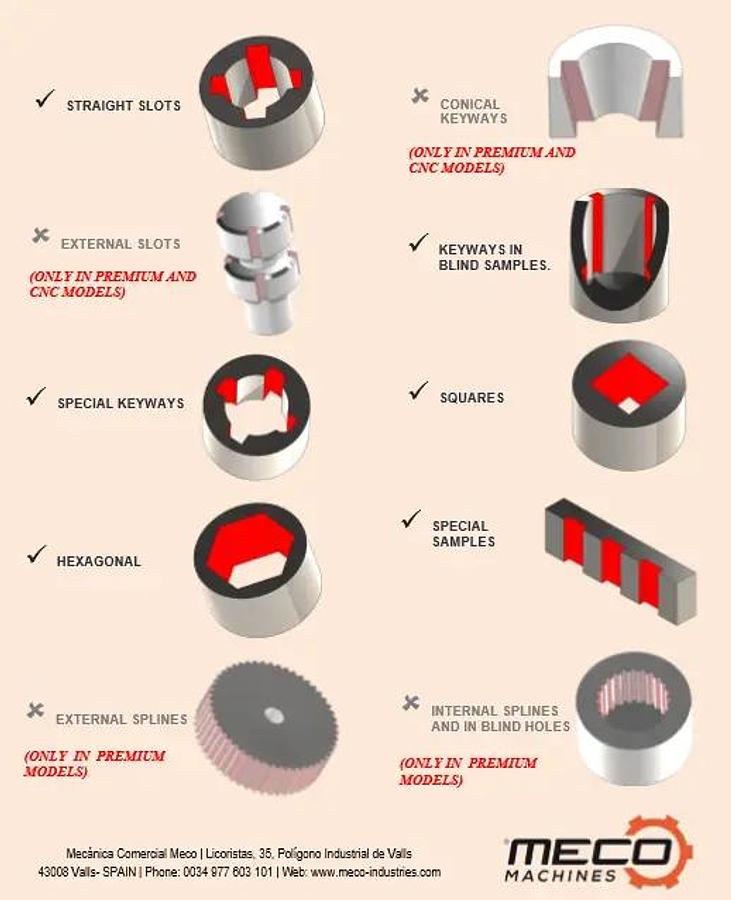

MECO Keyseater MODEL MEC-70 / 340 x 600 Automatic 13.3" vertical stroke 3.94" keyway width Versatility is undoubtedly the main differentiating factor of MECO broaching regarding our competence as a single machine meets the same production capacity hitherto achieved with two machines, Keyseaters and broaching. Our broaching machine offers all the features and specifications of the most sophisticated slotting machine on the market. To all this we add the ability to perform internal spline, which until now could only be done with broaching, just without having to spend a considerable sum on broaches. While broaches can cost several thousand dollars, the cost of a tool for the MECO Keyseater is negligible. But this is not the only competitive advantage over broaching, so are the functional solutions that MECO Slotting offer and you can perform with precision, inner grooved on both straight and tapered blind parts, something impossible for broaching. Standard Equipment Siemens and Electrical Components 14-1/8” Built-In Rotary Table 360 Degree Rotary Scale Upper and Lower Adjustable Stroke Limits Cutter Retract During Upstroke Electrically Interlocked Safety Guards NECESSARY CHARGE Packaging and Handling $1,636.80 RECOMMENDED OPTION: UL MEC-80 Adaptation $6,001.60 RECOMMENDED TOOLING & ACCESSORIES $10,769.45 Total Cost Ex Factory $74,604.65 Model MEC70-340x600 Automatic Version Brake motor is replaced with servo motor NC control of cutter stroke and servo motor NC control of table infeed increment and depth, program storage of 10 jobs, programmable safety clearances for stroke and table, programmable cutter retract during non-cutting up stroke, UL approved electrical panel, Omron PLC, wired for 220V or 440V/60Hz/3Ph operation. Recommended Options Lower guide/support for long keyways (note: requires special holder for use with lower guide)…$1,743.00 The centering fixture is highly recommended for centering on a I.D. bore during set-up. The lower guide for very long slotting. The cutters are paired with individual toolholders by size. Special for longer centers or special widths are the same price as normal cutters. Special toolholders are 35% higher. Specifications
