SHARP Mitering Semi-Auto Horizontal Band saw Model SW-165HT

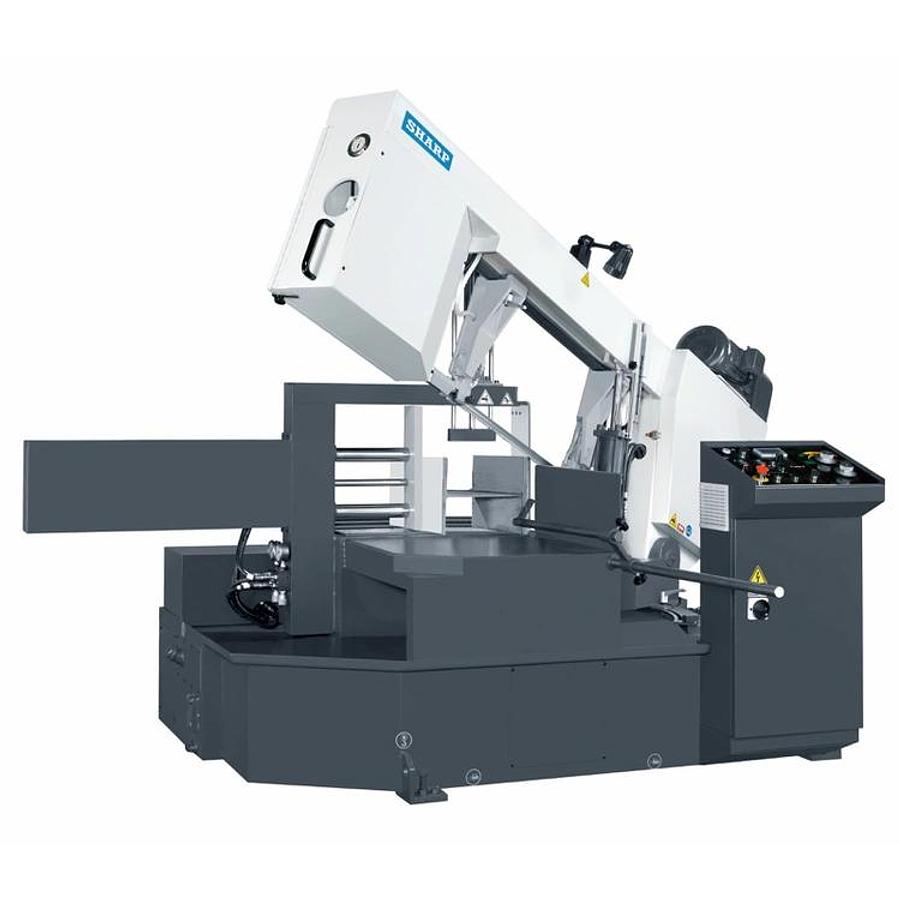

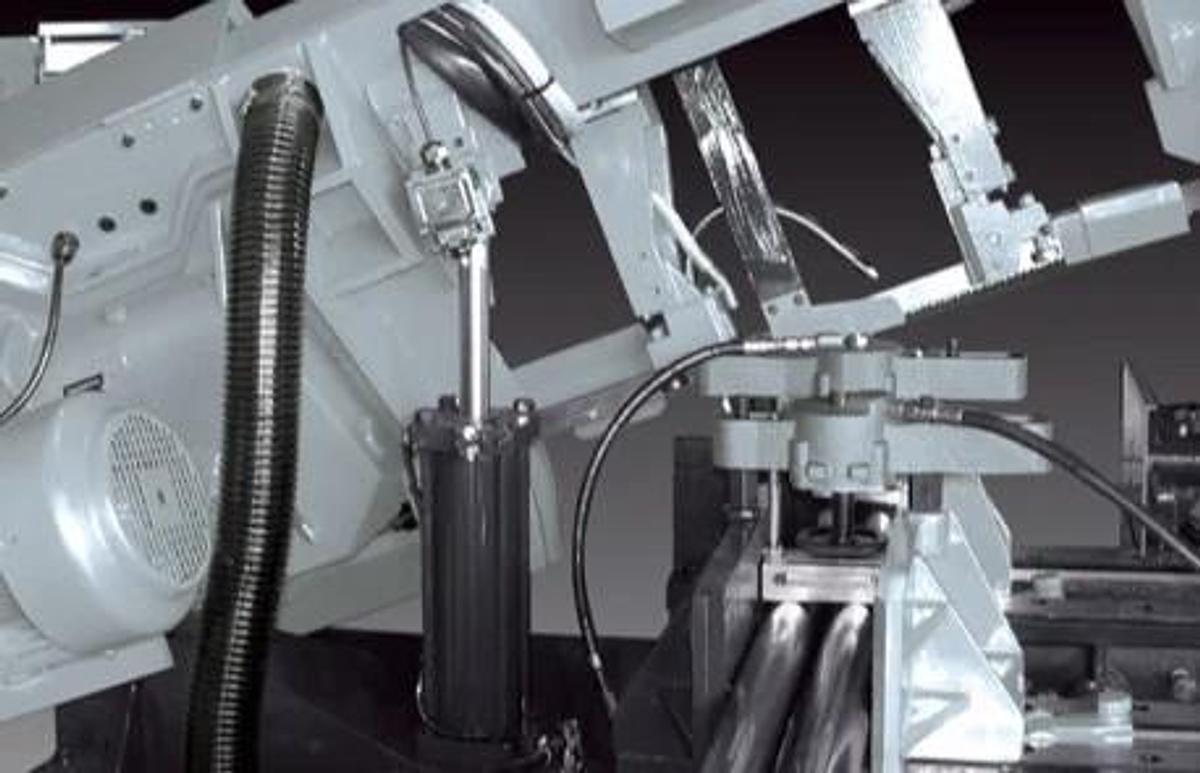

SHARP Mitering Semi-Auto Horizontal Band saw Model SW-165HT This is a semi automatic miter saw with saw frame that can swivel 0° to 60° for cutting work pieces. Angle change is facilitated by pivot system for accurate angle cuts. It is equipped with full stroke hydraulic vise clamping and easy to operate control panel. Variable step blade drive with LED Blade Sped Indicator and with heavy duty reducer, deliver high cutting production Auto saw arm preset return height at the end of each cut to facilitate next cut Double guides located on a central axis support the blade from the top, giving it extra penetrating force. The carbide guides are relieved to allow coolant flow to lubricate and coo the blade as well as work piece. Full stroke machine vise provides hydraulic clamping for different material sizes Discharge table with coolant return and a built-in adjustable material stop facilitate repeat cuts. Standard Accessories Adjustable material stop Adjustable work light Additional flushing hose for cleaning Easy blade change with front access at wait level Discharge table with adjustable material stop Bi-Metal saw blade Coolant system Tools boc with tools, leveling pads and additional wire brush\Operation and Parts Manual 5” round, 15” x 25.5” rectangular cutting capacity (90°) 7” x 9.8” rectangular (60°) 7” round, 15.7” x 15.7” square (45°) 8” round (30°) 5 HP motor, wt.3,300 lbs Coolant system Auto saw arm return to preset height at end of cut to facilitate next cut. 4 step blade speeds with worm gear speed reducer operated with a toggle clamp device Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life Synchronized Blade brush to remove chips from blade gullet Adjuster stock stop Manual blade tension adjustment OPTIONAL FEATURES ■ Variable vise pressure control. VP-SW 165 $1055.00 Hydraulic powered chip conveyor $2245.00 □ 0.5M In-feed roller table – 610 mm (24”) in-feed roller table with plate steel between the rollers. RT-SW165-0.5M $N/C Nesting fixture NF-SW165 $1800.00 Roller table with steel plate RT-SW165-2M $3,850.00 UL components upgrade UL-SW165 $2200.00 MITER INCH METRIC Miter Capacity 60° Maximum 60° Maximum MAXIMUM CUTTING CAPICITY INCH METRIC Round 16.5 420 mm Rectangle 14.9 x 25.5 380 x 650 mm BLADE INCH METRIC Inverter Control with LED Readout 66-330 fpm 20-100 m/min. Size 1 1/4 x .042 x 209"1.33 x 34 x 208.66 Tension Hydraulic Hydraulic Cleaning Powered wire brush Powered wire brush Guides Carbide with pre-alignment roller guides MOTOR OUTPUT INCH METRIC Saw Blade 5 HP 3.75 Kw Hydraulic 1 HP 0.75 Kw Coolant 0.1 2 HP 0.08 Kw GENERAL INCH METRIC Weight 3,307 lbs. 1500 kg Workbed Height 29.52 in. 750 mm Floor Space (L x W x H) 90.55 x 114.17 x 98.42" 2300 x 2900 x 2500 mm
