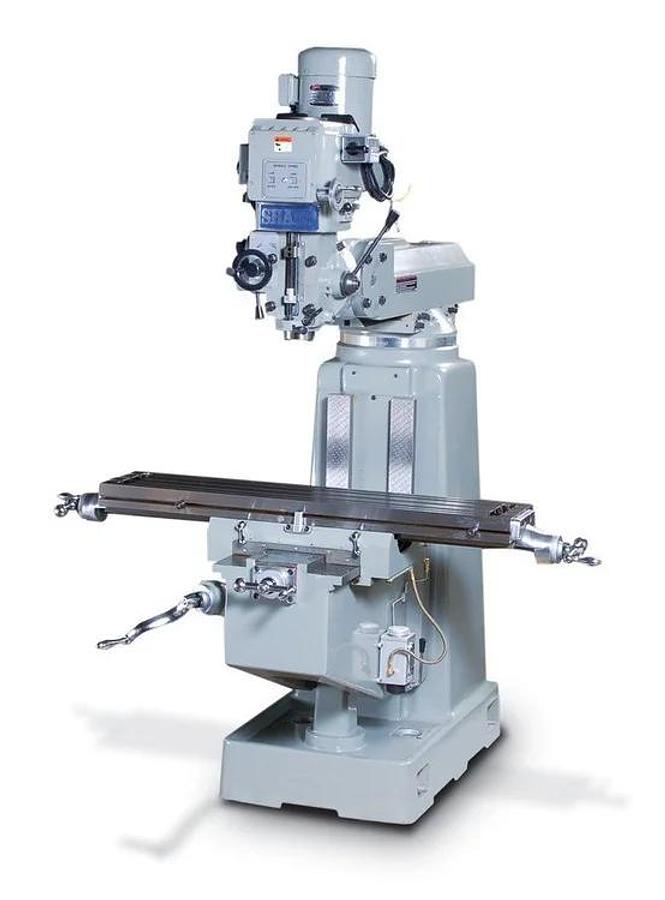

SHARP TMV Vertical Knee Mill with Vari-Speed Head, Vertical Knee Mill

SHARP TMV Vertical Knee Mill with Vari-Speed Head, Vertical Knee Mill Features, Function, & Benefits: ISO 9002 Certified: Quality Up To World Industry Standards. Meehanite Casting: Highest Grade Of Casting Possible. A Pair Of High Out-Put Fans: Keeps Head And 3 HP Motor Cool, To Run Jobs For Extended Periods Without Damaging The Motor, Belts And Bearing. A Pair Of Precision Abec-7 Angular Contact Bearings To Support Spindle. The Quill Is Ground and Chromed To Fit The Housing: This Insures A Spindle Runout Of .0002” T.I.R. Motor Shaft And Vari drive Pulleys Are Dynamically Balanced, Then Chromed For A Flawless Fit, Ground Ribs On Inside Diameter: For Smooth Speed Changes. Motor Shaft Has An Oil Channel In The Center That Is Fed By A Grease Fitting On The Lower End: To Keep Vari-Drive Pulley Moving Smoothly On The Shaft. The Mill Uses A Roller Bearing For The Lower Support Of The Shaft: It Ensures Proper Loading, Support And Alignment It Also Prevents The Shaft From Being Distorted By The Tension Of The Belt: For Quiet, Accurate Operation At Any Speed For Years And Years. One Shot Lubrication System: For Lubrication Of Ways And Lead Screws. (X,Y And Z Axis) Hand Scraped Saddle And Knee: For Better Oil Retention. It Avoids Having Chips And Dirt Embed In The Knee And Damage The Sliding Surface. Oil Groove Are Milled: For Maximum Lubrication On All Wear Areas. Table And Saddle Backlash Is Controlled By Double Nut Design: Keeps Lead Screw In Contact With Bronze Nuts A All Times To Keep Backlash At .0008” Within 20”. Table And Saddle Are Mounted With Thrust Bearings That Are Pre-Loaded: Eliminating End Play For Precisely Controlled Lateral Movement. Patented Knuckle Design Uses 6 T-Bolts, 3 Per Side, Securing Them From The Outside: This Method Locks The Head Securely Resulting In Better Accuracy And Performance. STANDARD EQUIPMENT: • Manual Draw Bar • Hard-Chromed Ways • Front & Rear Rubber Way Covers • One-shot Lube System • Wired 220V or 440V. Please Specify • Tool Kit: Machine Manual, Half-Nut Wrench, Wrench 17m, 19m, Set of 6 Allen Wrenches, Philip Screw Driver, Flat Head, Screw Driver, Oil Can, Grease Gun, Rear Way Cover Bracket, Pin for Indicator, and Can of Paint. FEATURES: • Hardened & Ground Box ways on Column & Saddle for Maximum Rigidity • 3 HP Motor • R-8 Spindle • Knuckle joint using bolts & circular T-slot design; allowing head to swivel left & right, up & down • Dual fan head cooling System • Double-Nut Backlash Eliminator • Internal Lubricated Vari-Disc Design • Motor shaft end supported by bearing  6” “Kurt” Vise with Swivel Base (DX6 vise & D50-4-SA swivel base) 5000-2126 A $1,558.00  Auto lube pump Auto Lube2 $1,028.00  Right Angle Milling Attachment with Arbor ACC-10TMV-NT30 $2,936.00  Right Angle Milling Attachment with Arbor ACC-10TMV-R8 $2,406.00  “Sharp” Power Table Feed with Safety Handle (X-Axis) * SP-250A (see notes) $981.00  X Axis Installation $185.00 NET  “Sharp” Power Cross Feed with Safety Handle (Y-Axis) SP-250B $981.00  Y Y-Axis installation $300.00 NET  “Sharp” Power Knee Feed with Safety Handle (Z-Axis) SP-250D $981.00 Z Axis Installation $450.00 NET  Drill Chuck & Drill Arbor TMV-D/A $594.00  6” Riser Block ACC-06 $1,325.00 Riser Block Installation $210.00 Net  Coolant System with Chip Pan at Base (pump included) C311/TMV $1,028.00  “Maxi Torque Rite” Power Draw Bar TR-100 $1,102.00 Factory Installation $215.00 Net  R-8 Collet (Set of 11) - 1/8”-3/4” BY 1/16” ACC-R8 $297.00  Clamping Kit (52 pcs/Steel Rack) CK-104 $286.00  Halogen Work light WL-110V55W-L $297.00  CE mark net $1,839.00  380V and 575 V transformer 440T4 $1,230.00 Net  UL (to meet the state of California) components upgrade with electrical box (factory order) LMV-UL $4,282.00 NET  UL compliance certificate under the State of California $5,008.00 NET ✓ Table • Working Surface 10” x 54” • T-Slots Number and Size 3 Slots, 5/8” • 26” Wide Saddle ✓ Capacity • Travels (X & Y) 39” x 16.3” • Quill Travel 5” • Ram Travel 18.5” • Knee Travel 15.3” • Throat Distance 9.8” - 28.3” • Spindle Gageline to Table Top 5.375”-16.9” ✓ Spindle • Spindle Motor 3 HP • Wiring Voltage 220V/440V • Spindle Nose Taper R-8 • Spindle Variable Speed Drive 60-4,500 Rpm • Quill diameter 3-3/8” • Quill Feed 3 Speed (IPR) 0.0015, 0.003, 0.005 • Accuracy 0.0002” TIR • Head Tilt (Rt. To Left) 90° • Head Tilt (Up And Down) 45° ✓ Dimensions and Weight • Floor Area (W x D x H) 70”x 75” x 91.78” • Weight 3,000 Lbs. ✓ Total Power Consumptions • 220V 3 KVA/8 amps • 440V 3 KVA/4 amps Important Information Regarding Tariffs: The 6% tariff surcharge is net and not subject to discount. As you may be aware, the U.S. government has announced increased tariffs on various countries under the principle of reciprocity. This includes a tariff on imports from Taiwan, where Sharp Industries, Inc. is manufactured. There is a 90-day implementation pause while U.S. and Taiwanese officials negotiate the terms. To help limit your exposure during this time, Sharp Industries is capping the tariff impact at a maximum of 6% of the total price upon arrival in the U.S. Sharp Industries is committed to minimizing the impact of these tariffs and will continue to monitor the situation closely. We will keep you informed as further updates become available.
