SMB ST-50 CNC LATHE CAPACITY 17"

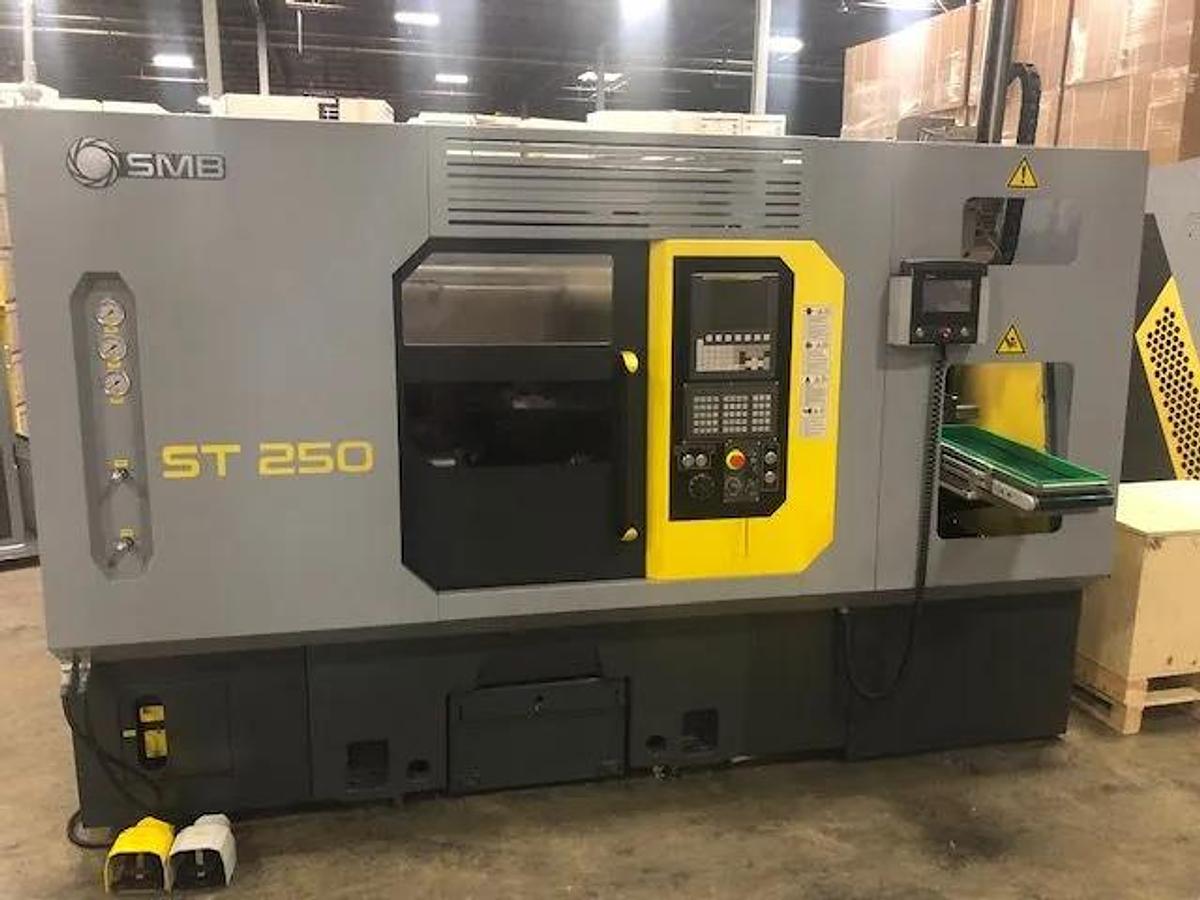

SMB ST-250 CNC LATHE CAPACITY 17" SMB has produced a new lathe which completely satisfies the demands in the field of mass production machining. We have also made the body smaller to save space which help to increase the productivity per unit area. With integrated gantry loader, ST – 250 also provides high speed productivity. MACHINE FEATURES • Servo Turret with 12 Tools • 300 mm Turning Length, • Integrated Gantry Loader, • Pre-tensioned X, Z Ball Screw, • Roller Type LM Guide • Separate Coolant Tank, • A2-6 Main Spindle, • Monoblock 30° Machine Bed, GANTRY LOADER FEATURES • Integrated Top Of The Machine, • Low Foot Print Because Of Top Assembly, • Unique Gantry Loader Door, • Not Necessary To Open Front Door For Loading & Unloading, • Maximum Safety Thanks To Integrated Feeder Cabinet, • All Axis are Actuated By Servo Motors BASIC MACHINE STANDARD ACESSORIES 1. Fanuc CNC Unit , 2. 8” Hydraulic Chuck , 3. 300 mm Turning Length, 4. Ø 49 mm Bar Capacity, 5. Servo Turret with 12 Tools, 6. VDI 30 ID and OD Tool Holders, 7. Graphic Screen, 8. 3 – Axis Gantry Loader, 9. MK – 4 Hydraulic Tailstock, Standard Linear Guideways Type : Roller Type, Brand: SCHNEEBERGER MRW 35 Made in Germany Standard Ball Screws Brand: Bliss Type : Ø40x10 mm Accuracy Class : C1~C3 BASIC MACHINE OPTIONAL ACCESSORIES 1. Siemens CNC Unit, 2. C Axis, 3. Bar Feeder, 4. Linear Ruler for all axis , 5. Tool Presetter , 6. Sub Spindle , 7. Chip Conveyor, 8. Coolant Tank, 9. Coolant Pump - 6 bars, BASIC MACHINE STANDARD ACESSORIES 1. Fanuc CNC Unit , 2. 8” Hydraulic Chuck , 3. 300 mm Turning Length, 4. Ø 49 mm Bar Capacity, 5. Servo Turret with 12 Tools, 6. VDI 30 ID and OD Tool Holders, 7. Graphic Screen, 8. 3 – Axis Gantry Loader, 9. MK – 4 Hydraulic Tailstock, Capacity Spindle Travel Turret Tailstock Taper MK-4 MK-5 Type Live Center Built-in Stroke 100 mm Coolant Capacity Coolant Tank 230 lt Hydraulic Tank 60 lt Slide Lubrication Tank 2 lt Voltage 380 V Machine Dimensions Foot Print 2300 x 2600 mm Foot Print (with gantry loader) 3000 x 2600 mm
