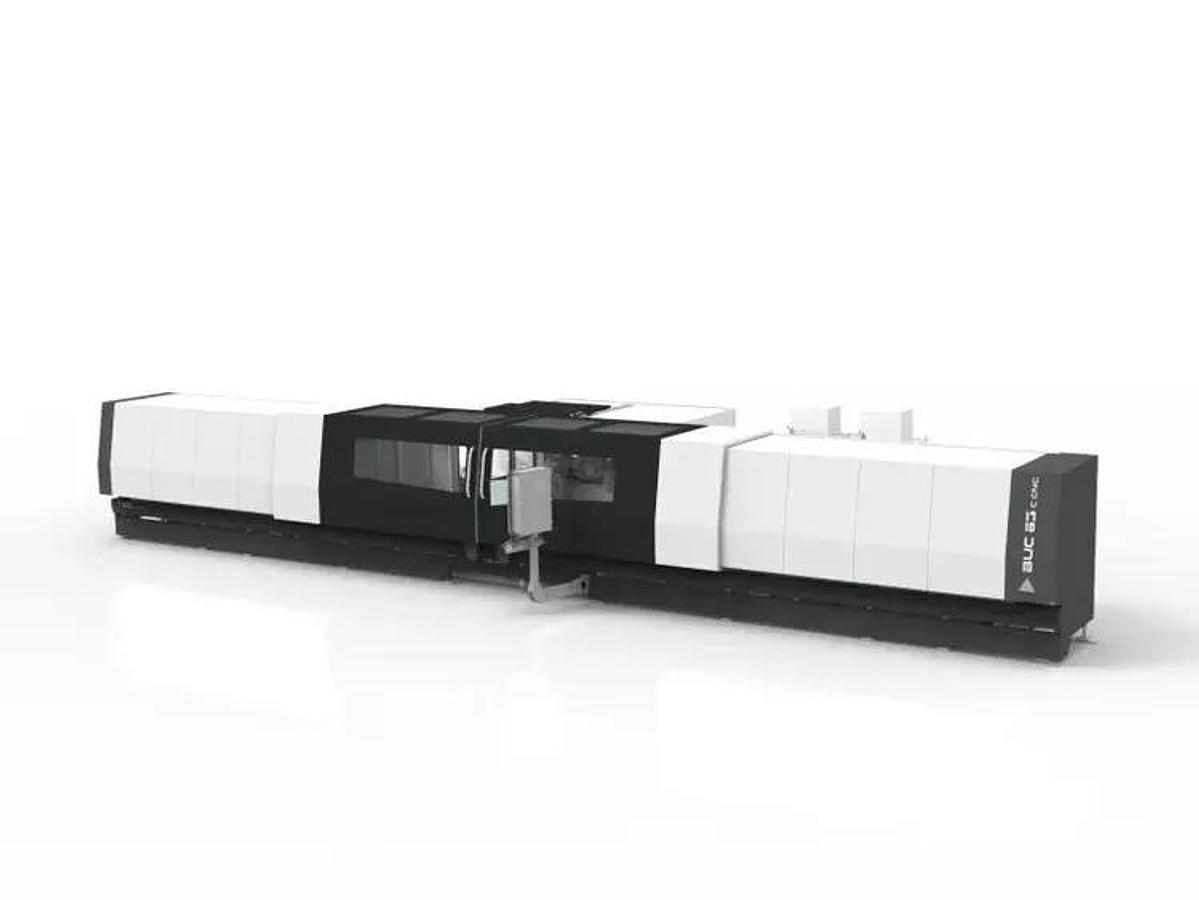

TOS CELAKOVICE BUC 63C/5000 Practic Universal Cylindrical Grinder

TOS CELAKOVICE BUC 63C/5000 Practic Universal Cylindrical Grinder TOS ČELÁKOVICE is a traditional manufacturer of machine tools, which occupies one of the most important places in the Czech engineering industry. Our production program includes CNC grinding machines, CNC lathes and CNC machines for gear production. Our history dates back to 1856. Since 2011 we have been part of the Slovácké strojírny, as concern. The BUC 63 C Multi grinding machine with program-controlled automatic rotation of the grinding unit around the vertical axis and a CNC control system is designed for external and possibly internal grinding of workpieces clamped between centers or floating in a chuck in a headstock. Automatic rotation of the grinding unit, equipped with multiple grinding headstocks, significantly expands the technological capabilities of the grinder. CE machine design, SIEMENS Sinumerik ONE control system, MCP2200c operator panel with 22" IPC477E monitor, controlled axes X - grinding headstock feed, Z - table feed, B - grinding headstock rotation in the basic version, handwheel for X and Z axes (switching), linear and circular interpolation of X and Z axes, custom programming in ISO code, remote diagnostics, complete fairing with automatically controlled front doors Working range Orbital Ø 630mm Distance between tips 5000 mm Weight of the workpiece clamped in tips max. 3000 kg in the armrests open. 4000 kg overhang; including clamp; max. 300 kg Maximum workpiece weight with heavy headstock and heavy tailstock: in spikes 4000 kg with open heavy supports 5000 kg fly including clamp 400 kg
