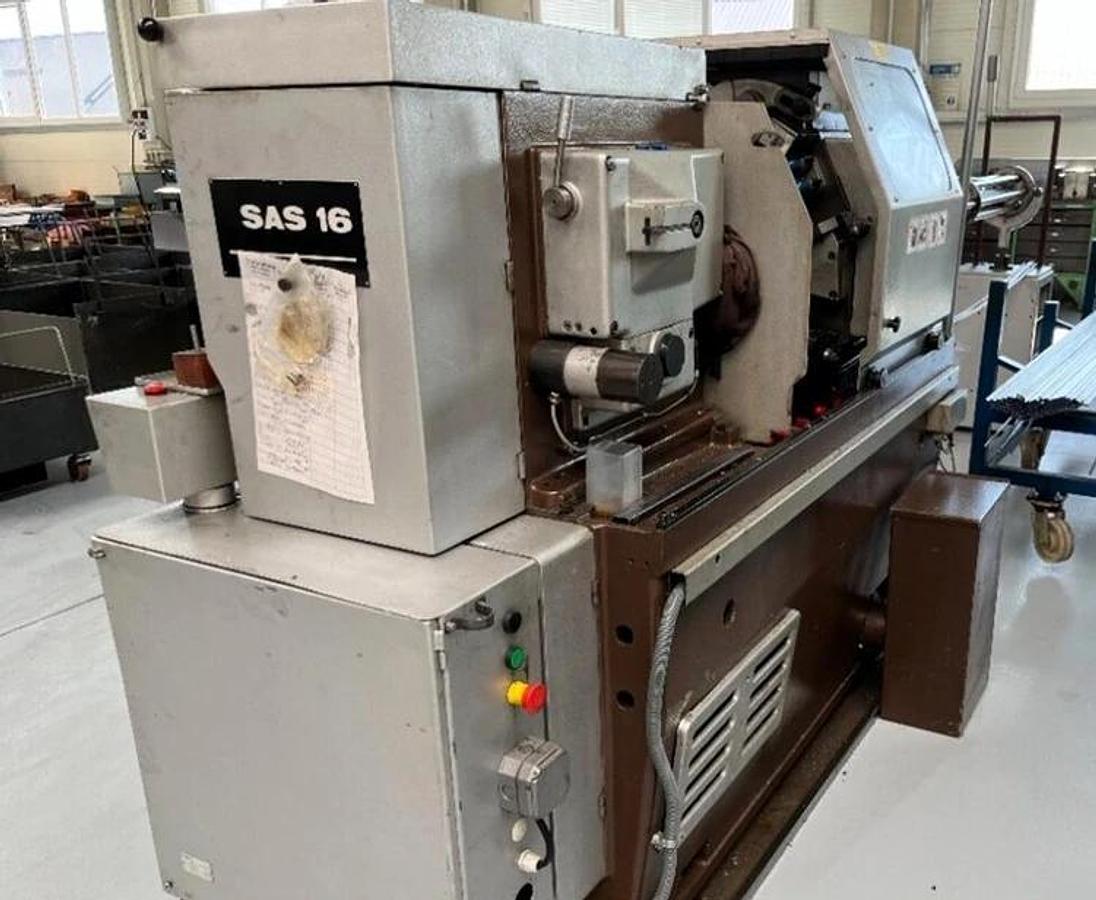

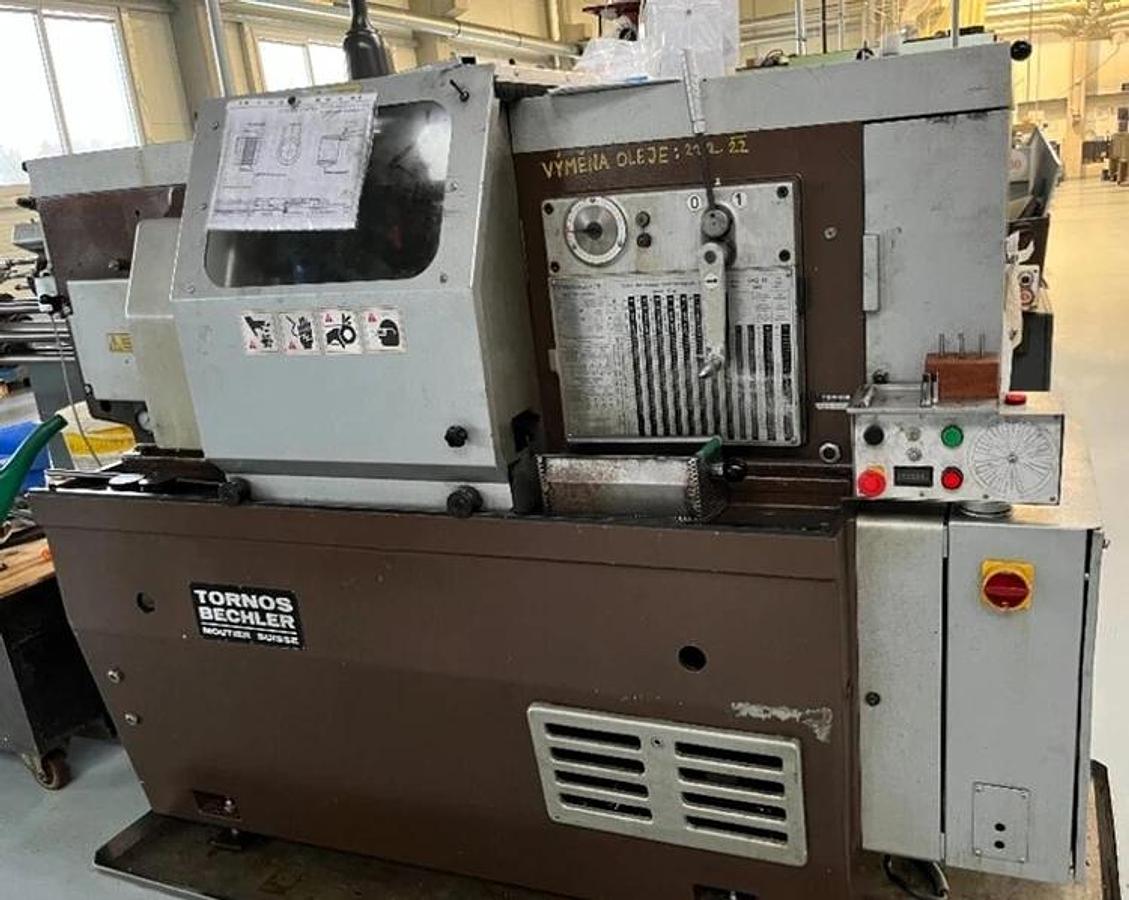

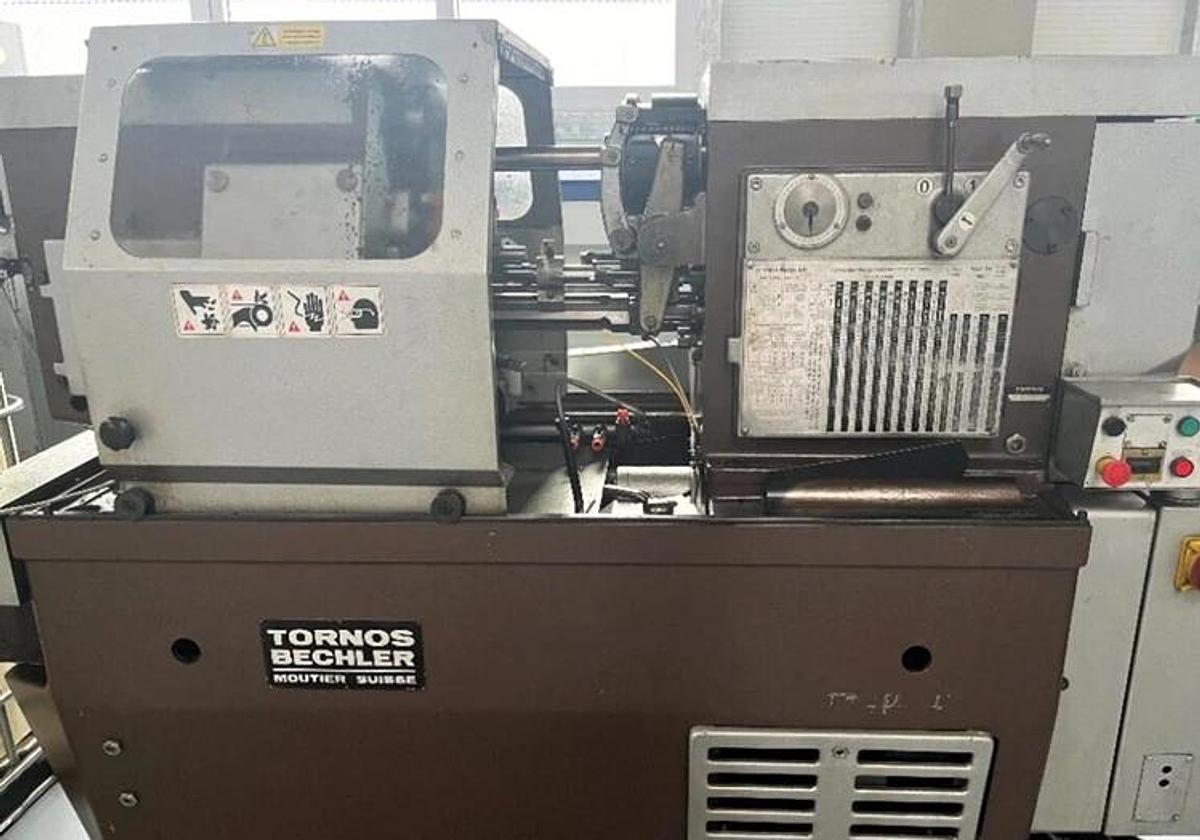

Used 1995 TORNOS BECHLER Model SAS-16 Multi-Spindle Swiss Automatic Screw machine

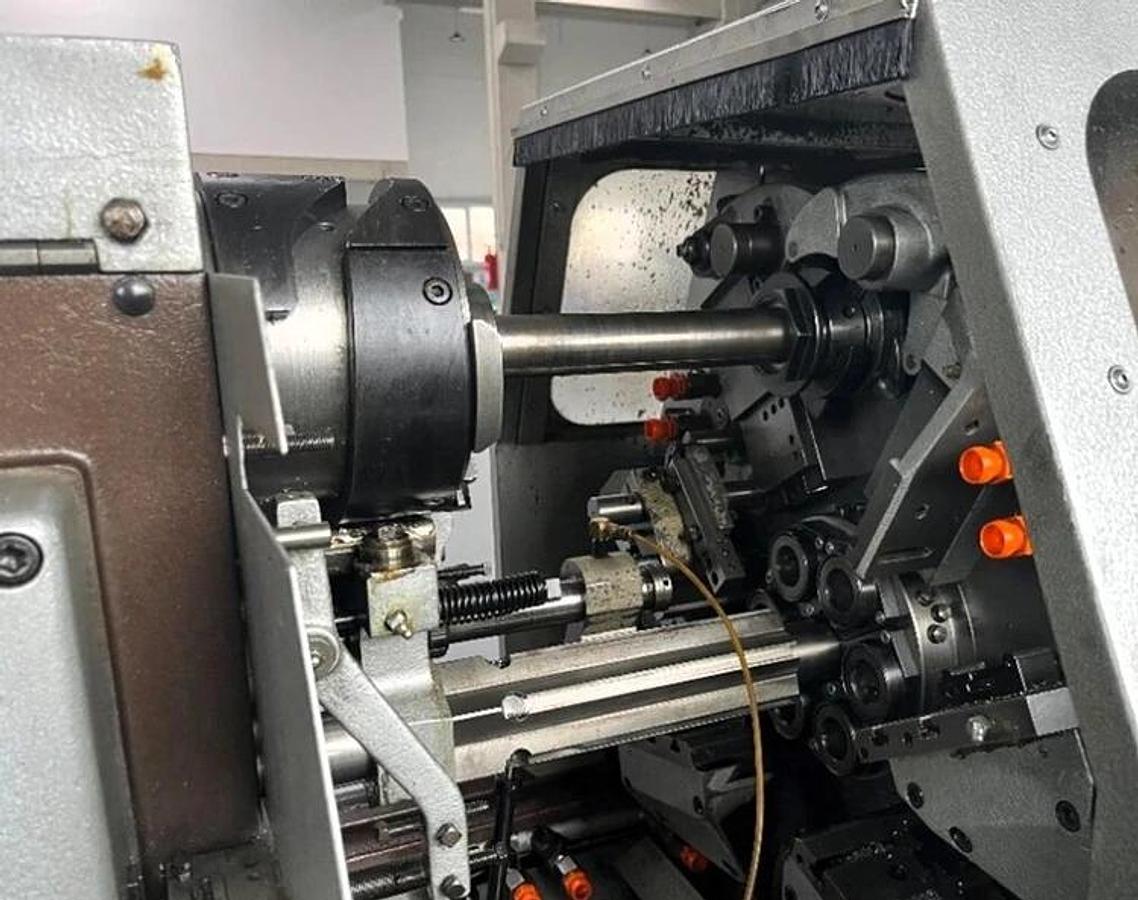

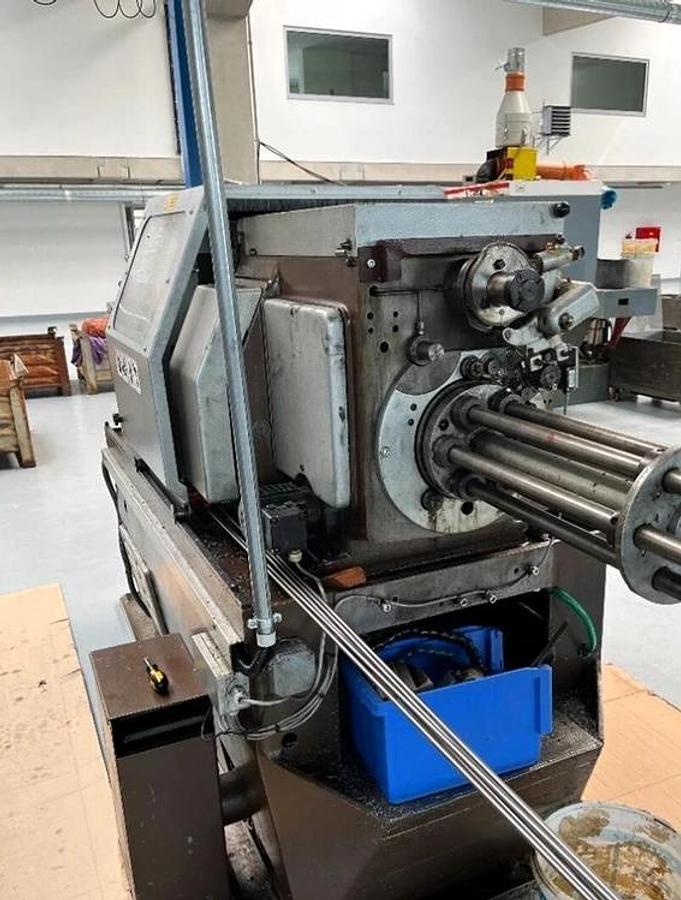

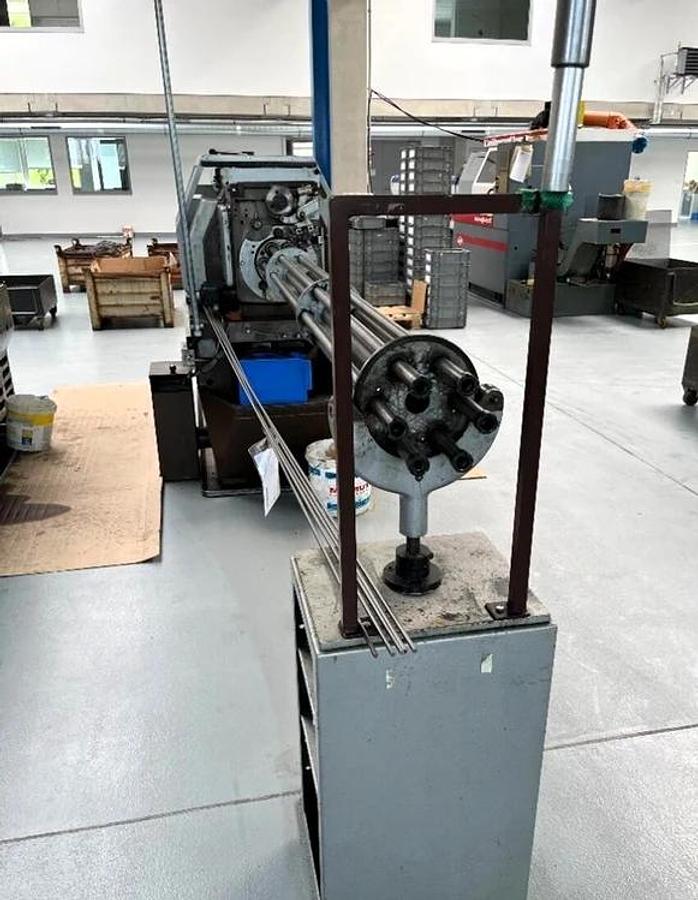

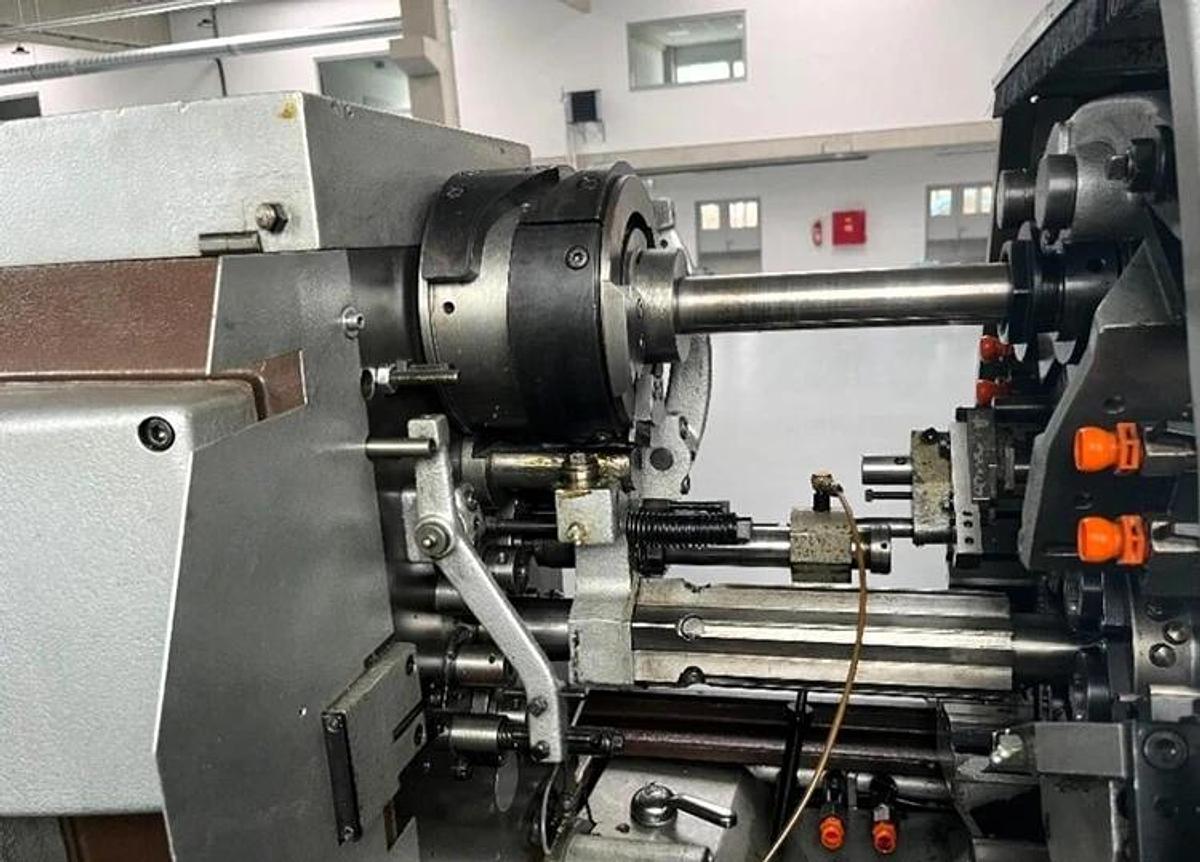

Used 1995 TORNOS BECHLER Model SAS-16 Multi-Spindle Swiss Automatic Screw machine Sprindles have recently been repaired at the factory. Included barfood. Bar feed TECHNICAL CHARACTERISTICS Number of spindles 6 Max. capacity : Round (diameter) mm 16 (17) .630” (.670’’) Hex (on fl at) mm 13 .512” Square mm 11 .433” Spindle speed (3 ranges) rpm 800 to 8’000 Range 1 - Ratio 1 rpm 800 to 2’000 Range 2 - Ratio 2 rpm 800 to 4’000 Range 3 - Ratio 3 rpm 800 to 8’000 Production Speed p / min. 3 to 80 Max. length of feed stroke with standard cam mm 63 2.480” Max. part length with standard cam mm 52 2.047” Max. length of feed stroke with cam for long part mm* 85 3.346” Max. part length with long part cam mm* 75 2.953” Number of cross-slides 6 Travel of the cross-slides mm 20 .787” Number of independent advances 4 Travel of the independent slide mm 45 1.772” Travel of the central slide mm 50 1.968” Amount of working degree ° 205 Spindle motor Max. torque Nm 70 52 ft. lbs. Camshaft motor Nominal torque Nm 5,9 4.35 ft. lbs. Max. speed rpm 3’000 Coolant pump motor (50 Hz) Speed rpm 1’500 Power kW 2,2 3 HP Pump capacity (at 60 Hz) l / min. 95 (30 gallons / min.) Manufacturing standards In accordance with current EEC Specifi cations Indexing of spindle carrier Manifold Locking of spindle carrier Hirth Toothed Coupling
