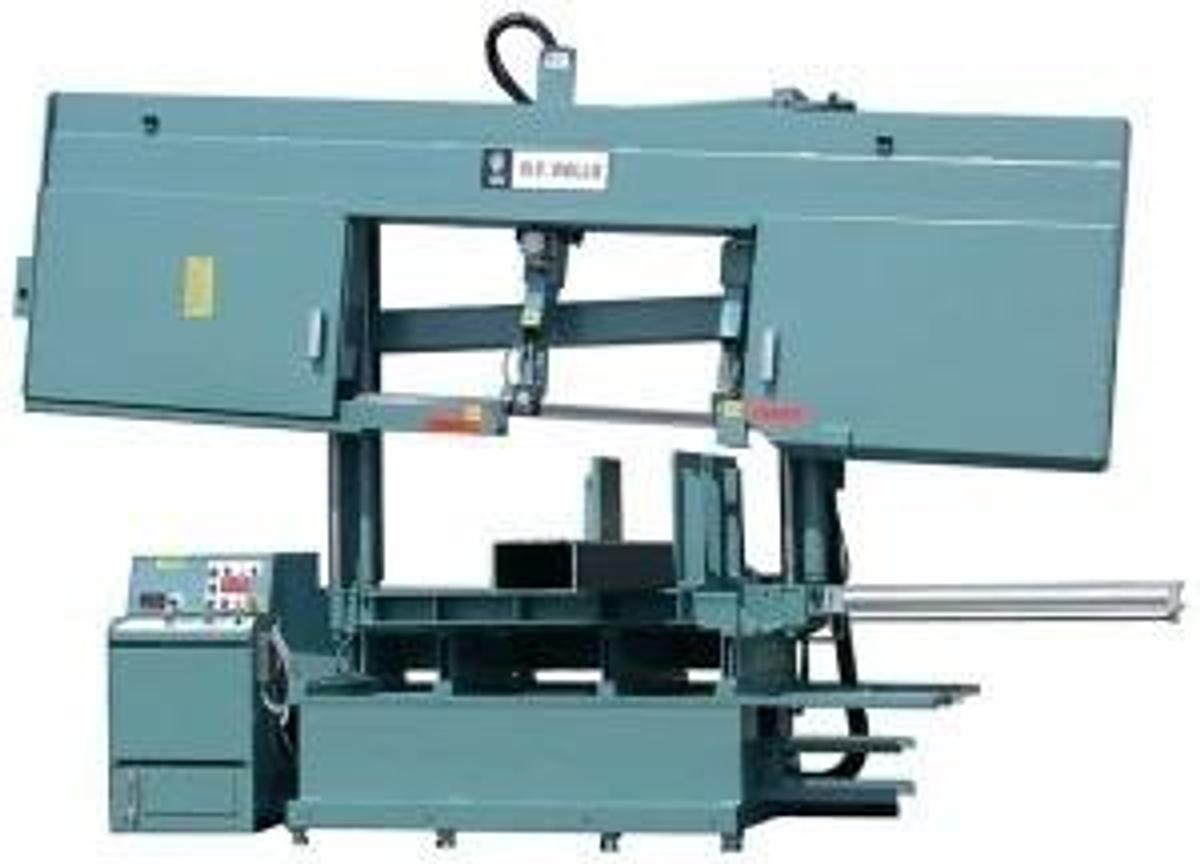

W.F. WELLS Model B-25-2CA3 CNC, Rectangular at 90° 22″ High X 40″ Wide (25.5″ Round, 24″ Square)
$146,250
Description
W.F. WELLS Model B-25-2CA3 CNC, Rectangular at 90° 22″ High X 40″ Wide (25.5″ Round, 24″ Square)
Mr. William F. Wells (Bill) moved to Three Rivers, Michigan in 1925 and formed Wells Manufacturing, a manufacturer of vertical meat cutting saws. In 1928, Wells Manufacturing developed the horizontal metal cutting bandsaw branded the Wells Model #4. He later introduced the Wells Model #8, which is still in production today, known as the Wellsaw Model #1016. Bill Wells sold his interest in Wells Manufacturing (now recognized as Wellsaw) and in 1948 formed W.F. Wells & Sons. The first saw model, M-9, was produced in 1949 and the company continued to produce, expand and refine their product line for the next 42 years.
In May of 1991, Mr. Robert F. Boyle, the owner of Wellsaw, purchased W.F. Wells & Sons from the Wells family. The company was renamed W.F. Wells, Inc. and has continued to grow and add to its ever expanding product line.
Optional Factory Installed Accessories
Description Order Number Price
Discharge Worktable 40” Wide X 56” Long 0052460 $6,495.00
Hydraulic Chip Conveyor 0050180 $6,395.00
Holddown, Saw Vise 0056064 $5,395.00
Hydraulic Holddown, Barfeed Vise 0050119 $6,375.00
Laser Shadow Line 0056319 $3,050.00
Outboard Vise with Hydraulic Holddown 0056063 $17,100.00
Outboard Vise 0056062 $11,795.00
Non-Powered Conveyor 40” X 5’ 0050188 $7,975.00
Non-Powered Conveyor 40” X 10’ 0050182 $11,650.00
High Speed Drive & Guides (11⁄2” Blade) 500-3000 SFPM $8,850.00
Machine Specifications
Rectangular at 45° 25″ High X 24″ Wide
Hydraulic Positioned Guide Arm
Hydraulic Powered Blade Brush
Blade Tension Indicator
Blade Break/Stall Switch
Electronic Door Interlocks
Specifications
| Manufacturer | W.F. WELLS |
| Model | B-25-2CA3-CNC |
| Year | 2025 |
| Condition | New |
| Stock Number | 21557 |
| Status | For Sale |
| Rect-Cap (H) | 25"; 635 mm |
| Rect-Cap (W) | 40"; 1,016 mm |
| Rounds-Cap | 25.5"; 647.7 mm |
| Square-Cap | 24"; 609.6 mm |
| Power | 15 hp; 11.2 kW |
| Type (Auto, Manual, Semi) | Auto; Auto |
| Blade Width | 2"; 50.8 mm |
| Blade Thickness | 0.63"; 16.002 mm |
| Blade Length | 26.6"; 675.64 mm |
| Dimensions | 170” L x 102” W x 105” H; 170” L x 102” W x 105” H |
| Weight | 11,400 lbs; 11,400 lbs |
| Capacity | Rectangular at 90° 25″ High X 40″ Wide (25.5″ Round, 24″ Square) |
| Weight Capacity | 15,000 lbs |
| Blade Speed | 60-500 SFPM |
| Blade Size | 2” X .063″ X 26′ 6″ |
| Blade Guide | Spring Tensioned Carbide Blocks with Idle Roller Backup |
| Blade Tension | Hydraulic |
| Bandwheel Size | 26″ |
| Vise | Hydraulic |
| Blade Drive | 15 HP, AC Vector Drive |
| Sawing Force | 0-1,000 lbs |
| Coolant Capacity | 15 Gallons |
| Hydraulic Capacity | 20 Gallons |
| Hydraulic Drive | 5 HP Motor |
| Work Height | 35″ |
| Outfeed Table | 12″ X 41″ |
| Vise Jaw Height | 17” |
| Shipping Weight | 11,400 lbs |
| Shipping Dimensions | 170” L x 102” W x 105” H |
| Electrics | Wired to NFPA 79 Machine Tool Standards |
