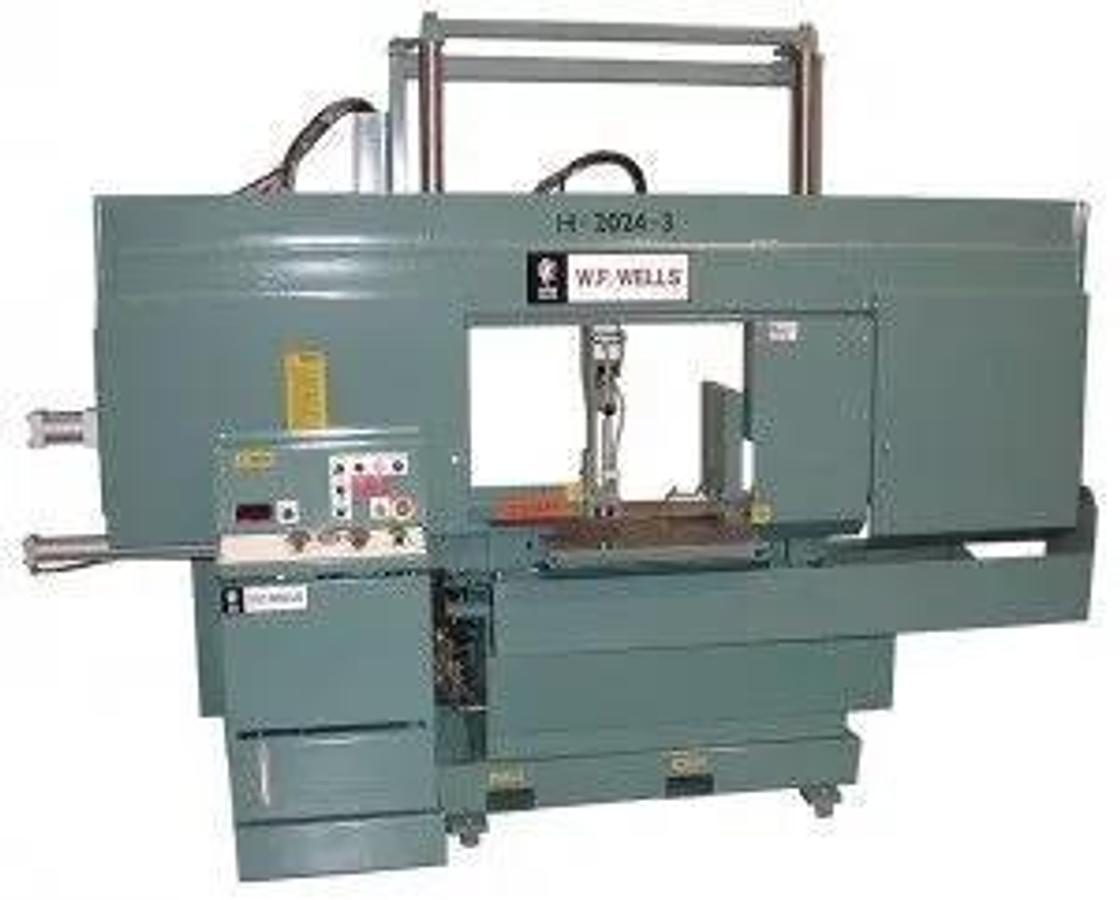

2024 W.F. WELLS Model H-2024HA-CNC Horizontal Dual Column Bandsaw, 20" H x 24"W, In stock
$85,000
Description
2024 W.F. WELLS Model H-2024HA-CNC Horizontal Dual Column Bandsaw, 20" H x 24"W, In stock
W.F. Wells, Inc manufactures twin post, semi-automatic and CNC fully-automatic horizontal metal cutting bandsaws of the guillotine type. Models are available that will cut from 9 to 60 inch in diameter. W.F. Wells, Inc also manufactures hinge type horizontal bandsaws that will cut 7 to 10 inch diameter stock. A large variety of specialty saws for cutting unusual sizes and materials are also available. Parts are also available for W.F. Wells, Inc saws produced as far back as the 1940’s. Call or email W.F. Wells, Inc today and let us help you with your sawing, parts, or service requirements!
W.F. Wells, Inc is unique in the U.S. machine tool industry in that it has continued to manufacture its products in the U.S.A. while so many others are importing what they sell. W.F. Wells, Inc provides bandsaws that handle the requirements of the metal cutting industry but also non-ferrous products such as glass, ceramics, graphite, crystals and wooden products. It is this versatility that has allowed us to expand in an ever-changing market.
Hydraulic Holddown, Saw & Barfeed Vise $5,560.00
Hydraulic Auger Style Chip Conveyor $6,375.00
Discharge Worktable (24″ Wide x 48″ Long) $3,674.00
Work Light, Wired In $375.00
Extra Coolant Nozzle with Magnetic Base $350.00
High Speed Drive & Guides (1¼” Blade) 400-3000 SFPM $8,850.00
Free Standing Roller Stock Conveyors, 6″ Centers:
24″ X 5′ X 5,000 lbs Cap. Distributed Weight $3,250.00
24″ X 10′ X 10,000 lbs Cap. Distributed Weight $4,250.00
24” Powered Conveyors 24" xz 10' $11,875.00
Blade Guide: Roller Guides with Carbide Inserts
Linear Rail Travers Head
CNC Programmable Controller with Color Touch Screen 500+ Job Selection
Automatic Kerf Compensation
Blade Break/Stall Switch
Bed and Vise Wear Strips
Machine Dimensions: 122″ Length x 101″ Width x 93″ Height
Specifications
| Manufacturer | W.F. WELLS |
| Model | H-2024HA-CNC |
| Year | 2024 |
| Condition | New |
| Stock Number | 22019 |
| Status | For Sale |
| Rect-Cap (H) | 20"; 508 mm |
| Rect-Cap (W) | 24"; 609.6 mm |
| Rounds-Cap | 20"; 508 mm |
| Power | 10 hp; 7.5 kW |
| Blade Width | 1.5"; 38.1 mm |
| Blade Thickness | 0.05"; 1.27 mm |
| Blade Length | 20'; 6,096 mm |
| Capacity | Rectangular at 90° 20″ High x 24″ Wide, Round 20″ Diameter |
| Weight Capacity | 6,500 lbs |
| Blade Speed | 60-500 SFPM |
| Blade Size | 1½” X .050″ X 20’-0″ |
| Vise | Hydraulic, Full Stroke, 15″ High |
| Bandwheel Size | 22″ |
| Blade Tension | Hydraulic |
| Blade Drive | 10 HP, AC Vector Drive |
| Sawing Force | 0-750 lbs |
| Coolant Capacity | 15 Gallons |
| Hydraulic Capacity | 20 Gallons |
| Hydraulic Drive | 2 HP Motor |
| Work Height | 35″ |
| Barfeed Projection | 0-25″ CNC Controlled |
| Shuttle Indexes | Unlimited |
| Projection Accuracy | +/-.002″ |
| Remnant End | 4″ |
| Shipping Weight | 5,500 lbs |
| Electrics | Wired to NFPA 79 Machine Tool Standards |
