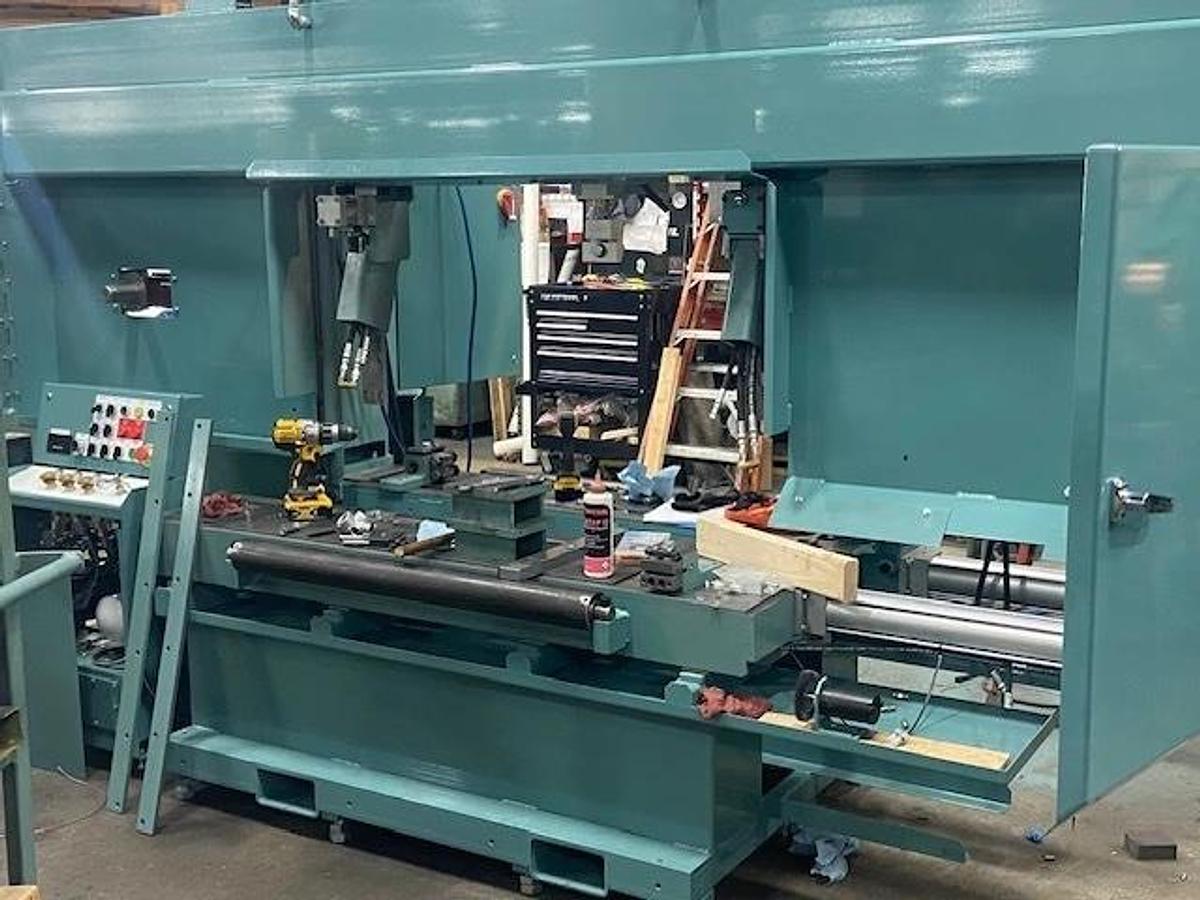

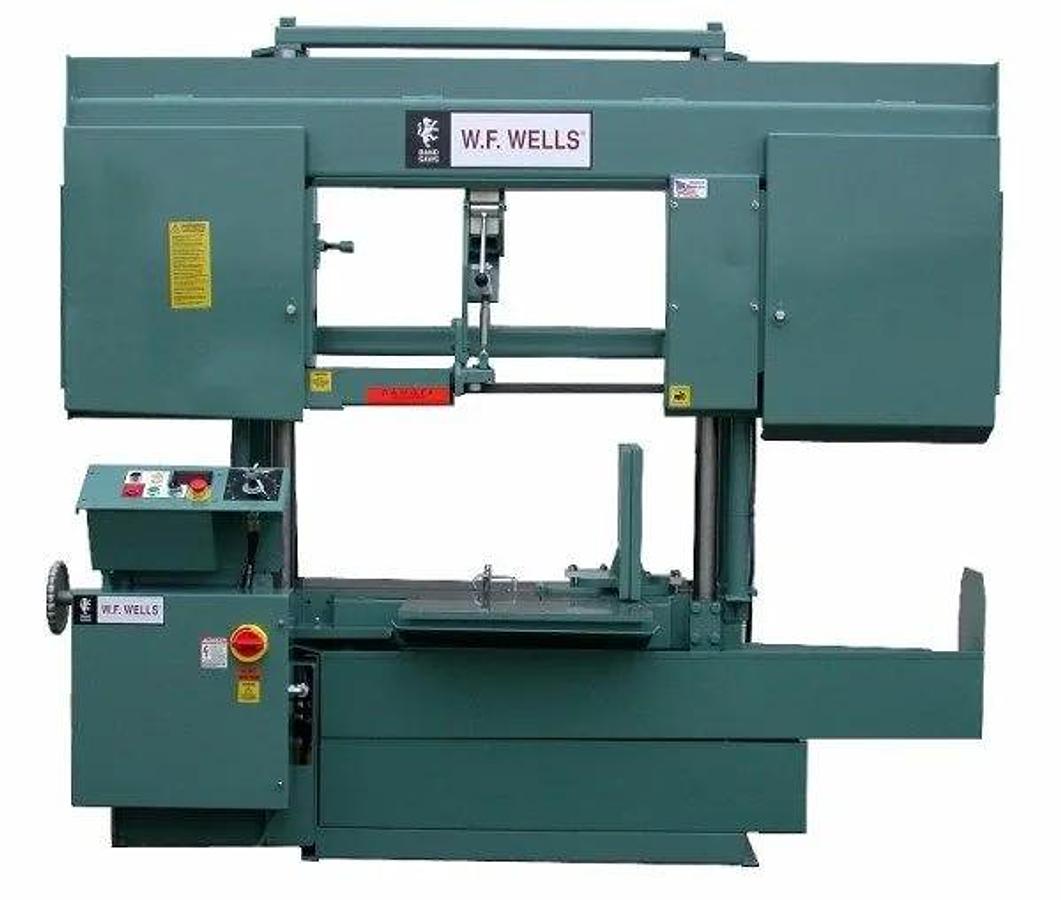

W.F. Wells Horizontal Twin Column Semi-Automatic Bandsaw Model H2024-3C 19.5" x 24" capacity
$61,875
Description
W.F. Wells Horizontal Twin Column Semi-Automatic Bandsaw Model H2024-3C 19.5" x 24" capacity
All of our products are proudly made in the U.S.A. for Quality, Reliability, and Repairability.
W.F. Wells, Inc manufactures twin post, semi-automatic and CNC fully-automatic horizontal metal cutting bandsaws of the guillotine type. Models are available that will cut from 9 to 60 inch in diameter. W.F. Wells, Inc also manufactures hinge type horizontal bandsaws that will cut 7 to 10 inch diameter stock. A large variety of specialty saws for cutting unusual sizes and materials are also available. Parts are also available for W.F. Wells, Inc saws produced as far back as the 1940’s. Call or email W.F. Wells, Inc today and let us help you with your sawing, parts, or service requirements!

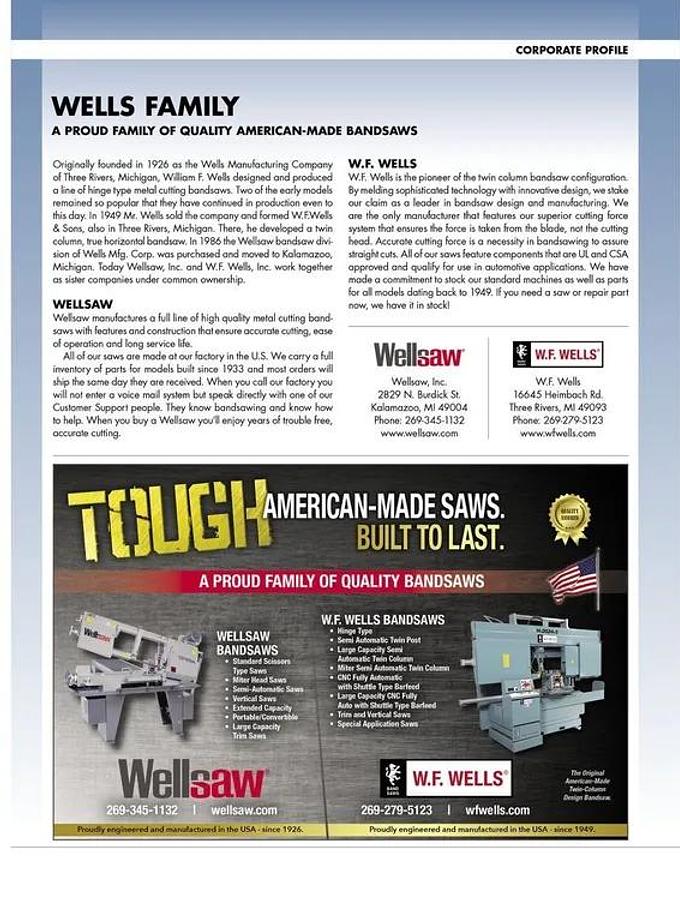

In 1925 William Franklin Wells founded the Wells Manufacturing Corp. to make meat-cutting bandsaws. In 1928 the company introduced a horizontal metal cutting bandsaw, which would later be claimed to be the world's first such saw.
At some point Mr. Wells sold his interest in the business. The new owners emphasized the Wellsaw brand, which had already been in use; the official company name remained the same. In 1948 Mr. Wells formed another company called W. F. Wells & Sons, which also made metal cutting bandsaws.
In 1985 Wells Manufacturing Corp. got into financial trouble and changed hands. In 1991 the new owners of Wells Manufacturing Corp. purchased the assets of W. F. Wells & Sons, and merged the two companies, with the merged company being named W.F. Wells, Inc. The company is still in business today manufacturing horizontal metal cutting band saws.
OPTIONAL FACTORY INSTALLED ACCESSORIES
Description Order Number Price
Hydraulic Holddown, Manual 0052410 $3,450.00
Automatic Length Stop Assembly 0056707 $500.00
Discharge Worktable, 20” X 48” L with Stock Stop 0053201 $3,225.00
Discharge Worktable, 24” X 48” L with Stock Stop 0056045 $3,850.00
Work Light, Wired In 0052409 $400.00
Blade Break/Stall Switch 0056040 $725.00
Hydraulic Chip Conveyor, Auger Style 0010867 $6,750.00
High Speed Drive & Guides (1-¼" Blade) 400-3000 SFPM 0051045 $9,300.00
Outboard Vise 0010887 $11,875.00
Outboard Vise with Hydraulic Holddown 0010884 $14,750.00
Free Standing Roller Stock Conveyors, 6" Centers
21" X 5' X 5,000 lbs. Cap. Distributed Weight 0050252 $1,950.00
21" X 10' X 10,000 lbs. Cap. Distributed Weight 0050251 $3,025.00
24” X 5’ X 5,000 lbs. Cap. Distributed Weight 0050264 $3,450.00
24” X 10’ X 10,000 lbs. Cap. Distributed Weight 0050265 $4,500.00
Electric Powered Conveyor 24” x 10’ 0010749 $12,500.00
Specifications
Round at 90º 20” Diameter
Specifications
| Manufacturer | W.F. WELLS |
| Model | H-2024-3C |
| Year | 2025 |
| Condition | New |
| Status | For Sale |
| Country | United States |
| Rect-Cap (H) | 19.5"; 495.3 mm |
| Rect-Cap (W) | 24"; 609.6 mm |
| Rounds-Cap | 20"; 508 mm |
| Square-Cap | 19.5"; 495.3 mm |
| Power | 10 hp; 7.5 kW |
| Type (Auto, Manual, Semi) | Semi; Semi |
| Blade Width | 1.5"; 38.1 mm |
| Blade Thickness | 0.05"; 1.27 mm |
| Blade Length | 20'; 6,096 mm |
| Dimensions | 122" L x 50" W x 94" H; 122" L x 50" W x 94" H |
| Weight | 3,900 lbs; 3,900 lbs |
| Capacity | Rectangular at 90º 20” H x 24” W, |
| Weight Capacity | 5,000 lbs. |
| Blade Speed | 60-500 SFPM |
| Blade Size | 1¼” X .050” X 20'-4" |
| Blade Guide | Rollers and Carbide Side Blocks |
| Blade Tension | Hydraulic |
| Bandwheel Size | 22” |
| Vise | Full Stroke Hydraulic, 15" |

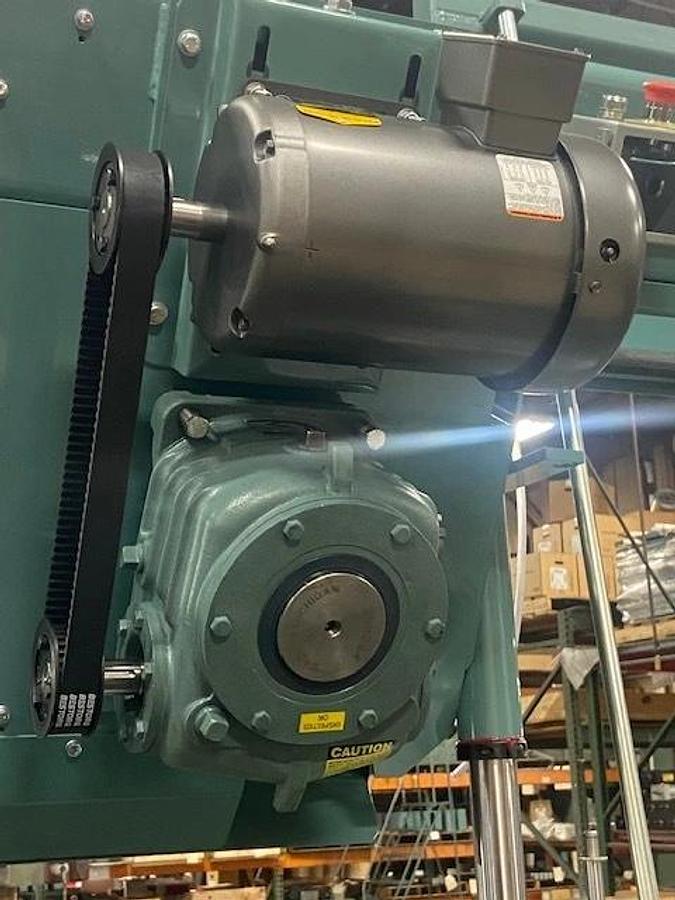

| Blade Drive | 10 HP, AC Vector Drive |
| Sawing Force | 0-750 lbs. |
| Coolant Capacity | 15 Gallons |
| Hydraulic Capacity | 20 Gallons |

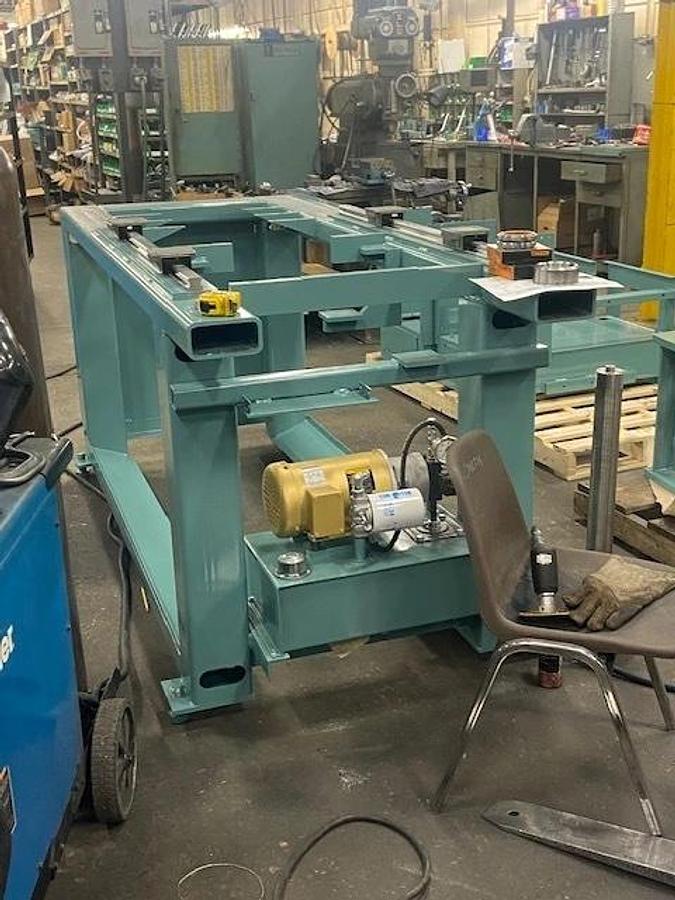

| Hydraulic Drive | 2 HP Motor |
| Work Height | 35” |
| Shipping Weight | 3,900 lbs. |
| Electrics | Wired to NFPA 79 Machine Tool Standards |
| Shipping Dimensions | 122"L x 50"W x 93"H |
