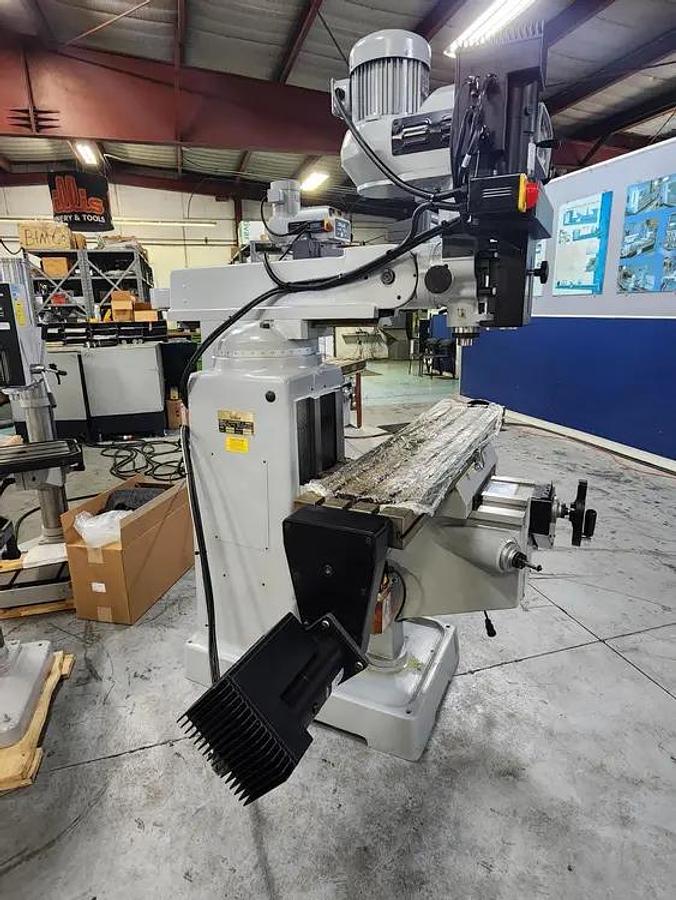

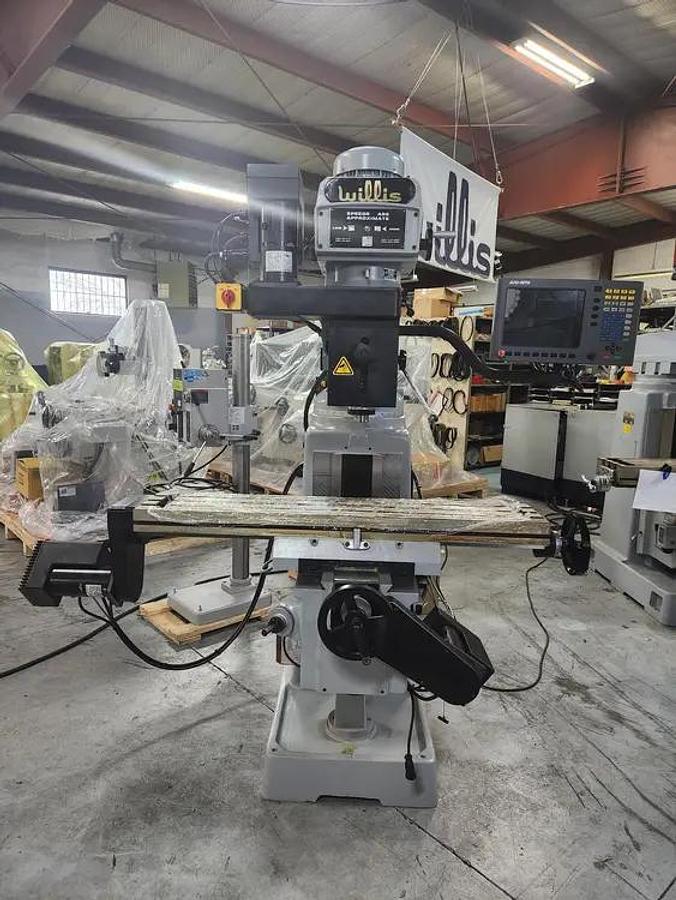

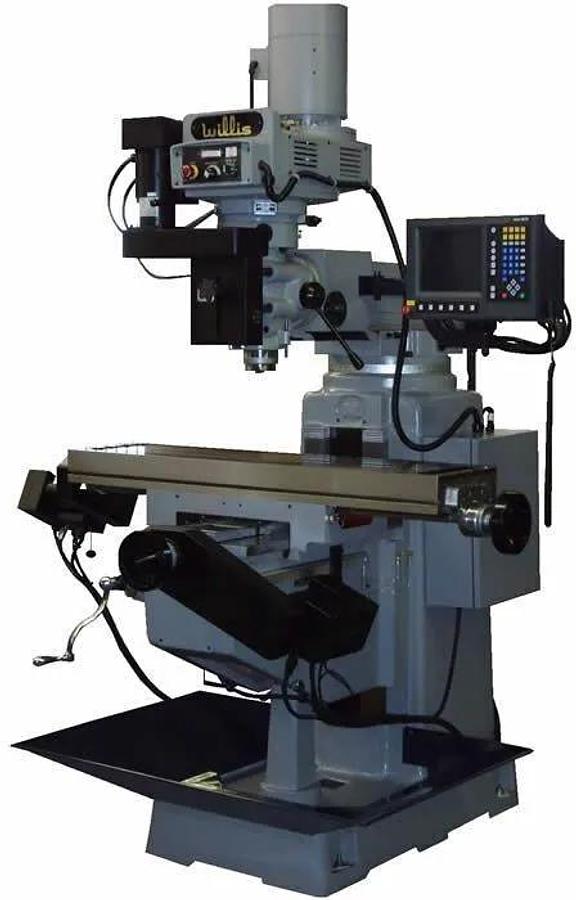

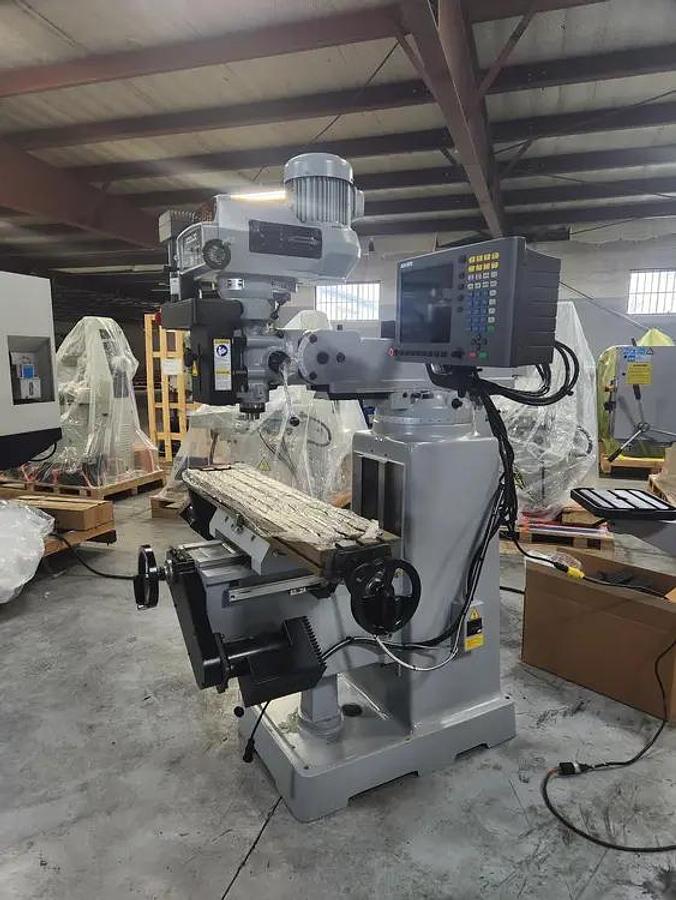

WILLIS Model 1050 Knee Mill with/ 3 Axis Accu-Rite CNC w/MillPwr G2

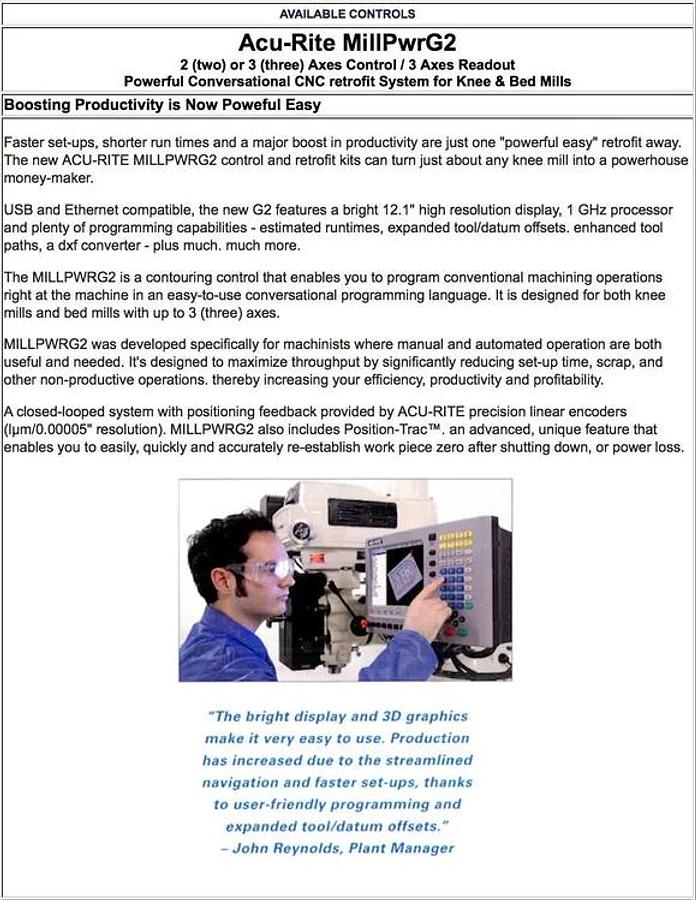

WILLIS Model 1050 Knee Mill with/ 3 Axis Accu-Rite CNC w/MillPwr G2 Maintaining all of the standard features accompanied with the Willis conventional knee mills, Willis CNC knee mills also posses ACU-RITE CNC controls with 2 (two) or 3 (three) axis capabilities. Willis Machinery offers either the "ACU-RITE" MillPWR G2 CNC control on four of its conventional mill machines including the WM3VS, 1050, 1050II, and the 1250II. Willis CNC knee mills all possess precision ball-screws and nuts on all CNC axes These CNC vertical mill machines are offered with 2, 3, 3½, or 4-axis controls A disengageable quill is available on 3 (three) axis CNC knee mill models for manual drilling and tapping Willis, 2 (two) axis, CNC knee mills are equipped standard with a third axis quill scale digital readout display Willis CNC Knee Mills offer semi-automatic operations of full 2 (two) or 3 (three) axis CNC operations. Powerful A/C brushless servo motors provide these CNC mill machines with smooth and accurate positioning An automatic, metered, lubrication system with low level alarm is standard on Willis CNC knee mills Optional Servo or Align power knee feed is also available on Willis CNC mill machines EQUIPPED WITH 3 HP Variable Speed Head Hardened and Ground Bedways Meehanite Castings Hardened and Ground Table Surfaces Chrome Plated Ground Quill Metered Valve Lubrication Double Nuts On Leadscrews For Minimal Backlash Double Locks On All Axes Rubber Way Covers Toolbox w/Tools Operator's Manual OPTIONAL FEATURES: * Optional Electronic Variable Speed Milling head for 3HP machines, 230V: $4,590.00 * Optional control package includes low volt electrical box with 110V outlets, flood coolant, and a pushbutton pendant mounted to the knee with low volt controls for the spindle forward/reverse and coolant. Package also includes spindle brake with limit switch for automatic shut-off of the spindle motor when braking.: $1,390.00 * "Servo” X axis powerfeed, 150 in-lb.: $1,320.00 * “Align” X axis powerfeed.: $650.00 * “Servo” Y axis powerfeed, 150 in-lb.: $1,430.00 * “Align” Y axis powerfeed.: $780.00 * “Servo” Z axis (knee) powerfeed, 140 in-lb.: $1,240.00 * “Align” Z axis powerfeed (installed).: $780.00 * Newall DP700 DRO, 2 axis, installed.: $1,890.00 * Newall DP700 DRO, 3 axis, installed.: $2,590.00 * Flood coolant system including pump in the base of the machine, hoses, valve, and on/off switch, needs 110V power.: $520.00 * Acu-Rite and other DRO’s on request.: $POR * Work light.: $90.00 * Halogen work light.: $190.00 * R8 collets 1/16”-3/4”, set of 12.: $170.00 * 52 piece clamping kit.: $190.00 * “Maxi Torque Rite” power drawbar (all models).: $740.00 * Chip pan.: $450.00 * 6” vise, WS-150.: $430.00 Quill Power Feed Rates: (3) .00032", .0017", .0053" Head Tilting Left to Right (Degrees) 90-0-90 Head Tilting Front to Back (Degrees) 45-0-45 Ground Way Surface 3 1/2" Saddle Width 21" Knee Width 14" Knee Height 18"
