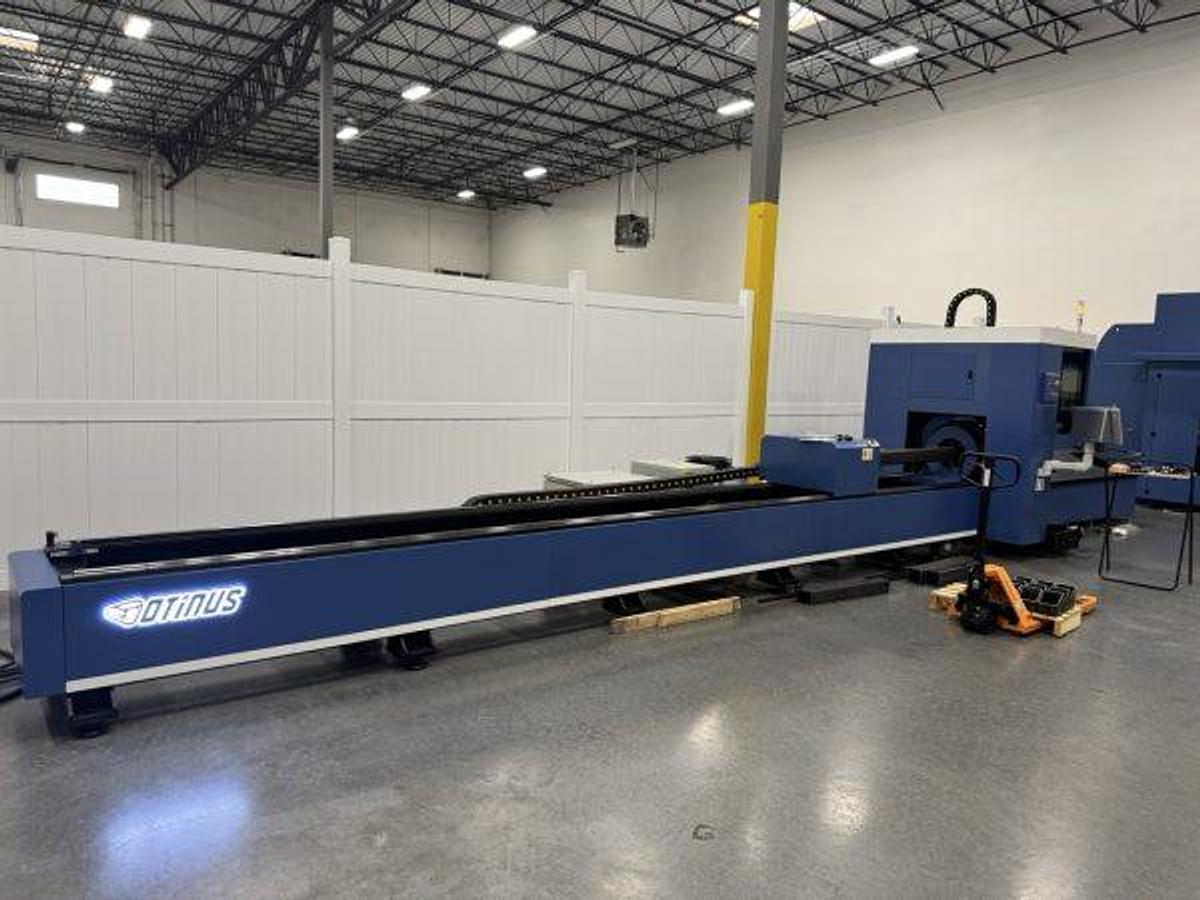

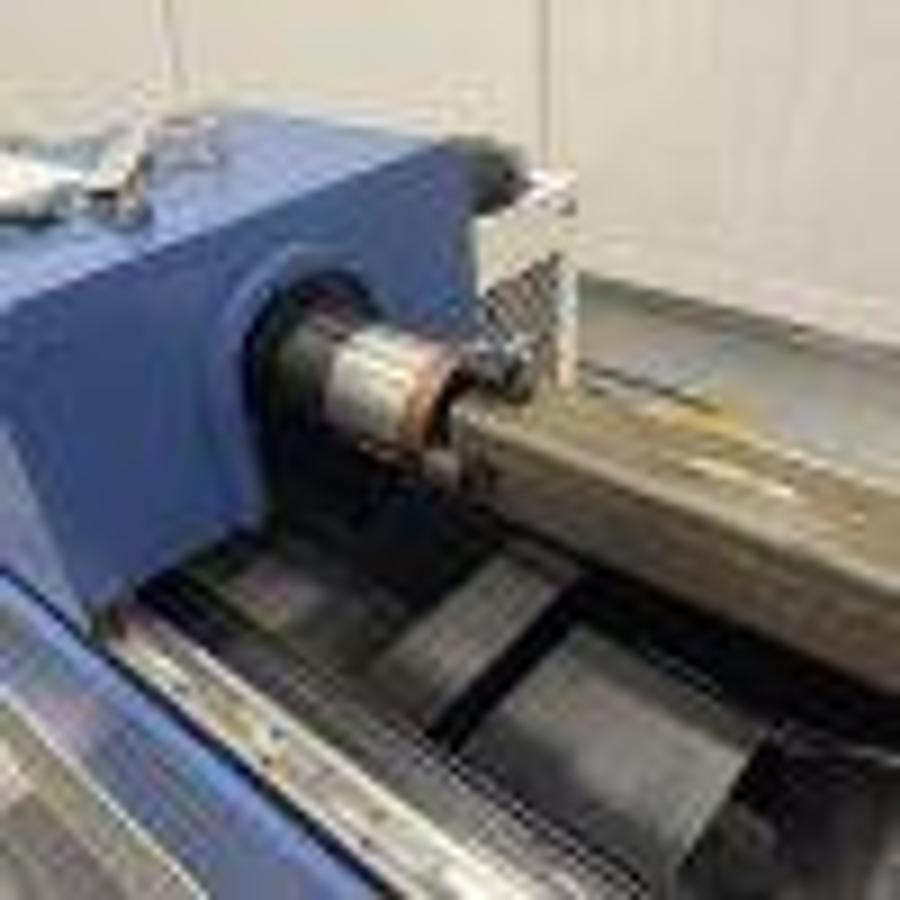

Tube Laser Cutter with 45 degree Bevel 45 Torsion Option

OTINUS Tube Lasers are powerful, automated fiber systems for cutting tubes/profiles, featuring laser powers from 1kW to 20kW (Max Photonics/Raycus), cutting diameters up to 13.8" (or 160mm), lengths up to 39 ft (or 6m), with high speeds (up to 115m/min), precision (±0.03mm), and options for automated loading/unloading, nesting software, and bevel heads, built on stable steel frames for high productivity. Key specs include material thickness cutting (e.g., mild steel up to 20mm, stainless up to 12mm with 3kW), using intuitive controls and components from brands like Yaskawa for reliability.

SPECS

Power supply: ~3x480v/ 60 hz or other

Maximum height of a section: 8″

Maximum length of a section: 20′

Positioning accuracy of X/Y axes: ±0.05 mm

Positioning repeatability of X/Y axes: ±0.03 mm

Nominal power output: 3.0 kW

Power consumption: 24.0 kW

Source brand: MAX Photonics and Raycus as available options for selection

Ingress protection rating: IP54

Mild Steel: Recommended up to 20 mm; maximum 22 mm

Stainless Steel: Recommended up to 8 mm; maximum 10 mm

Aluminum: Recommended up to 6 mm; maximum 8 mm

Brass: Recommended up to 5 mm; maximum 6 mm

Otinus tube laser specs vary by model, but generally feature fiber laser sources (1kW-20kW), processing round/square tubes up to 13.8-14 inches, lengths up to 20-39 feet, and thicknesses from 0.5mm up to 20mm+ for mild steel depending on power, using components from top brands like Max Photonics/Raycus, Yaskawa/Schneider, with options for automated loading, bevel cutting, and high positioning accuracy (e.g., ±0.03mm) for industrial metal fabrication.

• Work Area: 5' x 10' (1525mm x 3050mm).
• Laser Power: Options from 3kW to 12kW (or higher), using Max Photonics/Raycus sources.
• Tube Capacity: Can accommodate long tubes (e.g., 20ft) with rotary attachments.
• Frame: Heavy-duty welded steel tube frame for stability.
• Gantry: Aviation-grade aluminum for lightness and speed.
• Drives: Yaskawa servo motors & drivers, Hiwin linear guides.
• Accuracy: High positioning accuracy (e.g., ±0.05mm) and repeatability (±0.03mm).

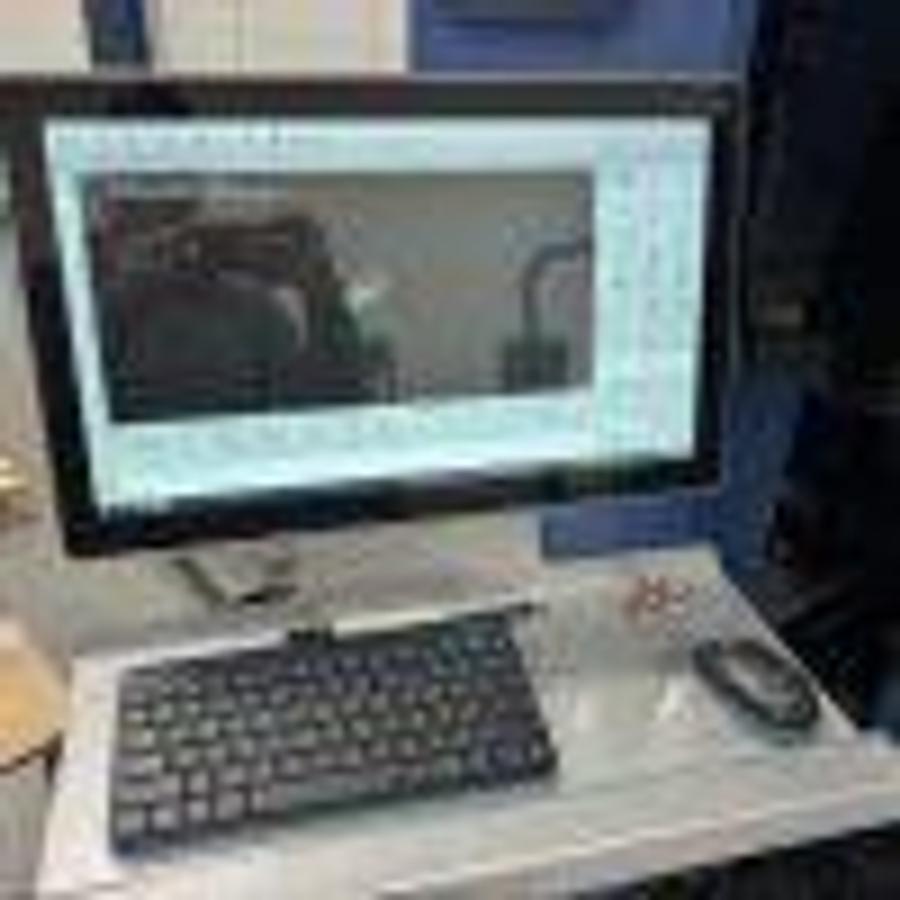

• Control: FScut/Hypercut software with intuitive interface, possibly Fagor/Bosch Rexroth.
• Features: Automatic nesting, integrated dust collection, optional auto-loading, high-speed piercing.

Performance

• Max Speed: High idle speeds (e.g., 120m/min or 360 ft/min).
• Material Capability: Cuts mild steel, stainless steel, aluminum, brass, etc., with various thickness limits depending on laser power.

Key Selling Points

• Integrated Solution: Combines sheet cutting with tube cutting in one machine.
• Productivity: Automatic nesting & high speeds reduce waste and time.
• Reliability: Uses high-quality components (Schneider, Fuji, Bosch Rexroth) for longevity.
• Eight hours on-site training, 8 hours of end user's parts programed with supervision by OTINUS Engineer, 8 hours of consultation over the phone during the first 12 months of ownership.
•


This machine is in stock and ready to ship.
