Description

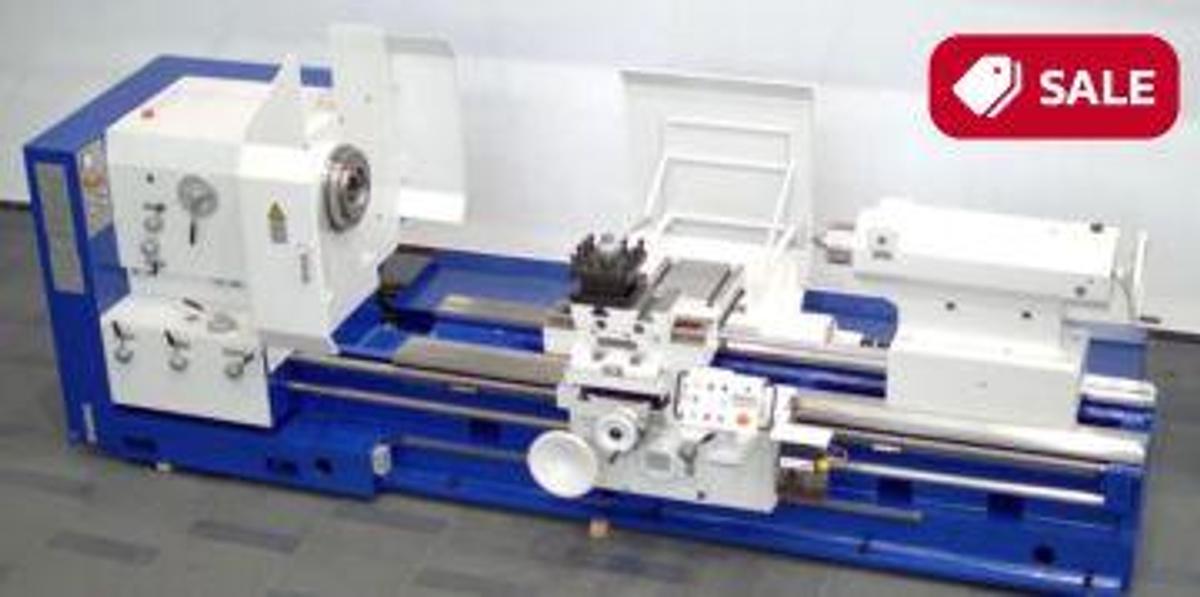

53" X 396" POREBA TR135-B2/10M 32" 4-Jaw Chuck, Inch/Metric Engine Lathe, 41"Swing over Carriage
The Poreba TR135 is a heavy-duty manual engine lathe designed for machining large shafts, with a swing over the bed of approximately 53 inches (1350 mm) and varying distances between centers depending on the specific model. The company is Poreba Machine Tools, a manufacturer of precision machine tools located in Poland.
Specifications
| Manufacturer | POREBA |
| Model | TR-135-B2-10M |
| Year | 1994 |
| Condition | Used |
| Stock Number | 22280 |
| Lathe specifications (TR135) Swing over bed: ~53.14 inches (~1350 mm) Swing over carriage: ~41.33 inches (~1041 mm) Distance between centers: Varies by model (e.g., 236.22 inches or 5000 mm for a 6M model) Spindle bore: ~4.72 inches (~120 mm) Spindle speed: 5-500 RPM (21 ranges) Spindle nose: A1-15 Spindle motor: 36 HP or up to 54 HP Tailstock diameter: ~7.48 inches | Maximum Distance Between Centers:. 396” Swing Over Bed: 53" Swing Over Cross Slide:. 41" Swing in Gap: 65” Length of Gap from Spindle Nose: 22” Bed Width: 25.98” Spindle Hole Diameter: 4.72” Spindle Nose:. A1-15 Spindle Speeds: (24) 5 - 500 RPM Feeds – Longitudinal. 0.0035” - .400” TPR Cross Slide Feeds:.. 0.0017 to .200 TPR Top Slide Feeds: 0.0008 to .100 TPR Threads - Inch (61) ½ to 60 TPI - Metric (62) 1 – 120 mm/Rev Cross Slide Travel:.20-3/4” Tailstock Spindle Diameter (No. 6 Morse Taper) 7-1/2” Tailstock Travel:12” Maximum Weight Between Centers Unsupported: 20,000 Lbs. Maximum Weight Between Centers With (1) Steady: 22,100 Lbs. Maximum Weight Between Centers With (2) Steadies:. 26,500 Lbs. Main Motor: 55 HP Approximate Dimensions: 65.5’ (L) x 9.41’ (W) 42,240 Lbs. |
