Description

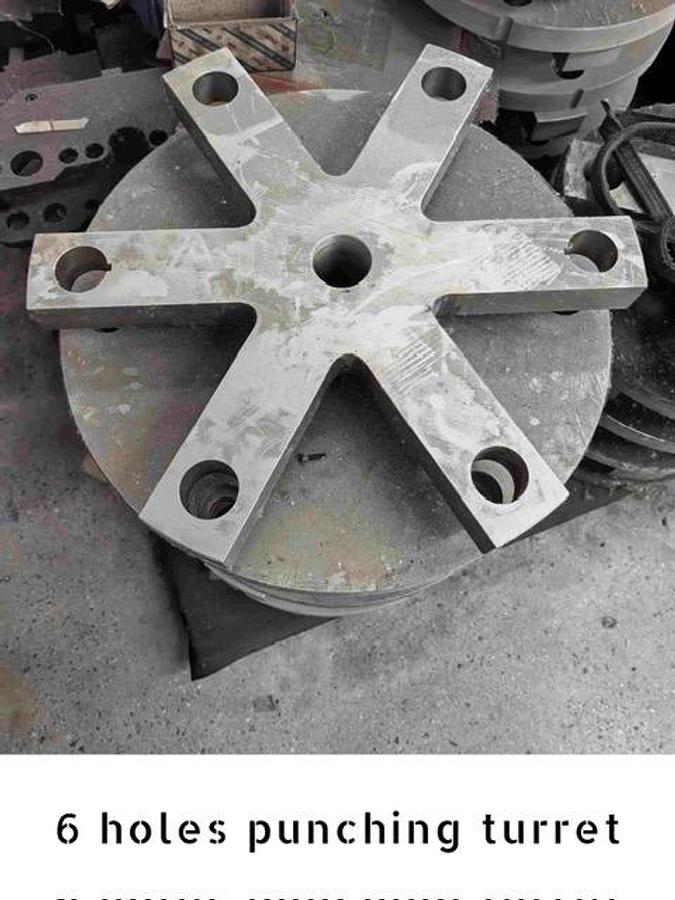

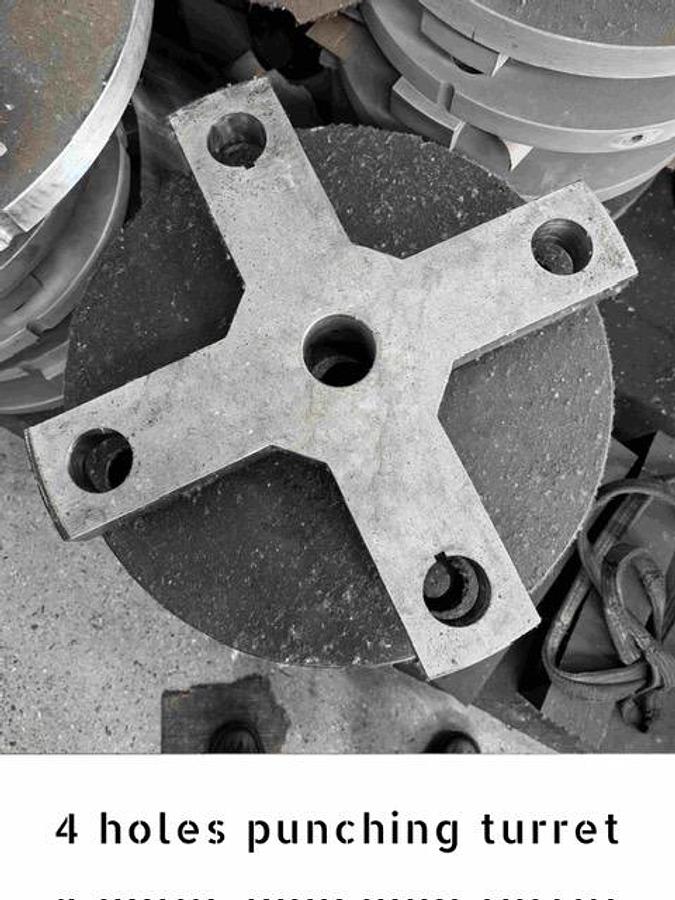

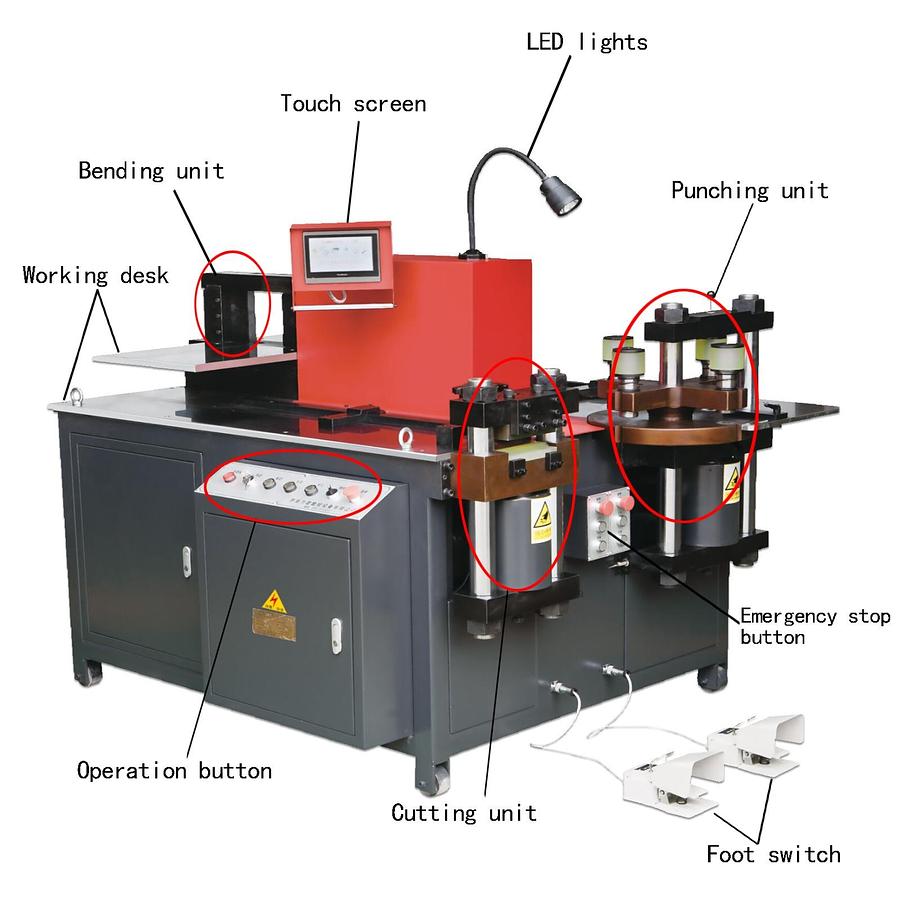

This machine is equipped with three independent working stations (units)for punching, shearing, and bending, which operate simultaneously withoutinterference. The punching station features a turret structure for efficienthole-punching. The bending station adopts a closed-frame design with CNC-controlled angle adjustment and memory storagefunction.
Specs
Nominal Pressure 800KN 9 US Tons
Punching Diameter Range 4.3mm - 36mm 0.175 - 1.425
Max Processing Size 16 x 200mm .625 x 7.87"
Workbench Size
First 1770mm x 1600mm 69.7" x 63"
Second 1120mm x 450mm 47.25" x 17.725"
Machine Size 2150mm x 1750mm x 1500mm
Machine Weight 2280 kgs 5,016 lbs
Bending Angle Control Yes
3 Station Simultaneous Working Yes
Specifications

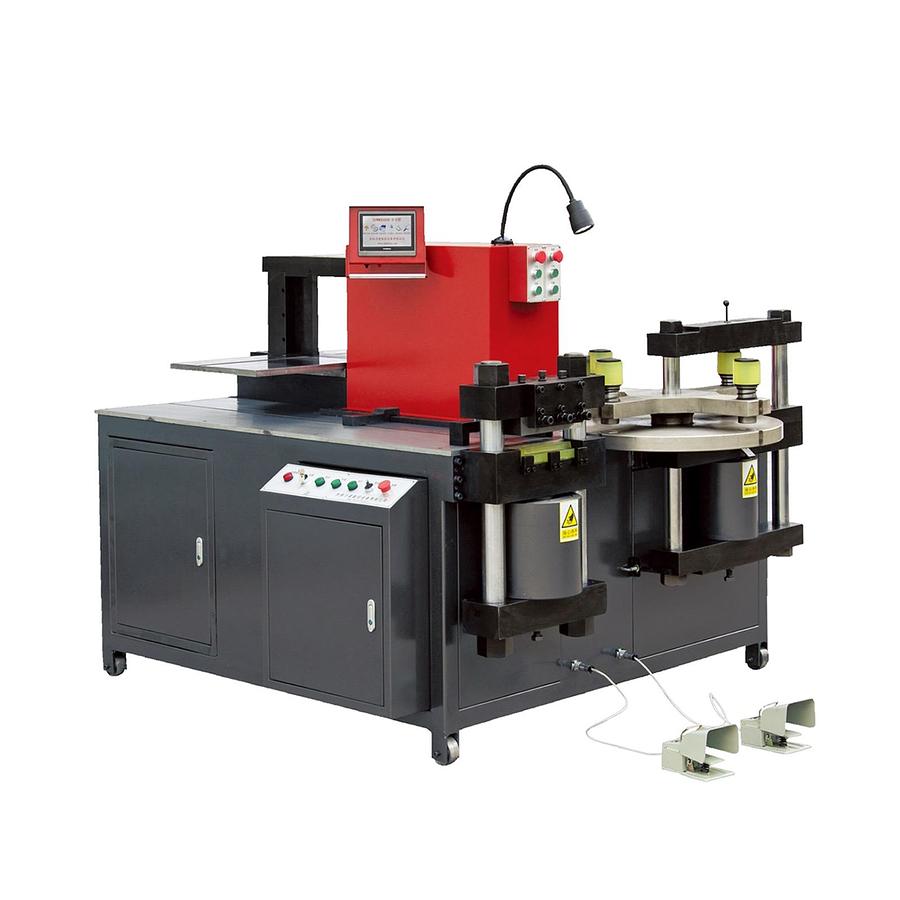

| Manufacturer | LIJIAN CNC Machinery |
| Model | DGWMX803E-3S |
| Year | 2025 |
| Condition | Used |
| Stock Number | 22282 |
Accessories
Cutting Unit: a set of cutters
Punching Unit: 8 sets of punchine molds (optional)
Bending Unit: 1 set of U bending molds, 3 sets of horizontal bending molds, a set of embossing molds
Others: 1 set of maintenance tools, a set of accessories, 3 foot switches
