Description

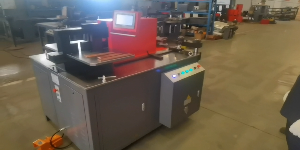

This machine is equipped with three independent working stations (units) for punching, shearing, and bending, which operate simultaneously without interference. The punching station features a turret structure for efficient hole-punching. The bending station adopts a closed-frame design with CNC-controlled angle adjustment and memory storage function.

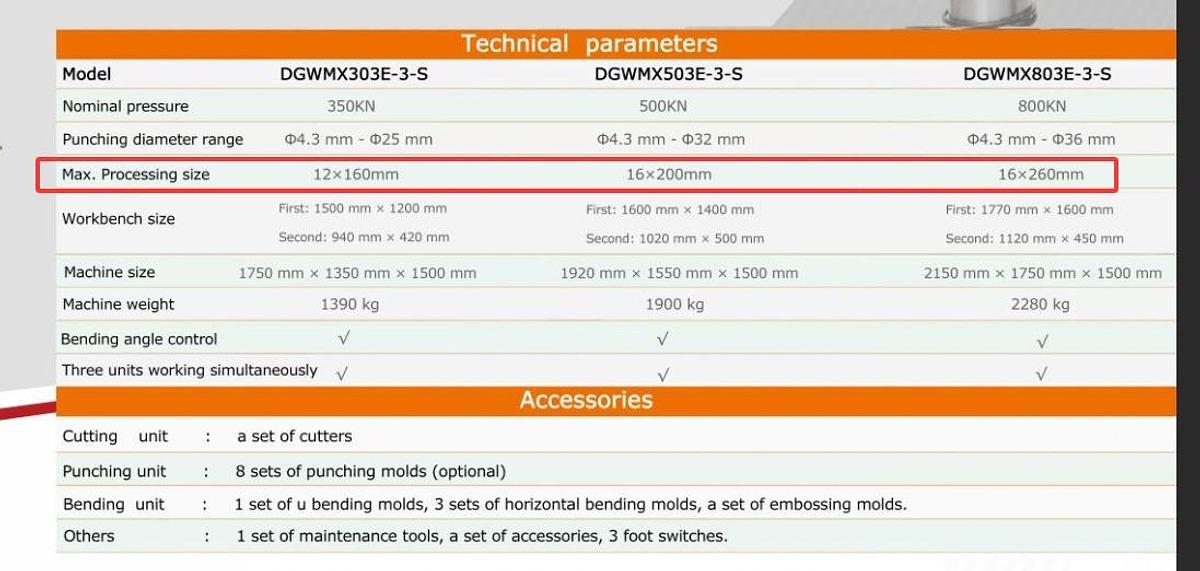

Specs
Nominal Pressure 350KN 9 US Tons
2、Maximum cutting size： 12×160mm 1/2" x 6.3" 1/2" - 6.25"
3、Punching processing range： Φ4.3～25mm .175" - 1"
4、Maximum processing size of flat bending：12×160mm 1/2" - 6.25"
5、Workbench size：1500mm×1200mm（Large）,940mm×420mm（Small）
6、Machine dimensions ：1750mm×1350mm×1500mm 68.9" x 53.15" x 59.06"
7、Machine weight：1390kg 3,058 lbs
Specifications
| Manufacturer | LIJIAN CNC Machinery |
| Model | DGWMX303E-3S |
| Year | 2025 |
| Condition | New |
| Stock Number | 22296 |
Accessories
8 sets punching dies: 7mm,9mm,11mm,13mm,17mm,11mm x 15mm, 13mm x17mm; 1 set shearing blades; 2 sets flat-bending dies (5 total pieces); 1 set U-Bend return dies; 1 set embossing die; 1 set maintenance tools; 3 foot switches
