2023 DOOSAN PUMA Model VT1100M, FANUC 0ITF Control, Only 550 Cutting Hours & Tools

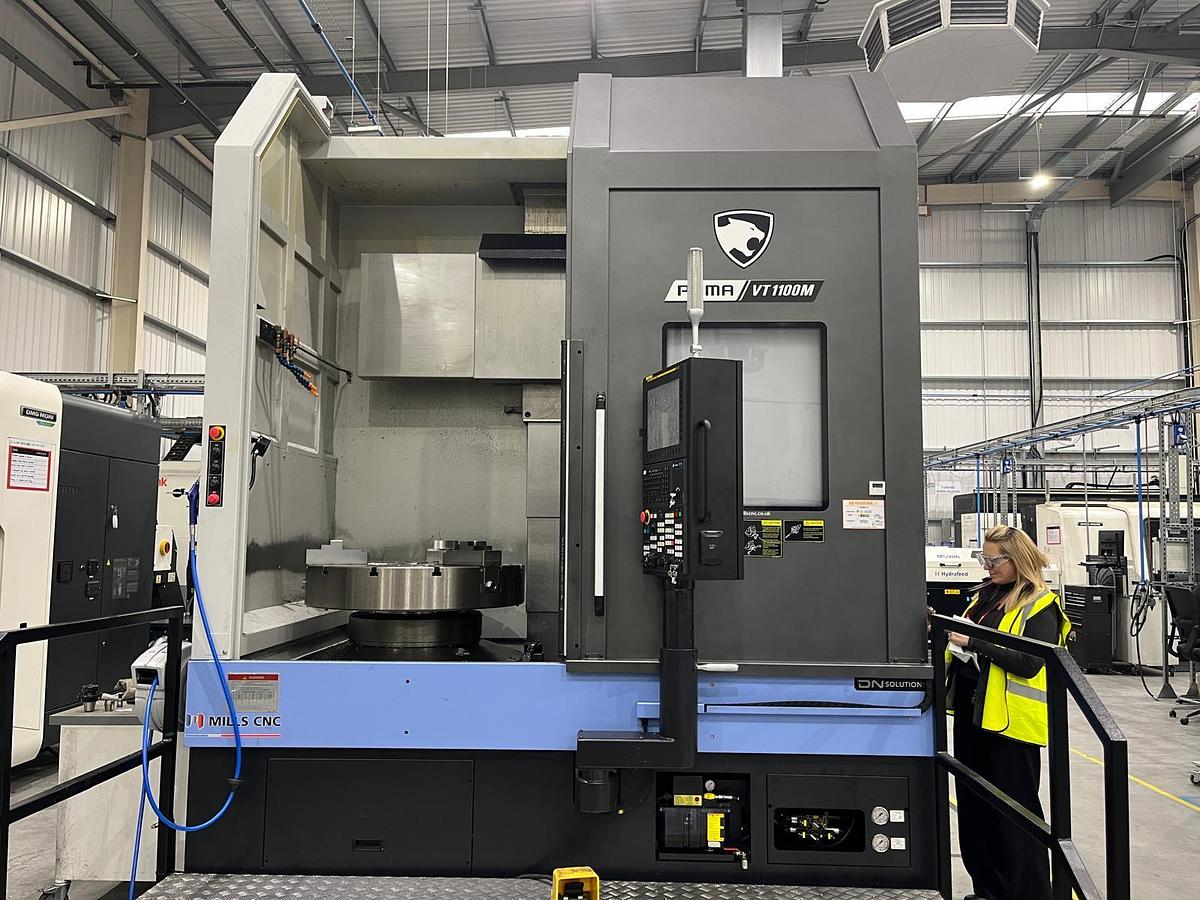

The 2023 DOOSAN PUMA VT1100M is a heavy-duty vertical turning center with a 32-inch chuck, capable of handling large workpieces with a maximum turning diameter of 1100 mm and a turning length of 960 mm. Key specs include a 580 mm X-axis and 1000 mm Z-axis travel, a 65 kW spindle motor, 850 rpm max spindle speed, and a 12-station BMT85P turret. The machine is built for high rigidity and productivity, featuring a Fanuc 0i-TFcontrol and optional live tooling.
General specifications

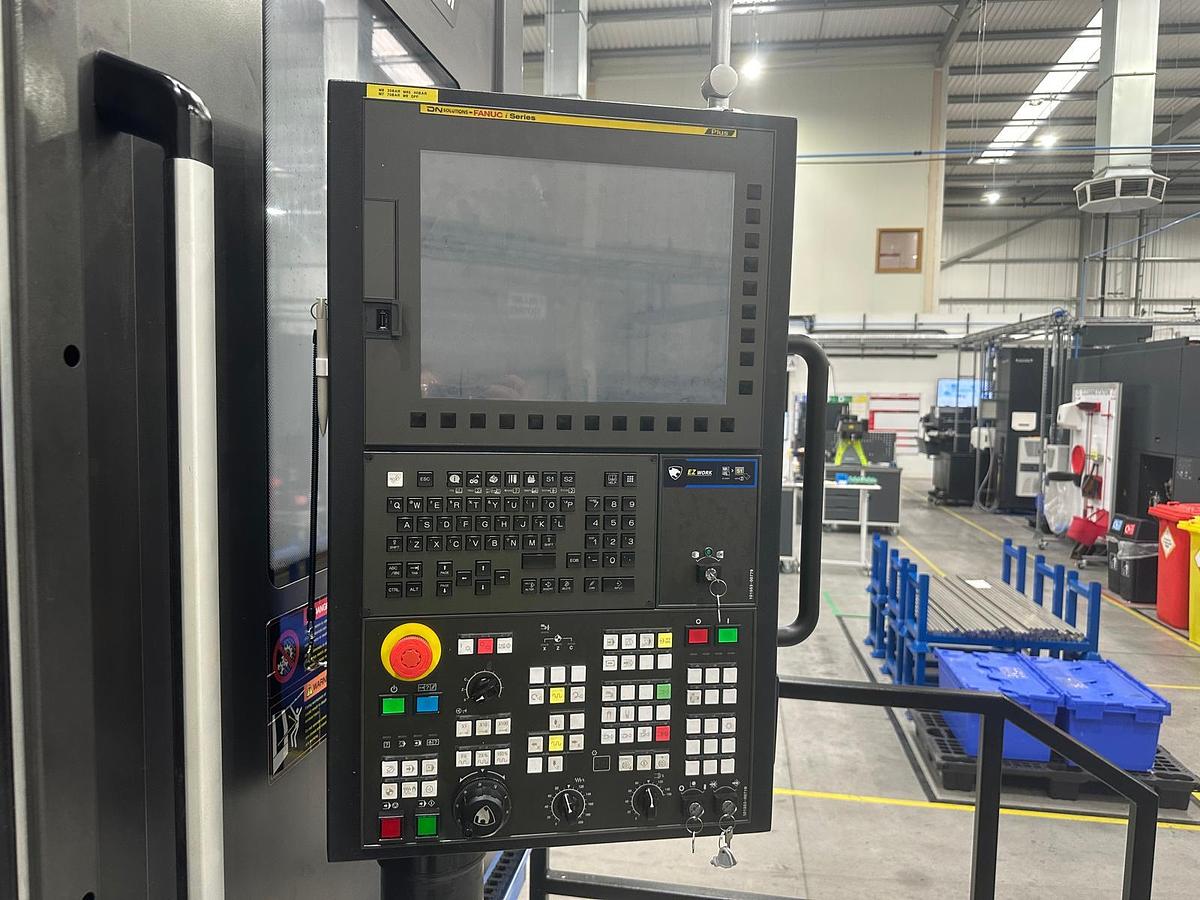

- Control: Fanuc 0iTF
- Max Swing: 50 inches (1270 mm)
- Max Turning Diameter: 43.3 inches (1100 mm)
- Max Turning Length: 39.4 inches (960 mm)
- Chuck Size: 32 inches
- Max Workpiece Weight: 4,400 lb (2200 kg) (incl chuck)
Travels and axes
- X-Axis Travel: 22.8 inches (580 mm)
- Z-Axis Travel: 39.4 inches (1000 mm)
- Rapid Traverse (X/Z): 20 m/min (787 in/min)
Spindle
- Spindle Speed: 850 rpm
- Spindle Motor: 65 kW (approx. 75 hp)
- Spindle Torque: 7552 Nm

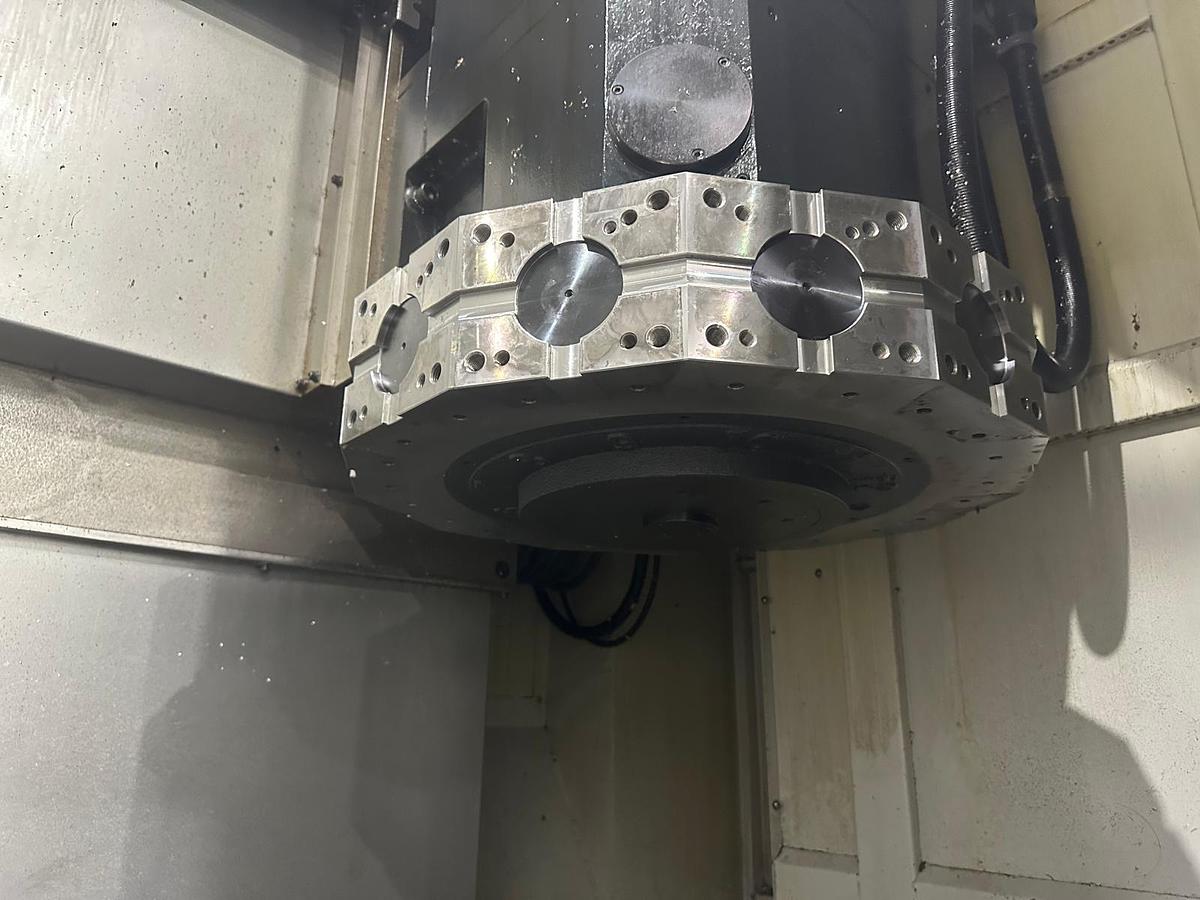

Turret and tooling
- Turret Type: BMT85P
- Number of Tool Stations: 12
- Live Tooling Speed: 3000 rpm
- Live Tooling Motor: 11 kW (approx. 14.8 hp)
- Rotary Tool 7.5/ 11.0 kW
- Rotary Tool RPM 3,000
- Rotary Tools Collet ER50 (6-32mm)
Dimensions & Weight
- L x W x H 2830mm x 3305mm x 4012mm
- Approximate Weight 49,610 lbs
Specifications
| Manufacturer | DOOSAN |
| Model | VT1100M |
| Year | 2023 |
| Condition | Used |
| Stock Number | 22302 |
Accessories
Additional Accessories
Swarf Conveyor MH500 type (rear exit). Swarf bin. FSE 70 bar NOP pump upgrade for switchable duty 3 pressures: 20, 40 and 70 bar (back pressure) via M code. Coolant chiller. Operator working platform. Coolant wash gun. Renishaw OLP40 inspection probe. Filtermist FX7002F oil mist separator with F Monitor 2.

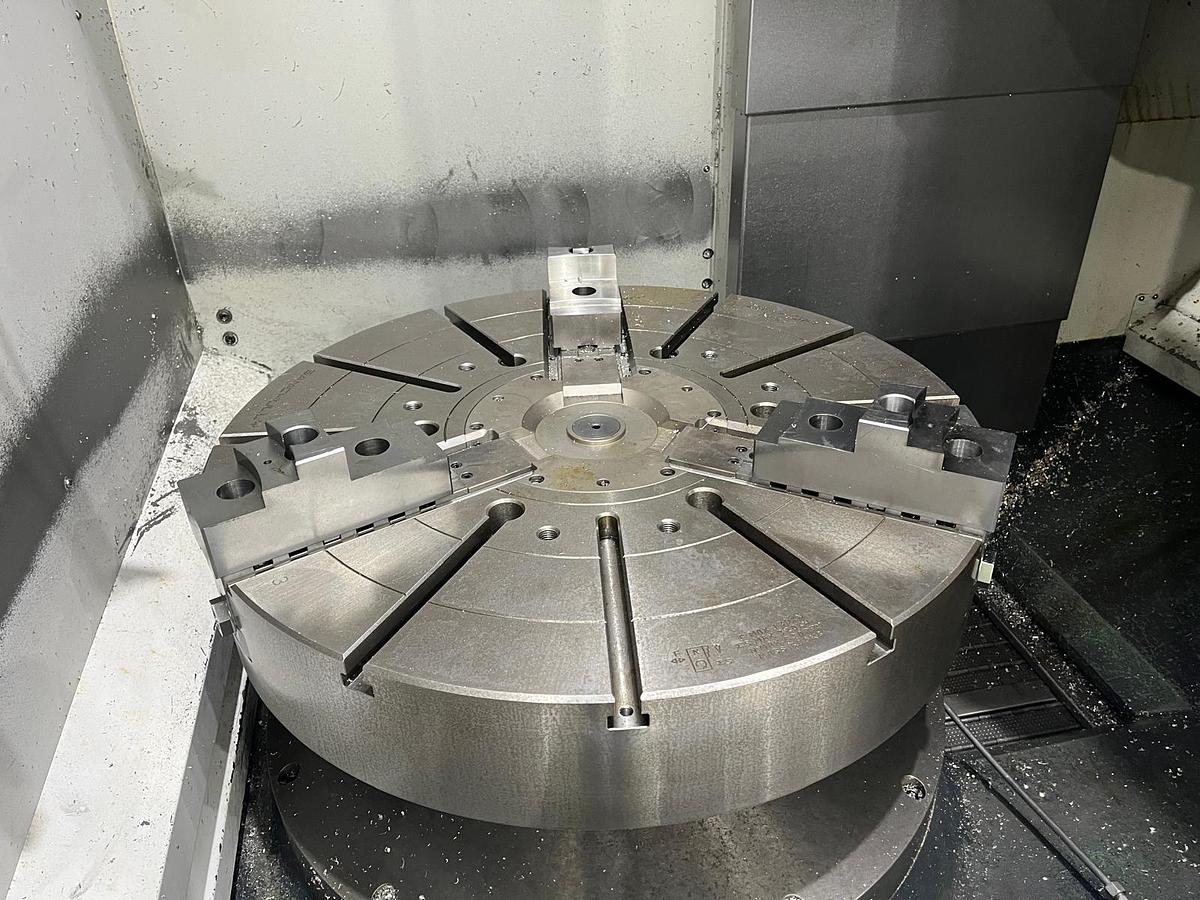

HC40G Samchully Closed Centre Chuck including 1 set of hard jaws & 1 set of soft jaws. 2 off Face type toolholder (R78935). 2 off Cross type toolholder (R78756A).
Compete with a selection of 8 x unused live tooling
