Description
TOS (HOSTIVAR)

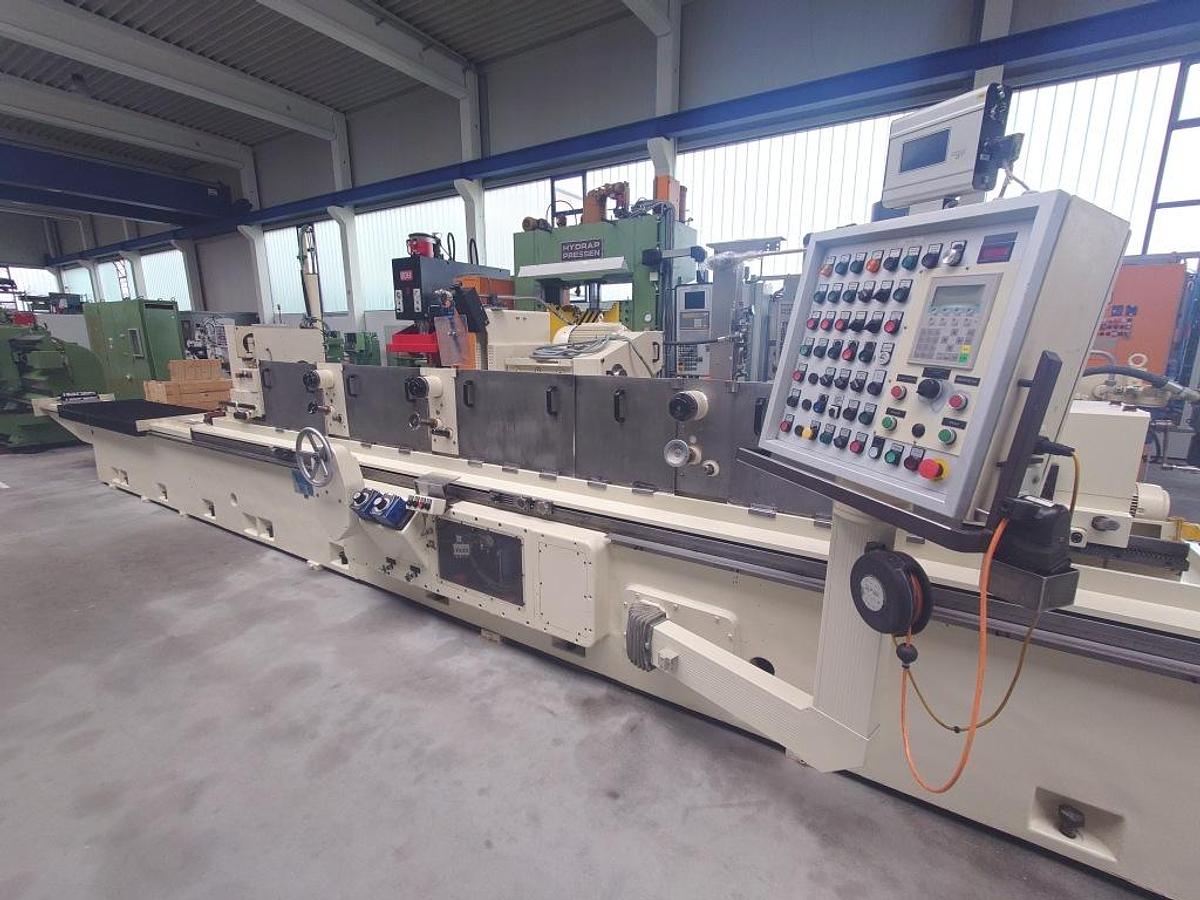

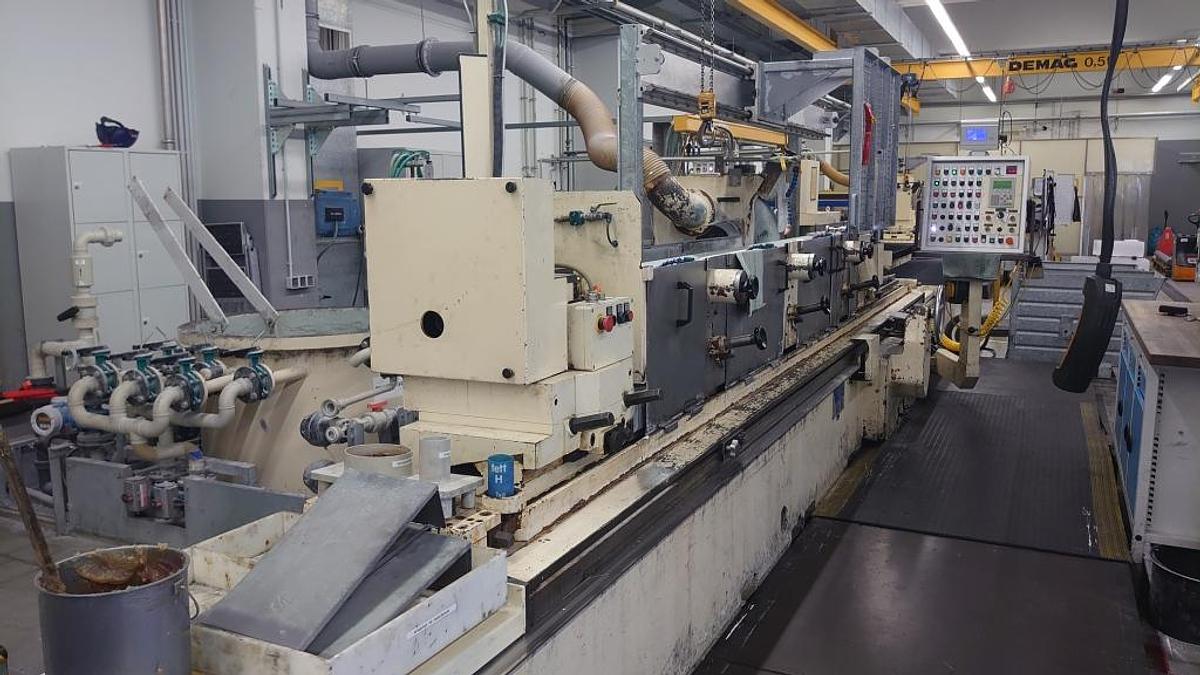

Heavy Duty Universal Cylindrical Grinder with retrofit PLC control
model BUT 63 x 4000 SP
year 1965 / 1998 reconditioned ant PLC retrofit Serial no 118xx/98
__________________________________________________________
Grinding Ø nominal (max.) 630 mm (660 mm)
Height of centres 335 mm
Grinding length / Table travel 4.000 / 4.350 mm
Weight of workpiece, max. approx 2.500 kg
Cross travel of grinding slide 420 mm
Hydr. quick feed cross travel 80 mm
Feed travel (servomotor) 2 / 3 mm / Ø
Infeed amount of grinding slide per tablereturn 0.01 0.1 mm / Ø
Grinding wheel head slide swivels + / - 30 °
Grinding wheel Ø x width x bore 750 x 100 (225) x 305 mm
Speed of the grinding spindle motor 1.460 rpm
Workpiece spindle stock / tailstock taper MK 6
Table speeds, infinitely variable 0,05 5 / 8 mm / min
Taper angle / table swivel up to + / - 3 °
Grinding spindle drive / workhead drive 18,5 kW
Total electrical load approx.. 28 kW - 400 V - 50 Hz
Weight, approx. 15.000 kg
Specifications
| Manufacturer | TOS HOSTIVAR |
| Model | BUT 63 X 4000 SP |
| Year | 1998 |
| Condition | Used |
| Stock Number | 22303 |
Accessories
Accessories / Special Features :

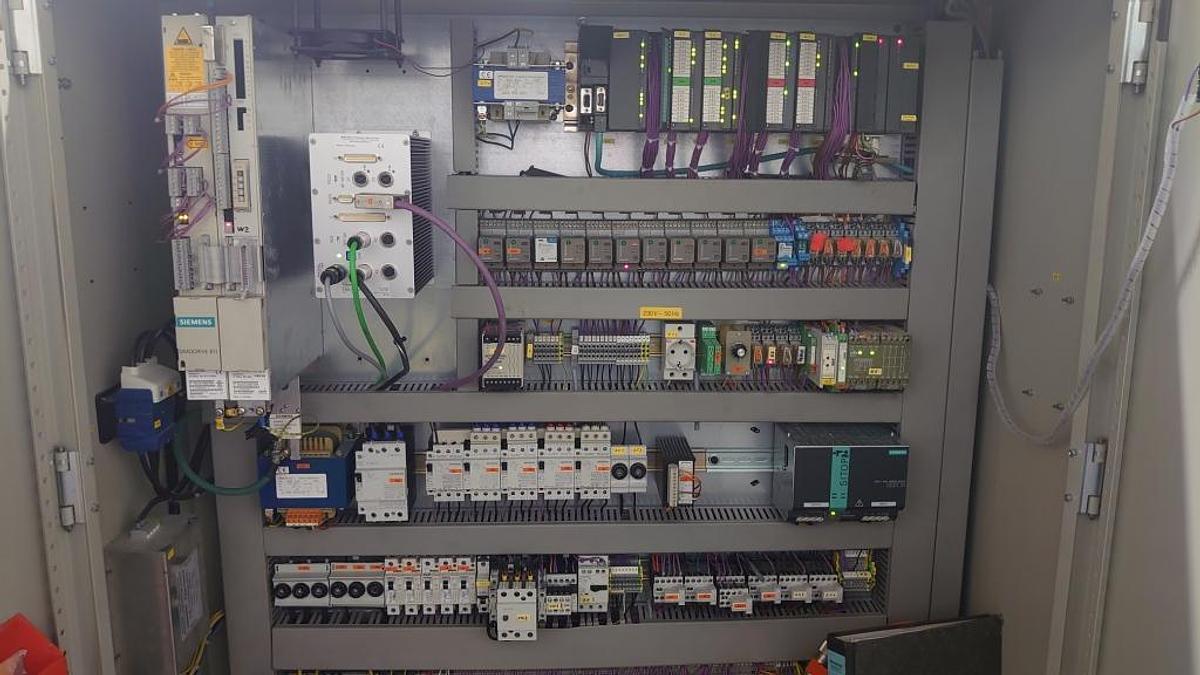

· This machine was completely overhauled in 1998 and modernised with a SIEMENS S7-300 PLC control system. All motors were renewed and the workpiece drive as well as the grinding head infeed were equipped with servomotor drives. The entire electrical system and the important hydraulic elements were also renewed. A modern operating panel with push buttons and interface was fitted.

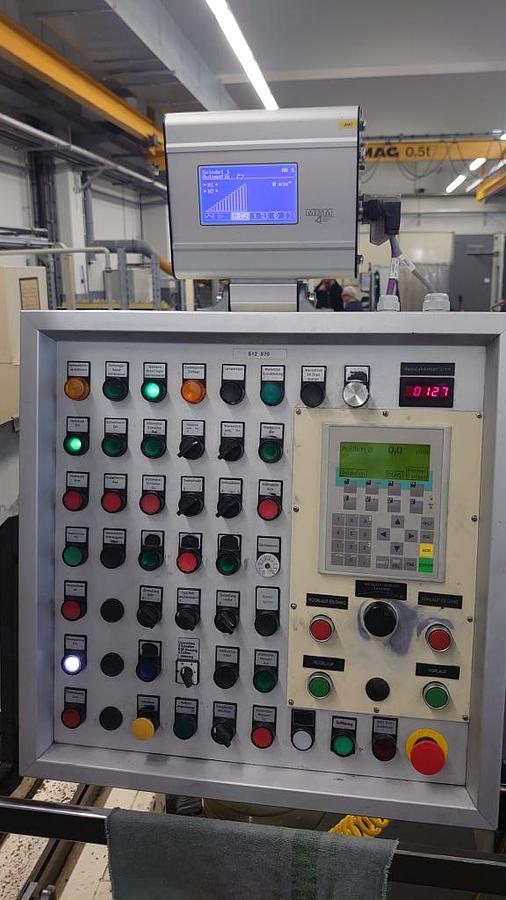

· Automatic grinding cycles for longitudinal and plunge grinding. All grinding parameters are entered digitally on the SIEMENS OP 77A input panel; an electronic handwheel is integrated for the infeed axis.
· MPM microprocessor grinding wheel balancing device AB300SM3.C with balancing head mounted on the flange and operating module BM240M attached to the control panel (retrofitted in 2019)
· Infinitely variable speeds of the workpiee drive with digital display
· Dressing device mounted on the tailstock
· 3 pieces open steadies

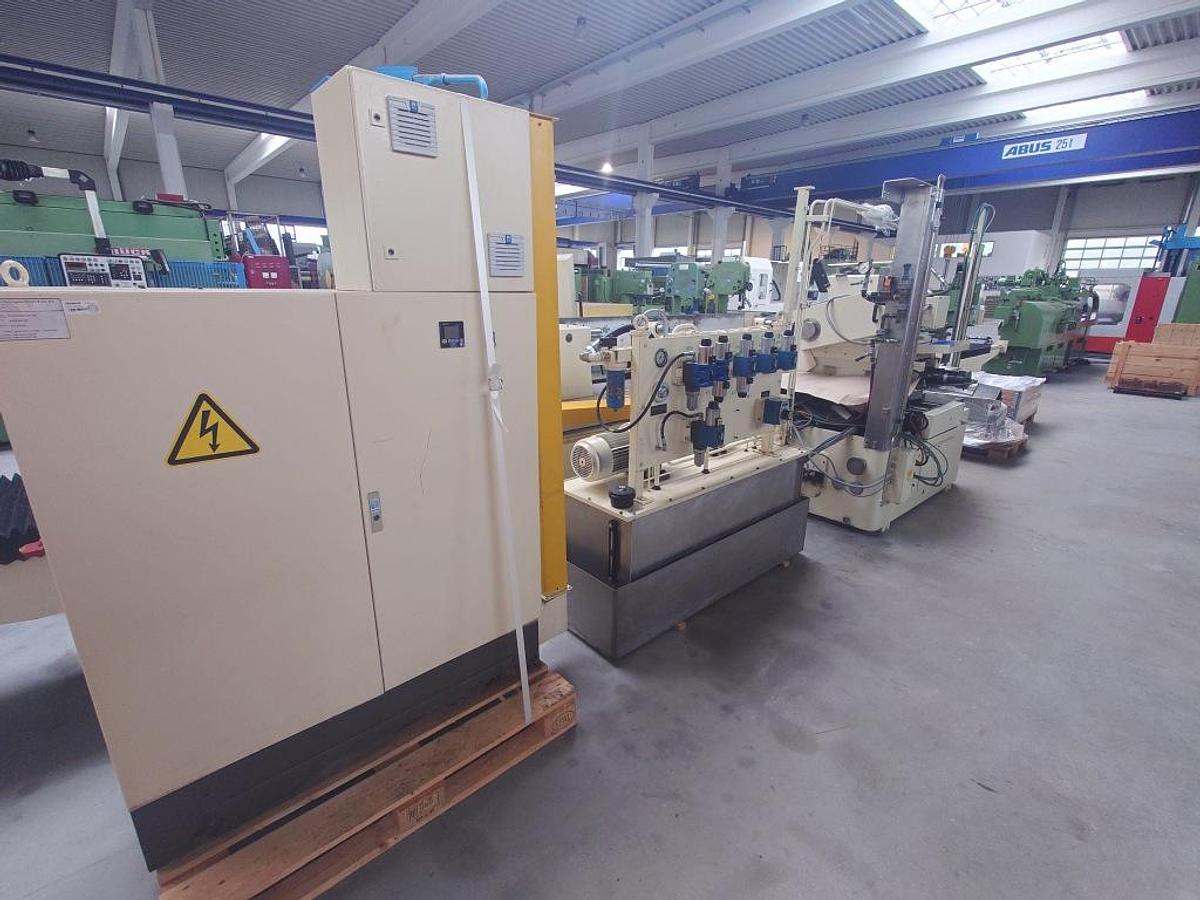

· Sep. electric cabinet, sep. hydraulic unit, accessories, manuals
