Description
SPECS
Rect-Cap (H) 24"
Rect-Cap (W) 28"
Rounds-Cap 28"
Power 10 hp
Type (Auto, Manual, Semi) Auto
Blade Width 2" x 25'
Blade Speed 40-300 SFM
Hydraulic Tank Capacity 9.5 gallons
Voltage 480V
Table Height 37"
Dimensions 127” x 192” x 92”
Weight 25,700 lbs.
Specifications
| Manufacturer | HYD-MECH |

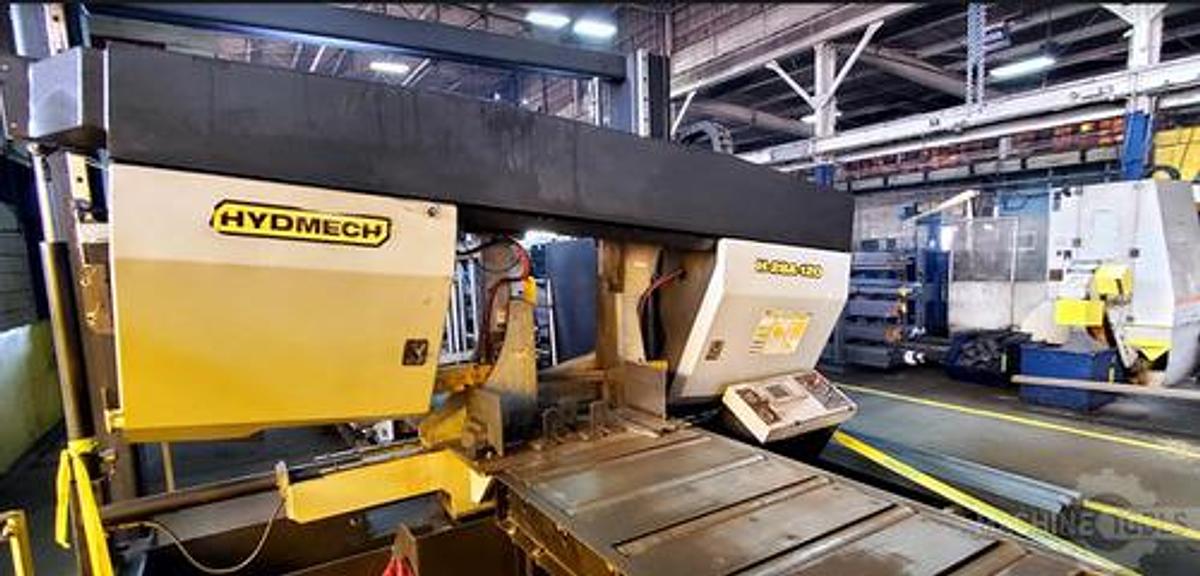

| Model | H-28A -120 |
| Year | 2017 |
| Condition | Used |
| Stock Number | 22310 |
Accessories
Standard Machine Features
• 6 degree canted head.
• Spilt front vise. Can be replaced by request with retractable datum vise at no charge.

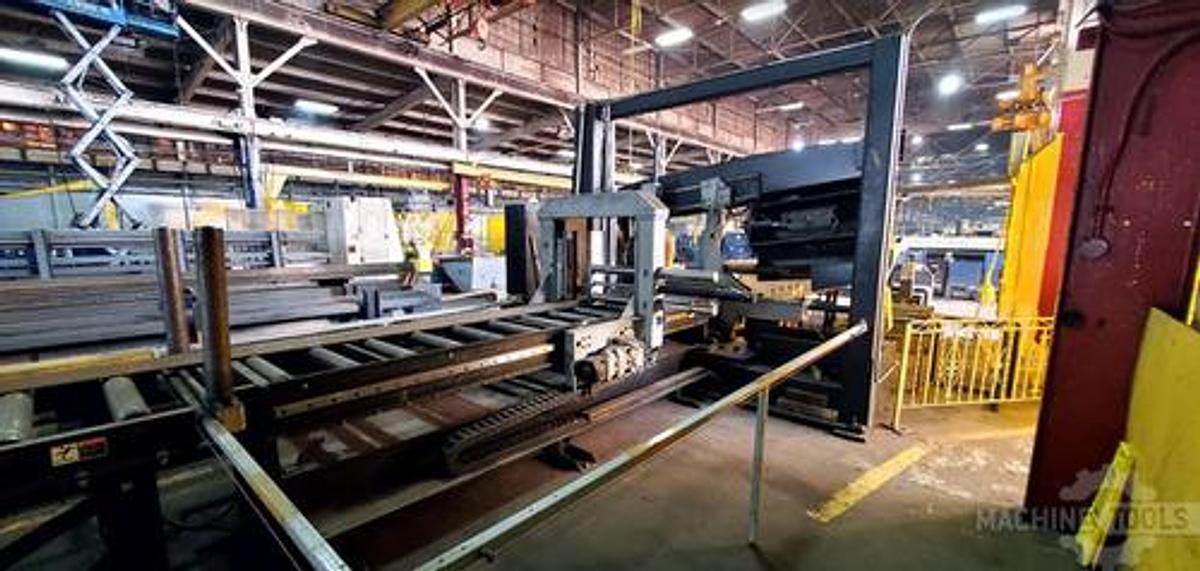

• Shuttle features automatic multi-indexing up to 120” in a single stroke with automatic kerf compensation.
Powered by a rack and pinion servo drive.
• Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times.
• Full capacity hydraulic overhead bundling
• 10 HP VFD. True direct blade drive – no belts/pulleys
• Robust steel base
• Full capacity, full stroking hydraulic vises Hydraulic positive down feed
• High resolution feed rate valve allows for constant feed rate when cutting special alloys
• Blade chamber separates material from cut part
• Cast iron band wheels

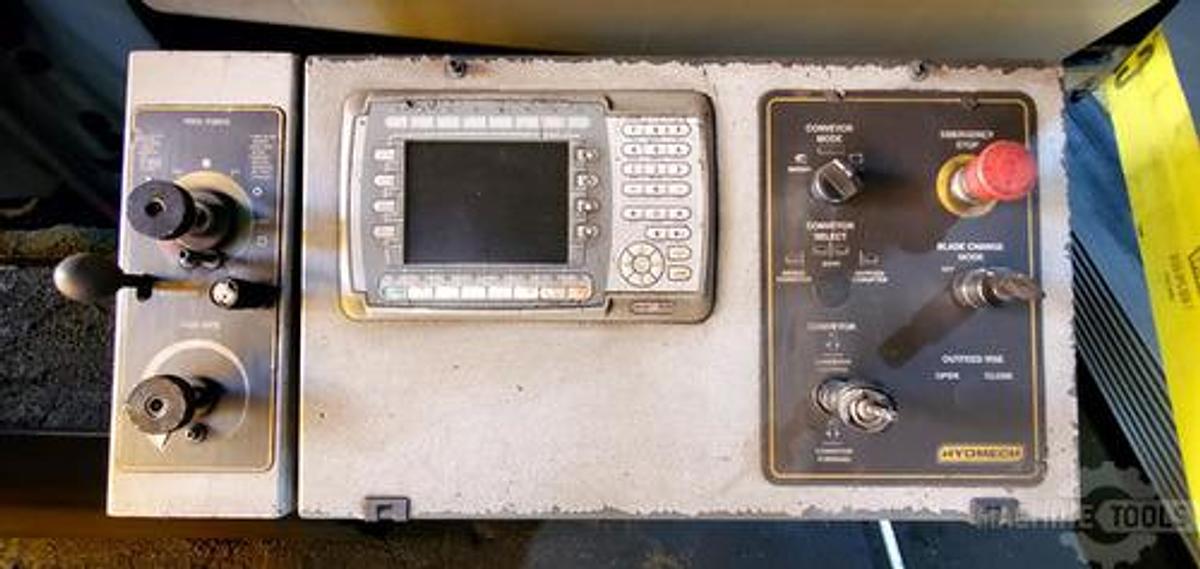

• 7” color touch screen HMI. Mitsubishi FX5U PLC. No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. Programmable head up position, Built in machine diagnostics on the display screen, Simple Software updates, 999 jobs, 10 jobs in queue.
• Replaceable blade brush
• Automatic chip removal auger
• Out of stock switch
• Easy access electrical panel and hydraulics
• Blade breakage switch
• Hydraulic band tensioning with digital readout
• 5 HP hydraulic pump provides system pressure
• Hydraulic carbide guide tensioning
• Hardened, replaceable wear plates
• Safety door interlocks
• Flood coolant with wash down hose
• Work light
• Laser light
• Variable vise pressure
Optional Machine Features
• Blade deviation
• Squaring vise
• Mist lubrication
• Remote console – 15’ cord
• Outboard vise clamping options available upon request
• Power transformer
• Roller discharge table
• Vertical alignment rollers
• Idler conveyors
• Powered conveyors
