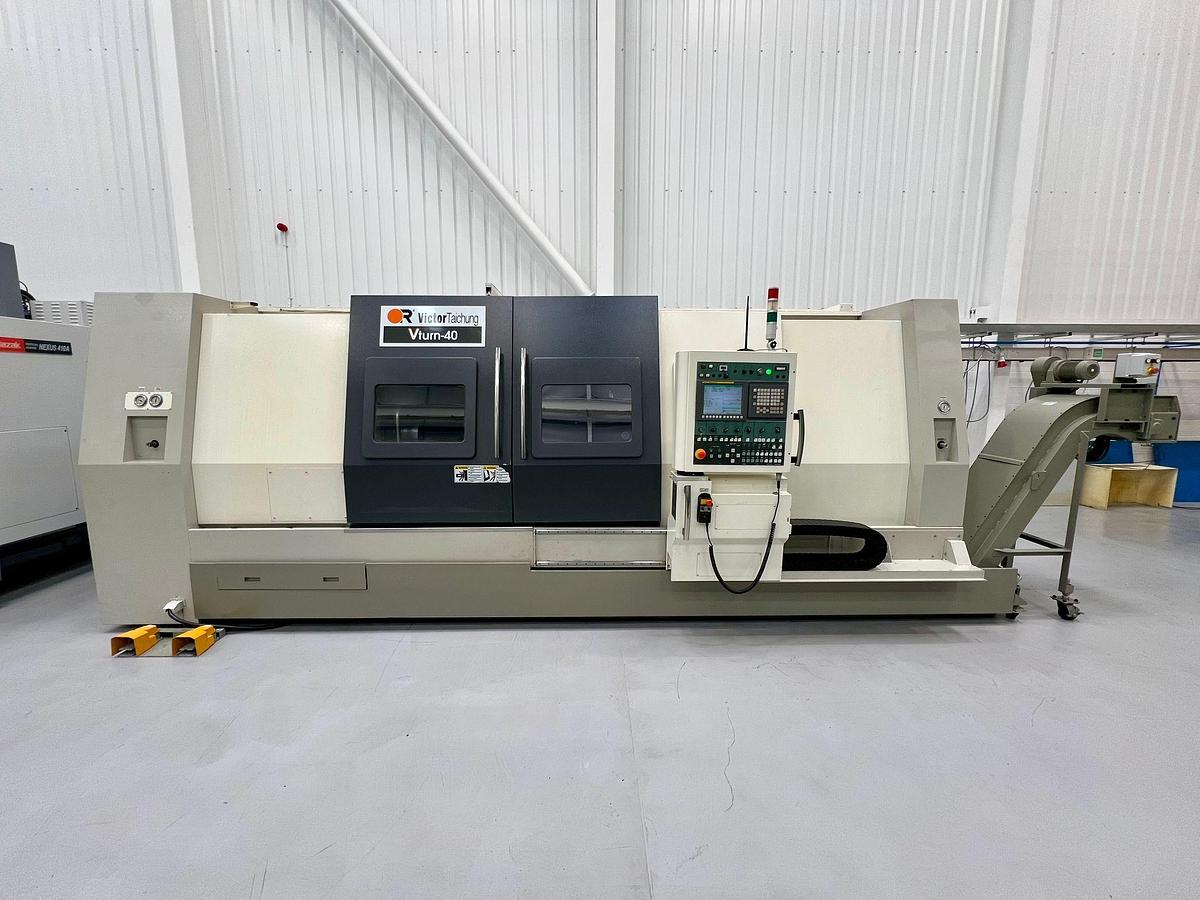

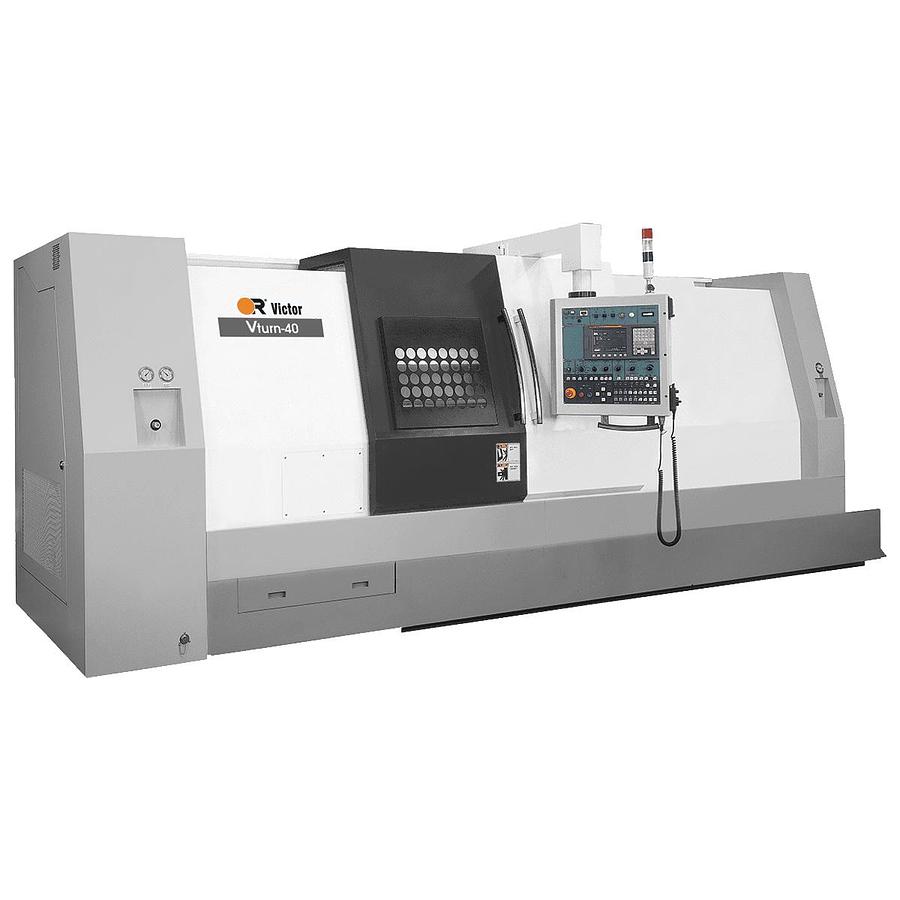

2013 VICTOR VTURN 40/220

SpecifIcation Spec Table Visible

Key Specifications: YOM 2013

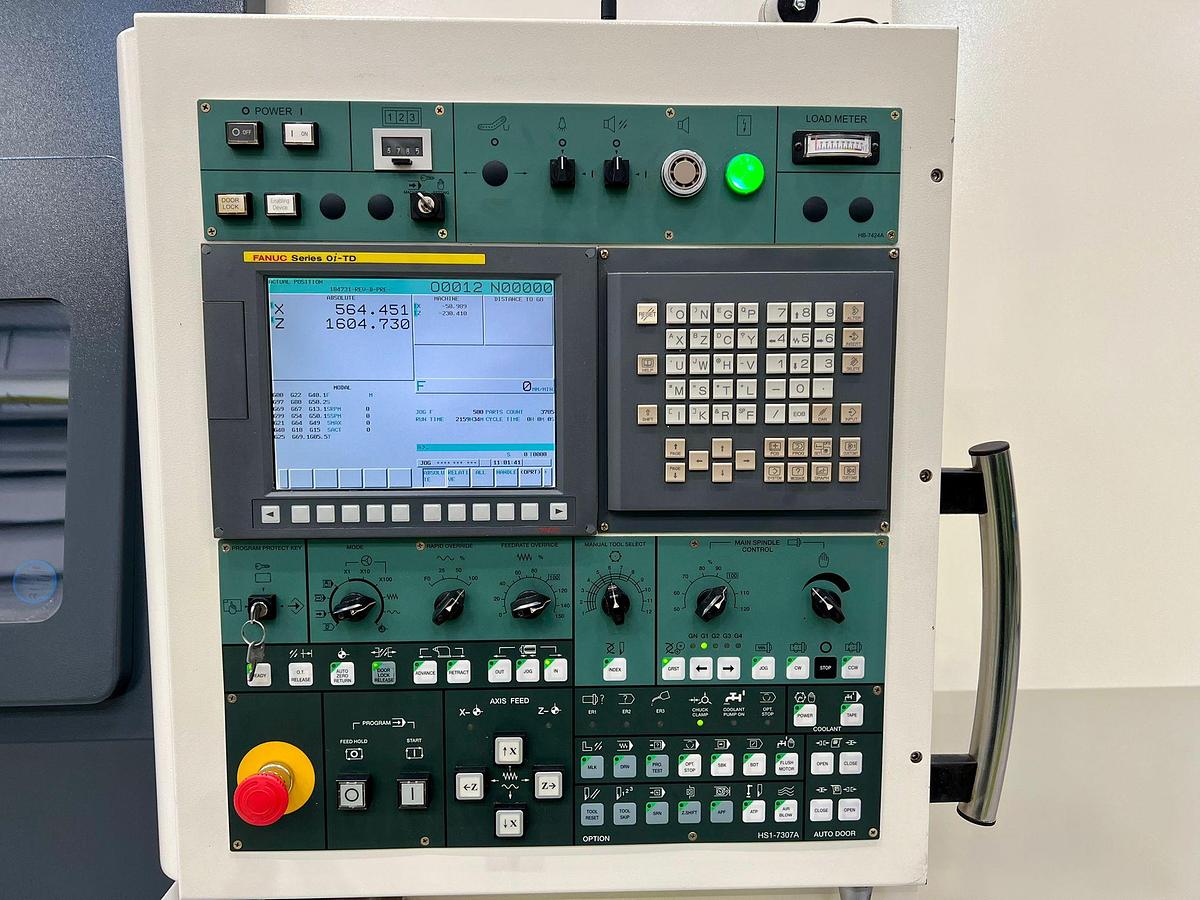

CNC Controller: FANUC 0i-TC

Swing over Bed: 780 mm (30.7")

Max Turning Diameter:               620 mm (24.4")

Max Turning Length:                2275 mm (89.56")

Swing Over Carriage:              620mm (24.4")

Distance Between Centers: 2275 mm (89.57")

Spindle Nose:                   A2-11

Spindle Bore:                   105 mm (or 90mm)

Bar Capacity:                   91 mm (3.58")

Spindle Motor:                   30/37/45 kW (Cont/30min/15min)

Max Spindle Speed:                 2500 RPM

Control System: Fanuc               ( 0i-TC)

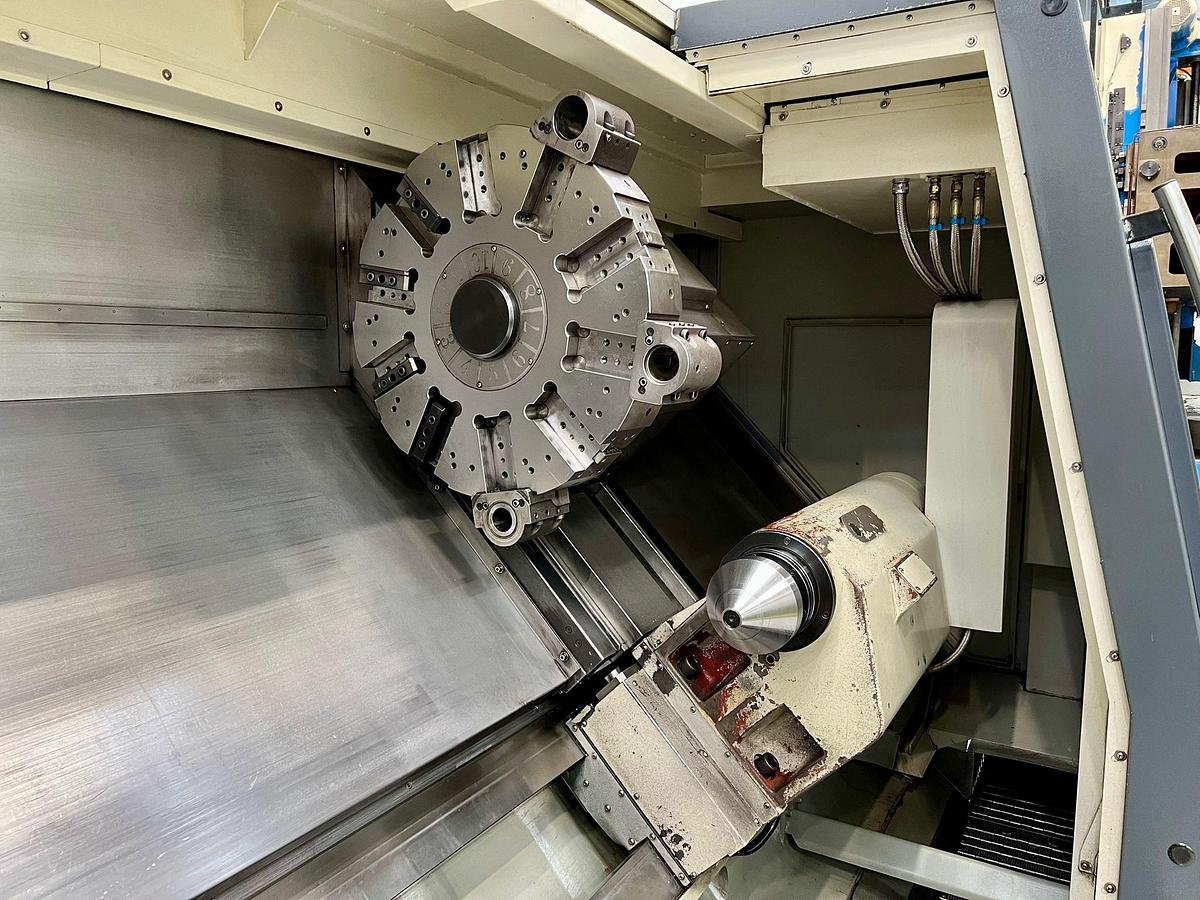

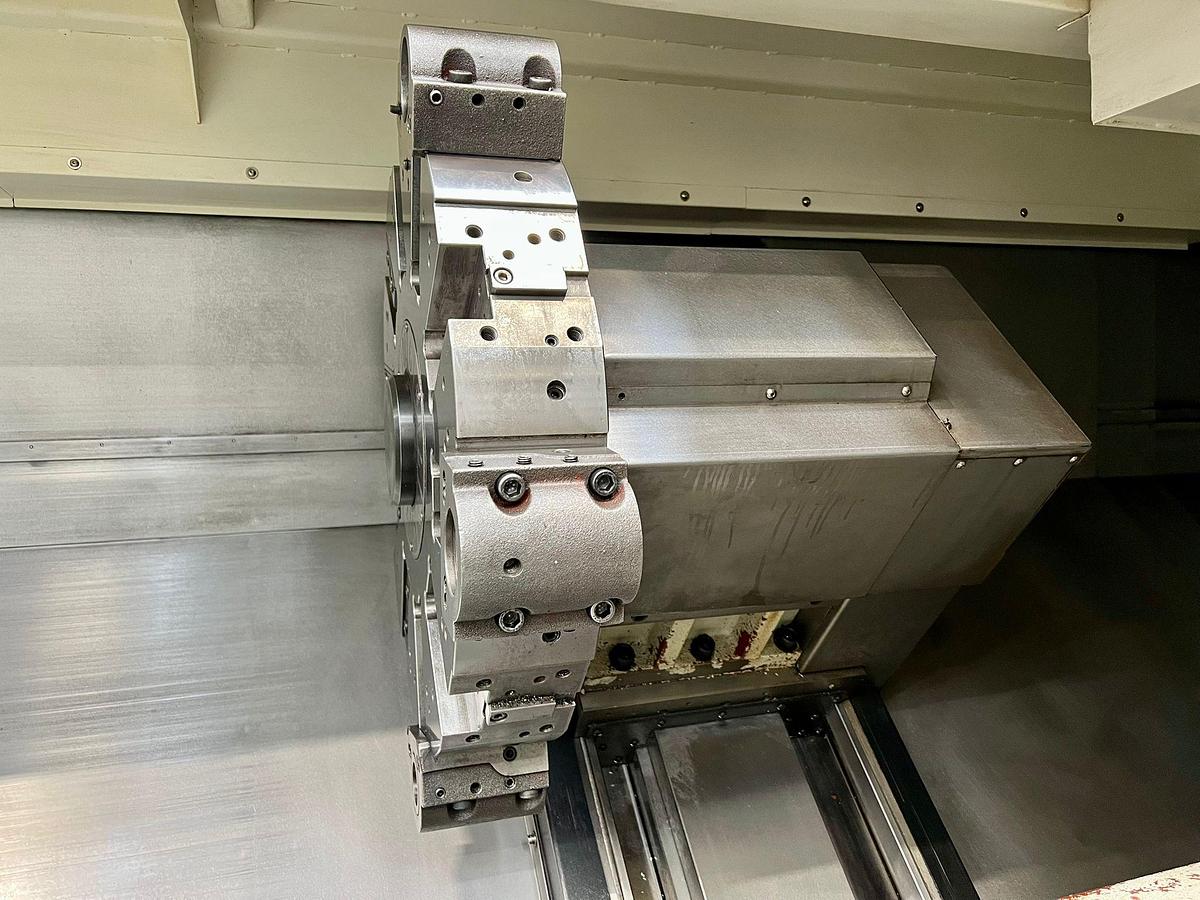

Turret:                      10-Station

Tool shank size mm               32

Max. boring bar dia. mm           50

Exchange time (T-T) sec           1

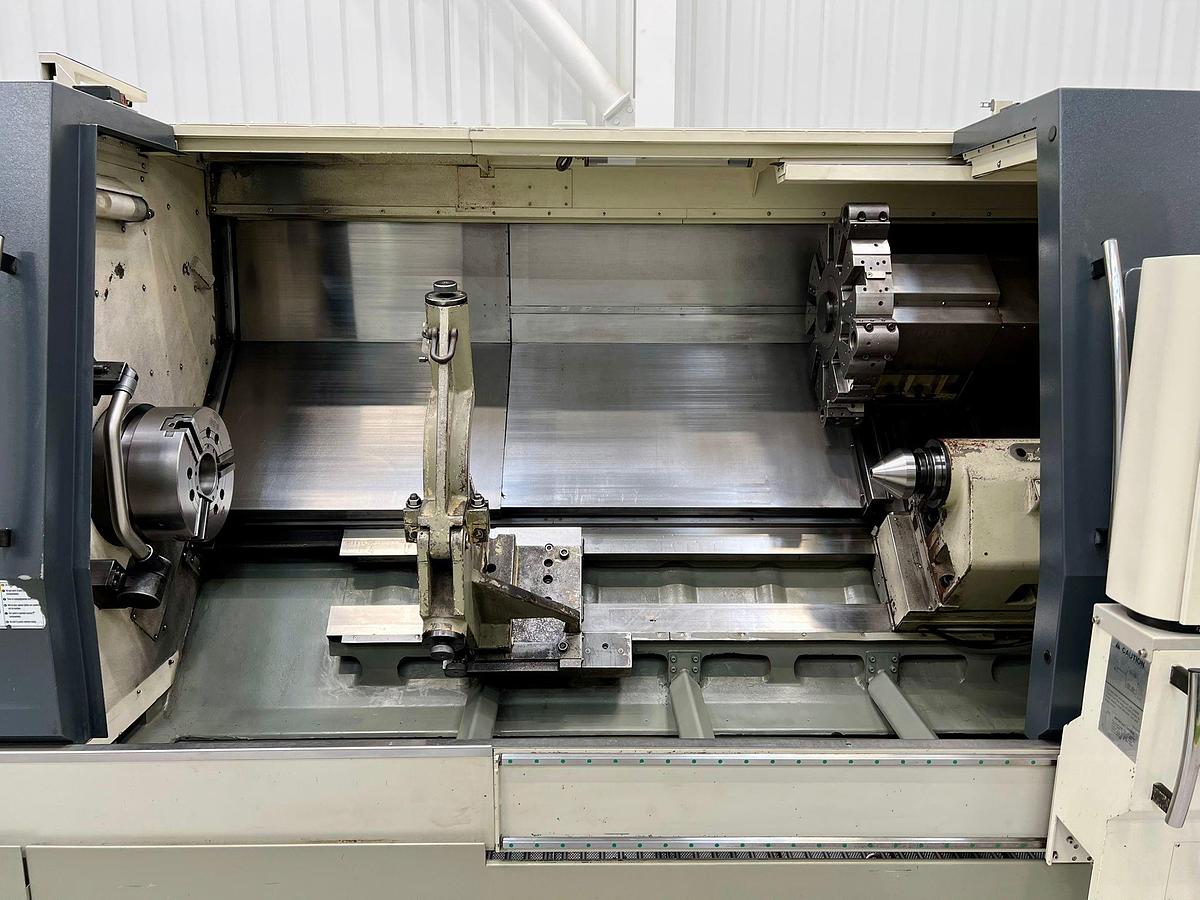

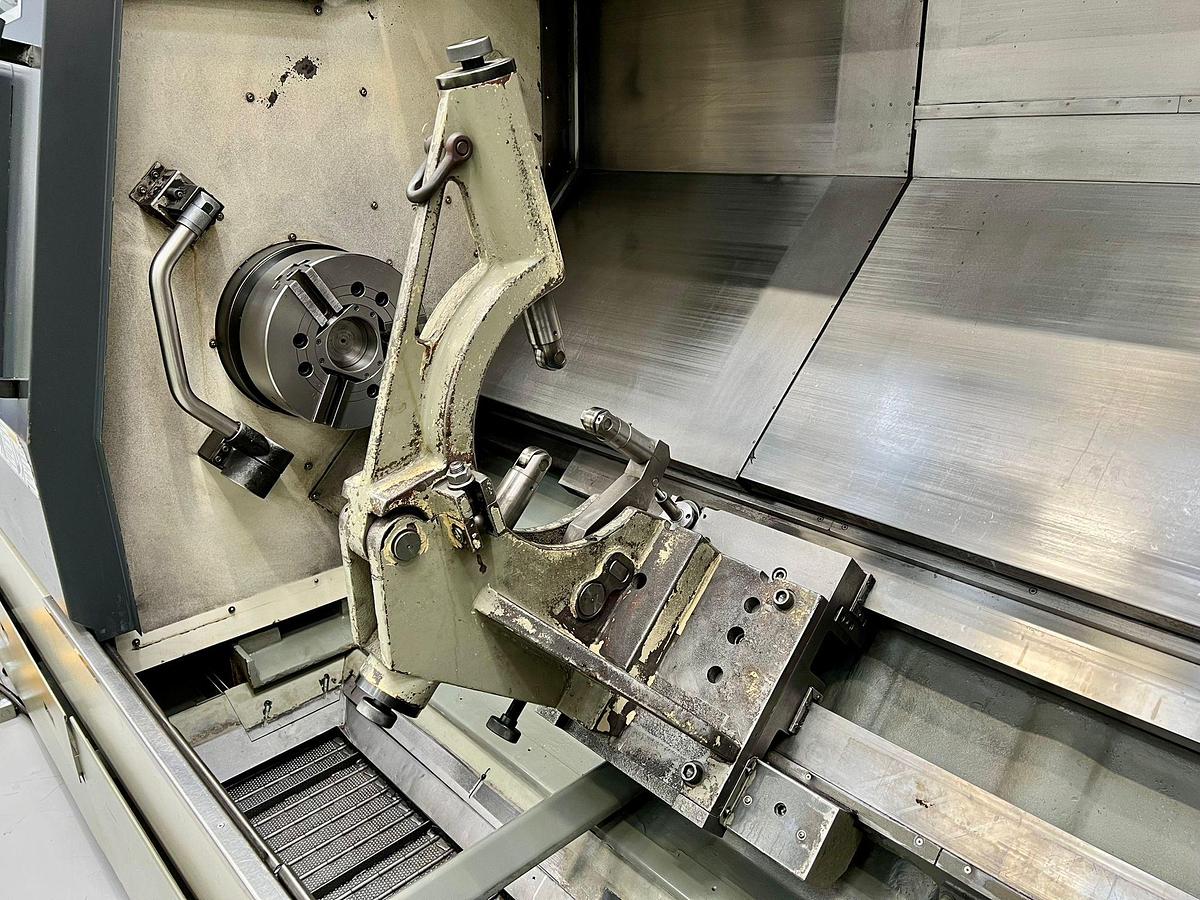

Tailstock: Quill dia.               150mm, Quill taper MT5

Bed:                        45-degree slant bed for rigidity

Additional Features:

Chuck:                       15" hydraulic chuck standard

Axes: X/Z travel with large ball screws       (36mm x P8/50mm x P16)

Feed Motors:                    4kW (X-axis) / 7kW (Z-axis)

Rapid Traverse:                   20 m/min (X/Z)

Dimensions: m                    7.1m (279") x 2.7m (106") x 2.2m (86.6")

Weight: Approx.                   15,500 kg (34,170 lbs)
