Description

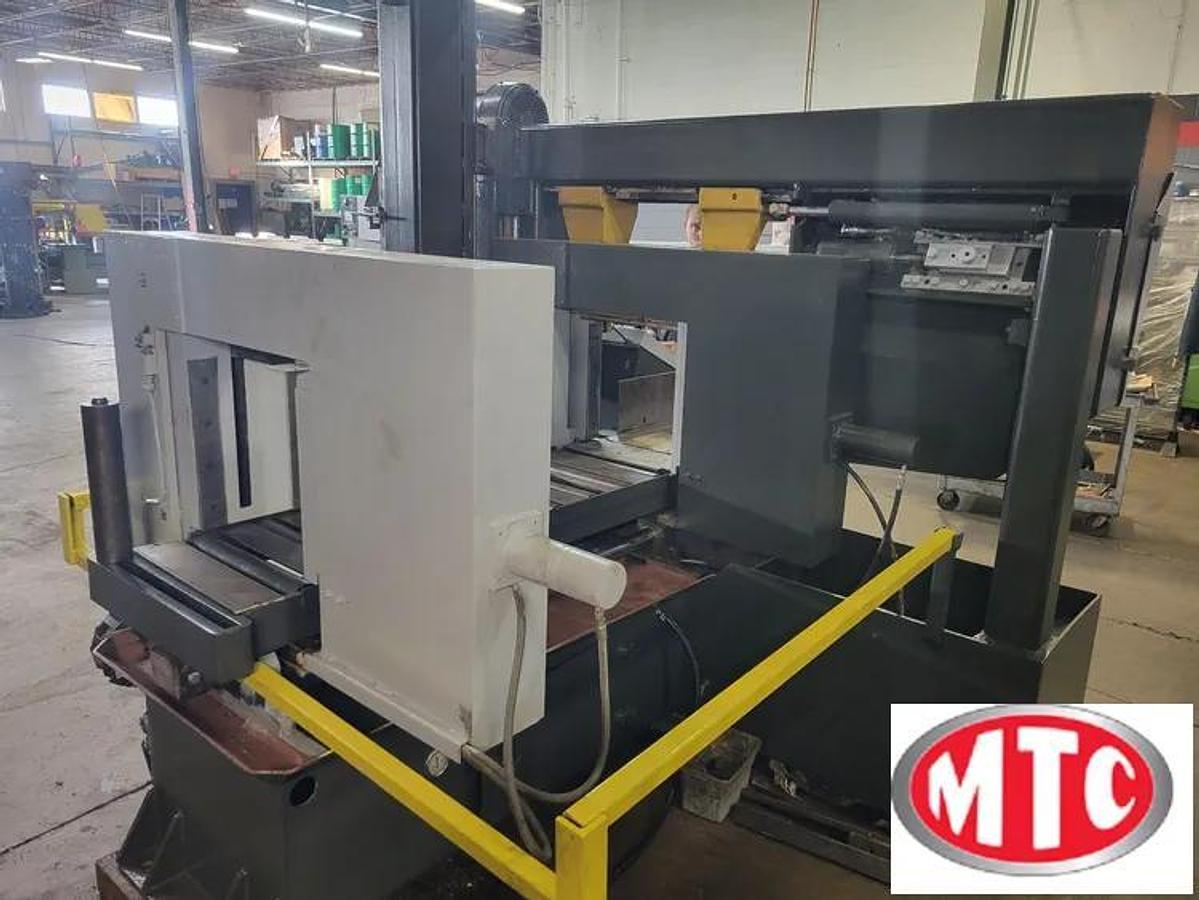

Hyd-Mech Model H-16A Fully automatic Column type bandsaw, w/ Programmable control, w/ Bundling
Fully Automatic, programmable, Horizontal Column type bandsaw, heavy duty, 16" Capacity, 1.5" Blade, 10 HP variable speed drive, FULL CAPACITY BUNDLING CLAMPS, Hydraulic full travel vises, Hyd-Mech PLC 100 Control, 8,500 lbs.!!!!
Rect-Cap (H) 16"
Rect-Cap (W) 16"
Rounds-Cap 16"
Square-Cap 16"
Power 10 hp
Type (Auto, Manual, Semi) Auto
Blade Width 1.5"
Blade Thickness 0.05"
Blade Length 225"
ControlCNC (PLC 100)
Dimensions 118" x 96" X 90" High
Weight8,500 lbs.
Rect-cap (h) 16"; 406.4 mm
Rect-cap (w) 16"; 406.4 mm
Rounds-cap 16"; 406.4 mm
Square-cap 16"; 406.4 mm
Specifications
| Manufacturer | HYD-MECH |
| Model | H-16A |
| Condition | Used |
| Stock Number | 22314 |
Accessories
Equipped With

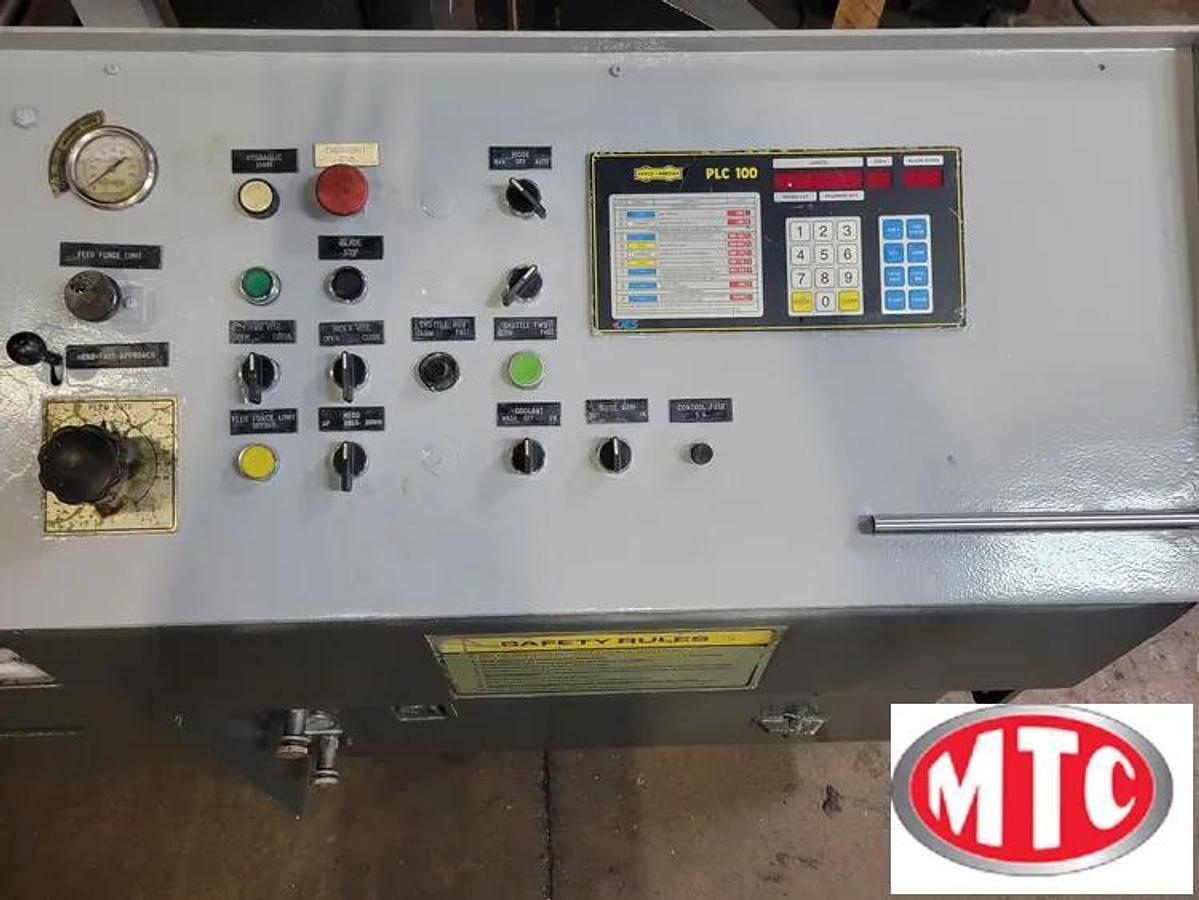

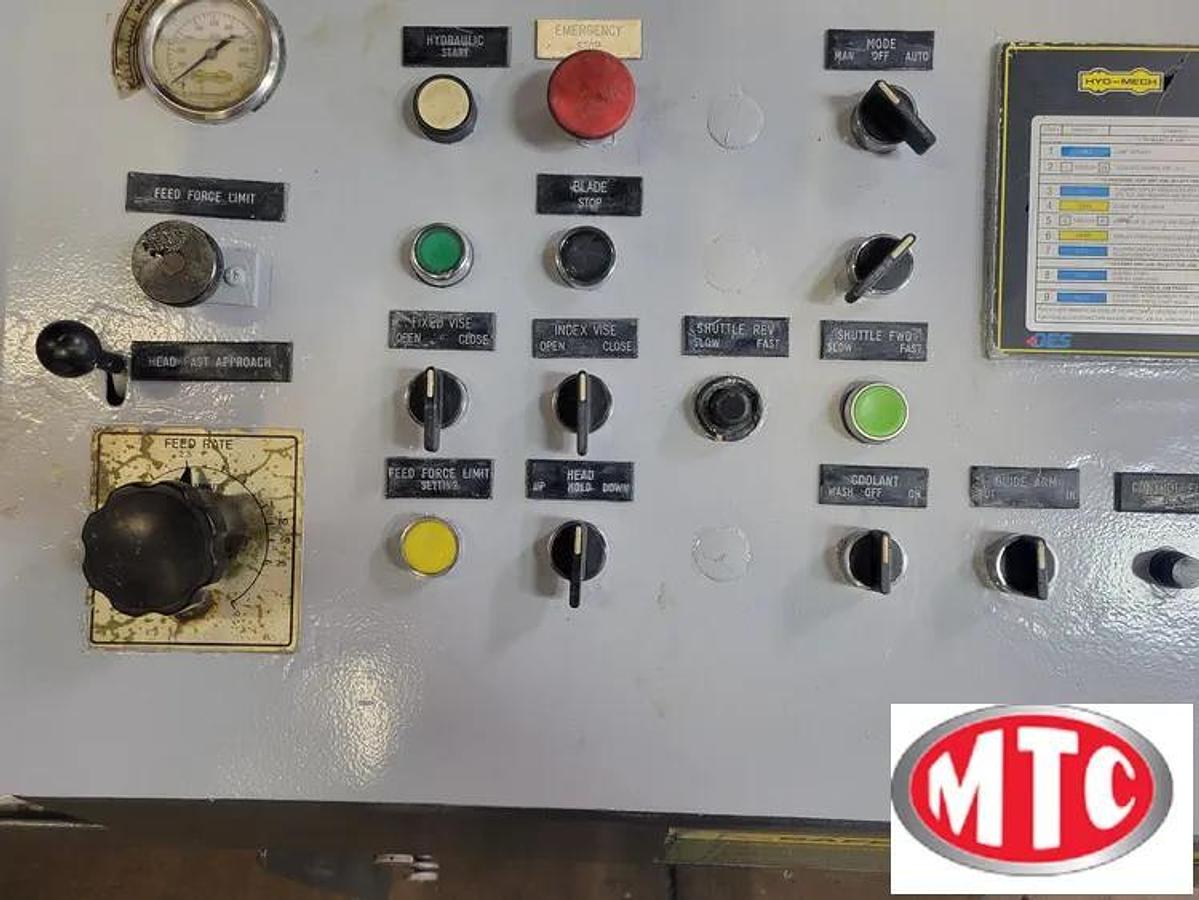

Hyd-Mech programmable PLC 100 Control, Full stroke hydraulic vises, 10 HP Variable speed drive, Coolant system with Wash down hose, 40" Shuttle stroke, Carbide Blade guides, Solid One piece weldment.
All available manuals
