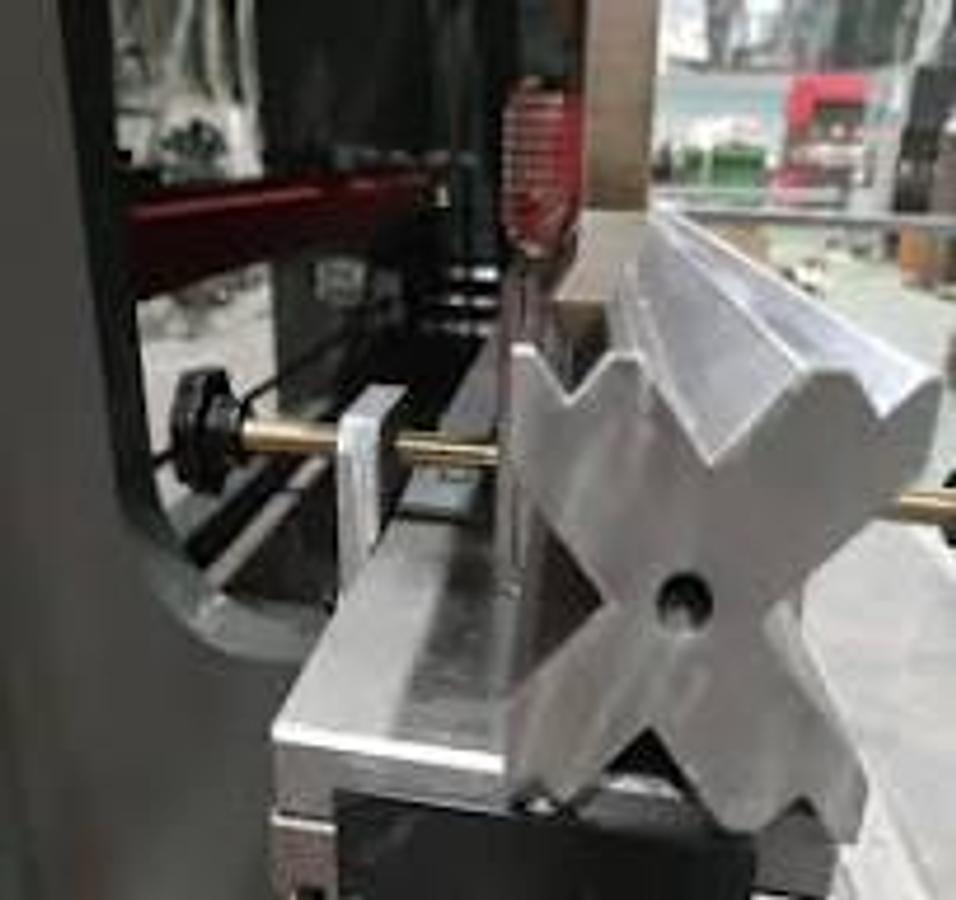

2025 ADH Machine Tool WAD-500T/6000 CNC Hydraulic Press Brake WITH DELEM DA53TX Controller with 3 + 1
Description
Model 500T/6000
Bending Force 5000 (KN)
Bending Length 6000 (mm)
Oil Tank 760 (L)
Aprroaching Speed 80 (mm/S)
Ram Speed 8.5 (mm/S)
Return Speed 90 (mm/S)
X-axis Stroke 900 (mm)
X-axis Speed 200 (mm/s)
R-axis Stroke 200 (mm)
R-axis Speed 40 (mm/s)
Column Distance 4800 (mm)
Throat Depth 500 (mm)
Stroke 300 (mm)
Daylight 610 (mm)
Step/Servo Motor 35.2 (KW)
Weight 45 (Ton)
Dimensions 6300*2700*3600 (L×W×H mm)
Specifications
| Manufacturer | ADH Machine Tool |
| Model | WAD-500T/6000 CNC Hydraulic Press Brake WITH DELEM DA53TX Controller with 3 + 1 |
| Year | 2025 |
| Condition | Used |
| Stock Number | 22316 |
Accessories
Electro-hydro Press Brake Brand/Details
Hydraulic Valve HAWE /Rexroth
Oil Pump HAWE/VOITH/ECKERLE
Oil Tank Made in China
Main Motor Step/Servo Estun/Inovance
Grating Ruler GIVI
Crowning Motorized Crowning
Pedal Switch Roller Type
Electrics Schneider
Clamps Quick Clamp
Ball Screw Rod PMI
Linear Guide JingWei / Hiwin (optional)
Front Support Support Equiped with Dual Linear Guide
Backgauge Motor Estun/Delta/Inovance
Rear Finger Big Finger
Finger Amount 4
Number of Axis 3+1 ( Y1, Y2, X + V axis)
Temperature Control Device /
Front Protection Left/Right Guard
Rear Protection Simple Rear Guard
Controller Delem DA53TX
