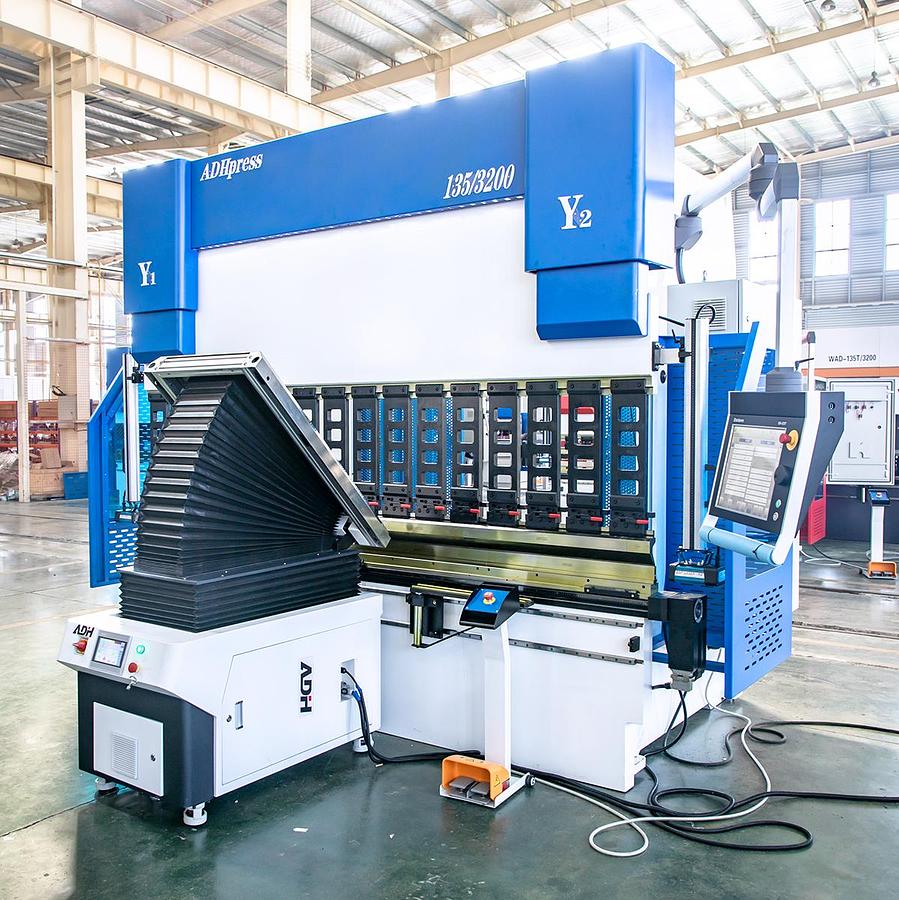

2025 ADH Machine Tool WAD-135T/3200

SPECIFICATIONS Model 135T/3200

Bending Force 1350 (KN) Approx 135 Tons

• Bending Force: ~1350 kN (approx. 135 tons)
• Max Bending Length: 3200 mm (about 10.5 ft)
• Bending Capacity (Mild Steel): Up to 5 mm (0.2 in)
• Bending Capacity (Stainless Steel): Up to 2.5 mm (0.1 in)
• Axes: Y1, Y2 (hydraulic cylinders), X (backgauge), V (tool crowning) + often a 4th/5th axis for complex bends
• Speed: Fast working speed (e.g., 12 mm/s), high return speed (e.g., 150 mm/s)
• Accuracy: High repeat & positioning accuracy (e.g., ≤±0.03mm)
• Control: CNC (e.g., Delem DA53T controller) for automated, complex bends

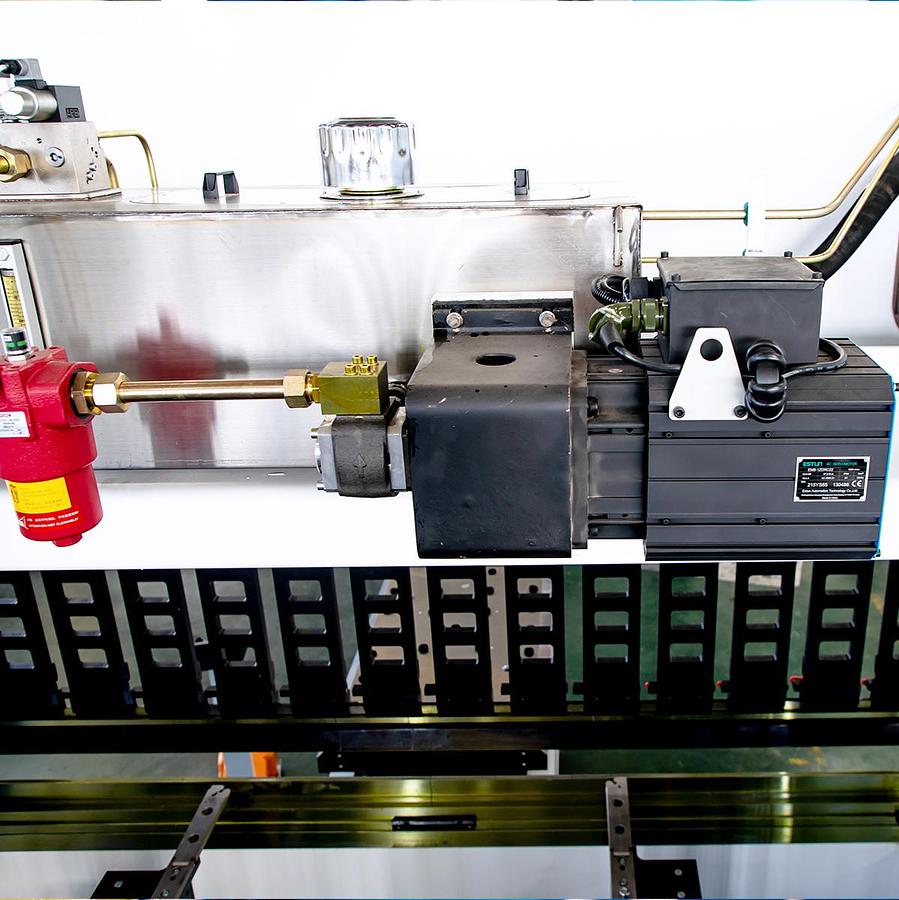

• Motor: Main servo motor (e.g., 10.8 kW) for efficient operation
• Weight: Around 8.5 tons
• Dimensions: Approx. 3800mm (L) x 1800mm (W) x 2700mm (H)

Oil Tank 170 (L)

Aprroaching Speed 220 (mm/S)

Ram Speed 10 (mm/S)

Return Speed 130 (mm/S)

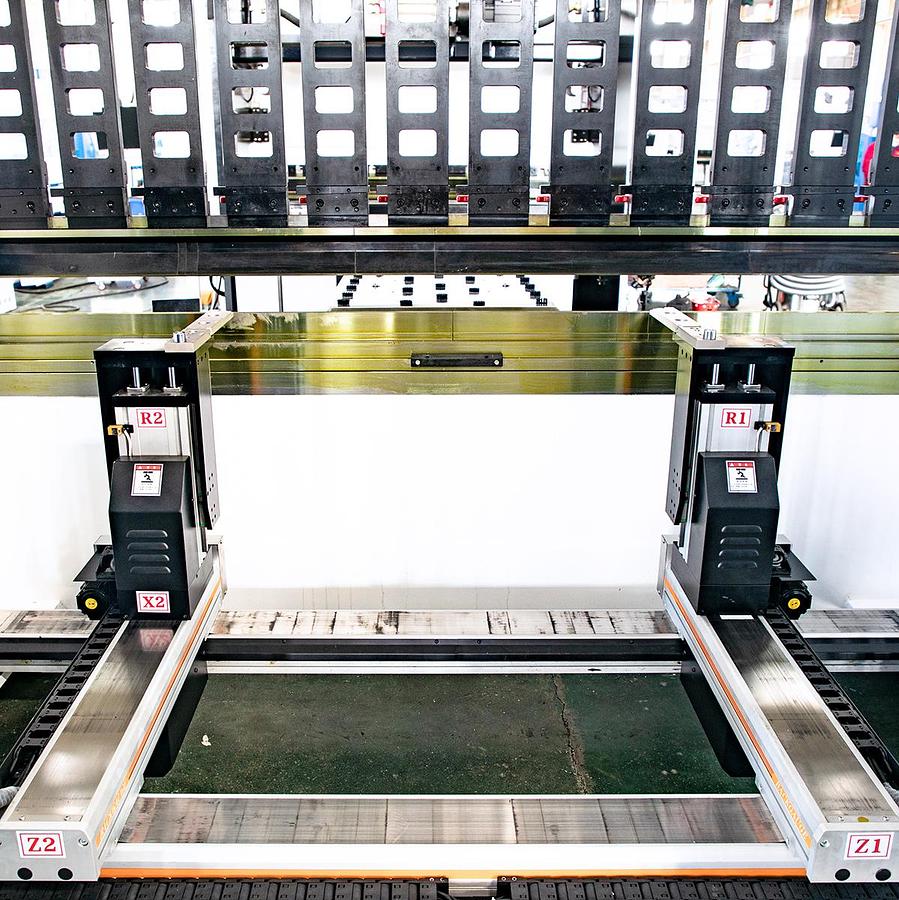

X-axis Stroke 500 (mm)

X-axis Speed 350 (mm/s)

R-axis Stroke 200 (mm)

R-axis Speed 200 (mm/s)

Column Distance 2700 (mm)

Throat Depth 400 (mm)

Stroke 200 (mm)

Daylight 480 (mm)

Main Motor 10.8 (KW)

Weight 9.1 (Ton)

Dimensions 3800*1800*2700 (L×W×Hmm)

CONTROL SYSTEM

The new compact DA-53TX adds a state of the art complete touch control solution for synchronizedpressbrakes. Offering easiest CNC programming based on the Delem graphical touch screen user interface.

This panel based control, standard capable of controlling up to 4 axes, can be integrated in cabinets aswell asused in an optional pendulant arm housing. Its 10.1" wide screen high resolution colour TFT, with industrial grademulti touch technology, gives access to the proven Delem user-interface.

It enables direct “hot-key”touchnavigation between product programming and actual production.

Functions are located where needed, offeringoptimised ergonomics throughout the entire application.

Machine adjustment and test bends are reduced to a minimum with a quick and easy program-to-productionwork sequence.

Features:

"Hot-key” touch navigation

10.1" high resolution colour TFT

Up to 4 axes (Y1,Y2 + 2 aux. axes)

Crowning control

Tool / material / product library

Profile-T offline software Servo and frequency inverter control Advanced Y-axis control algorithms for closed-loopaswell asopen-loop valves.

TandemLink (option) USB memory stick interfacing.
