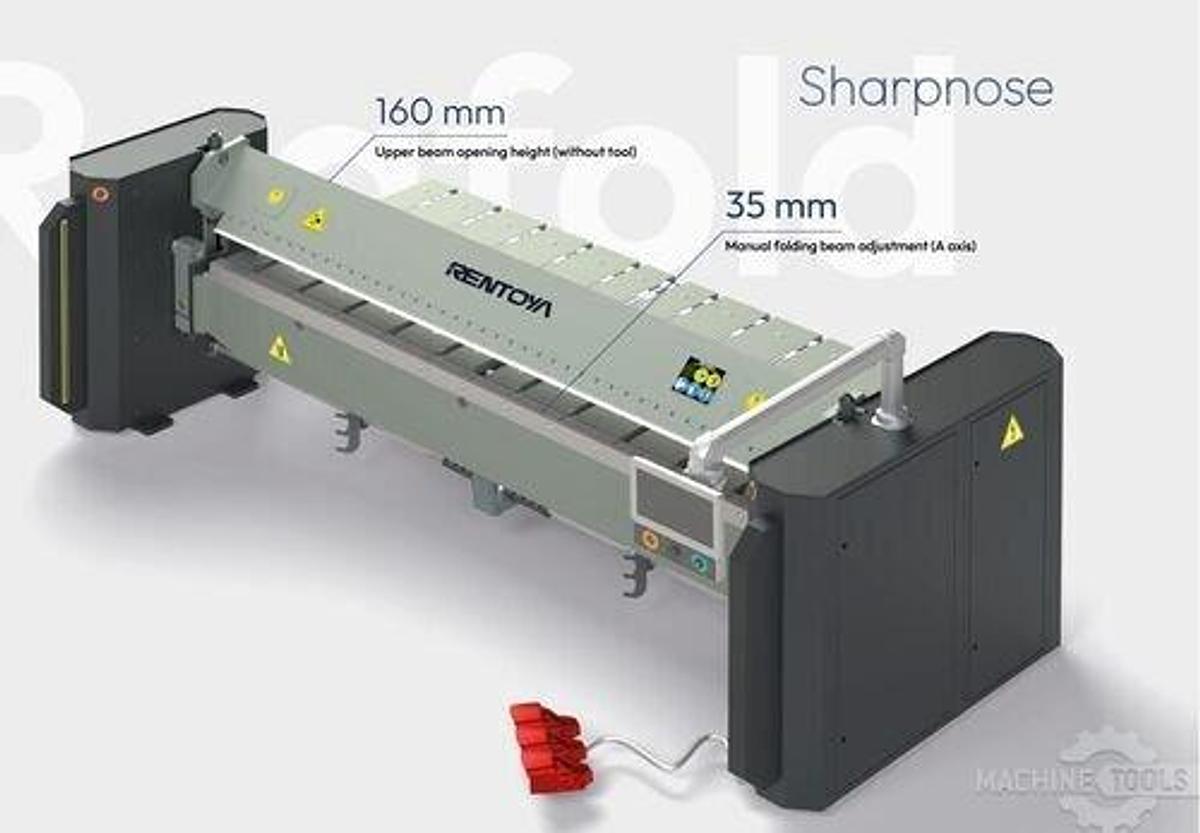

RENTOYA Model REGFOLD 2520 CNC Motorized Folder

2026 RENTOYA Regfold 2520 CNC Folder Single-Tool Flexibility: The folder handles 0 to 150-degree bends, hemming, and radius forming using a single attached tool, eliminating the need to swap dies for different material thicknesses. Integrated Back Gauges: Standard models include 750 mm (29.5") rectangular back gauge tables equipped with ball casters to seamlessly support large sheets during deep folding operations. Rentoya Machine is a global sheet metal machinery manufacturer based in Bursa, Turkey, specializing in the production of high-performance CNC folding machQines. Their equipment is engineered to process thin sheet metals ranging from 0.3 mm to 5 mm in thickness, serving industries like construction, elevator manufacturing, HVAC, and metalworking

Equipped With:

System & Control Specs

Axes Configuration: AC motorized drive for clamping and folding (Z and Y axes); servo-motorized drive for the backgauge (X axis).

Controller: 15.6-inch touchscreen interface featuring line-by-line CNC software on a fixed rotating arm.

Backgauge: 750 mm (29.5") servo-motorized backgauge system complete with a rectangular sheet support table and ball casters.

Tooling: 45° clamping beam geometry with a single-piece 20° sharp nose tool, flat rail lower beam tool, and two sets of folding beam tools (7, 10, 15, or 25 mm widths).

Safety & Operation: Equipped with front light barriers and a 3-switch control foot pedal.

SPECS

core Capacity & Dimensions

Folding Length: 2550 mm (100 inches)

Mild Steel Capacity: 2.0 mm (15 ga)

Stainless Steel Capacity: 1.0 mm (20 ga)

Aluminum Capacity: 3.0 mm (11 ga)

System & Control Features

Drives: AC motorized drive for clamping and folding (Z and Y axes); servo-motorized drive for the backgauge (X axis).

Backgauge: 750 mm rectangular backgauge table equipped with ball casters (1000 or 1500 mm systems optional).

Control Unit: 15.6-inch touchscreen controller running CNC line-by-line software on a fixed rotating arm.

Tooling: 45° clamping beam geometry with a single-piece 20° sharp nose tool, plus a 90 mm high segmented goat foot tool set and folding beam tools (7, 10, 15, and 25 mm widths).

Safety & Operation: Front light barriers and a 3-switch foot pedal.
