2026 QLTEK G-Series Tube Metal Laser Cutting Machine

2026 QLTEK G-Series Tube Metal Laser Cutting Machine is an industrial medium and low-power fiber laser cutting machines designed by Quick Laser for high-speed, high-precision metal fabrication.

Software Features:

Easier Operating System

• The system has the characteristics of high reliability intelligence and networking, excellent performance, easy operation.

Extensibility: support external devices (such as loading and unloading, sorting machines, palletizing robots) or systems (such as central control system, MES, ERP) through OPC-UA, ADS and HTTP communication protocols.

Extensibility of Nesting Software

• Support all standard nesting software code formats in the industry.

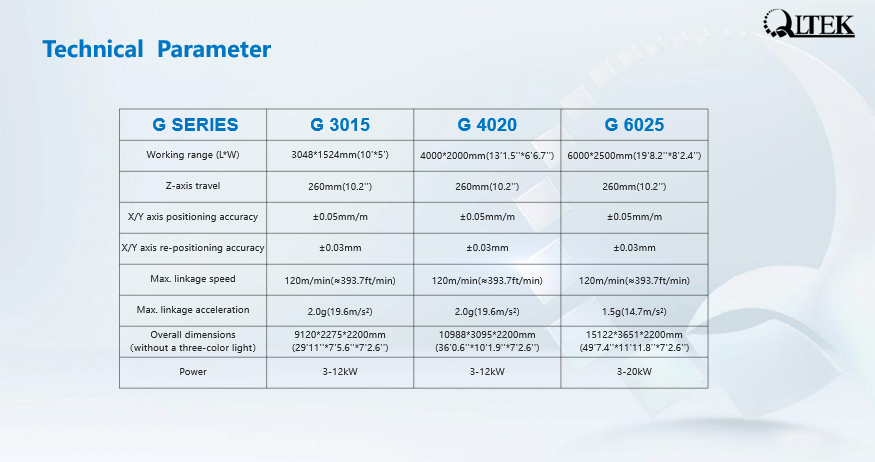

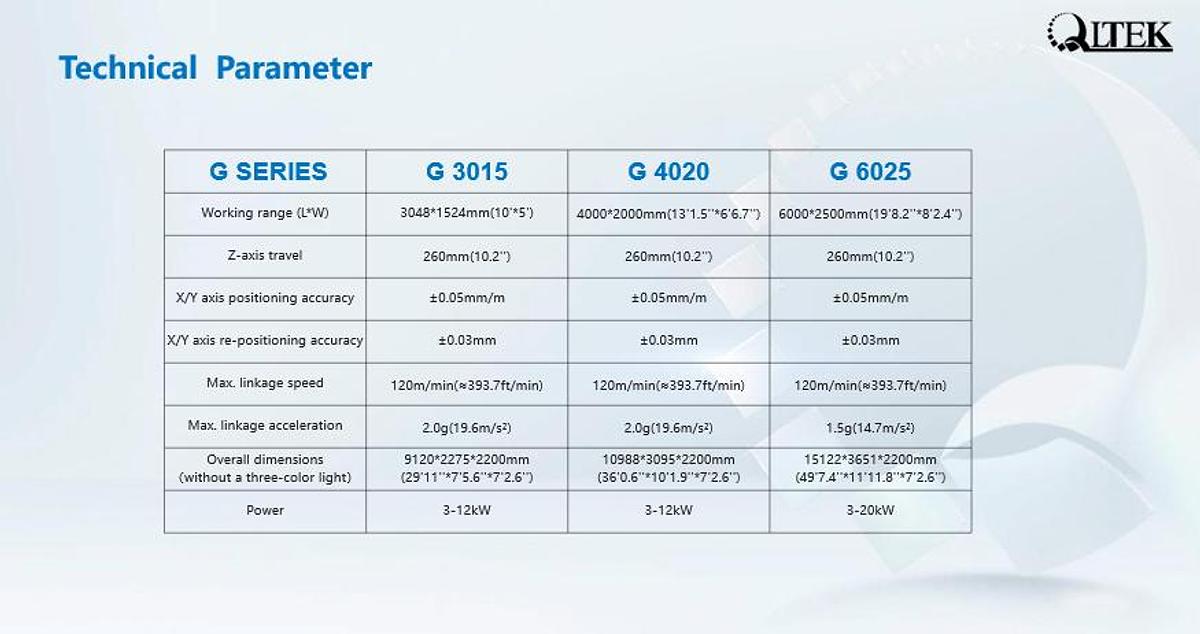

Technical Parameters For the G-Series:

G 3015:

Working range (L*W): 3048*1524mm(10'*5')

Z-axis travel: 260mm(10.2'')

X/Y axis positioning accuracy: ±0.05mm/m

X/Y axis re-positioning accuracy: ±0.03mm

Max. linkage speed: 120m/min(≈393.7ft/min)

Max. linkage acceleration: 2.0g(19.6m/s²)

Overall dimensions (without a three-color light): 9120*2275*2200mm

(29'11''*7'5.6''*7'2.6'')

Power: 3-12 kW

G 4020:

Working range (L*W): 4000*2000mm(13'1.5''*6'6.7'')

Z-axis travel: 260mm(10.2'')

X/Y axis positioning accuracy: ±0.05mm/m

X/Y axis re-positioning accuracy: ±0.03mm

Max. linkage speed: 120m/min(≈393.7ft/min)

Max. linkage acceleration: 2.0g(19.6m/s²)

Overall dimensions (without a three-color light): 10988*3095*2200mm

(36'0.6''*10'1.9''*7'2.6'')

Power: 3-12 kW

G 6025:

Working range (L*W): 6000*2500mm(19'8.2''*8'2.4'')

Z-axis travel: 260mm(10.2'')

X/Y axis positioning accuracy: ±0.05mm/m

X/Y axis re-positioning accuracy: ±0.03mm

Max. linkage speed: 120m/min(≈393.7ft/min)

Max. linkage acceleration: 1.5g(14.7m/s²)

Overall dimensions (without a three-color light): 15122*3651*2200mm

(49'7.4''*11'11.8''*7'2.6'')

Power: 3-20 kW
