2026 QLTEK HM Series H-Beam Fiver Laser Cutting Machine

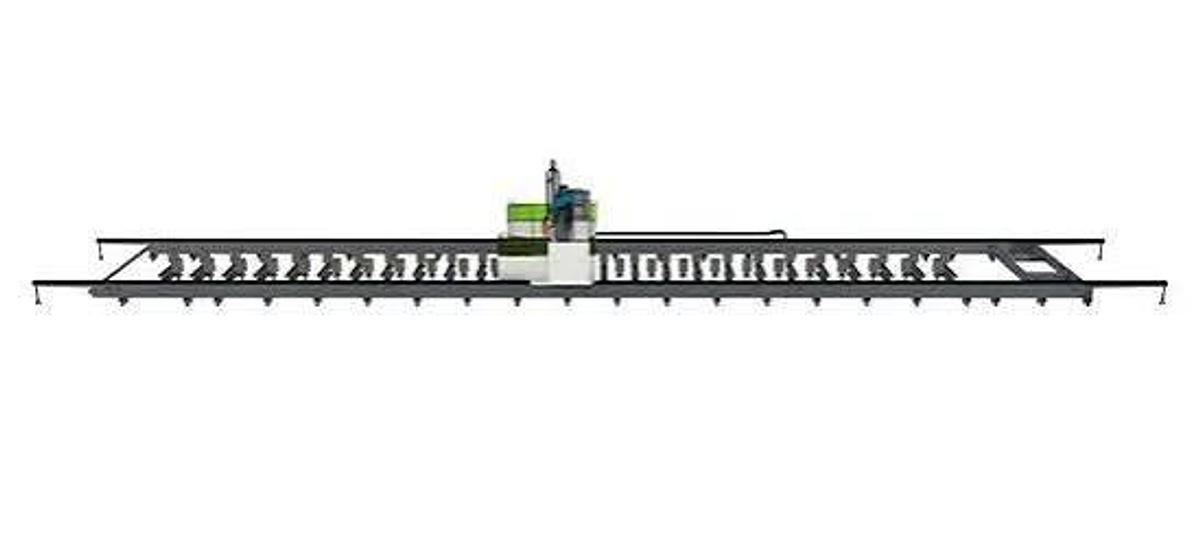

The QLTEK HM Series is an H-beam fiber laser cutting machine designed for heavy-duty structural steel and metal fabrication.

Key Specifications & Features

• Application: Specialized for cutting, hole opening, beveling, and marking H-beams, channels, and structural profiles.
• Laser Power: Ranges from 12KW to 30KW for high-efficiency processing of thick structural steel.
• Bed Design: Integrated steel welded beam and precision-welded lathe bed with segmented, floor-mounted splicing separating the bed from the workbench to minimize deformation.
• Advanced Software & Tech: Equipped with fine hole cutting technology and direct 3D model import capabilities (such as TEKLA).

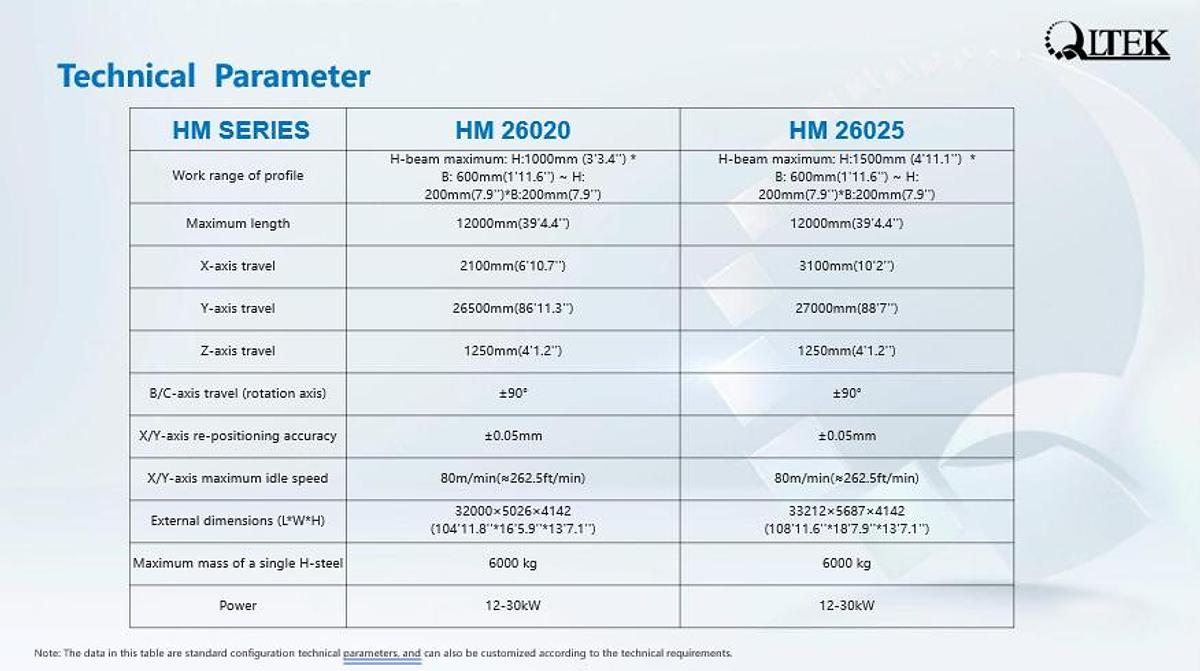

Technical parameters for the HM-Series:

HM 26020:

Work range of profile: H-beam maximum: H:1000mm (3'3.4'') *

B: 600mm(1'11.6'') ~ H: 200mm(7.9'')*B:200mm(7.9'')

Maximum length: 12000mm(39'4.4'')

X-axis Travel: 2100mm(6'10.7'')

Y-axis Travel: 26500mm(86'11.3'')

Z-axis Travel: 1250mm(4'1.2'')

B/C axis travel (rotation axis): ±90°

X/Y-Axis re-positioning accuracy: ±0.05mm

X/Y-axis maximum idle speed: 80m/min(≈262.5ft/min)

External dimension (L*W*H): 32000×5026×4142 / (104'11.8''*16'5.9''*13'7.1'')

Maximum mass of a H-steel: 6000 kg

Power: 12-30 kW

HM 26025:

Work range of profile: H-beam maximum: H:1500mm (4'11.1'') *

B: 600mm(1'11.6'') ~ H: 200mm(7.9'')*B:200mm(7.9'')

Maximum length: 12000mm(39'4.4'')

X-axis Travel: 3100mm(10'2'')

Y-axis Travel: 27000mm(88'7'')

Z-axis Travel: 1250mm(4'1.2'')

B/C axis travel (rotation axis): ±90°

X/Y-Axis re-positioning accuracy: ±0.05mm

X/Y-axis maximum idle speed: 80m/min(≈262.5ft/min)

External dimension (L*W*H): 33212×5687×4142 / (108'11.6''*18'7.9''*13'7.1'')

Maximum mass of a H-steel: 6000 kg

Power: 12-30 kW
