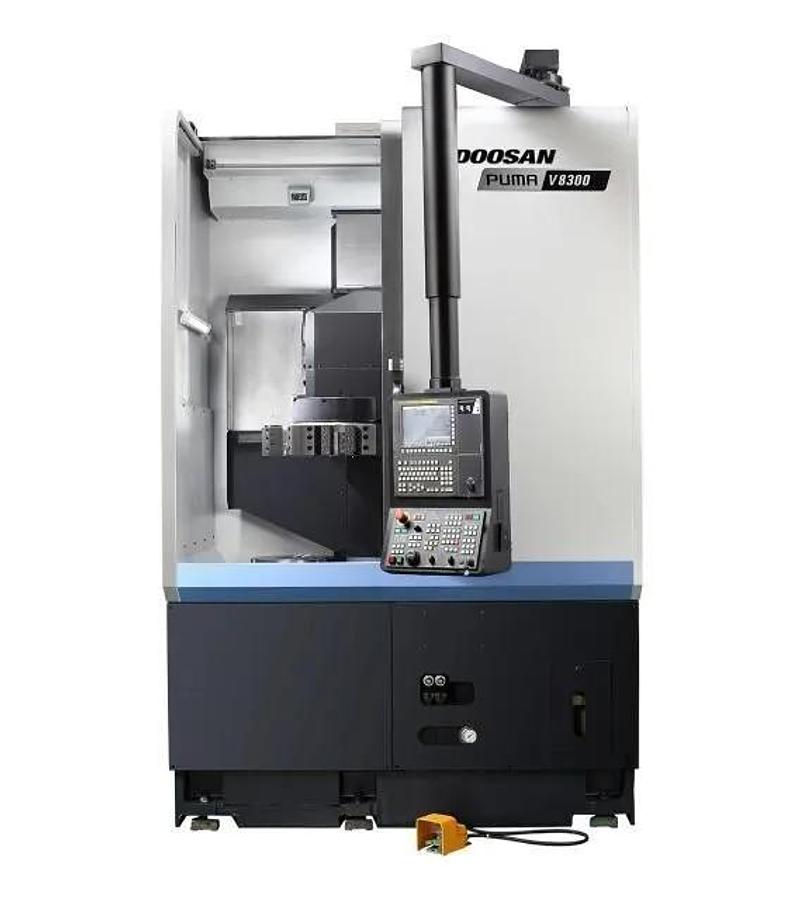

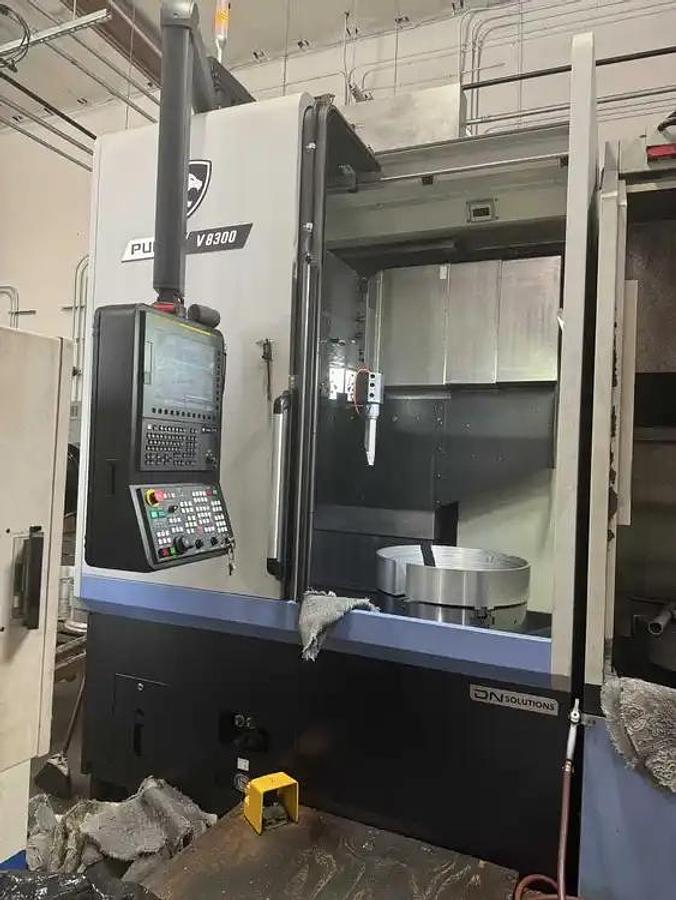

DOOSAN PUMA Model V8300 Vertical Turret Lathe, 24" Chuck, Max Turning Diameter 32.7", Turning Ht. 29.5"

DOOSAN PUMA Model V8300 Vertical Turret Lathe, 24" Chuck, Max Turning Diameter 32.7", Turning Ht. 29.5" PUMA V Series Multiply your cutting power and minimize your floorspace with the PUMA V series turning center. Utilizing a cartridge style spindle and a tightly-coupled bearing assembly, the PUMA V centers are expertly adept at handling heavy workpieces and controlling thermal stability in long run operations. Featuring a cast iron Meehanite bed and box type column casting, these machines remain stable even under the most intense cutting conditions. Control Fanuc Oi-Plus Travel X Axis – 19.5 in Travel Z Axis – 31 in Rapid Traverse X Axis 787 in/min Rapid Traverse Z Axis 787 in/min Spindle Speed – 2,000 rpm Spindle Motor – 50 HP Spindle Torque 1,912 ft-lbs. Shank – BMT-KEY Turret Stations – 12 Slot Boring Bar Diameter – 2.5 in Max Turing Diameter – 32.7 in Max Turing Length – 29.5 in Max Table Load – 1,918 lbs Spindle to Table Distance – 44.8 in Machine Dimensions 79"L x 113"W x143"H Machine Weight 20,720 lbs 24” Chuck
