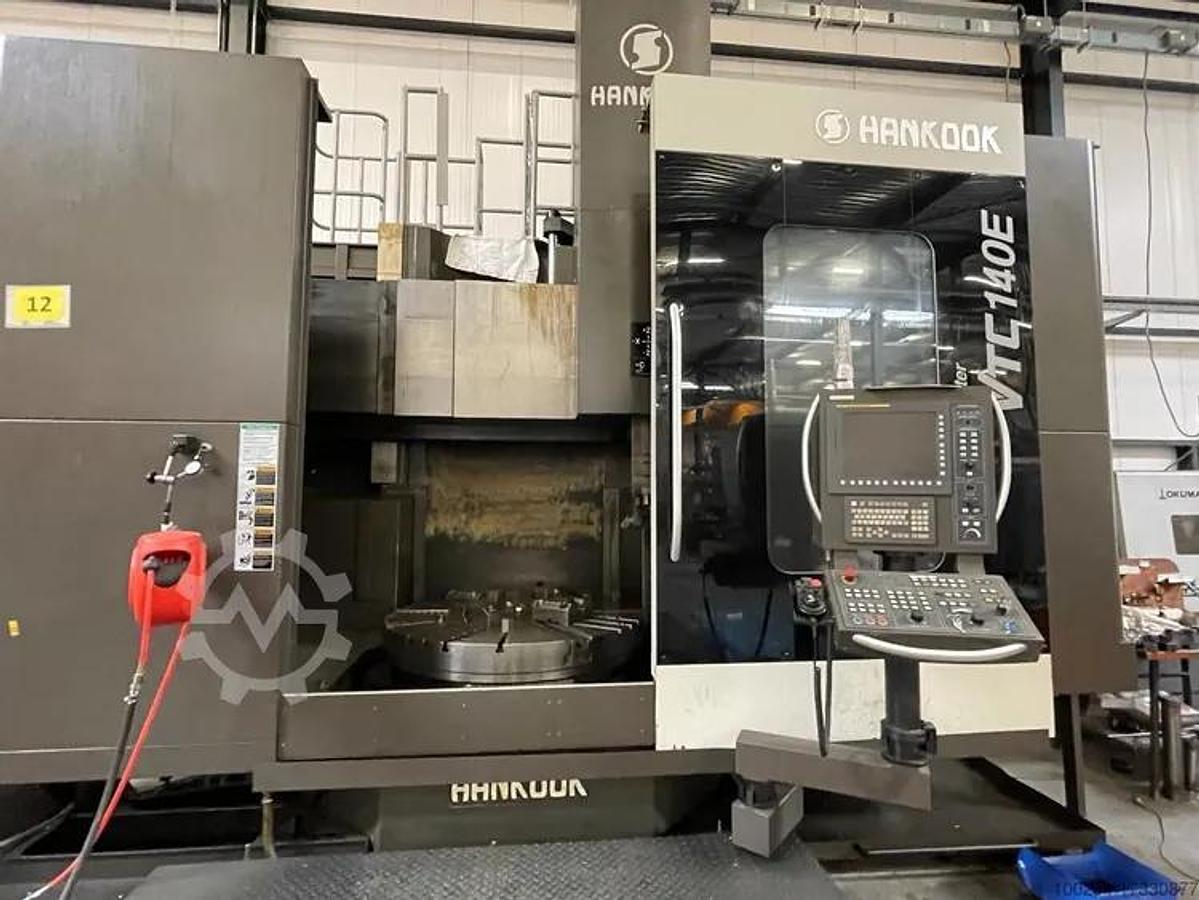

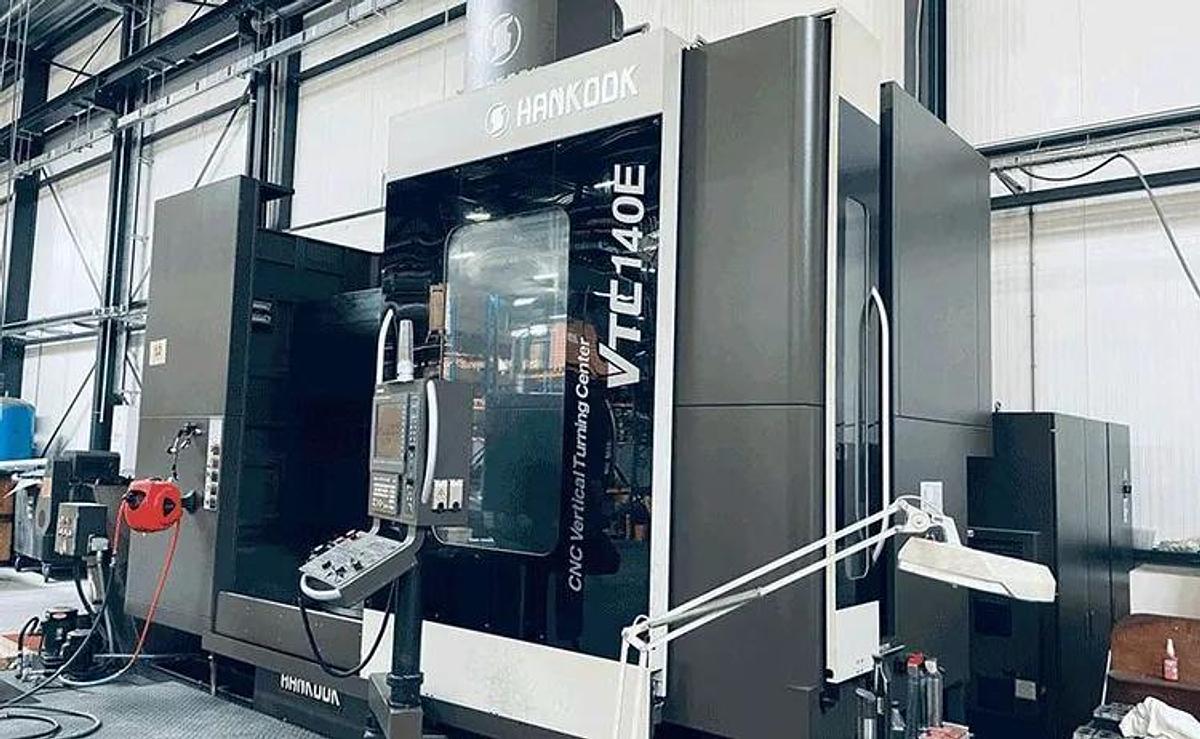

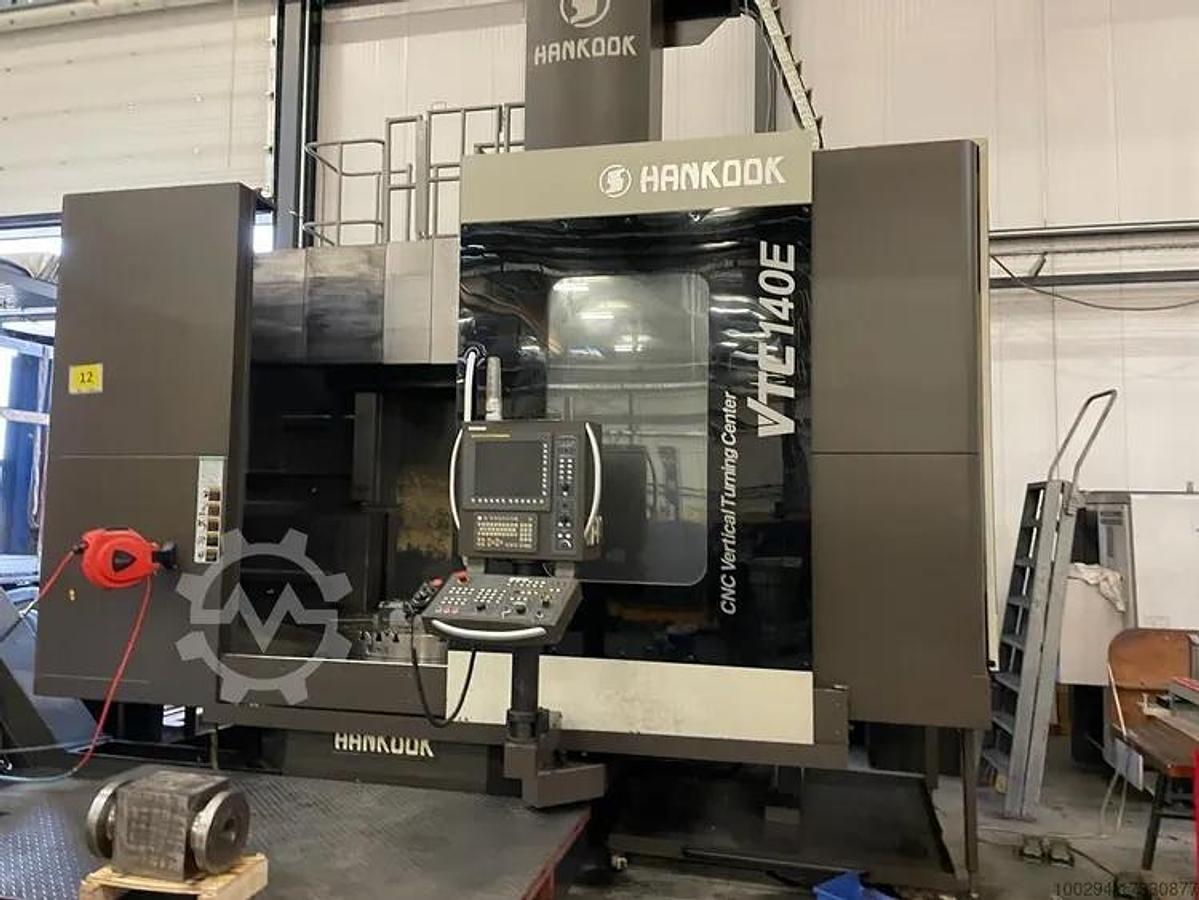

HANKOOK VTC140E Ram Type Vertical Boring & Turning Machine with C-Axis & Driven Tools

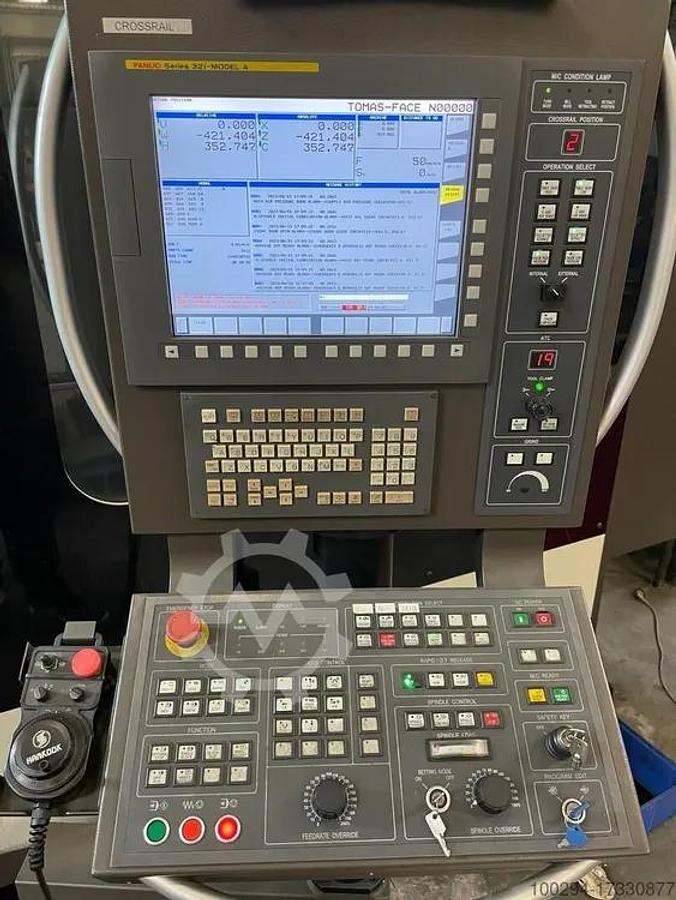

HANKOOK VTC140E Ram Type Vertical Boring & Turning Machine with C-Axis & Driven Tools HEAVY DUTY 3-AXIS FIXED & ELEVATING CROSSRAIL RAM TYPE CNC VERTICAL BORING AND TURNING MACHINE WITH HARDENED & GROUND BOX GUIDEWAYS, C-AXIS & LIVE TOOLS FEATURES Heavy Duty Cast Iron Bed Construction for High Accuracy & Rigidity. Heavy Duty Hardened and Ground Slideways to Provide Increased Stability and Rigidity. 2 Step Automatic Gear Change. 24 Position Tool Magazine. FANUC 32iA CNC Founded in 1969, Hankook Machine Tools Co Ltd is a specialist manufacturer of high-technology CNC metalworking machine tools steeped in history and located in Changwon, Korea. The company currently employs 150 people and supplies its highly-reputable products to over 70 countries worldwide. HEAVY DUTY 3-AXIS FIXED & ELEVATING CROSSRAIL RAM TYPE CNC VERTICAL BORING AND TURNING MACHINE WITH HARDENED & GROUND BOX GUIDEWAYS, C-AXIS & LIVE TOOLS CHIP CONVEYOR & CHIP BUCKET 30 BAR THROUGH SPINDLE COOLANT SYSTEM MEASUREMENT SYSTEM C-AXIS SCALE TRANSFORMER HYDRAULIC 3-JAW & MANUAL 4-JAW COMBINATION CHUCK WITH4 MANUAL ADJUSTABLE JAW BODIES AUTOMATIC TOOL SETTING DEVICE TOOLING INCLUDED DINE TOOLCHANGEABLE ANGULAR MILLING HEAD WITH 40 ISO OUTPUT 2 OFF SANDVIK CAPTO C6 TURNING TOOLHOLDERS WITH TWO OUTPUTS (V & H) 1 OFF SANDVIK CAPTO C6 AXIAL TURNING HEAD 7 OFF BT50 DRIVEN TOOLHOLDERS 1 OFF HANKOOK TA12B4121015043 1 OFF HANKOOK TA12B412015142 1 OFF HANKOOK TA12410000161 2 OFF HANKOOK TA12417010160 Max. Turning Diameter Ø 1600 mm 63" Table Diameter Ø 1400 mm 55" Max Turning Diameter 1600 mm 63" Max Turning Height 1400mm 55.4" Stroke ram left 900 mm 35.4" Vertical Travel of Crossrail 700mm 27.5" ATC / revolver 24 Tools Turning 12 Tools Rotary Tools 12 Tools Speeds / ranges 320 RPM Power 45 kW 50 HP Maximum turning height 1400 mm 55" C-Axis 360.000 ° Cross Rail Rapid Traverse 11.8" IPM Spindle Taper ISO #50 Power live tools 20 kW 25 HP Rotary Tool RPM 3,000 RPM Rapid Traverse X Axis 295 IPM Rapid Traverse Z Axis 295 IPM Length 4875 mm 192" Width 3885 mm 153" Height 5190 mm 204.3" Weight 31,000 kgs 68,200 LBS
