Description

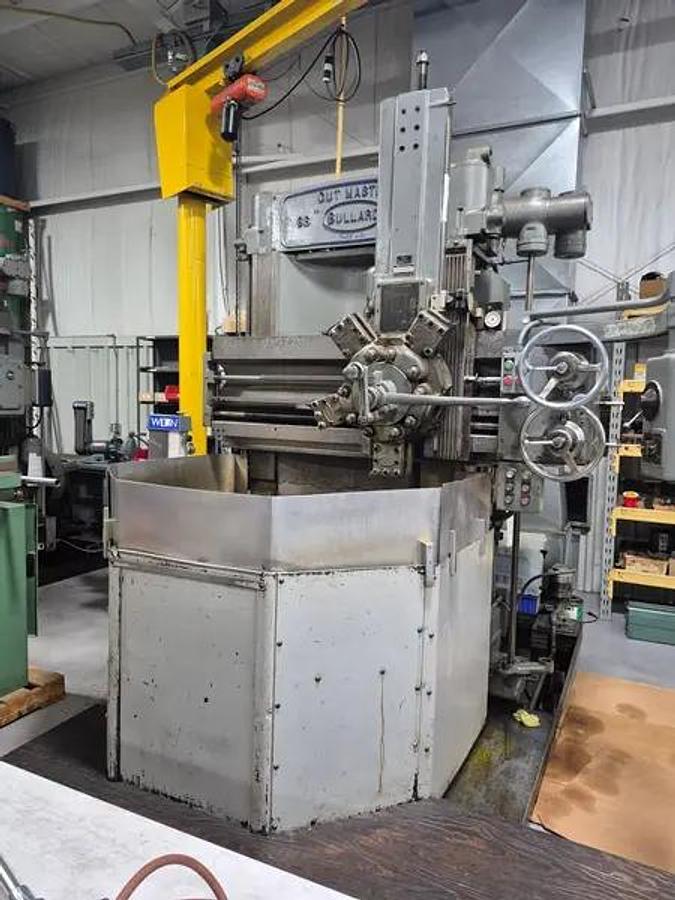

BULLARD 36" CUTMASTER Vertical Turret Lathe
36" Chuck
5 Position Turret
Table Diameter 36"
Maximum Swing
Side Head In Working Position 39"
Side Head Below Table Top 45"
Maximum Distance Table To Rail 30"
Cross Rail Vertical Travel 20"
Max. Distance Table To Face Of Turret 41.25"
Max. Distance Table To Underside Of Side Head Slide 20-7/8"
Turret Head Vertical Travel 26"
Turret Head Toolpost Holes 2.75"
Side Head Vertical Travel 30.25"
Side Head Horizontal Travel 18"
Table Speeds 180 RPM
Feeds .0026 - .500 IPR
Motor 30 HP
Specifications
| Manufacturer | BULLARD |
| Model | CUTMASTER 36 |
| Condition | New |
| Stock Number | 22222 |
| Status | For Sale |
| Country | United States |
| Table Dia | 36"; 914.4 mm |
| Swing | 39"; 990.6 mm |
| Work Ht-U/R | 30"; 762 mm |
| Power | 40 hp; 29.8 kW |
| RPM | 240 RPM; 240 RPM |
| Dimensions | 99″ L x 94″ W x 131″ H; 99″ L x 94″ W x 131″ H |
| Weight | 31,000 lbs; 31,000 lbs |
