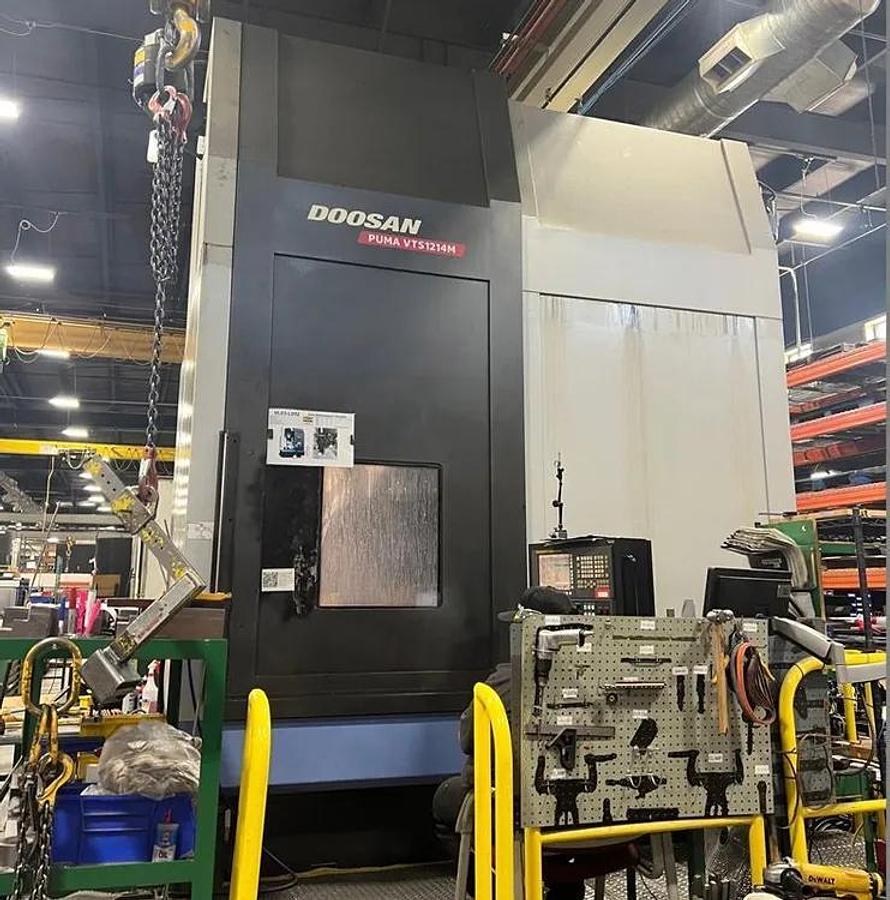

2011 DOOSAN PUMA Vertical Turret Lathe With Milling, Model VTS1214M; Max Turn Dia 53.1"
$199,000
Description
2011 DOOSAN PUMA Vertical Turret Lathe With Milling, Model VTS1214M; Max Turn Dia 53.1"
The Doosan PUMA VTS1620 is engineered to meet the needs of industries that require high-precision vertical turning capabilities. This CNC machine plays a crucial role in producing components for aerospace, automotive, and heavy machinery sectors. It is optimized for handling a variety of materials, including steel, aluminum, and composites, contributing to its widespread adoption across manufacturing environments.
Equipped With (subject to buyer verification):

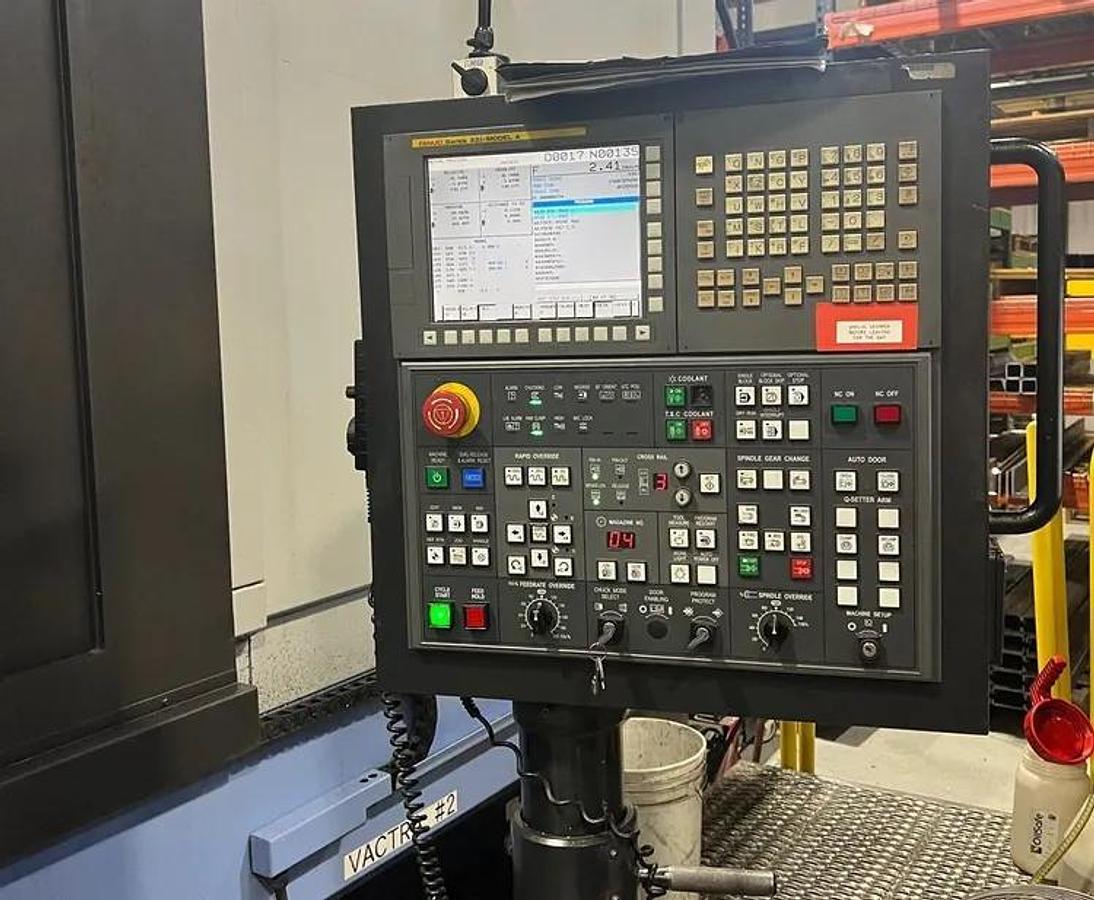

Fanuc Series 32i-Model A
ATC shower coolant

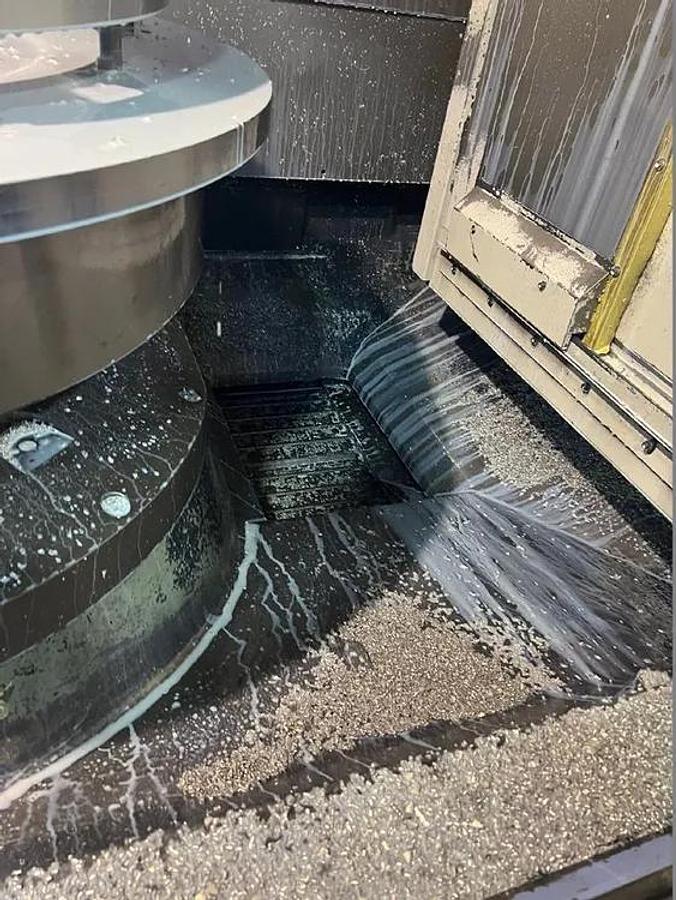

Bed shower coolant

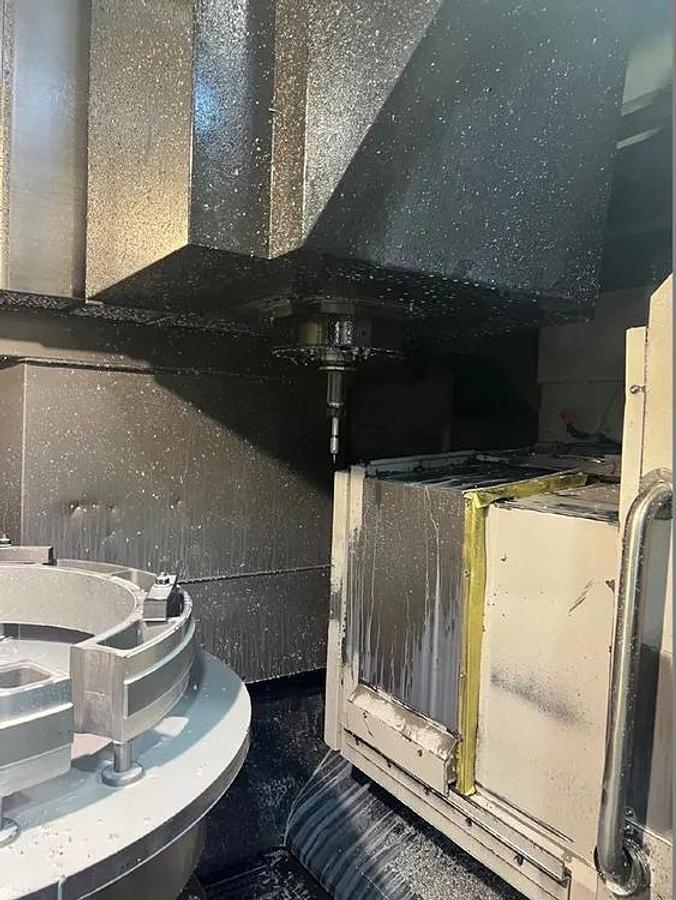

Ram air blast
Ram shower coolant
Splash guard
40” Chuck
Chip Conveyor
Specifications(subject to buyer verification):
Capacity
Travels
Feedrates
Rapid Traverse Rates
Ram
Table
Rotary Tool
Tool Magazine
Motors
Table motor power: 80.5 HP / 73.8 HP / 60.3 HP ( 10min/30min/cont. )
Power Source
Specifications
| Manufacturer | DOOSAN |
| Model | VTS1214M |
| Year | 2011 |
| Condition | New |
| Stock Number | 22245 |
| Status | For Sale |
| Table Dia | 40"; 1,016 mm |
| Swing | 55"; 1,397 mm |
| Work Ht-U/R | 32"; 812.8 mm |
| Power | 80 hp; 59.7 kW |
| RPM | 630 RPM; 630 RPM |
| Control | CNC (Fanuc Series 32i-Model A); CNC (Fanuc Series 32i-Model A) |
| Dimensions | 141.3” x 146.7” x 189.8”; 141.3” x 146.7” x 189.8” |
| Weight | 57,319 lbs |
| Swing over bed | 55.1” |
| Max. Turning diameter | 53.1” |
| Max. Turning height | 32” |
| Max. Turning weight | 8818.4 lbs |
| X-axis Travel ( To left from table center ) | 6.0” |
| X-Axis Travel (To right from table center ) | 51.1” |
| Z-axis travel | 31.5” |
| C-axis | 900 deg/min |
| W-axis Travel | 22.8” |
| X-axis | 472 IPM |
| Z-axis | 472 IPM |
| Ram size | 12.1” × 9.8” |
| Min. through hole inside diameter | 12.6” |
| Max. Spindle speed | 630 RPM |
| Table size | 40" |
| Spindle bearing diameter | 9.4” |
| Max. rotary tool spindle torque | 262 |
| Max. rotary tool spindle speed | 3000 RPM |
| Rotary tool bearing diameter | 3.9 “ |
| Tool storage capacity stations | 15 |
| Rotary tool motor power | 24.8 HP / 20.1 HP ( 30min/cont. ) |
| Electric power supply (rated capacity ) | 110 kVA |
| Machine Dimensions | 141.3” x 146.7” x 189.8” |
