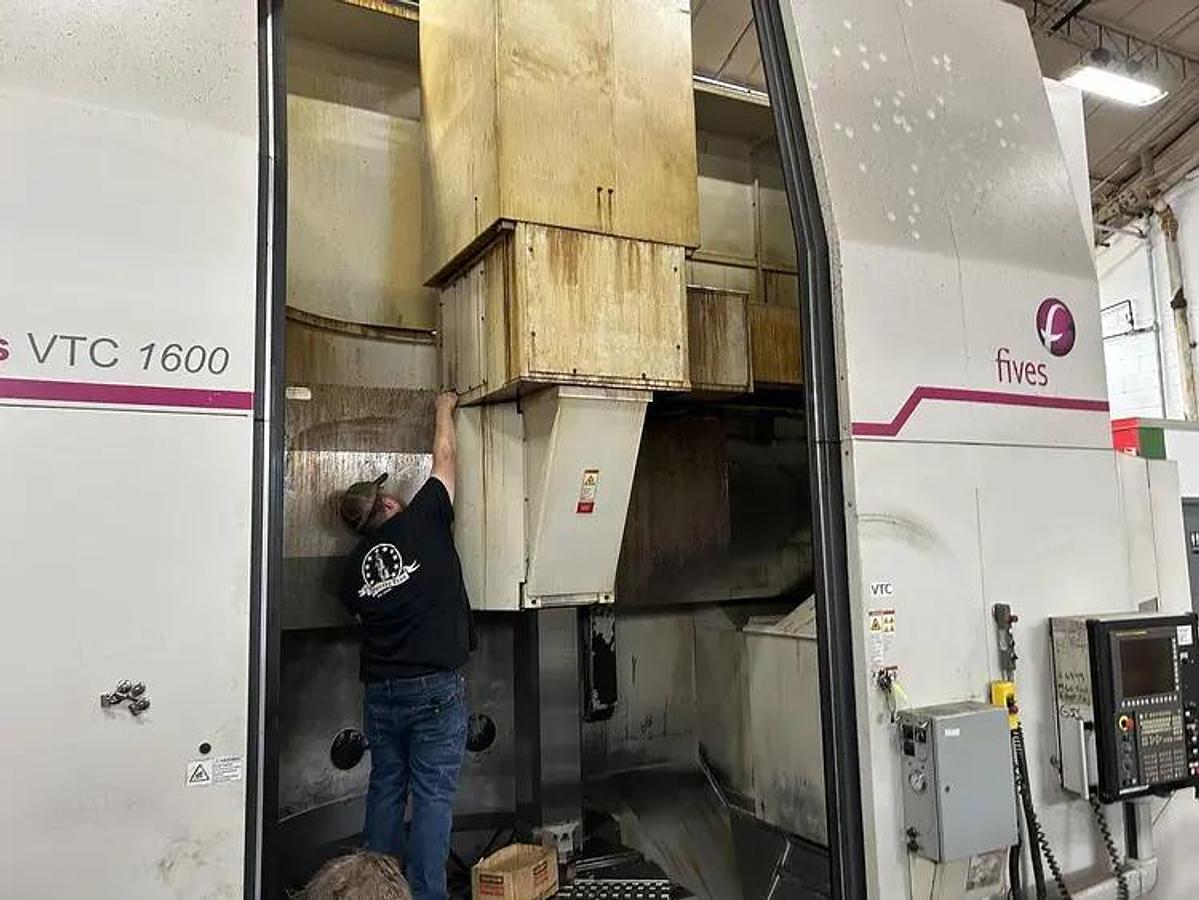

2015 Fives G&L VTC 1600 CNC Vertical Turning Center, FANUC 31i-B, Full Enclosure, Live Spindle w/ 31 ATC, Can be inspected under power.

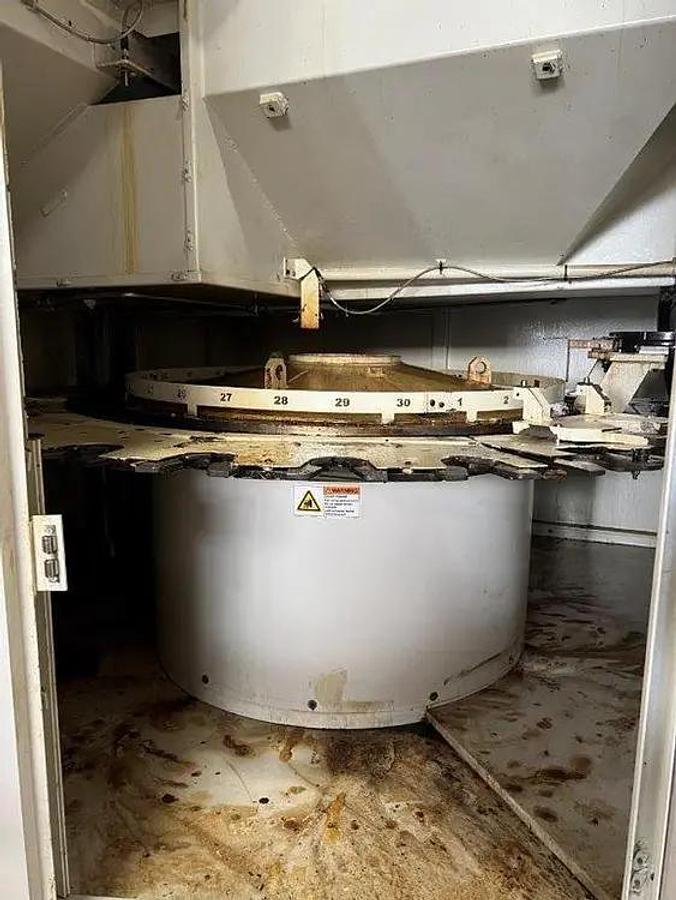

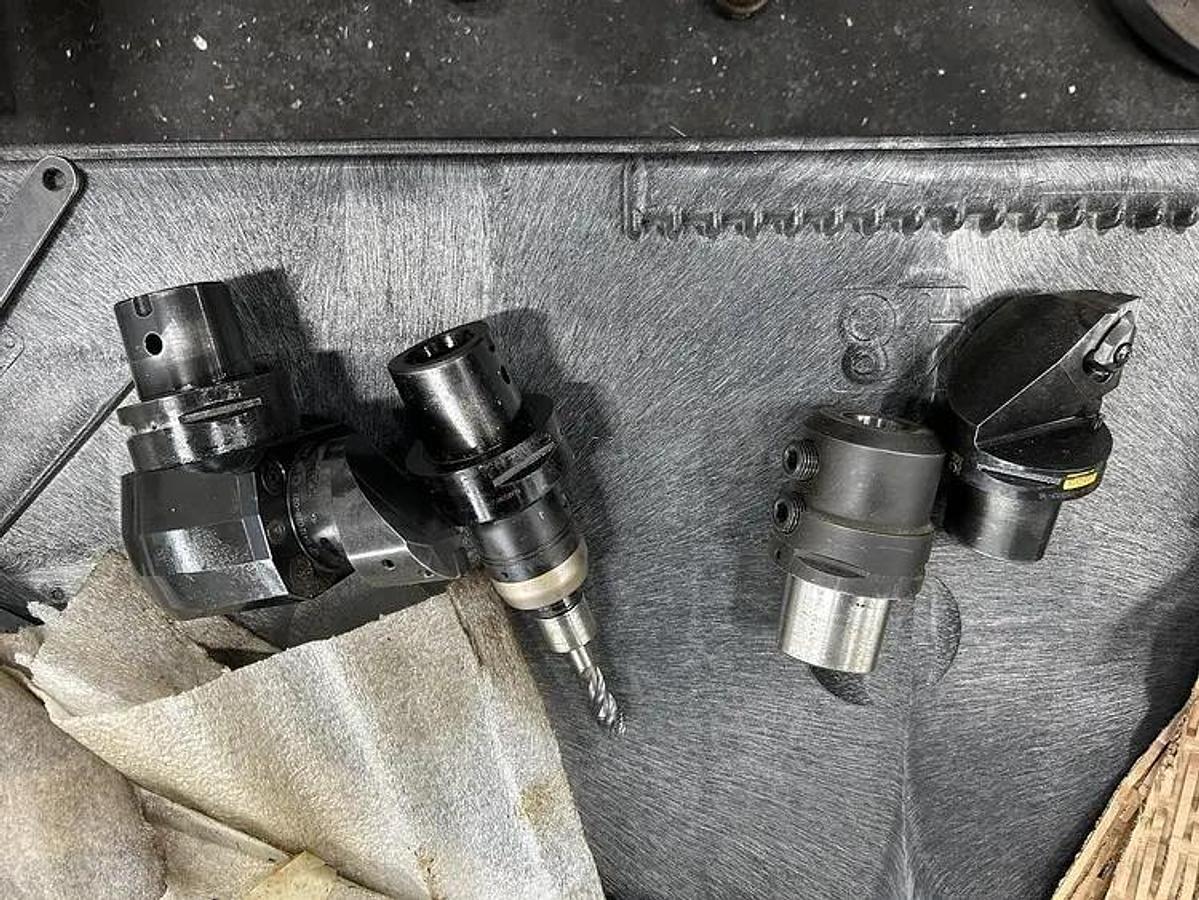

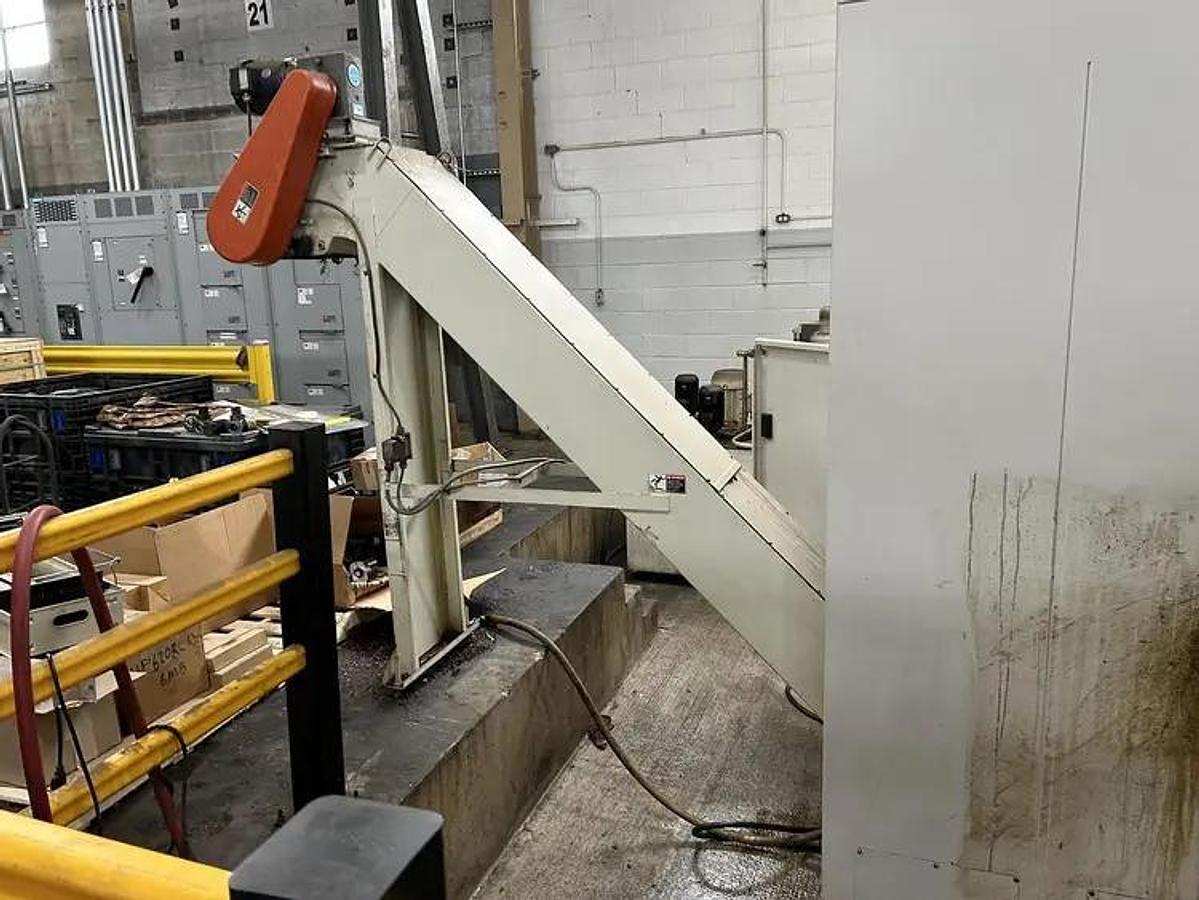

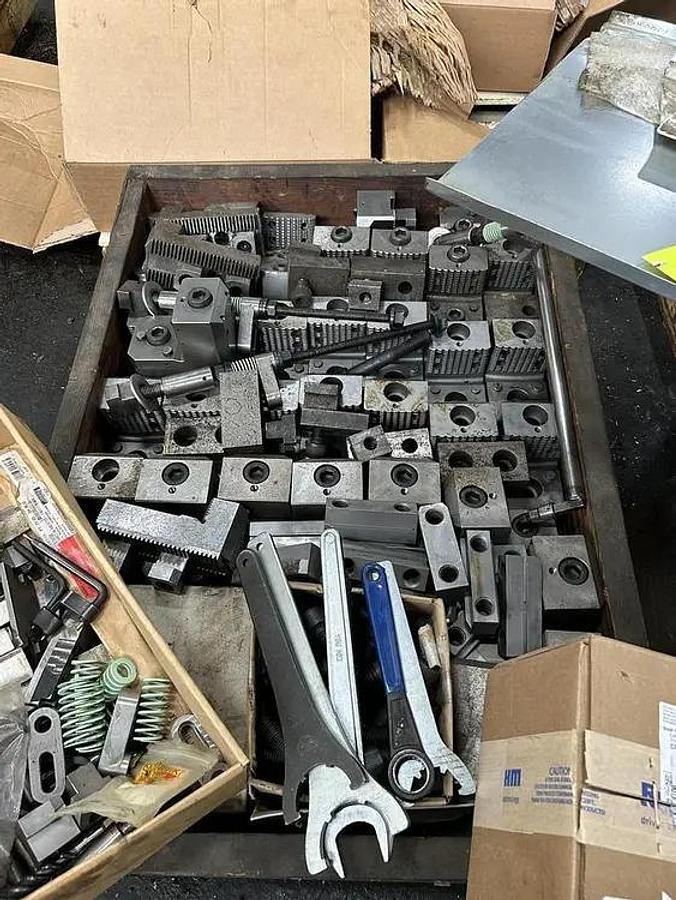

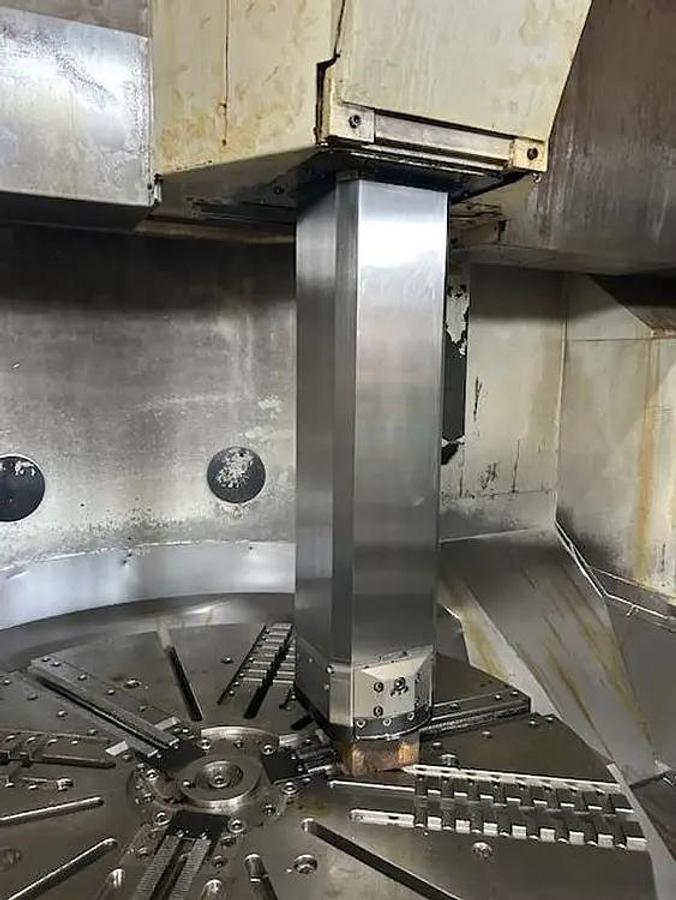

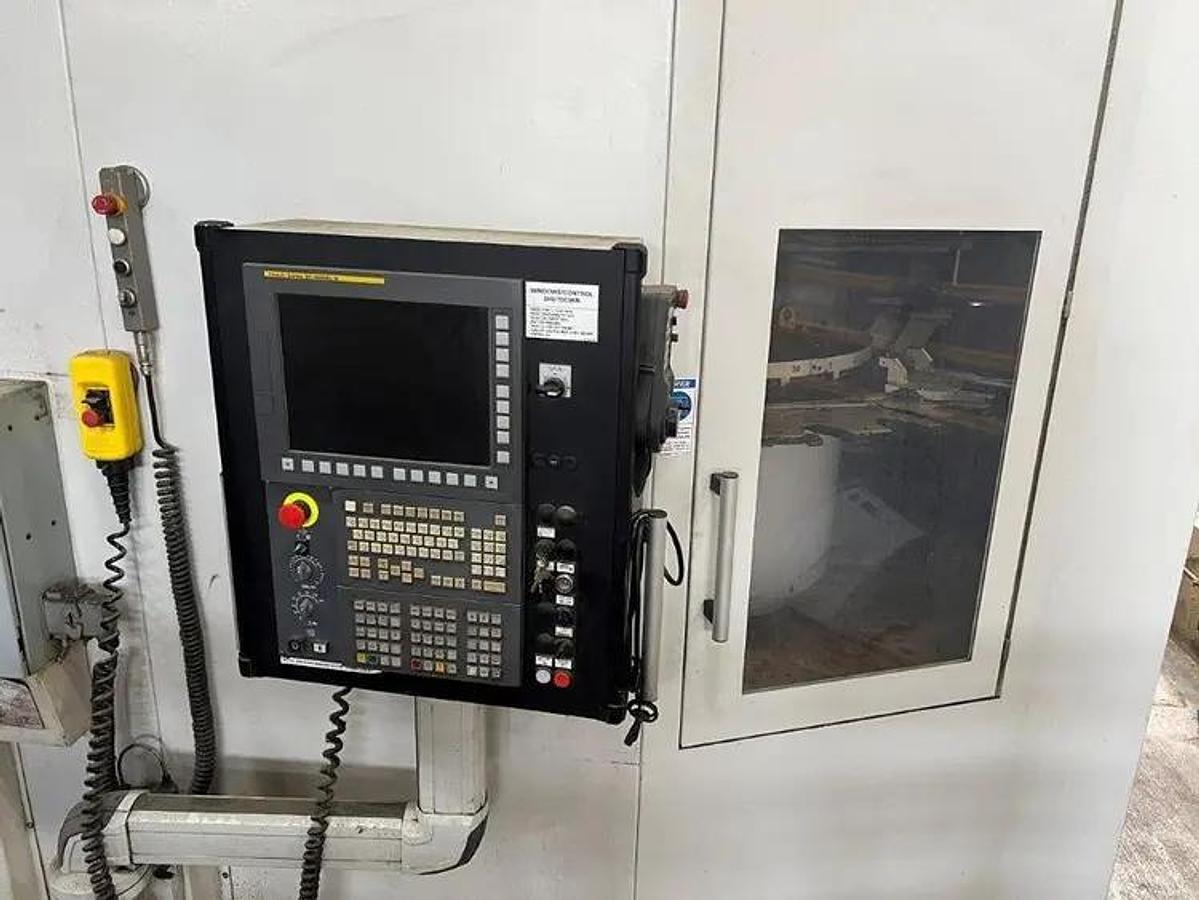

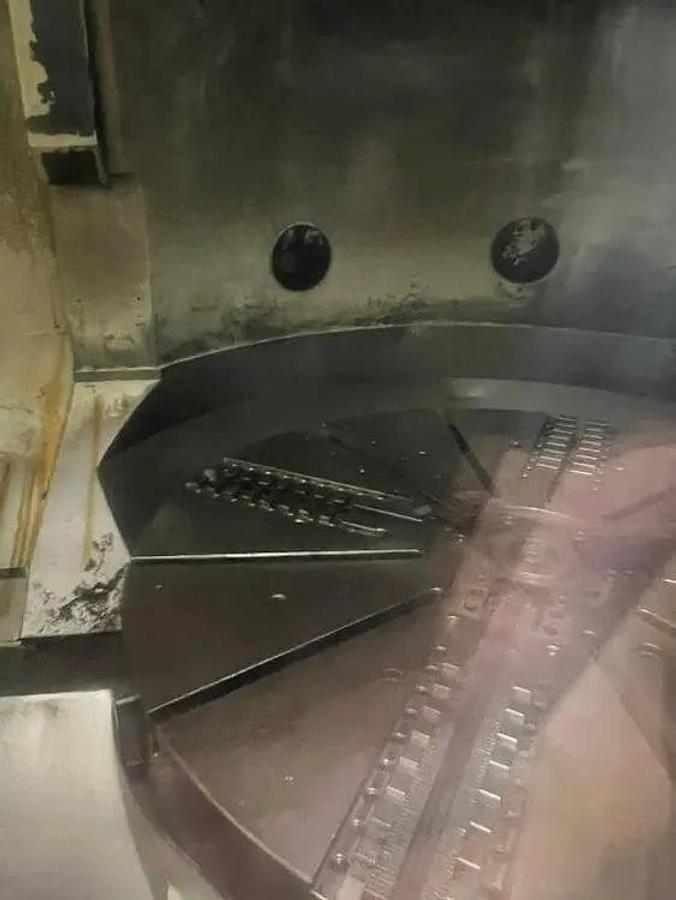

2015 Fives G&L VTC 1600 CNC Vertical Turning CenterFANUC 31i-B, Full Enclosure, Live Spindle w/ 31 ATC. Can be inspected under power. Fanuc 31i-B, List of control options available, 3-Jaw Hydraulic Chuck/ 4- Jaw Manual, Renishaw Part Probe, Lift Up Chip Conveyor, MPG, Fully Enclosed With Automatic Operators Doors, Live Spindle With Coolant Thru, Programmable Elevating Crossrail (V axis), Coolant Thru Tool, Books & Manuals, installation instructions, Capto C-8 for Tooling, X&Z&V Axes Heidenhain Scales, 31 ATC, Manufacturer Fives Model VTC 1600 Year 2015 Condition Used Stock Number 3659 Location Midwest Table Diameter 63" Max. Swing 78.74" Max. Facing Capacity 78.74" Max. Height Under Rail 57.28" Max. Z-Axis Vertical Ram Travel 49.21" Left & Right Ram Travel From Center +/- 47.63" Ram Size 9.8" x 9.8" X & Z Axes Rapid Traverse Rate 787 IPM X & Y Axes Feed Rate 0.004-787 IPM X & Z Axis Feed Thrust 34,000 Nm Torque Table Constant Torque 25,000 Nm Torque Spindle Motor 112 HP/75 Continuous Spindle Speeds 2) Gear Ranges 1-400 RPM Live Spindle Motor 44 HP/29 HP Continuous Live Spindle Speed 4,000 RPM C-Axis Table Indexing 360,000 ATC Capacity 30 ATC Capto C-8 Machine Floor Space 275" x 181" Machine Overall Height 264" Approx. Machine Weight 76,000 lbs Electrics 480/3ph/60Hz
