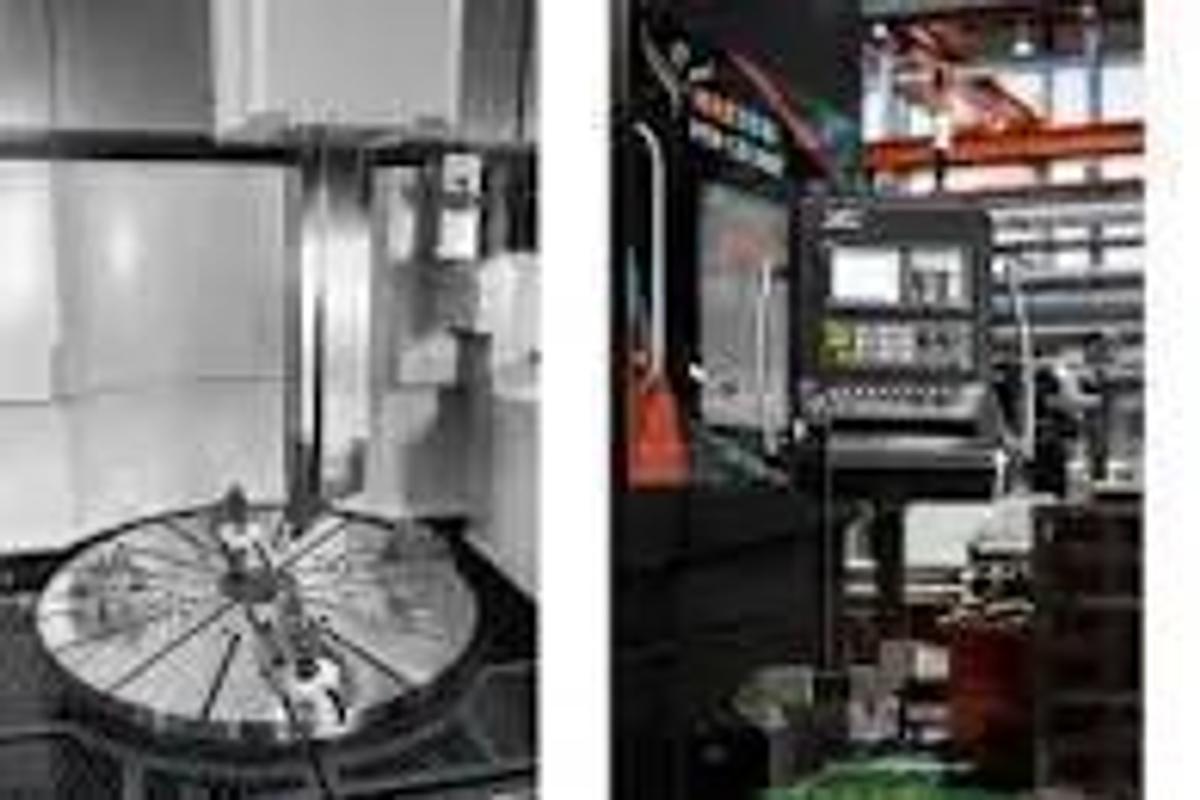

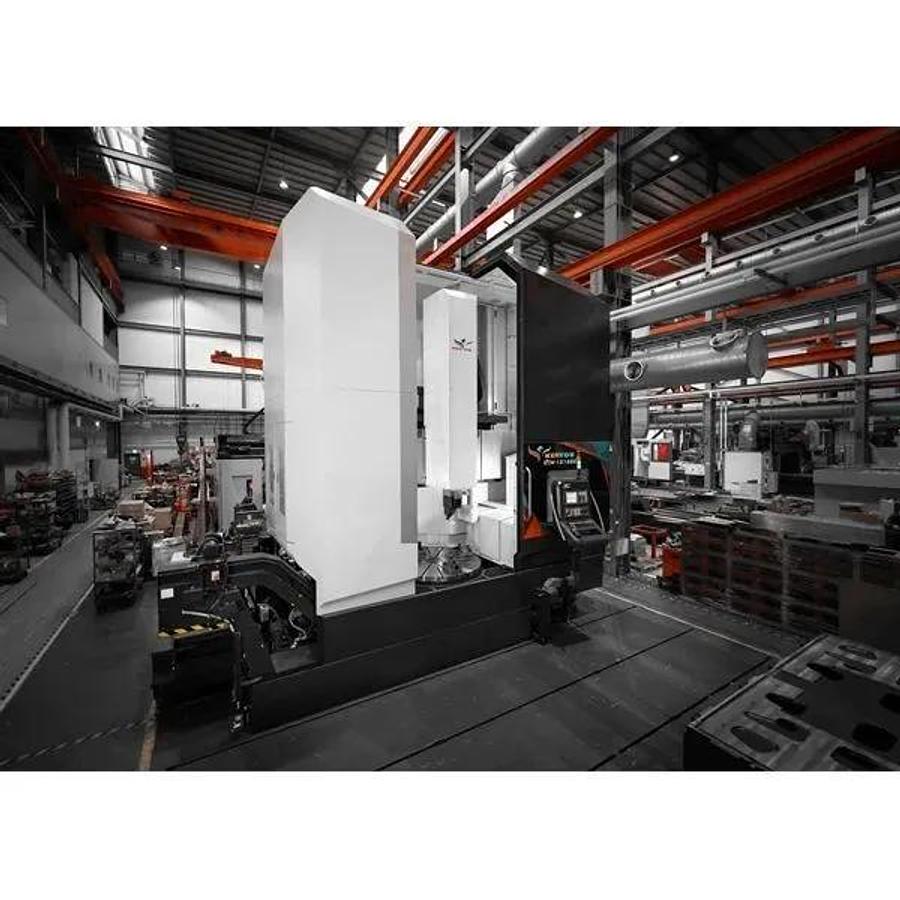

KENYOU CNC Vertical Turning Lathe Model Raptor VTM 1216GC with Capto Tooling

Introducing the new KENYOU Raptor VTM 1216GC CNC Vertical Turning Lathe from 2023. With specifications such as Table Dia: 62.99", Swing: 70.87", Work Height U/R: 49.21", Power: 60 hp, and RPM: 300 RPM. It comes equipped with Rotating Tool ATC, Patent Design Ball & Collet Clamping System, a fully wrapped, highly rigid single column, direct-drive 2-speed milling spindle, automatic attachment head/turning tool magazine, and full gear transmit of high torque vertical work holding spindle. An optional automatic pallet changer, Capto Clamping/Unclamping tooling system, milling spindle with B-axis, and fixed crossrail system are also available. Rotating Tool ATC Patent Design Ball & Collet Clamping System Fully Wrapped Highly Rigid Single Column Direct-Drive 2 speed Milling Spindle Automatic Attachment Head/Turning Tool Magazine Full Gear Transmit of High Torque Vertical Work holding Spindle OPTIONAL: Automatic Pallet Changer Automatic Capto Clamping/Unclamping Tooling System Milling Spindle with B-axis Fixed Crossrail System Description Unit Raptor VT-1216 Raptor VTM-1216 Table diameter mm (inch)Φ 1250 (49.21){Φ 1600 (62.99)} Max. swing diameter mm (inch) Φ 1800 (70.86) Max. turning diameter mm (inch) Φ 1600 (62.99) Max. turning height mm (inch) 1300 (51.18) Max. workpiece wt 11023.11 lbs. 17636.98 lbs.
