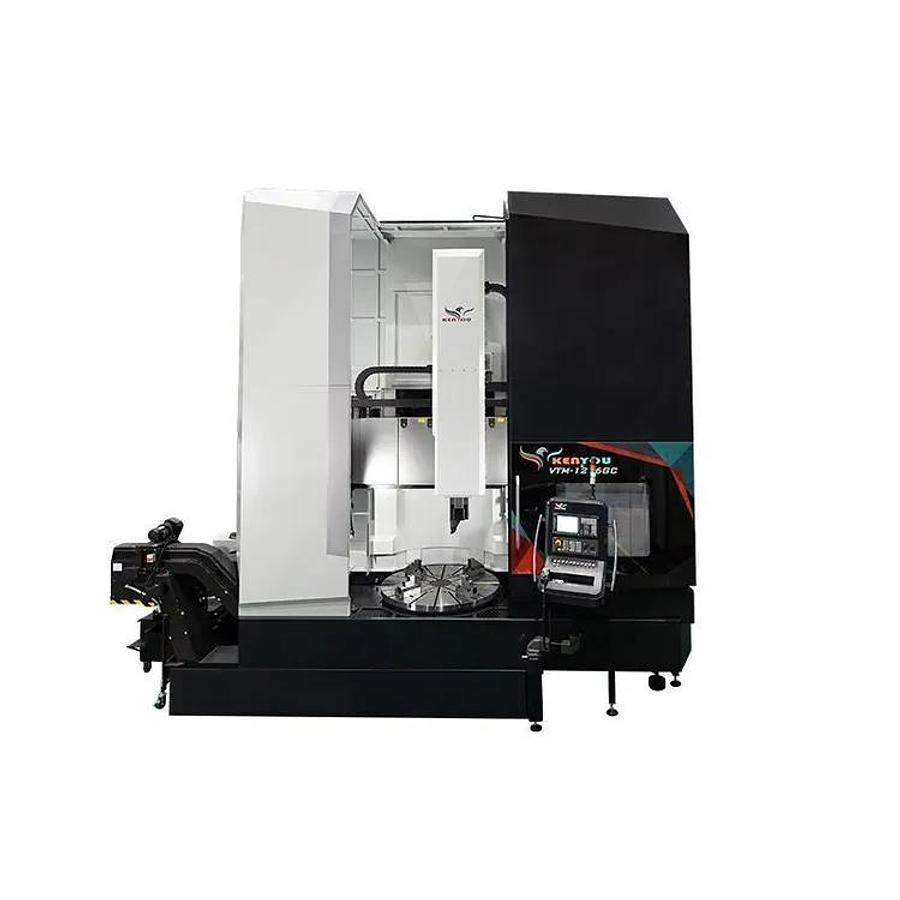

KENYOU VTM3034 Vertical Turning Center,

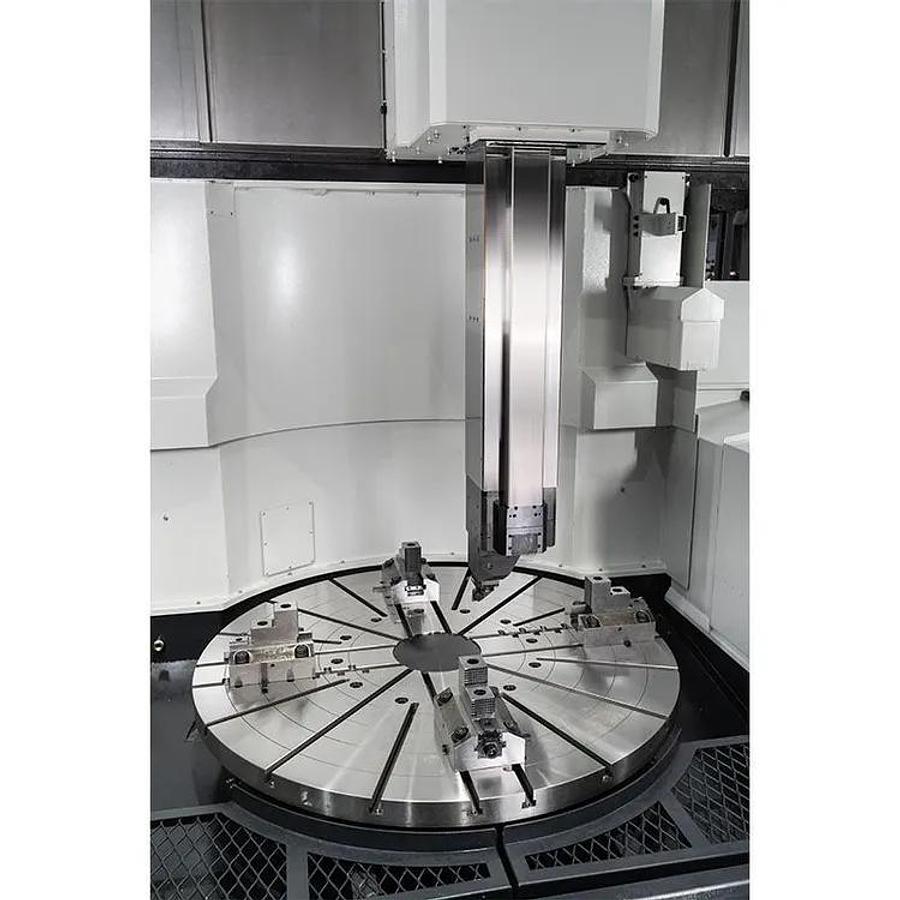

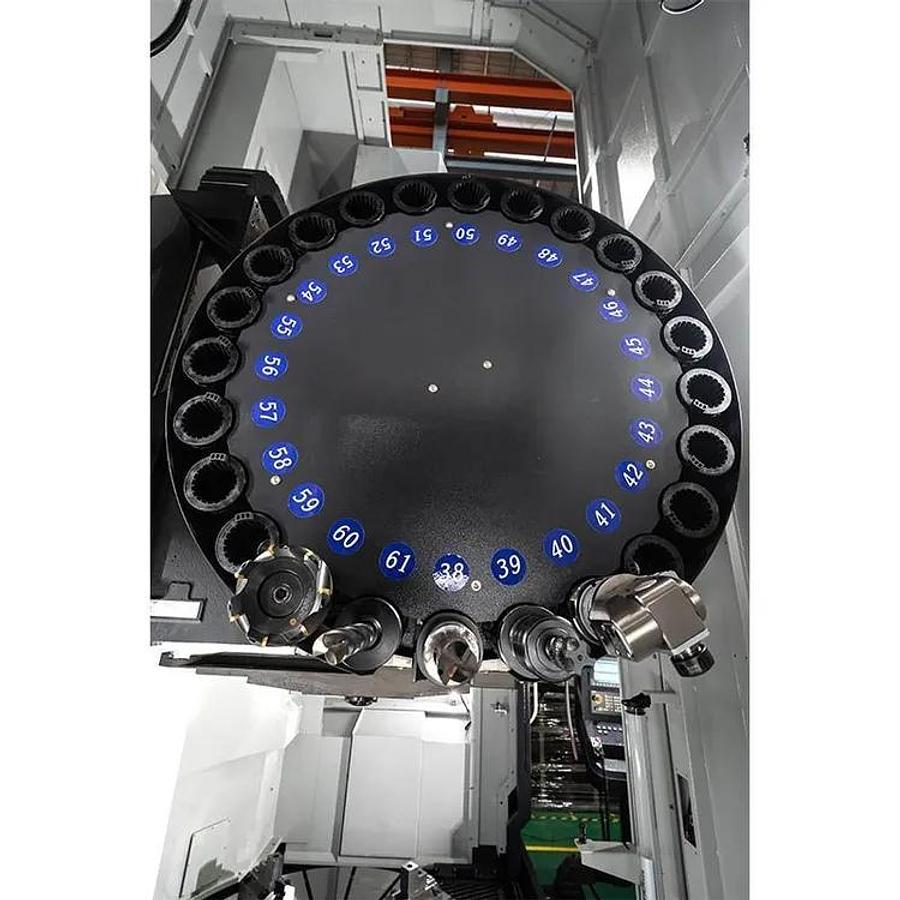

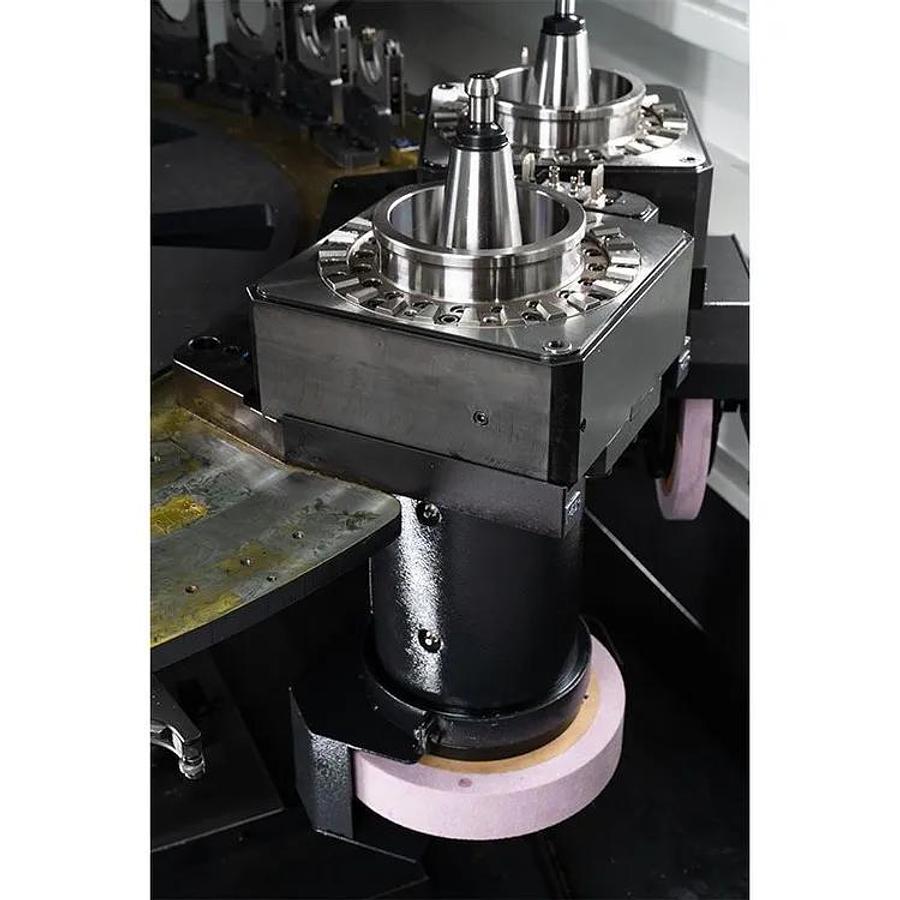

KENYOU VTM3034 Vertical Turning Center, Vertical turning and milling solution with Fanuc or Siemens control options, 3000mm table diameter, 3400mm turning diameter, 20,000kg max workpiece weight and up to 72 tools Machine Features Fanuc 0iTF plus / Siemens Sinumerik 828D control options One piece machine bed ensures rigidity Unique machine design High pressure coolant through system with multiple filter system for efficient machining Milling option Grinding option Capto option Table diameter 3000mm Max swing diameter 3400mm Max turning diameter 3400mm Max turning height 1700mm (2100mm opt) Max workpiece weight 20,000kg X travel -200 ~ +1400mm (-1200 ~ +1400mm opt) Z axis 1200mm (1400mm opt) W axis 100mm W axis positions 5 C axis 360° X axis rapid traverse 10m/min Z axis rapid traverse 10m/min C axis rapid traverse 4 min-1 Vertical workholding max spindle speed 120rpm Vertical workholidng speed range 2 step gearbox Vertical workholding motor power (30 min) 30/37kW x2 Min spindle indexing angle (C axis) 0.001° Tool capacity 16 (up to 72 opt) Max tool length 500mm turning / 300mm rotary tool Tooling system Turning BT50 + coupling (ball & collet lock, capto opt) Milling BT/BBT50 Tool clamping force Turning 2000kgf (8000kgf opt) Milling 1800kgf Pull stud MAS 403 Ram size 250 x 250mm Ram side nozzles 2 pieces Ram CTS 7 bar (20/70/120 bar opt) Milling spindl max speed 2400rpm Milling spindle speed range 2 step Milling spindle motor power (S1/S6 60%) 11/15kW Fanuc (15/18, 18.5/22, 22/26kW opt) Power 120kVA Machine dimension (L x W x H) 9400 x 6800 x 7200mm Machine weight 51,000kg
