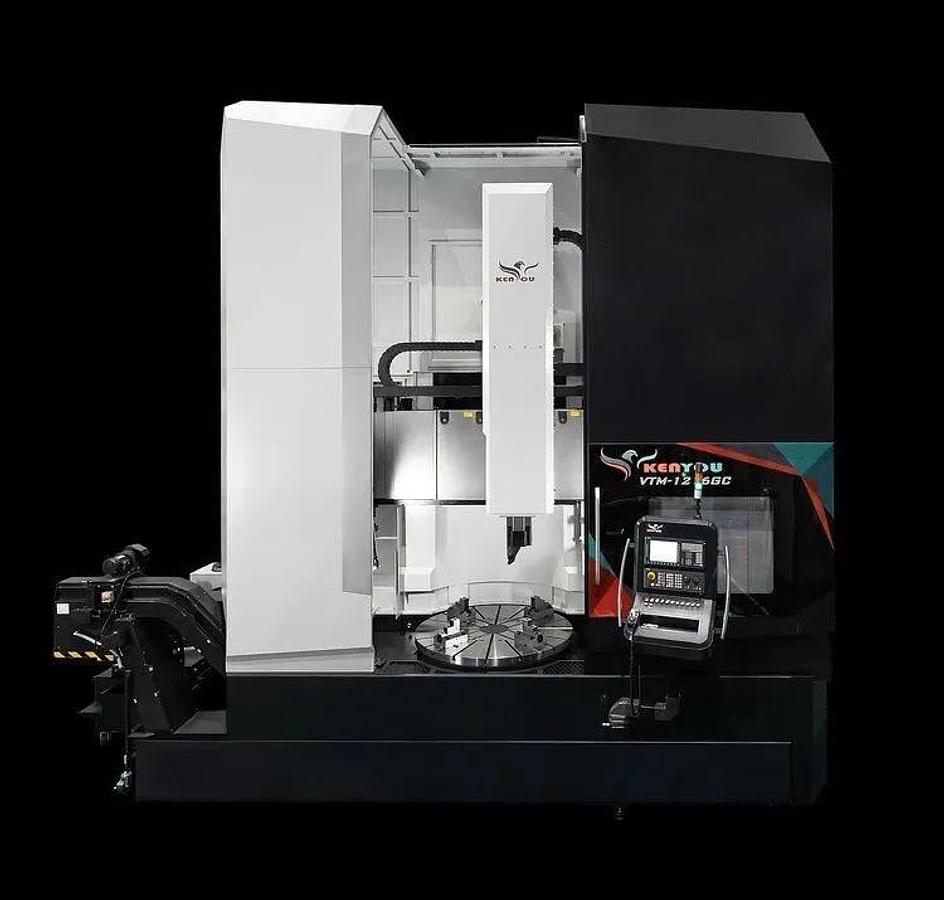

2025 KENYOU VERTICAL BORING MILL Model VTM 1616, 62.99" Chuck, 70.86" Swing

2025 KENYOU VERTICAL BORING MILL Model VTM 1616, 62.99" Chuck, 70.86" Swing KENYOU Ind.Co.,Ltd is professional CNC Vertical Lathe manufacturer specialize in customization and solution offering. The factory of KENYOU located in Taiwan Nantou , Caoton area , KENYOU is set up by experienced team who has passion and decades experience in machine tools , the founder of KENYOU has own unique vision of machine design , the main purpose is offer machine which suit the customer's application most , with high quality and reasonable price which is definitely the best choice. Performance In order to control the machine performance , KENYOU team has included experienced mold manufacturer and machining job shop which ensure the machine casting quality , delivery and reliability. Principle The principle of KENYOU machine design is rigidity , accurate and efficient. Comparing with other VTL builder based on same size machine , KENYOU machine could achieve larger turning dia., with high / rigid own patent design tooling clamping system , also be more flexible on machine customization and tooling selection. 2. Standard Accessories 2.1 FANUC 0iTF-Plus ■Standard ■Standard 2.2 Boring Mill jaws (4jaws per set) ■Standard 2.3 Disk type oil separator ■Standard □Optional 2.4 Air gun, Water gun ■Standard □Optional 2.5 Chip conveyor and chip cart ■Standard 2.6 Air conditioner of electric cabinet ■Standard ■Standard 2.7 Heat exchanger of electric cabinet ■Standard ■Standard 2.8 MPG ■Standard □Optional 2.9 Levelling pads and bolts ■Standard □Optional 2.10 Tool box and spare parts ■Standard ■Standard 2.11 Manual and operator manual ■Standard Opti Optional Model C Capto Hydraulic Clamping Model G for Grinding KENYOU CNC VERTICAL LATHE VT-1616 with Fanuc 0iTF-Plus VTM-1616 (Milling) 1. Machine specification 1.1 Capacity Inch Metric Table diameter 62.99” 1,600mm Max. swing diameter 70.86” 1,800mm Max. turning diameter 62.99” 1,600mm Max. turning height 51.18” 1,300mm Max. allowable workpiece weight 17,600lbs 8,000kg 1.2 Travels Travel X-axis -33.46” to 37.40” -850 to 950mm Z-axis 39.37” 1,000mm W-axis 31.49”, 5 positions 800mm, 5 positions C-axis +/-360deg. +/-360deg. 1.3 Rapid traverse rate X-axis 393.7ipm 10m/min Z-axis 393.7ipm 10m/min C-axis 5 min-1 5 min-1 1.4 Workpiece Spindle (1st Spindle) Max. spindle speed 300rpm 300rpm Speed range 2-speed gearbox (high/low) Motor power 30min(S1/S6 60%) 50/60HP 37/45kW Min. spindle index angle (C-axis) 0.001deg 0.001deg 1.5 Tool Magazine Capacity 16T 16T Max. tool length Turning 19.68” 500mm Max. tool length Milling 11.81” 300mm 1.6 Tooling Tool interface Turning BT50+Coupling BT50+Coupling Clamping Force 29.42kN 3,000kg Milling BT/BBT50 BT/BBT50 Clamping Force 17.60kN 1,800kg 1.7 Ram Ram size 9.84” x 9.84” 250 x 250mm Ram side nozzles 2 pcs 2 pcs Ram CTS 100 psi 7bar 1.8 Milling Spindle (2nd Spindle) Max. spindle speed 2,400rpm 2,400rpm Speed range 2-speed gearbox (high/low) Motor power 30min(S1/S6 60%) 15/20HP 11/15kW 1.9 Power Source Power consumption 80kVA 80kVA 1.10Machine Dimensions Length x Width 272” x 195” 6,905 x 4,950mm Height 248” 6,030mm Weight 64,900lbs 29,500kgs
