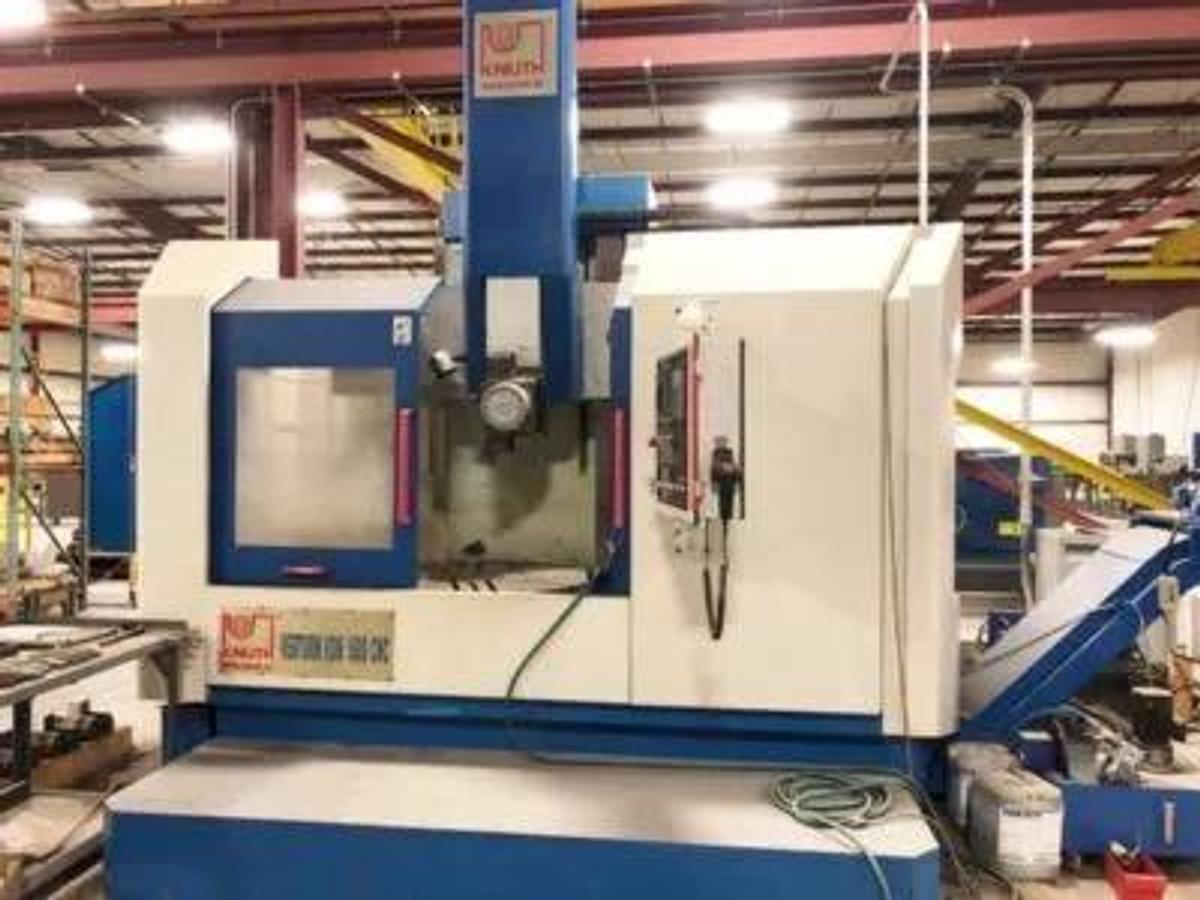

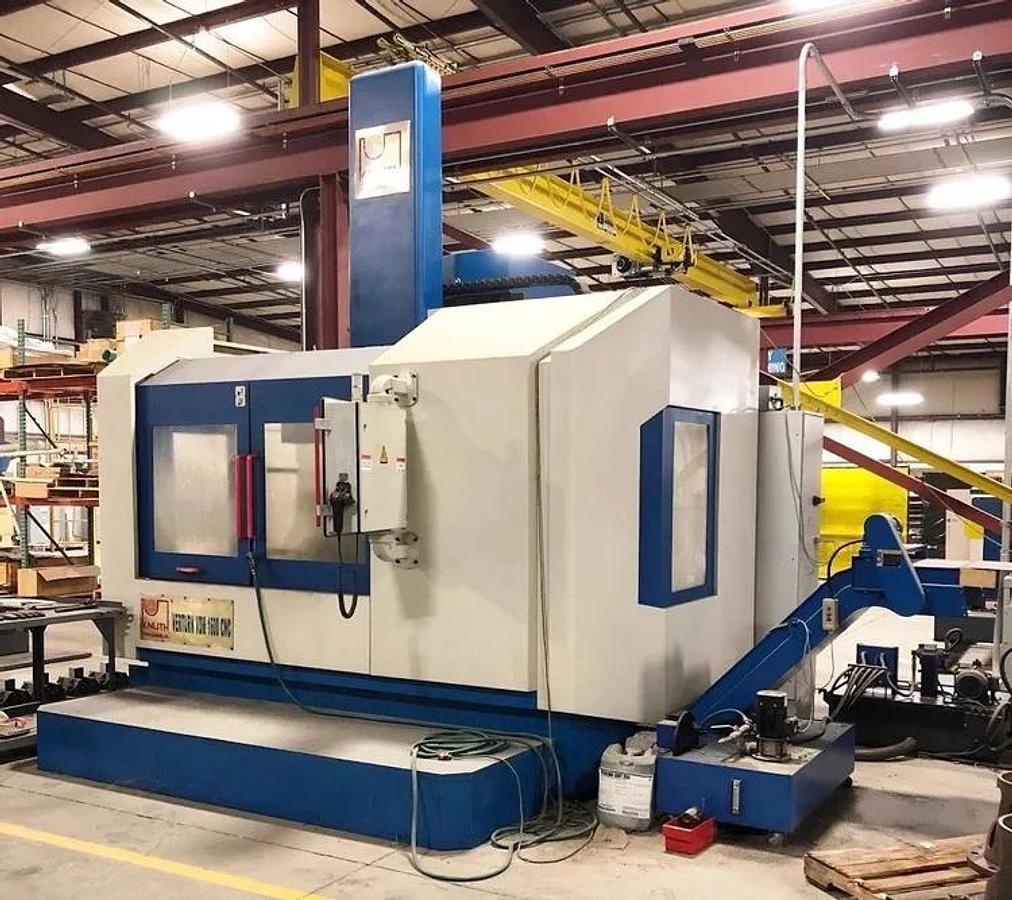

2015 KNUTH VERTURN VDM 1600 CNC, 55" Chuck/Table 63" Swing. 47" Max Height, 4 Position Turret, Siemens 828 SL CNC

$179,500
or
Call 1+847-571-0523
Get Financing

Description

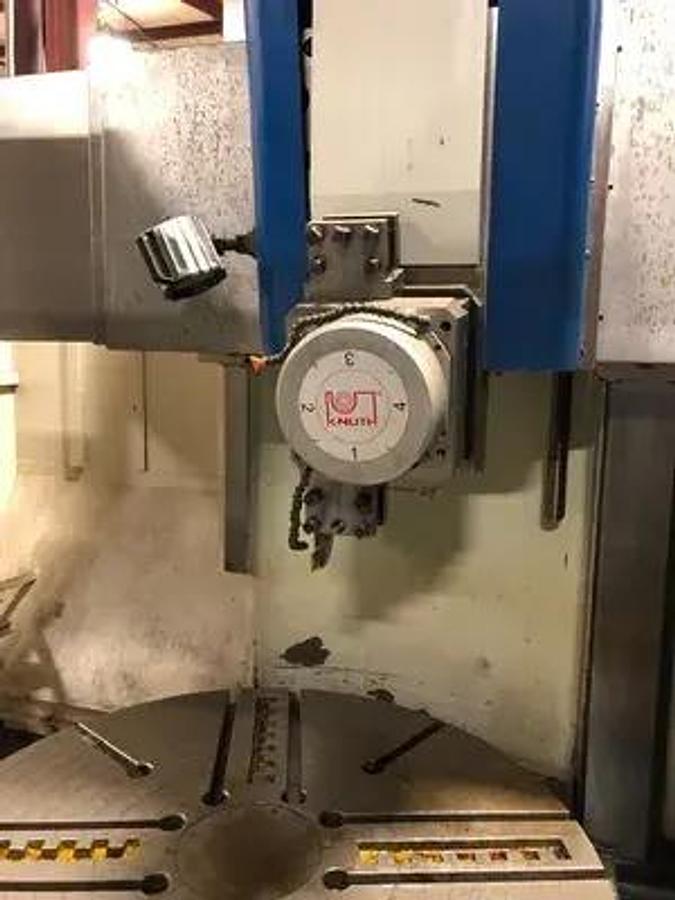

2015 KNUTH VERTURN VDM 1600 CNC, 55" Chuck/Table 63" Swing. 47" Max Height, 4 Position Turret, Siemens 828 SL CNC Siemens 828 D SL CNC , electronic handwheel, 4-jaw face chuck, automatic 4-station tool changer, coolant systemhydraulic unit, lighting, 4 Position ATC 4-step precision gears and infinitely variable 60 HP motor for high torque (up to 29,500 ft/lbs.) across entire speed range Headstock Feed Automatic Tool Changer 4 Position
Show All

Specifications

ManufacturerKNUTH
ModelVERTURN VDM 1600 CNC
Year2015
ConditionNew
Stock Number22207
StatusFor Sale
CountryUnited States

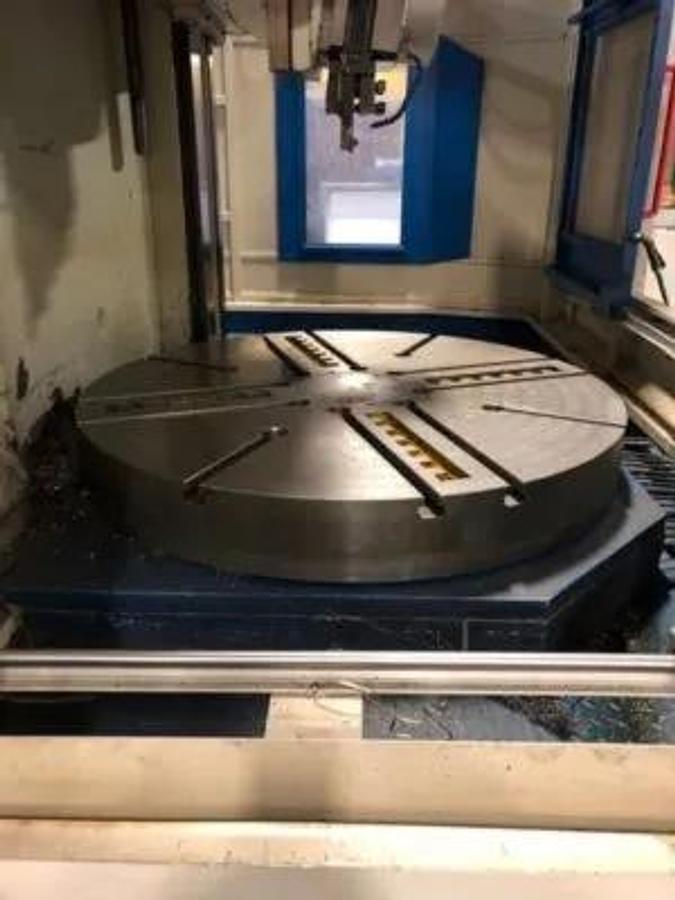

Table Dia55"; 1,397 mm
Swing63"; 1,600.2 mm
Work Ht-U/R47"; 1,193.8 mm
Power60 hp; 44.7 kW
RPM200 RPM; 200 RPM
ControlCNC (Siemens 840D SL); CNC (Siemens 840D SL)
Dimensions209"L x 150"D x 165"H; 209"L x 150"D x 165"H
Weight26,400 lbs; 26,400 lbs
Turning Dia63"
Machining Height47"
X Axis Travel40"
Z Axis Travel31"
W Axis Travel33"
Work Piece Weight (max)11,000 lbs
Speed Range.5 - 200 RPM
Torque Max23,600 ft lb
Lathe Chuck Dia55"
Rapid Feed X axis236 IPM
Rapid Feed Z axis236 IPM
Feed W axis17 IPM
Tool Change Time10S
Tool Weight55 lbs
Main Motor Drive60 HP
