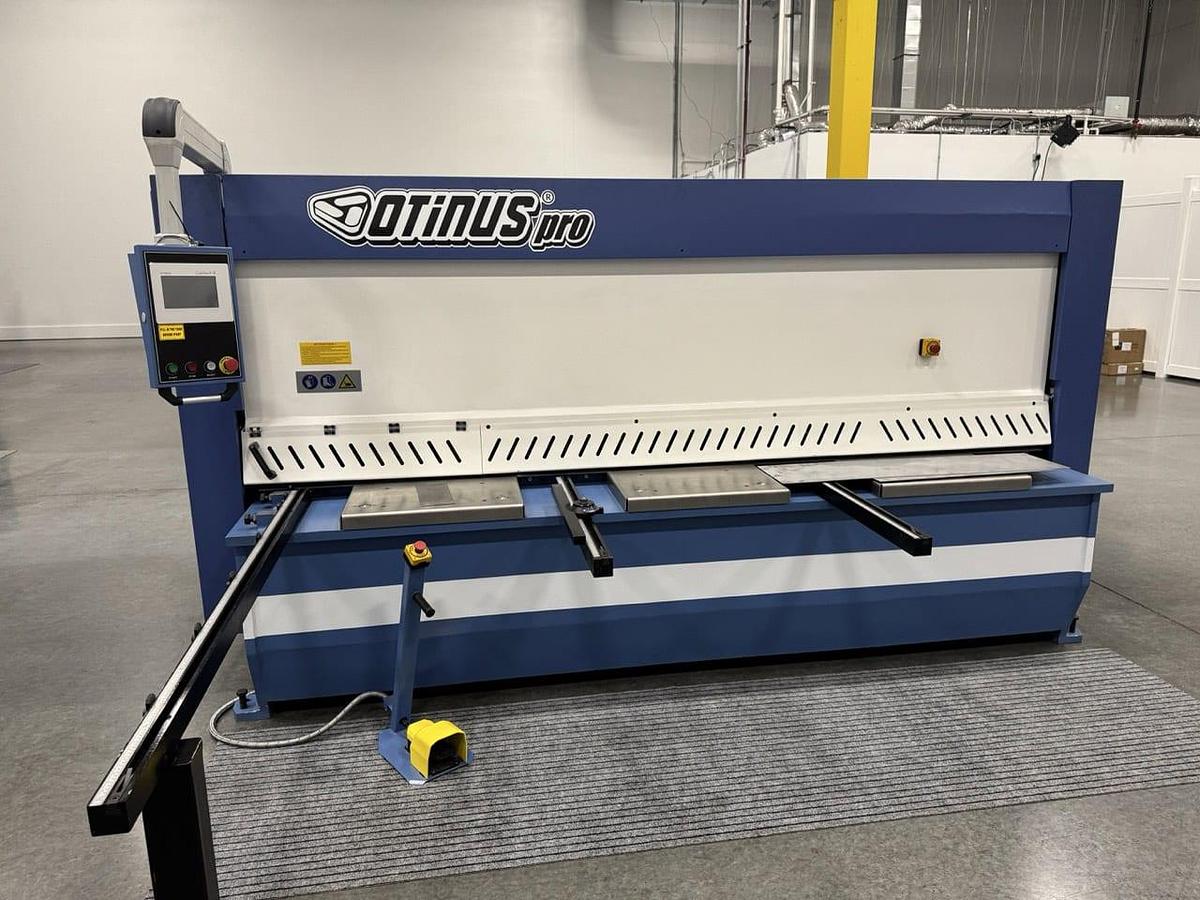

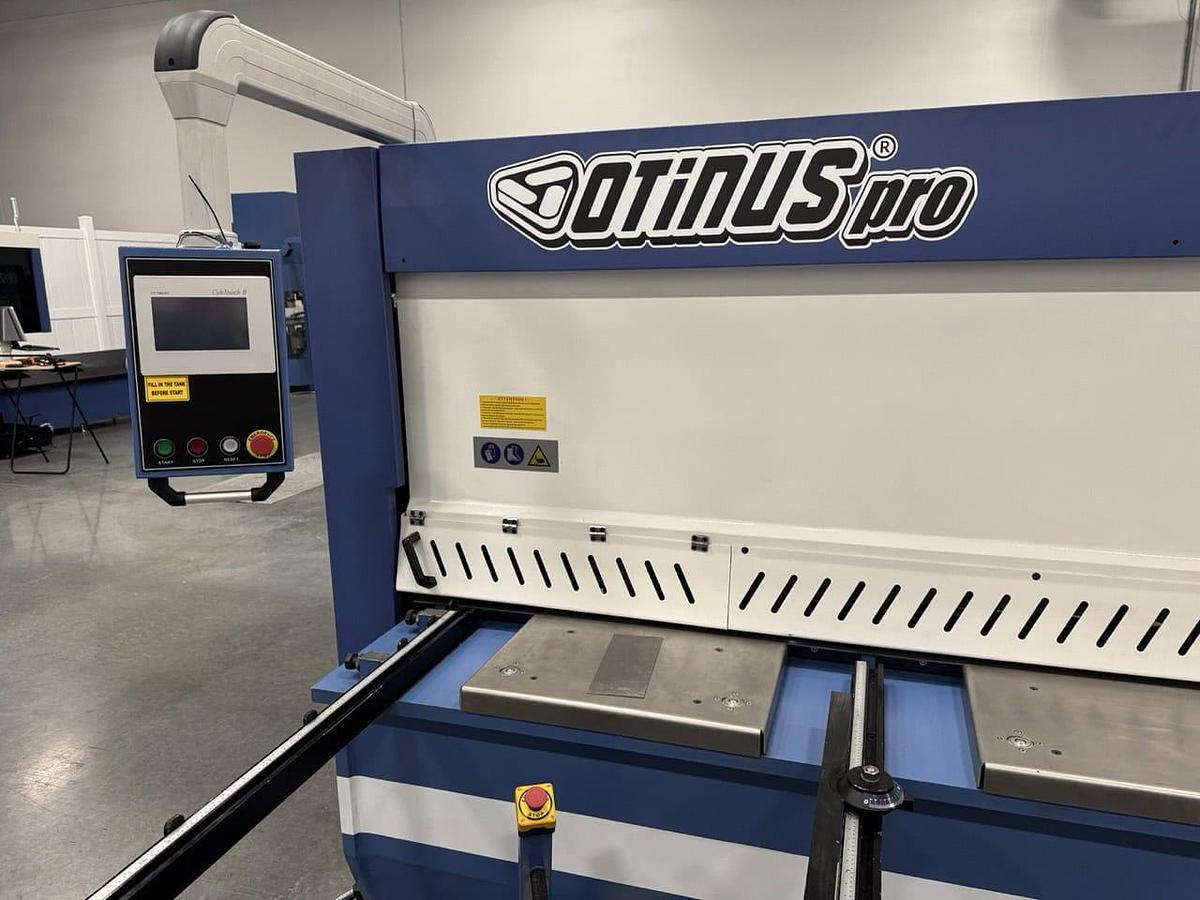

OTINUS PRO Guillotine shear 5/16" x122" with Cybtouch-8 Control

Nominal Motor Power: 15.0 kW

Maximum Cutting Capacity for carbon steel sheets (S235 PN-EN): up to 8.0 mm

Maximum Cutting Length for Carbon Steel: 11′

Shear Angle: 1.8°

Strokes/min 13

Backgauge retract distance: 29″

Machine Dimensions: 13″x 5″x 6″

Machine Weight: 14,222 lbs

STANDARD EQUIPMENT

Automatic blade gap adjustment Included

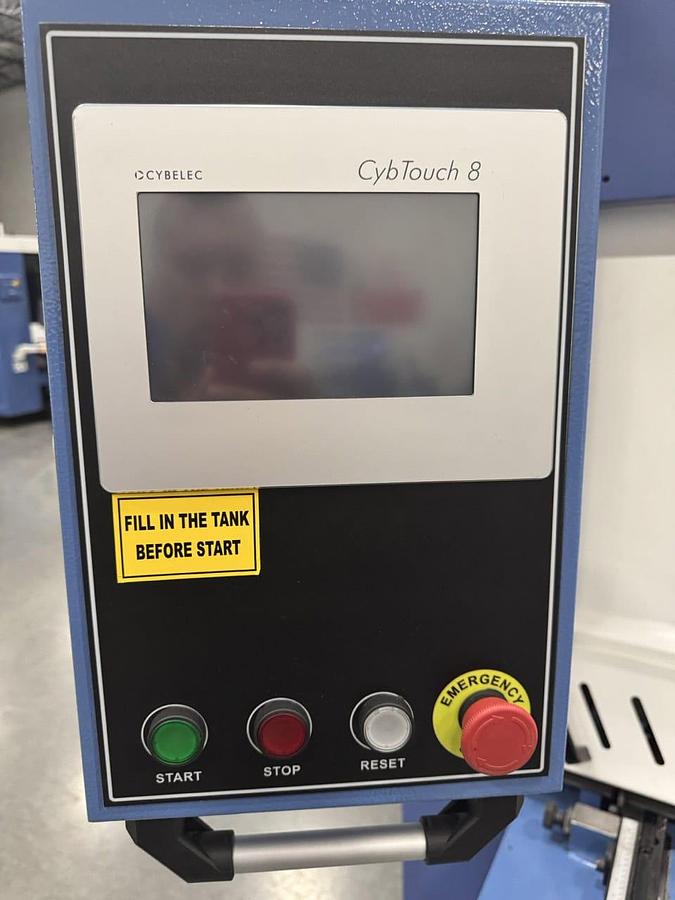

CybTouch8 controller Included

Pneumatic Sheet Support Included

Angular Gauge (0-180) Included

Table made from Stainless Stteel Included

Extended Squaring Arm (L=2m) with ground support Included

Light curtains Included

Installation and operation training on-site of end user Included

(1 day up to 8 hours)

Independent work on the machine up technician supervision Included

(1 day up to 8 hours)

Telephone consultation with OTINUS specialist Included

(a time package of 8 hours)

OTHER OPTIONAL ACCESSORIES

Reinforced and more solid construction Intuitive CNC controllers: CybTouch8 or ELGO Extended front supports with protractors Extended front supports with protractors Supports and ball transfer units at the front table and rear ramp Laser cutting line indicator Additional lifts on the rear ramp Guards and photocells ensuring operator safety Automatic clearance adjustment – ability to adapt to different material thicknesses Machine workspace lighting Blades: up to 1 inch thick Working table lengths: up to 20 feet Blades for cutting stainless steel
