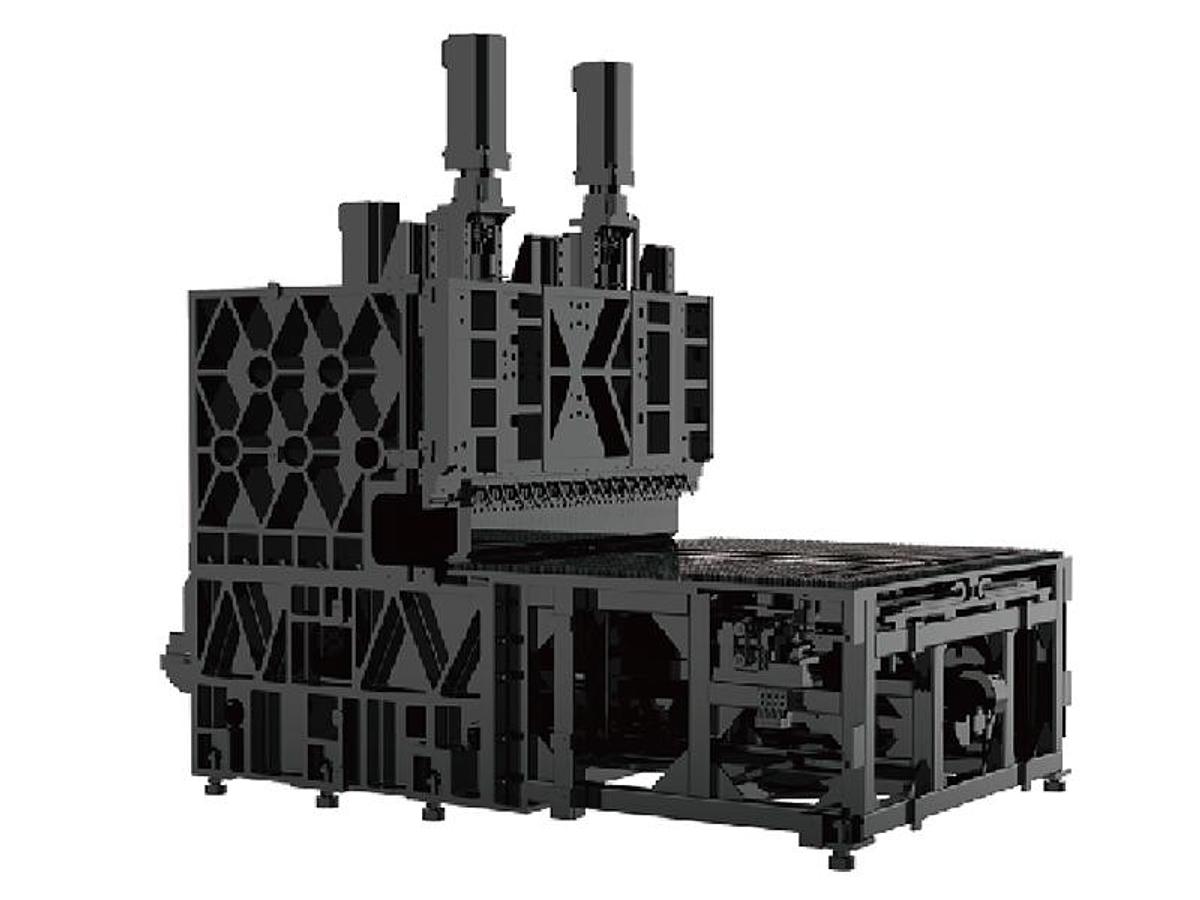

2026 ADH Machine Tool PB-A3200 Panel Bender 120" Length

Panel Bender with Automatic Tool Change

Achieve 0.2s bends and complex, mold-free designs with ease. Our Panel Bender features intuitive controls, low power consumption, and minimal maintenance. Fully Industry 4.0 integrated with intelligent systems for peak efficiency and protection. Simplify production, maximize output.

SPECIFICATIONS I t e m

Bending Length 3200mm

Bending Height 200mm

Minimum Dimension for Four-Sided Forming 390/180mm

Minimum Dimension for Two-Sided Forming 180mm

Minimum Bending Height 6mm

Minimum Arc Radius 4mm

Maximum Diagonal 3600mm

Bending Angle /

Bending Speed 0.2s/bending

Number of Axes 24+4

Bending Plate Thickness

ColdPlate: 2mm

Stainless Steel: 1.5mm

Aluminum: 3.5mm

GalvanizedPlate: 2mm

Hot-RolledPlate: 2mm

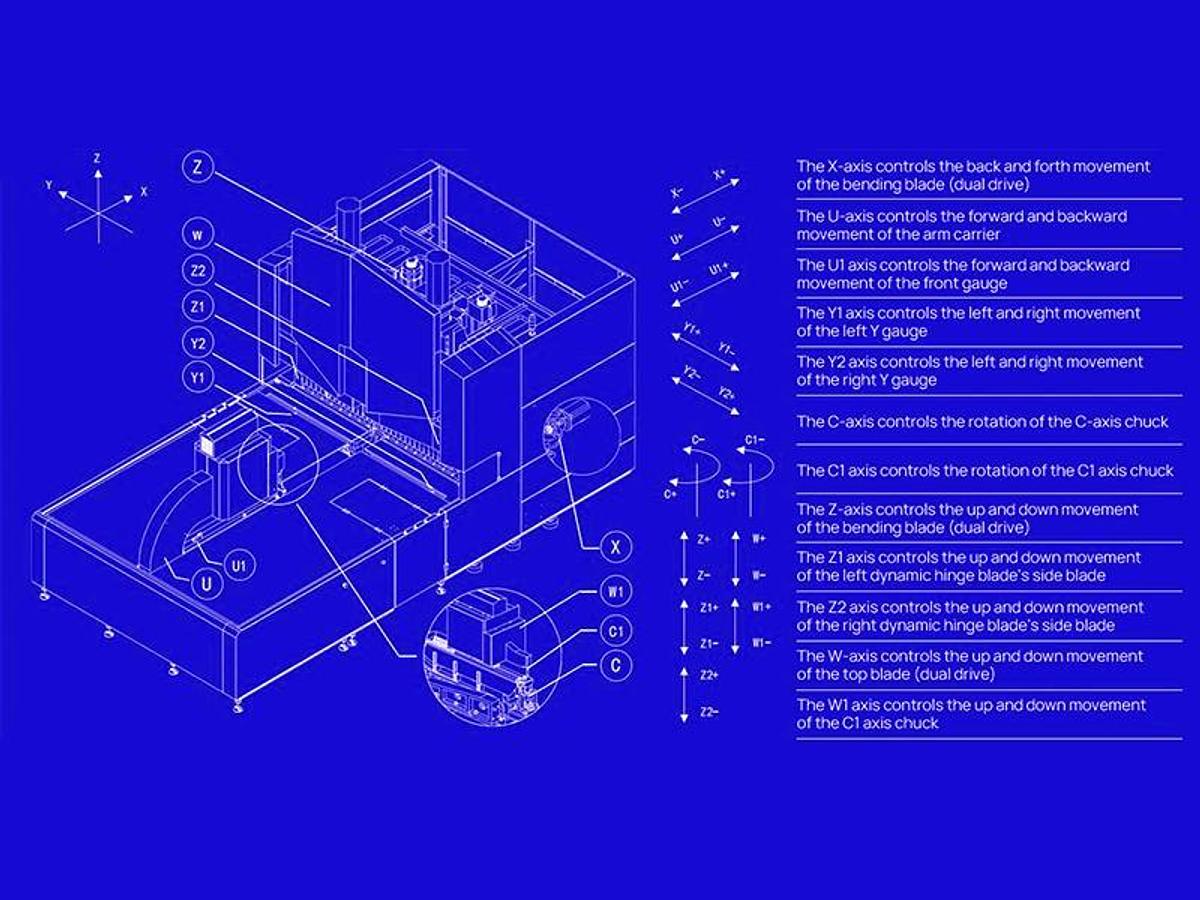

Spindle Travel

X - Ax i s: 150mm

Z - Ax i s: 230mm

U-Axis: 1800mm

Y-Axis: 300mm

Feeding Structure pressingarm

Maximum Feed Speed 0.8m/min

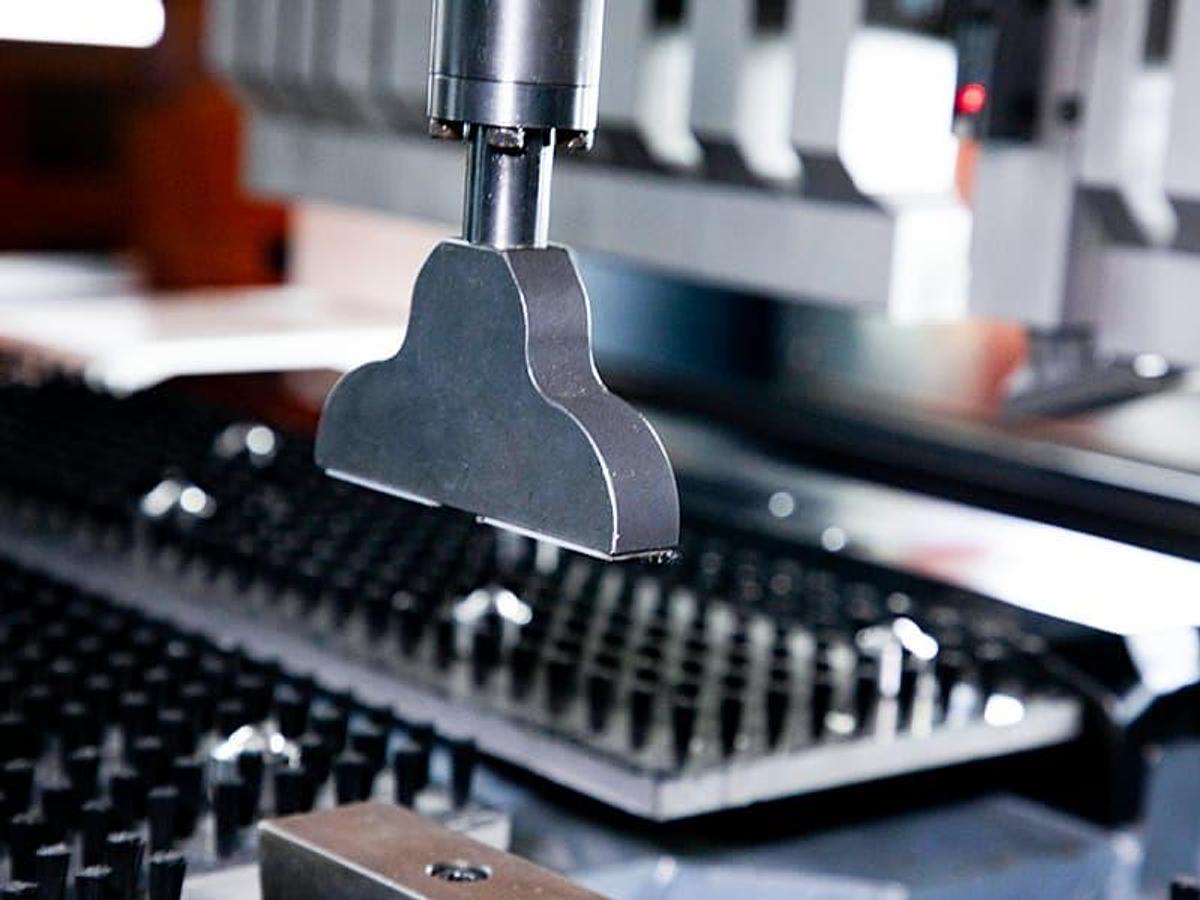

Tool Change Mode automatic

Upper Tool Pressure on Two Axis /

Worktable Structure Brush and ball transfer

Total Power 165kw

Peak Power 110kw

Dimensions (L*W*H) 6900mmX4200mmX3500mm

TotalWeight 28tons

Key Specifications (Typical for ADH PB-A/PB-P Series)

• Model Types: PB-P (Press Arm), PB-S (Suction Cup), PB-A (Auto-Tool).
• Material Thickness: Up to 3mm (or 3.5mm on some auto models) for steel/aluminum.
• Max Sheet Size: Around 2500mm x 1250mm (PB-P) or 2500mm x 2500mm (PB-S).
• Bending Speed: Extremely fast, around 0.2 seconds per bend.
• Control System: ADH's proprietary system with graphical programming.
• Bending Method: Press arm (PB-P) or suction cup (PB-S) for handling.
• Accuracy: High precision, potentially down to 0.0001mm.

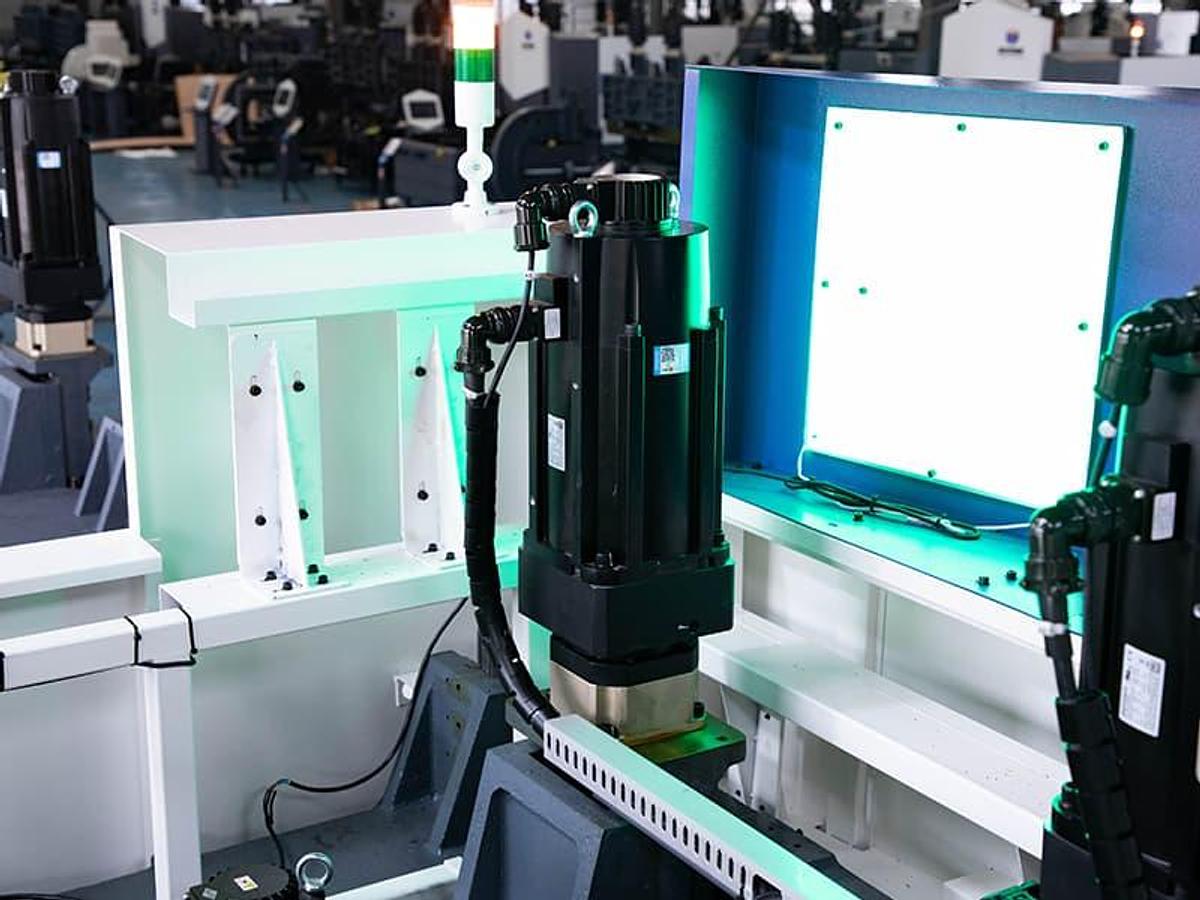

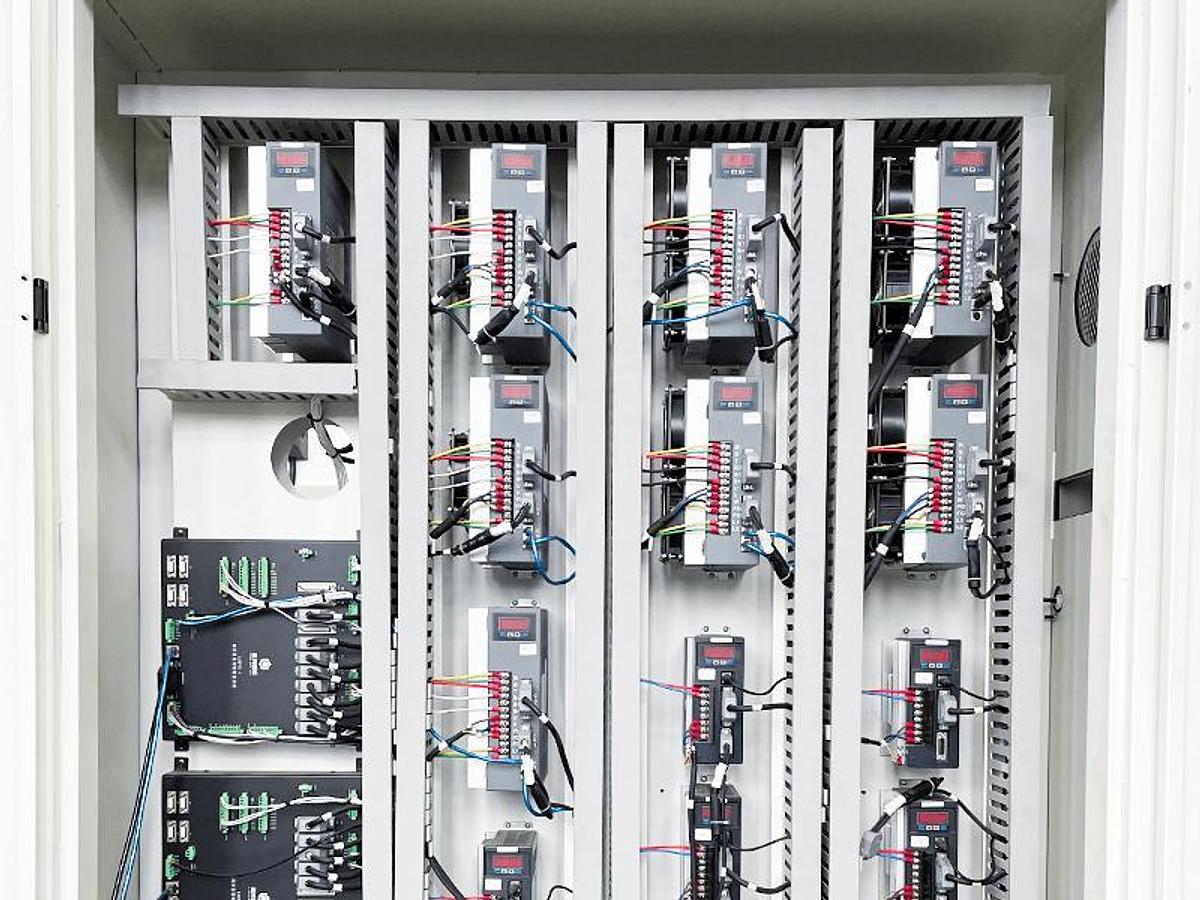

• Features: Automatic tool adjustment, servo drives, extensive profile libraries.

What to Expect from the "PB-A3200" Designation:

• PB: Panel Bender.
• A: Automatic/Auto-Tool series, suggesting higher automation.
• 3200: Likely refers to the maximum working length (3200mm), though standard models often focus on 2500mm; it might indicate a specific configuration.
